CWWK S1 10GbE Firewall Mini PC

The CWWK S1 is a dual-10GbE SFP+ firewall mini PC available with Intel N100, N150, Core i3-N305 and Core 3 N355 processors. It combines two 10GbE SFP+ interfaces, two 2.5GbE LAN ports, DDR5 memory, NVMe and SATA storage, dual-fan active cooling and VESA mounting in CWWK's flagship aluminum chassis.

Intel N100, N150, N305 and N355 Processor Options

CW-S1 is available with four Intel N-Series processor options, allowing the same networking platform to be configured for different firewall, routing, VPN, virtualization and home lab workloads.

Intel N100 Low-power processor option for firewall, routing, VLAN and everyday network appliance workloads.

Intel N150 Updated low-power option for compact routing, VPN and multi-gigabit networking deployments.

Intel Core i3-N305 Higher-core-count option for more demanding network services, virtualization and multi-service deployments.

Intel Core 3 N355 Higher-performance N-Series option for heavier firewall, routing and home lab workloads.

Dual 10GbE SFP+ and Dual 2.5GbE Networking

CW-S1 combines two 10GbE SFP+ interfaces with two 2.5GbE RJ45 ports, providing high-speed fiber or DAC uplinks together with multi-gigabit copper Ethernet in one compact firewall platform.

2 × 10GbE SFP+ High-speed SFP+ connectivity for compatible optical modules, DAC connections, switches and servers.

Intel 82599 The 10GbE SFP+ network section is based on the Intel 82599 controller.

2 × 2.5GbE RJ45 Two multi-gigabit copper Ethernet interfaces for WAN, LAN or segmented network connections.

Flexible Network Topology Combine SFP+ uplinks and RJ45 interfaces for routing, firewall, VLAN and home lab network architectures.

CWWK S1 dual 10GbE SFP+ and dual 2.5GbE firewall mini PC interface overview

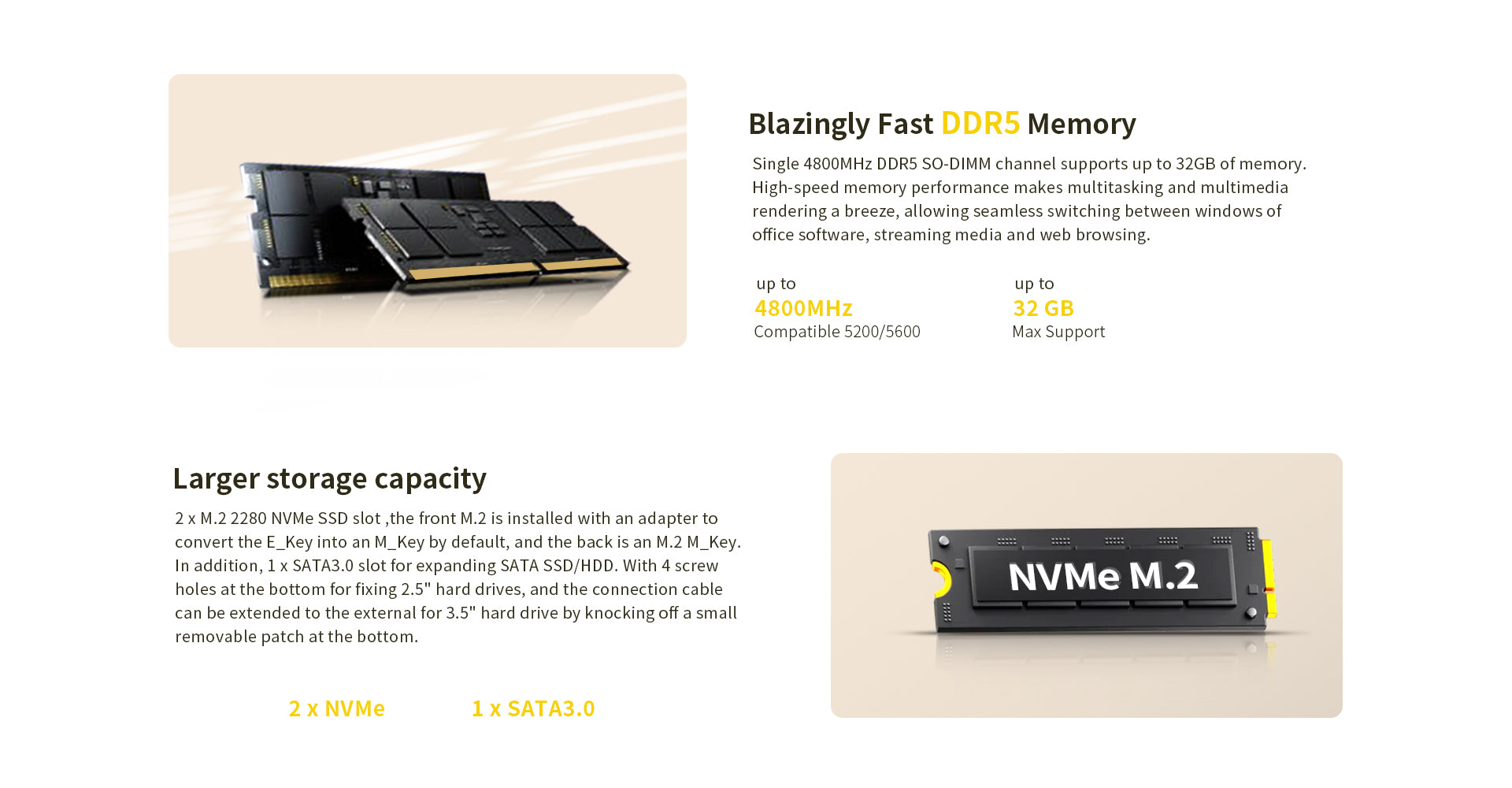

DDR5 Memory, NVMe and SATA Storage

CW-S1 supports DDR5 memory together with native M.2 NVMe storage, M.2 E-Key expansion and SATA connectivity for flexible system and local-storage configurations.

DDR5 SO-DIMM Supports DDR5 4800 / 5200 / 5600MHz memory with a maximum capacity of 32GB.

1 × M.2 2280 NVMe Native M.2 2280 interface for high-speed NVMe SSD storage.

1 × SATA 3.0 Supports installation of a compatible 2.5-inch SATA SSD or HDD.

The motherboard also includes an M.2 E-Key 2230 interface. An M.2 NVMe adapter board is installed in this position by default and can be removed when the interface is required for a compatible WiFi module.

M.2 2280 NVMe M.2 E-Key 2230 SATA 3.0 4-Pin SATA Power DDR5 Max 32GB

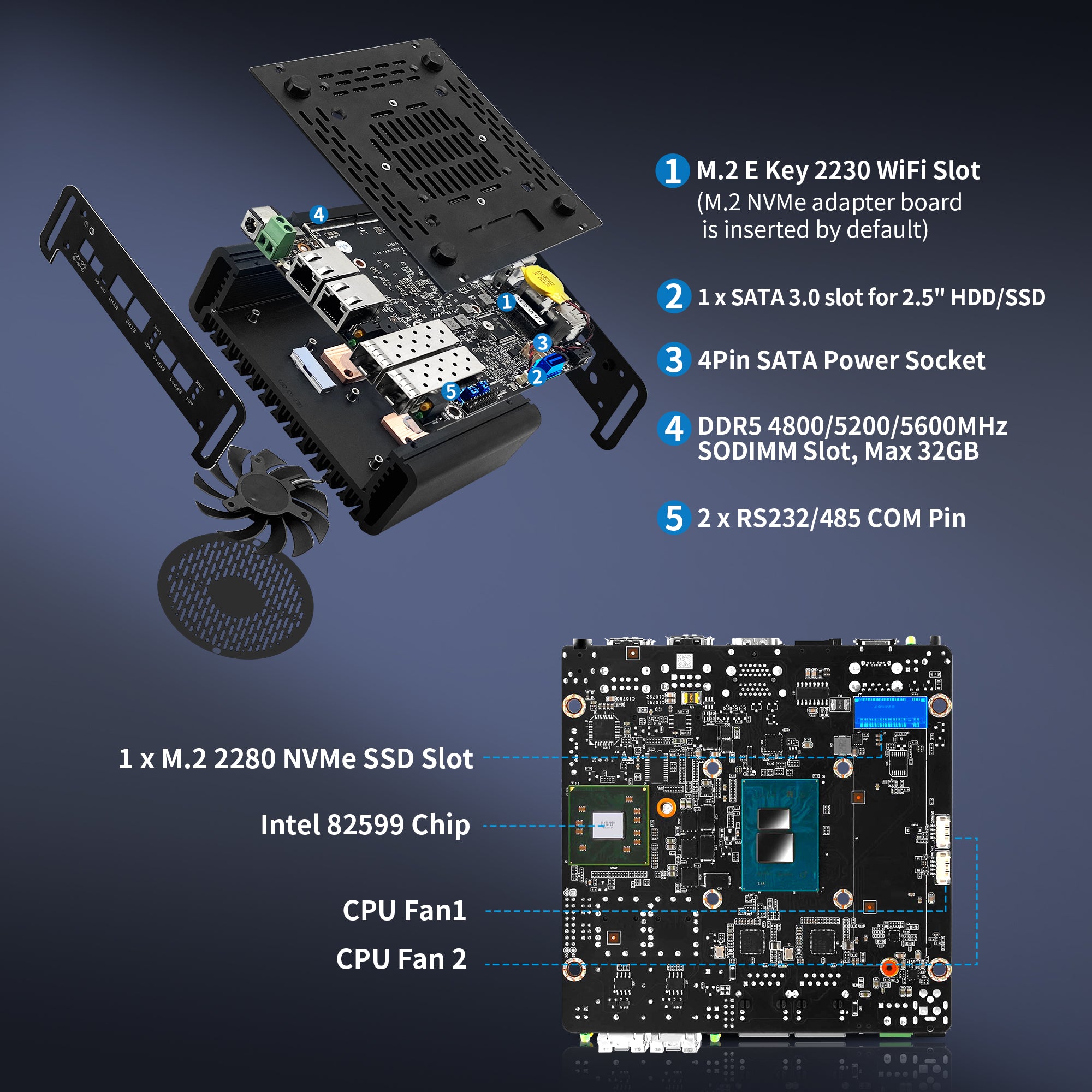

CWWK S1 internal hardware layout with DDR5 M.2 E-Key SATA storage and COM pin interfaces

Shared Motherboard Platform Across S1, S2, S6 and S8

CW-S1, CW-S2, CW-S6 and CW-S8 use the same core motherboard platform. Their primary differences come from the enclosure, physical dimensions and cooling design rather than the underlying network and expansion architecture.

One Shared Motherboard The four models share the same dual 10GbE SFP+, dual 2.5GbE, DDR5, NVMe and SATA architecture.

Four Chassis Designs S1, S2, S6 and S8 use different enclosure designs and thermal structures around the same core motherboard platform.

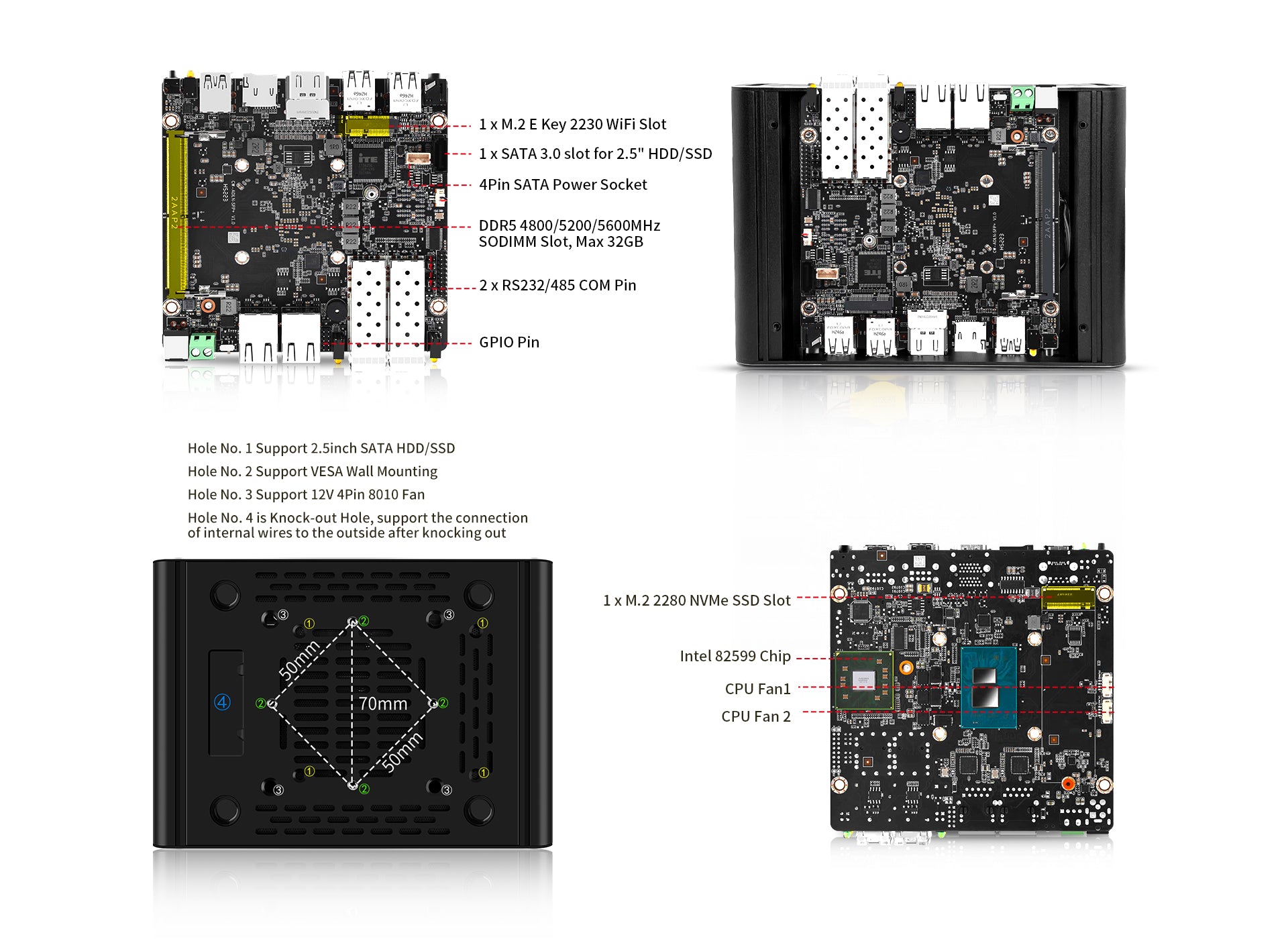

CWWK S1 S2 S6 and S8 shared motherboard with dual 10GbE SFP+ dual 2.5GbE DDR5 NVMe and SATA

CWWK S1 S2 S6 and S8 different chassis sharing the same dual 10GbE SFP+ motherboard platform

Choose Your Chassis: S1 vs S2 vs S6 vs S8

The motherboard and core network architecture remain consistent across all four models. Choose primarily by enclosure size, chassis construction and thermal design.

Current Model CWWK S1 Flagship Chassis 178 × 145 × 58 mm
Larger flagship enclosure

CWWK S2 Large-Back Chassis 155 × 135 × 65 mm
Large-Back enclosure View S2 → CWWK S6 High-Fin Chassis 145 × 130 × 55 mm
5.71 × 5.12 × 2.17 in View S6 → CWWK S8 Official Chassis 158.3 × 135.6 × 60.2 mm
Official enclosure design View S8 →

S1 Flagship Aluminum Chassis

CW-S1 uses CWWK's flagship aluminum enclosure measuring 178 × 145 × 58 mm. The larger footprint provides additional internal space for the shared motherboard platform, storage expansion and active thermal components.

      178 mm Length
      145 mm Width
      58 mm Height
      17.8 × 14.5 × 5.8 cm
      Flagship Chassis
      Aluminum Enclosure

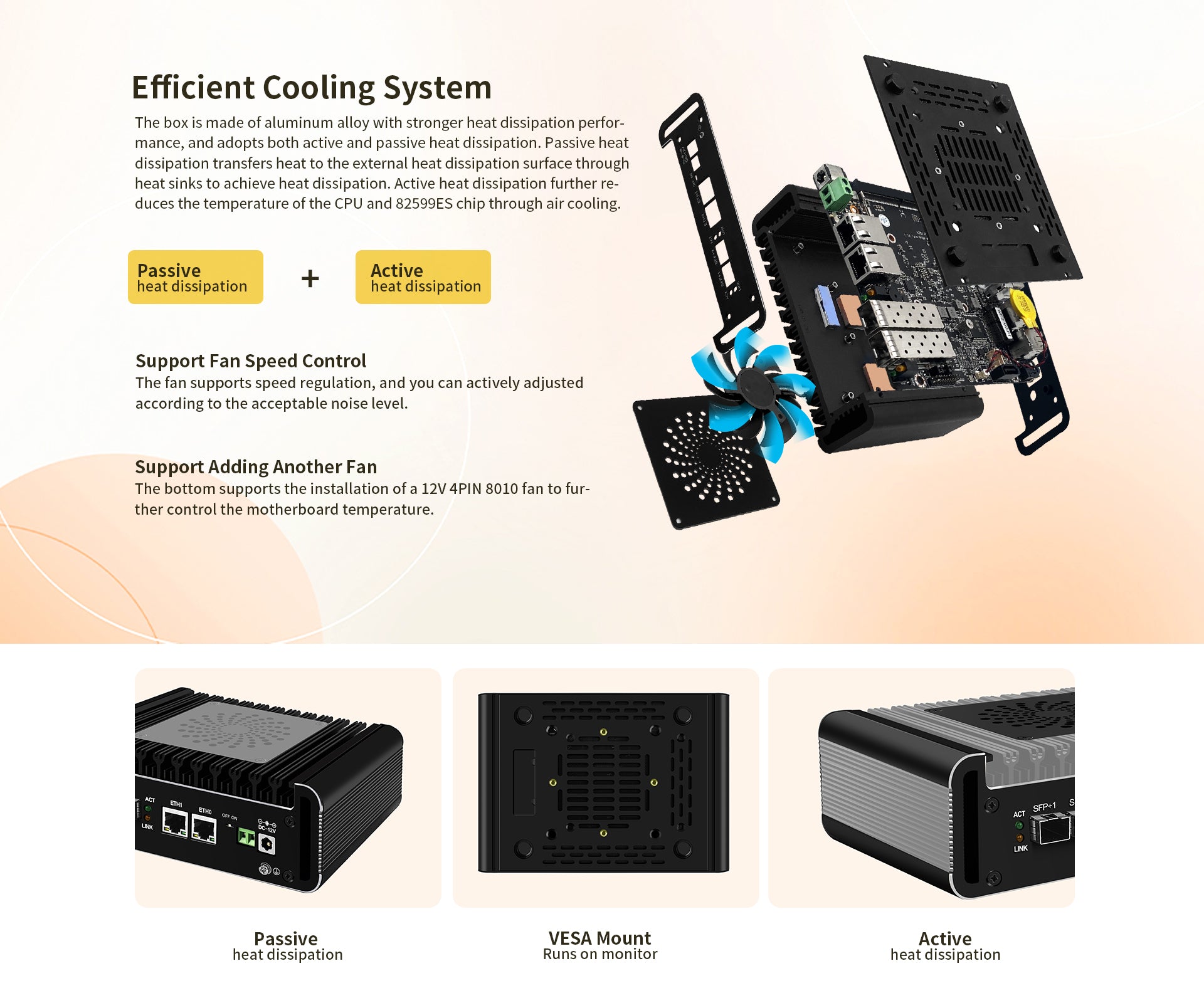

Dual-Fan Active Cooling for Sustained Network Workloads

CW-S1 uses an active cooling structure with two CPU cooling fans together with the aluminum chassis to manage system heat during sustained firewall, routing and high-speed networking workloads.

CPU Fan 1 Provides active airflow for the internal processor and thermal structure.

CPU Fan 2 Works alongside the primary fan to improve internal airflow and heat removal.

Aluminum Chassis The enclosure provides additional external surface area for overall thermal dissipation.

CWWK S1 active cooling design with dual CPU fans and aluminum chassis thermal structure

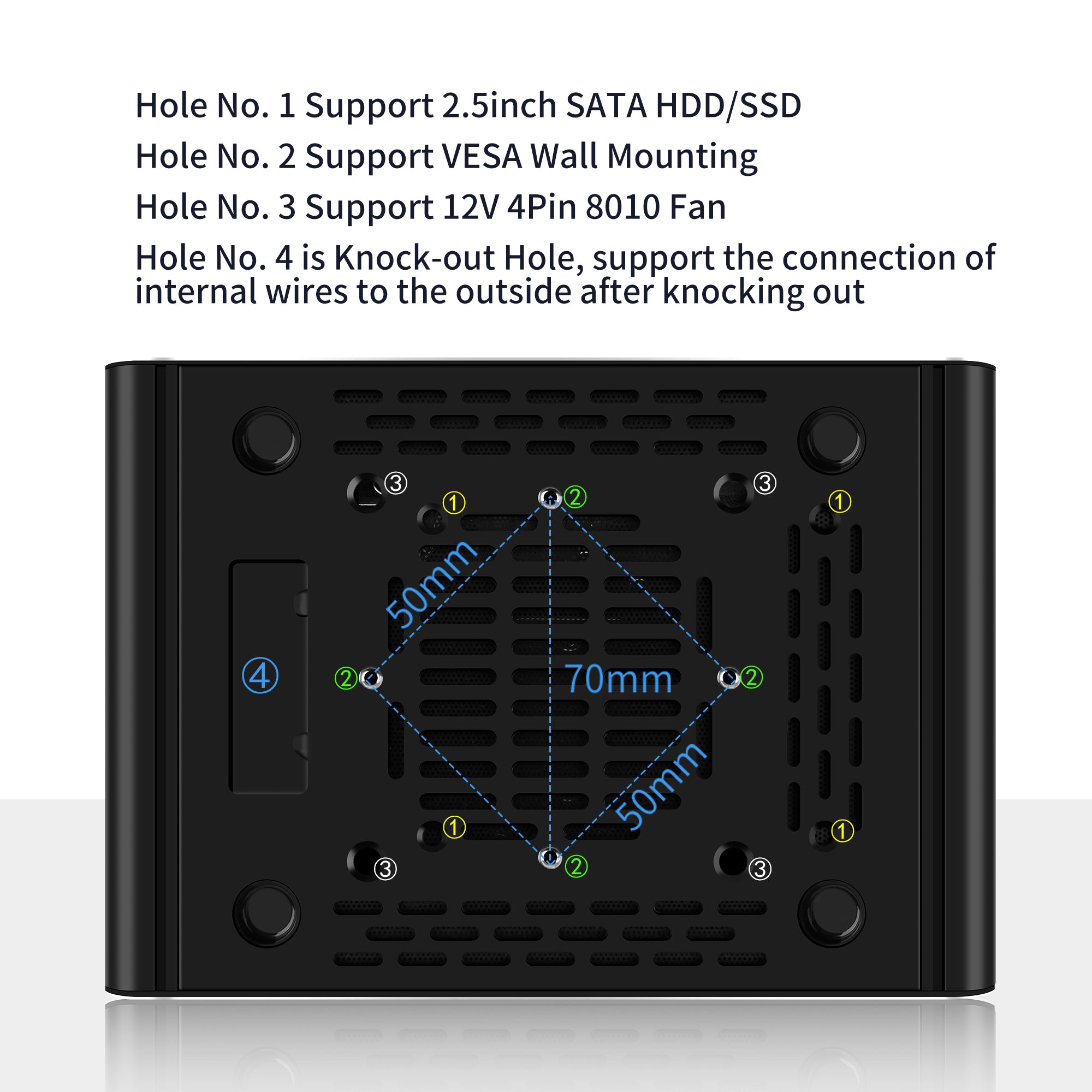

2.5-Inch SATA SSD and HDD Expansion

CW-S1 provides a SATA 3.0 interface and 4-pin SATA power socket for installing a compatible 2.5-inch SATA SSD or HDD inside the chassis.

2.5-Inch SATA Storage Add a compatible 2.5-inch SSD or HDD for additional local storage.

Data + Power Connection The motherboard provides both SATA 3.0 connectivity and a dedicated 4-pin SATA power socket.

Shop 2.5-Inch SATA Data & Power Cable →

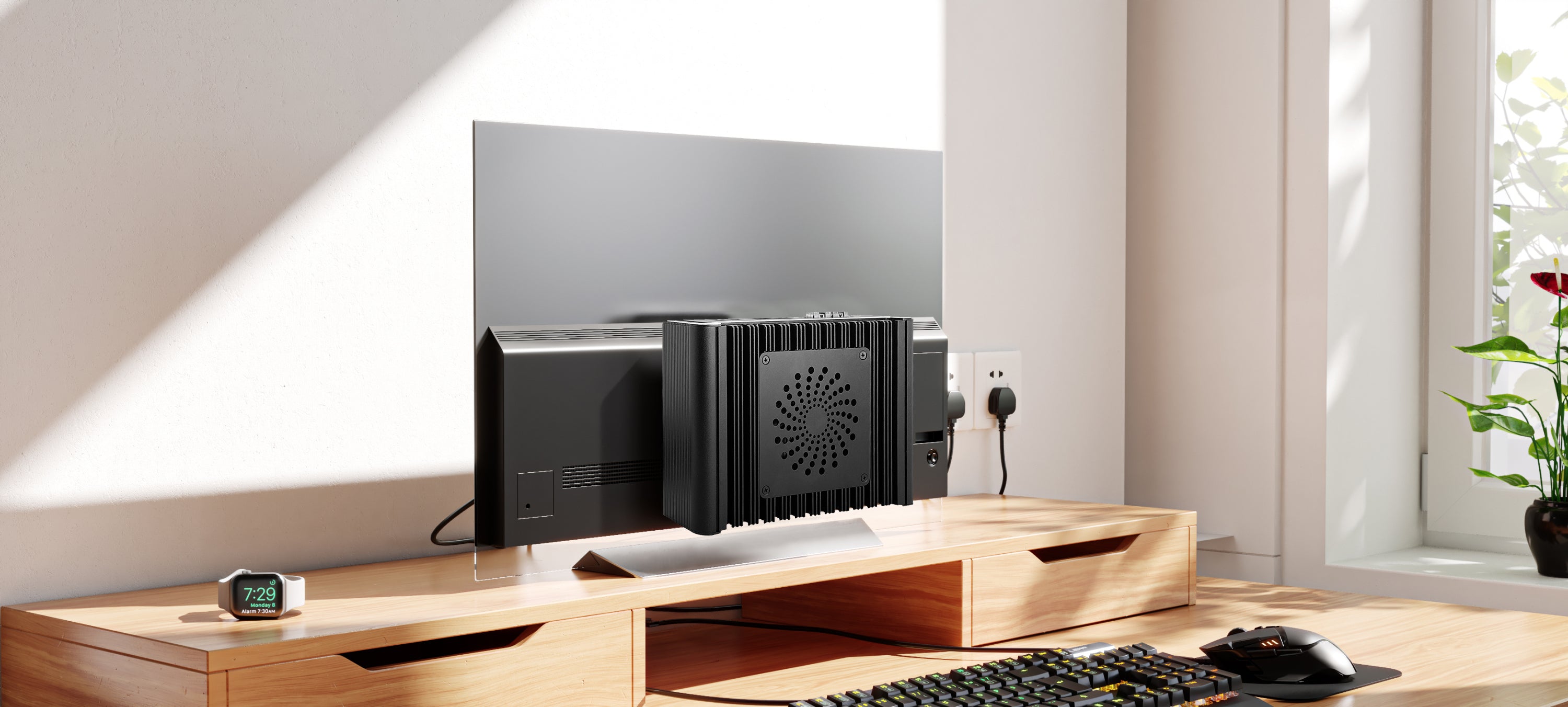

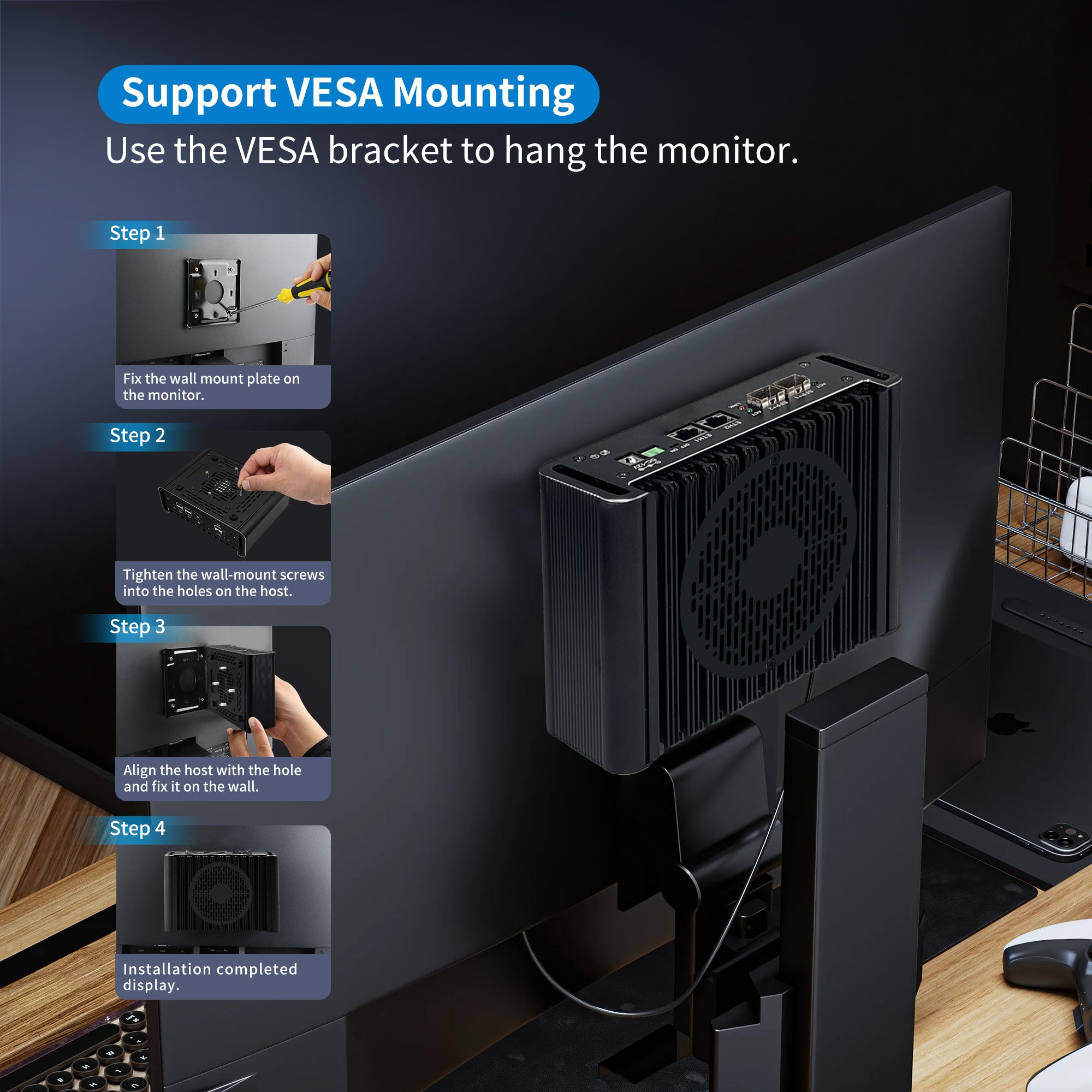

VESA Mounting for Flexible Installation

CW-S1 supports VESA mounting for installations where desktop space is limited or where the system needs to be mounted behind a compatible display or on a suitable mounting surface.

VESA Mounting Supports compatible VESA installation for more flexible system placement.

Space-Saving Deployment Suitable for compact workspaces, network stations and other installations where desktop space is limited.

CWWK S1 firewall mini PC VESA mounting installation

Firewall, Routing and Home Lab Deployment

The combination of dual 10GbE SFP+, dual 2.5GbE Ethernet and multiple Intel N-Series processor options makes CW-S1 suitable for a wide range of network appliance deployments.

Firewall Appliance Build multi-gigabit firewall and gateway systems using dedicated SFP+ and RJ45 interfaces.

10GbE Routing Use SFP+ connections for high-speed routing, uplinks, aggregation or links to compatible switches and servers.

Home Lab Deploy routing, VPN, VLAN, virtualization and other x86 network services from one compact platform.

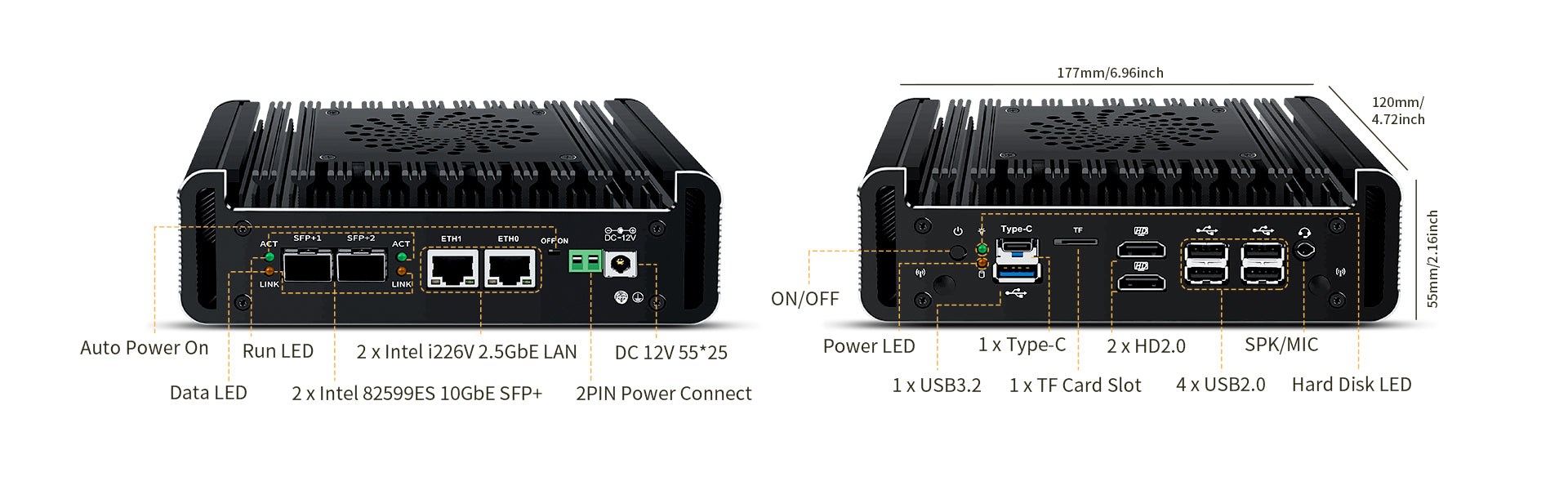

Front and Rear I/O Connectivity

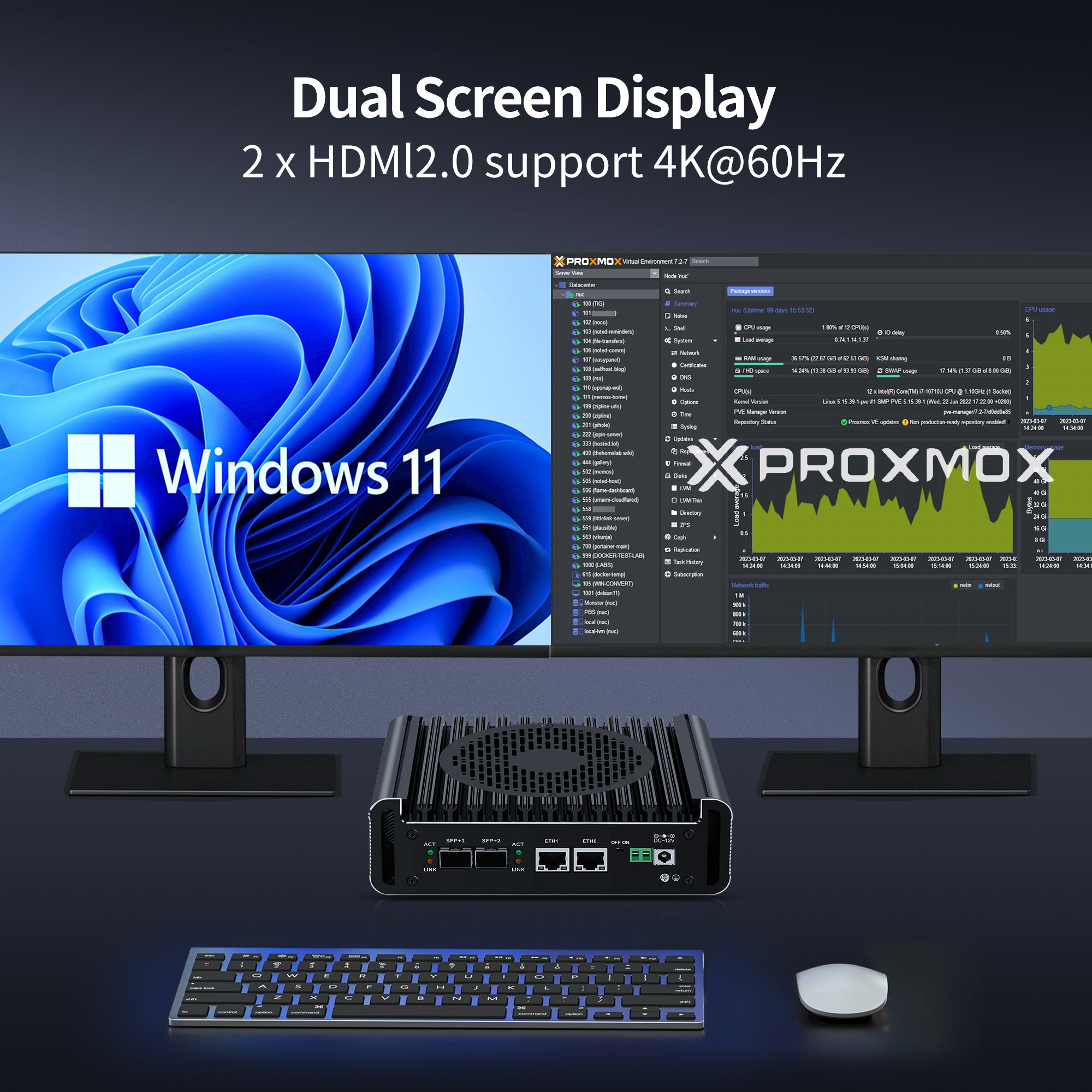

CW-S1 combines dual 10GbE SFP+, dual 2.5GbE Ethernet, display, USB, storage and expansion interfaces within the flagship chassis.

2 × 10GbE SFP+ interfaces
Intel 82599 network controller
2 × 2.5GbE RJ45 interfaces
1 × M.2 2280 NVMe slot
1 × M.2 E-Key 2230 slot
1 × SATA 3.0 interface
1 × 4-pin SATA power socket
2 × RS232/485 COM pin headers

CWWK S1 front and rear I O layout with dual 10GbE SFP+ dual 2.5GbE LAN and system interfaces

Technical Specifications

Model	CWWK CW-S1
Product Type	10GbE SFP+ Firewall Mini PC
Processor Options	Intel N100 / Intel N150 / Intel Core i3-N305 / Intel Core 3 N355
10GbE Network	2 × 10GbE SFP+
10GbE Controller	Intel 82599
2.5GbE Network	2 × 2.5GbE RJ45
Memory	1 × DDR5 SO-DIMM, DDR5 4800 / 5200 / 5600MHz, up to 32GB
NVMe Storage	1 × M.2 2280 NVMe SSD slot
M.2 E-Key	1 × M.2 E-Key 2230 slot; M.2 NVMe adapter board installed by default
SATA Storage	1 × SATA 3.0 interface for compatible 2.5-inch HDD / SSD
SATA Power	1 × 4-pin SATA power socket
Serial Expansion	2 × RS232 / RS485 COM pin headers
Cooling	Active cooling with CPU Fan 1 and CPU Fan 2
Chassis	CWWK flagship aluminum chassis
Mounting	VESA mounting supported
Dimensions	178 × 145 × 58 mm / 17.8 × 14.5 × 5.8 cm
Motherboard Platform	Shared motherboard platform used by CW-S1 / CW-S2 / CW-S6 / CW-S8

FAQ

Which processors are available for the CWWK S1?

CW-S1 is available with Intel N100, Intel N150, Intel Core i3-N305 and Intel Core 3 N355 processor options.

How many 10GbE ports does CW-S1 have?

CW-S1 provides two 10GbE SFP+ interfaces based on the Intel 82599 network controller.

Does CW-S1 also have 2.5GbE Ethernet?

Yes. CW-S1 provides two additional 2.5GbE RJ45 interfaces.

What is the difference between CW-S1, CW-S2, CW-S6 and CW-S8?

CW-S1, CW-S2, CW-S6 and CW-S8 use the same core motherboard platform and share the same dual 10GbE SFP+ and dual 2.5GbE network architecture. Their main differences are the chassis, dimensions and cooling structure. CW-S1 uses CWWK's flagship 178 × 145 × 58 mm aluminum chassis.

How much DDR5 memory does CW-S1 support?

CW-S1 provides one DDR5 SO-DIMM slot supporting DDR5 4800, 5200 and 5600MHz memory with a maximum capacity of 32GB.

Does CW-S1 support NVMe storage?

Yes. CW-S1 provides one M.2 2280 NVMe SSD slot. The M.2 E-Key 2230 interface also has an M.2 NVMe adapter board installed by default.

Can CW-S1 install a 2.5-inch SATA SSD or HDD?

Yes. CW-S1 provides a SATA 3.0 interface and 4-pin SATA power socket for a compatible 2.5-inch SATA SSD or HDD.

Does CW-S1 support RS232 or RS485?

The motherboard provides two internal RS232 / RS485 COM pin headers for compatible serial expansion.

Is CW-S1 fanless?

No. CW-S1 uses active cooling and includes two CPU cooling fans.

Does CW-S1 support VESA mounting?

Yes. CW-S1 supports compatible VESA mounting for more flexible installation.
