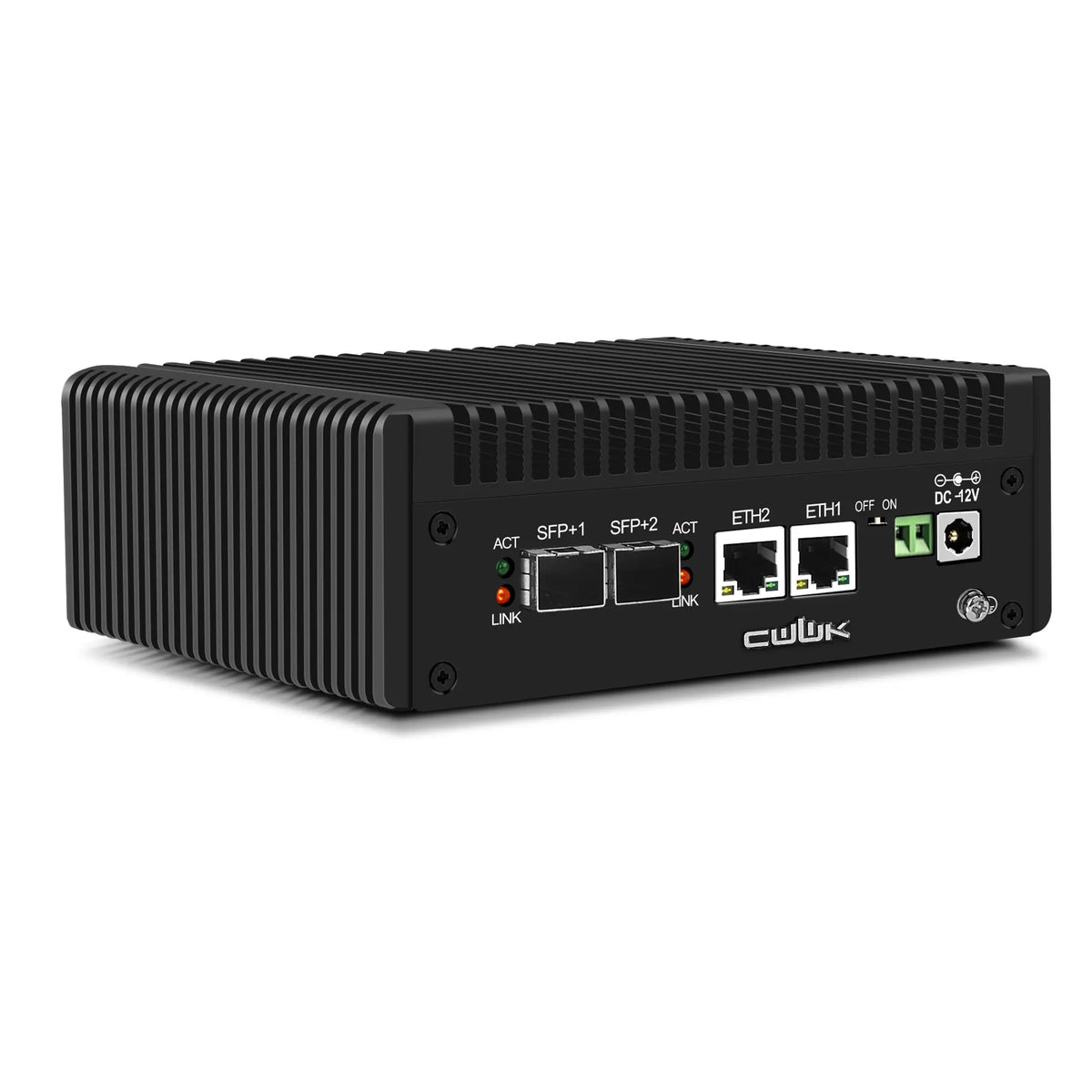

CWWK S8 10GbE Firewall Mini PC
The CWWK S8 is a compact 10GbE Firewall Mini PC built around the Intel N150 platform. It combines dual 10GbE SFP+ interfaces, dual Intel i226-V 2.5GbE LAN, DDR5 memory, NVMe and SATA storage, VESA mounting support and active cooling in the dedicated S8 aluminum chassis for firewall, routing and network appliance deployments.
Intel N150 Platform for Firewall and Routing Workloads
CW-S8 uses the Intel N150 processor platform for compact network appliance applications that require low power consumption together with multi-gigabit Ethernet connectivity.
Dual 10GbE SFP+ and Dual 2.5GbE Networking
CW-S8 combines two 10GbE SFP+ interfaces with two Intel i226-V 2.5GbE RJ45 ports, providing both high-speed uplink capability and standard multi-gigabit copper Ethernet in one compact system.
DDR5 Memory with NVMe and SATA Storage
CW-S8 combines DDR5 memory with M.2 NVMe and SATA storage options for firewall operating systems, network services, logs and general local storage.
The motherboard also includes an M.2 E-Key interface for compatible WiFi or Bluetooth modules. With a suitable adapter, the E-Key interface can also be used for an additional NVMe storage device.
Shared Motherboard Platform Across S1, S2, S6 and S8
CW-S1, CW-S2, CW-S6 and CW-S8 use the same core motherboard platform. Their main differences are the chassis design, physical dimensions and cooling enclosure rather than the underlying network and expansion architecture.
S8 Aluminum Chassis and Compact Dimensions
CW-S8 uses a dedicated aluminum enclosure measuring 158.3 × 135.6 × 60.2 mm. The chassis combines compact desktop dimensions with integrated cooling fins and space for the internal active cooling system.
Unlike the S1 flagship chassis, S2 large-back chassis and S6 high-fin chassis, CW-S8 uses its own enclosure while retaining the same core motherboard platform.
VESA Mounting Support for Flexible Deployment
CW-S8 supports VESA mounting, allowing the system to be installed away from the desktop when a cleaner or more space-efficient deployment is required.
Copper Heat Conduction with Built-in Fan Cooling
CW-S8 combines copper heat conduction, an aluminum fin chassis and a built-in cooling fan to manage processor and system heat during sustained firewall and network workloads.
The copper thermal structure transfers heat away from the processor, while the integrated fan improves airflow inside the enclosure. The external aluminum cooling fins provide additional heat-dissipation surface area.
Firewall, Routing and Network Security Deployment
The combination of dual 10GbE SFP+, dual 2.5GbE Ethernet and Intel N150 processing makes CW-S8 suitable for compact multi-gigabit network infrastructure.

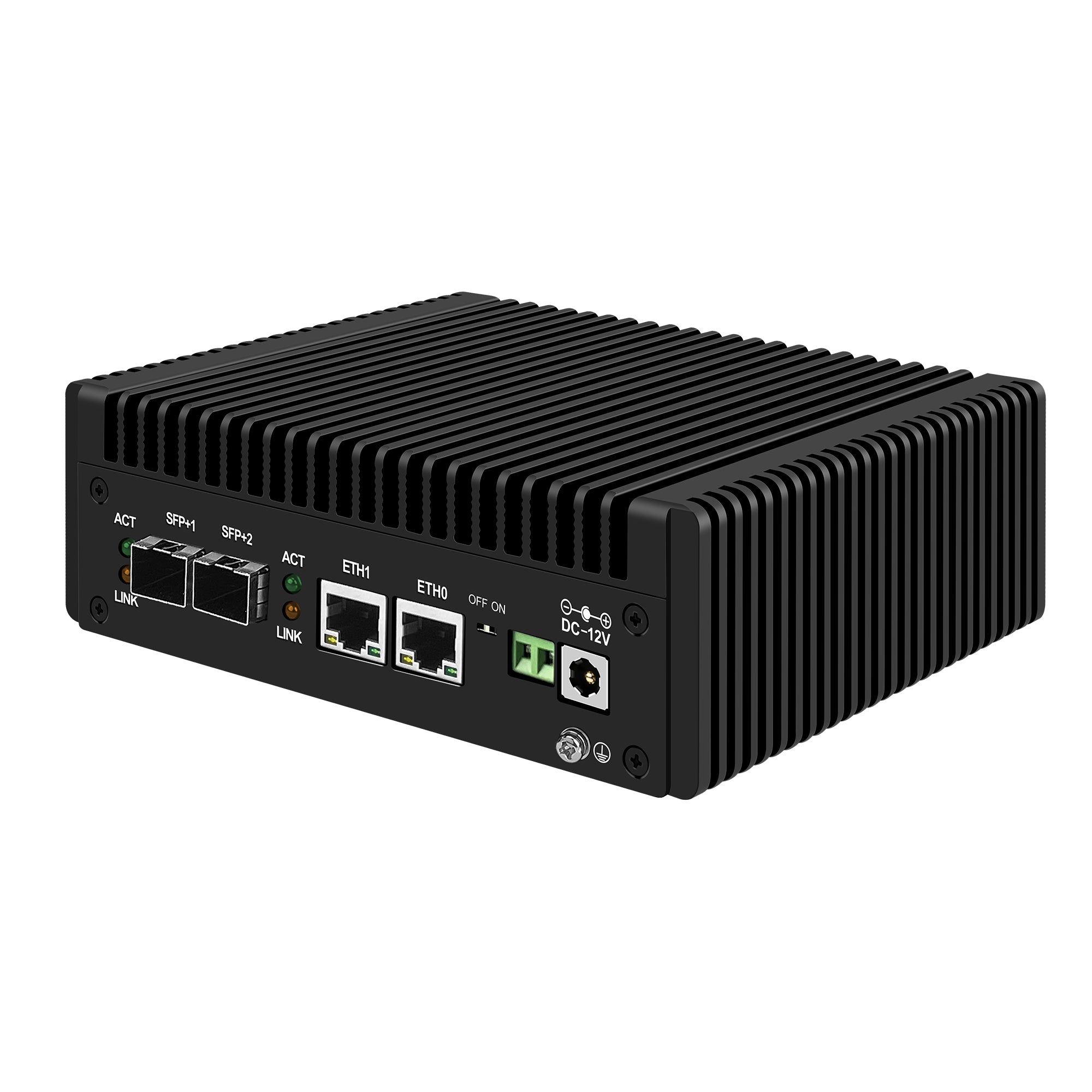

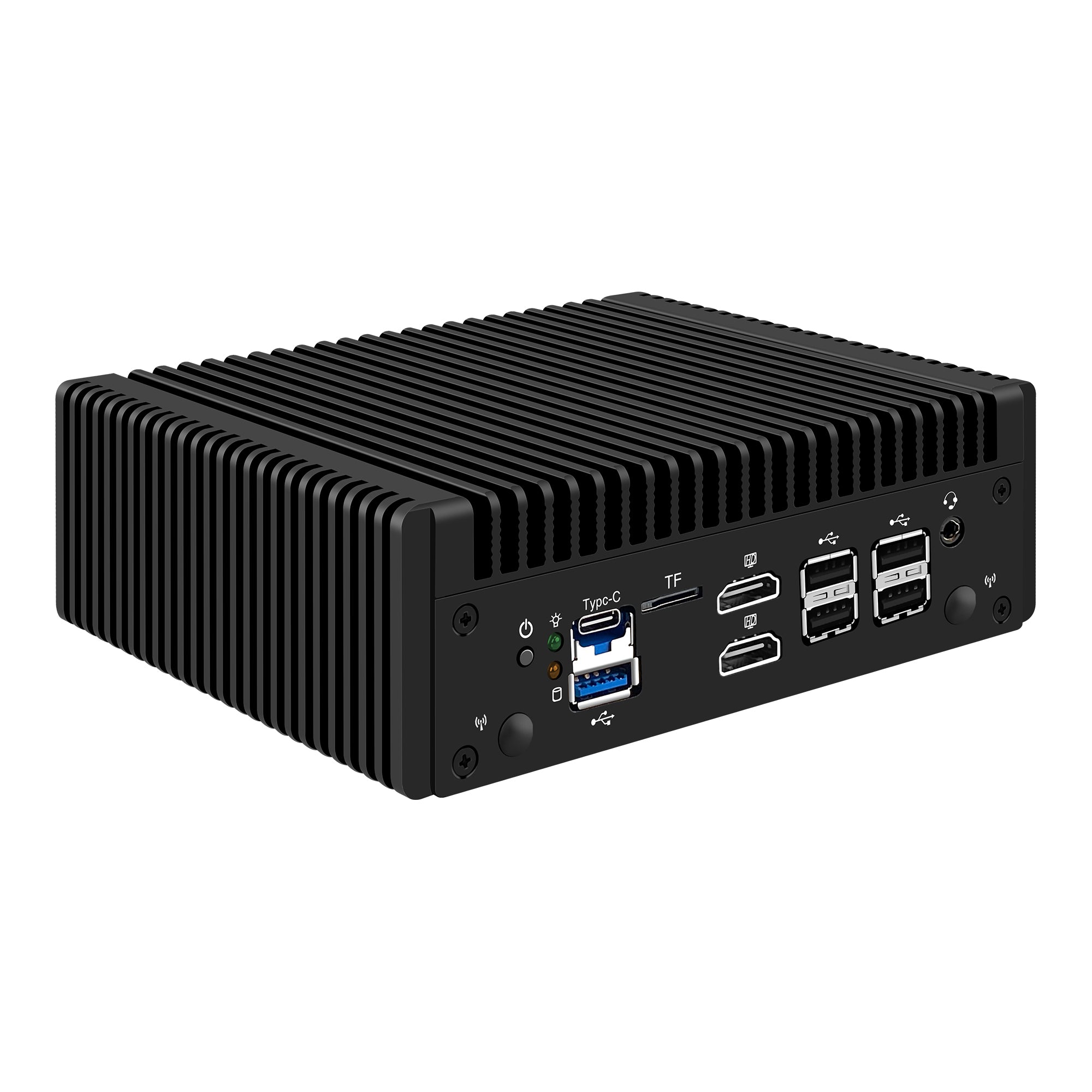

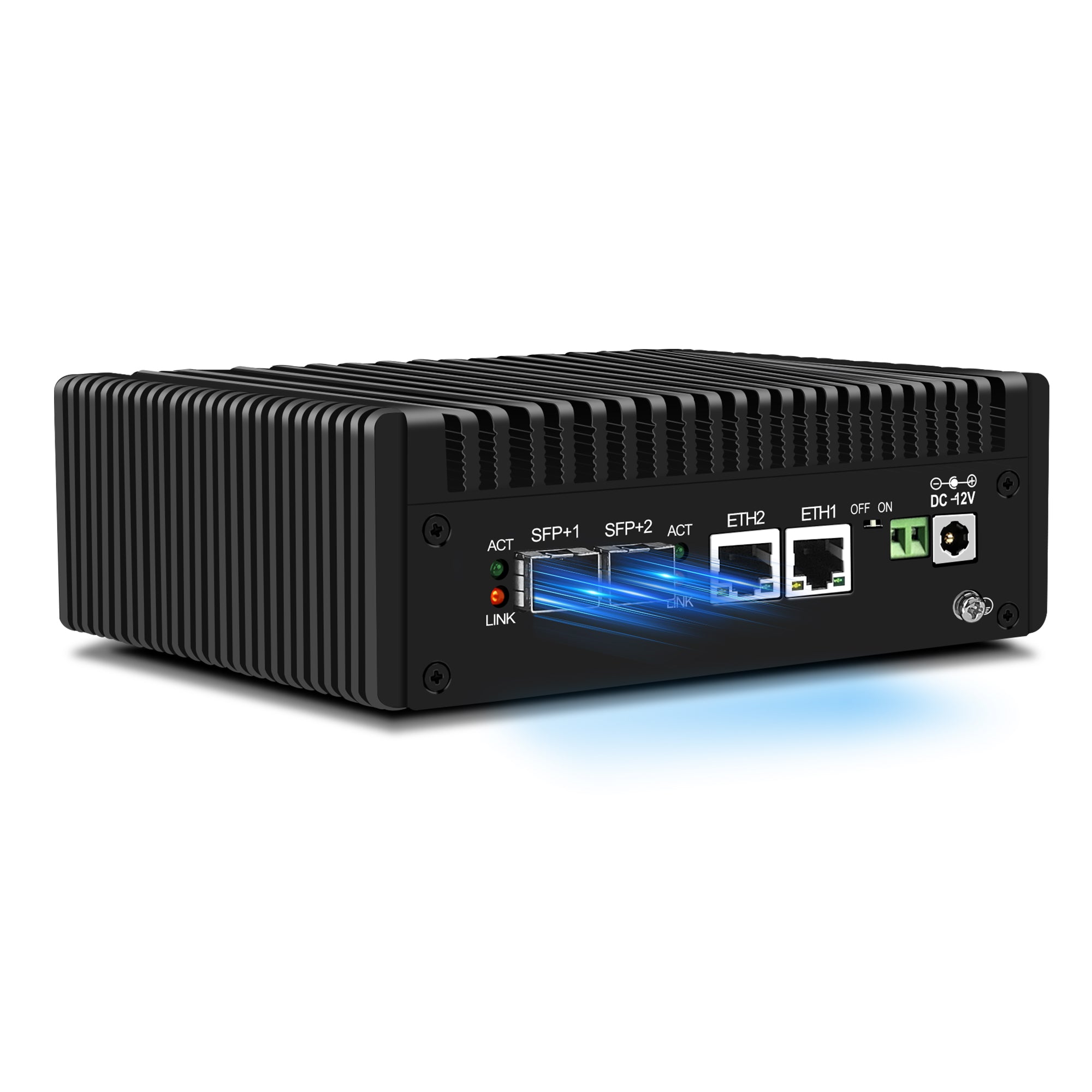

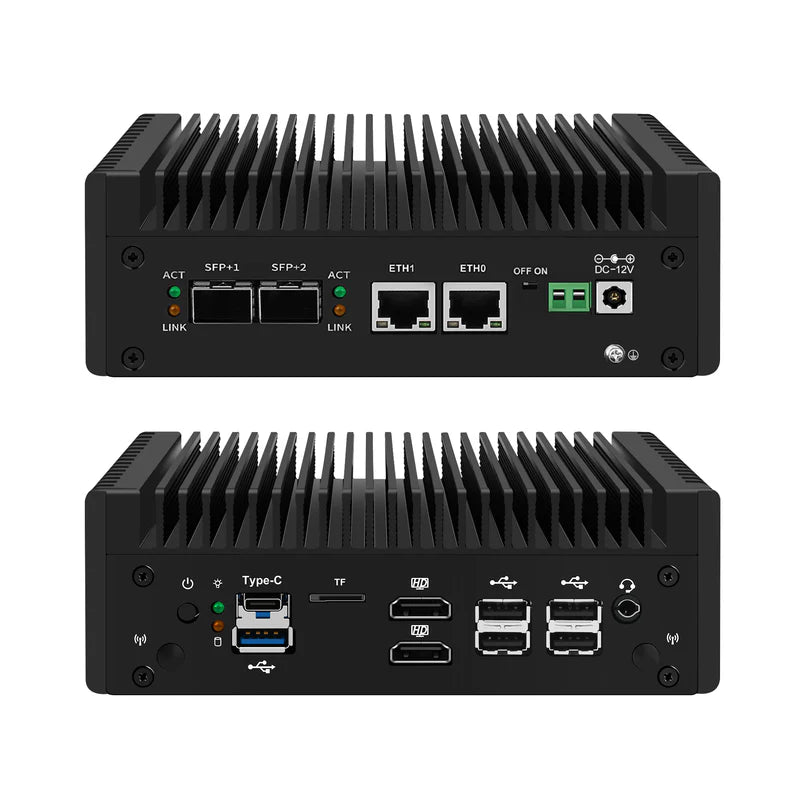

Front and Rear I/O Connectivity
CW-S8 combines high-speed networking, display output, USB connectivity and local storage expansion in a compact firewall mini PC chassis.
- 2 × 10GbE SFP+ with Intel 82599ES
- 2 × Intel i226-V 2.5GbE RJ45
- 2 × HDMI 2.0 display outputs
- USB-A connectivity
- USB Type-C with USB 3.2 Gen 1 data support
- 1 × M.2 2280 NVMe
- 1 × SATA 3.0
- 1 × M.2 E-Key expansion interface
Technical Specifications
| Model | CWWK CW-S8 |
|---|---|
| Product Type | 10GbE Firewall Mini PC |
| Processor | Intel N150 |
| 10GbE Network | 2 × 10GbE SFP+ based on Intel 82599ES |
| 2.5GbE Network | 2 × Intel i226-V 2.5GbE RJ45 |
| Memory | 1 × DDR5 SO-DIMM, up to 32GB |
| NVMe Storage | 1 × M.2 2280 NVMe |
| SATA Storage | 1 × SATA 3.0 |
| Wireless / Expansion | 1 × M.2 E-Key for compatible WiFi / Bluetooth modules; optional NVMe expansion through a suitable adapter |
| Display | 2 × HDMI 2.0 |
| USB Type-C | USB 3.2 Gen 1 data interface |
| Cooling | Copper heat-conduction structure + aluminum fin chassis + built-in cooling fan |
| Optional Cooling | Supports compatible 12V 8010 chassis fan |
| Mounting | VESA mounting supported |
| Dimensions | 158.3 × 135.6 × 60.2 mm |
| Motherboard Platform | OMW-ADLN-SFP+ shared platform used by CW-S1 / CW-S2 / CW-S6 / CW-S8 |
