CWWK W680 12-Bay NAS Motherboard M68
W680 NAS Motherboard Built for 12-Bay Storage
CWWK W680 combines twelve SATA 3.0 drive connections, three M.2 NVMe interfaces, DDR5 ECC memory, integrated 10GbE plus dual Intel 2.5GbE networking and extensive PCIe expansion on a 244 × 244 mm Micro-ATX platform.
12× SATA 3.0 + Triple M.2 NVMe
Three SFF-8643 connectors provide twelve SATA 3.0 drive connections, while three independent M.2 NVMe interfaces add high-speed SSD storage for the operating system, cache, applications, virtual machines or data.

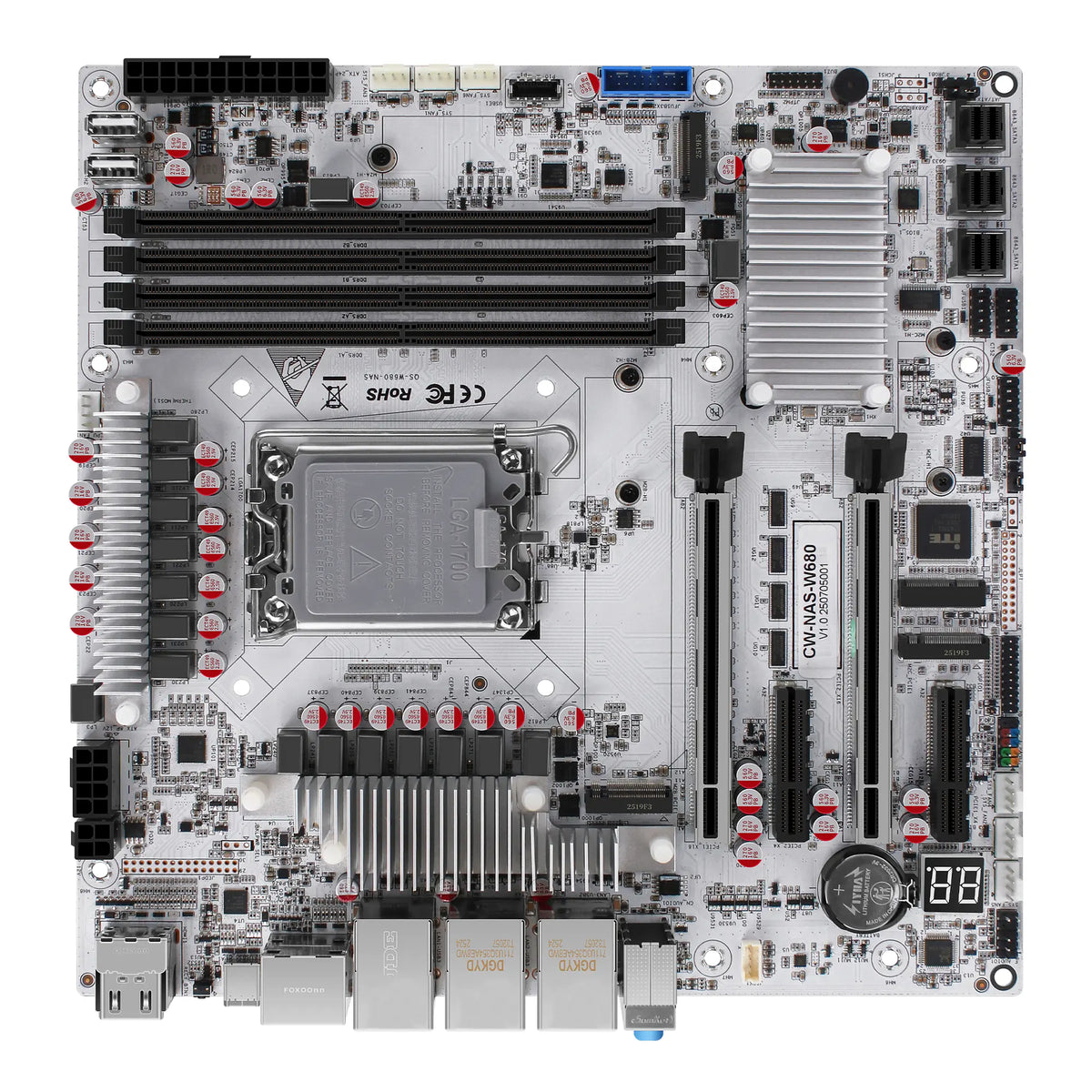

W680 Motherboard Layout
The 244 × 244 mm Micro-ATX board integrates twelve SATA connections, triple M.2 NVMe storage, four DDR5 U-DIMM slots, multi-gigabit networking and multiple PCIe expansion interfaces.
10GbE + Dual Intel 2.5GbE Networking
Integrated 10GbE and dual 2.5GbE networking provides high-bandwidth connectivity for NAS transfers, multi-user storage, virtualization and server workloads.
Rear I/O
The W680 rear I/O combines 10GbE and dual 2.5GbE networking with HDMI, DisplayPort, USB-C, USB and audio connectivity.
Four DDR5 ECC U-DIMM Slots
Four desktop DDR5 U-DIMM slots provide a larger memory expansion path for NAS, storage-server and virtualization workloads, with ECC support for compatible system configurations.
- 4× desktop DDR5 U-DIMM slots
- ECC memory support
- Dual-channel memory architecture
- Memory speed depends on CPU and DIMM population
High-Expansion PCIe Architecture
Multiple PCIe slots allow W680 to expand beyond its onboard storage and networking interfaces for higher-performance NAS, server and workstation configurations.
- 1× PCIe 5.0 x16 full-length slot
- 1× PCIe 4.0 x8 signal in x16 physical slot
- 2× PCIe 3.0 x4 expansion slots
- Suitable for compatible NIC, HBA, RAID, NVMe and GPU devices
Intel W680 with 12th–14th Gen LGA1700 Support
W680 supports Intel 12th, 13th and 14th Gen LGA1700 desktop processors, allowing the platform to be configured for storage, virtualization, server and workstation workloads.
Intel 12th, 13th and 14th Gen LGA1700 desktop processors.
Workstation-class chipset platform with DDR5 ECC support, multi-slot PCIe expansion and integrated high-speed networking.
Standard Micro-ATX Form Factor
The Micro-ATX footprint provides the physical space required for twelve SATA connections, three M.2 NVMe interfaces, four DDR5 U-DIMM slots and extensive PCIe expansion.
CWWK W680 Technical Specifications
| Model | CWWK W680 / CW-W680-NAS-V20 |
|---|---|
| Chipset | Intel W680 |
| CPU Socket | Intel LGA1700 |
| CPU Support | Intel 12th / 13th / 14th Gen desktop processors |
| Memory | 4× DDR5 U-DIMM · ECC support · dual-channel |
| Memory Speed | DDR5 memory speed depends on CPU, DIMM type and memory population |
| SATA | 12× SATA 3.0 via 3× SFF-8643 connectors |
| SATA Breakout | Each SFF-8643 connector breaks out to 4× SATA 3.0 |
| M2A | PCIe 4.0 x4 · M.2 2280 |
| M2B | PCIe 4.0 x4 · M.2 22110 / 2280 |
| M2C | PCIe 3.0 x4 · M.2 2280 |
| Primary PCIe | 1× PCIe 5.0 x16 |
| Secondary PCIe | 1× PCIe 4.0 x8 signal in x16 physical slot |
| Additional PCIe | 2× PCIe 3.0 x4 |
| 10GbE | 1× Marvell AQC113CS 10GbE RJ45 · 10G / 5G / 2.5G / 1G / 100M / 10M |
| 2.5GbE | 1× Intel i226-LM with vPro + 1× Intel i226-V |
| Wireless | 1× M.2 Wi-Fi / Bluetooth CNVi interface |
| Display | 2× HDMI 2.0 · 2× DisplayPort 1.4a · USB-C with DisplayPort Alt Mode |
| USB | USB 3.2 · USB 3.0 · USB 2.0 · USB-C 10Gbps |
| Power | 24-pin ATX + 8-pin + 4-pin |
| Form Factor | Micro-ATX |
| Dimensions | 244 × 244 mm |
| Operating System | Linux and Windows compatible |
