CWWK W680 12-Bay NAS Motherboard
- W680 for 12th–14th Gen Intel CPUs
- Supports ECC UDIMM memory
- 3 x M.2 + 3 x SFF-8643
- 10GbE + dual 2.5GbE LAN
- Built for 24/7 NAS use
Product Details

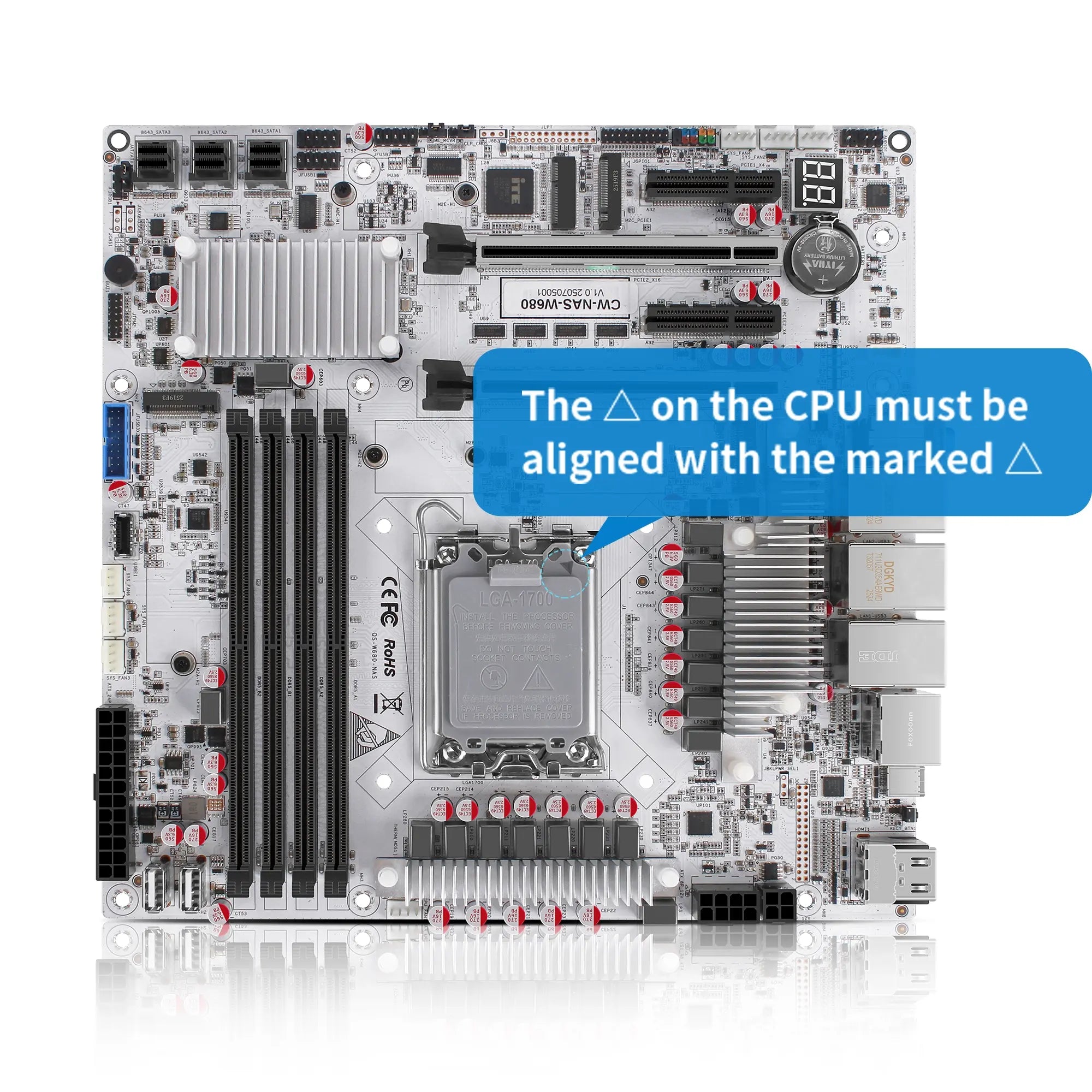

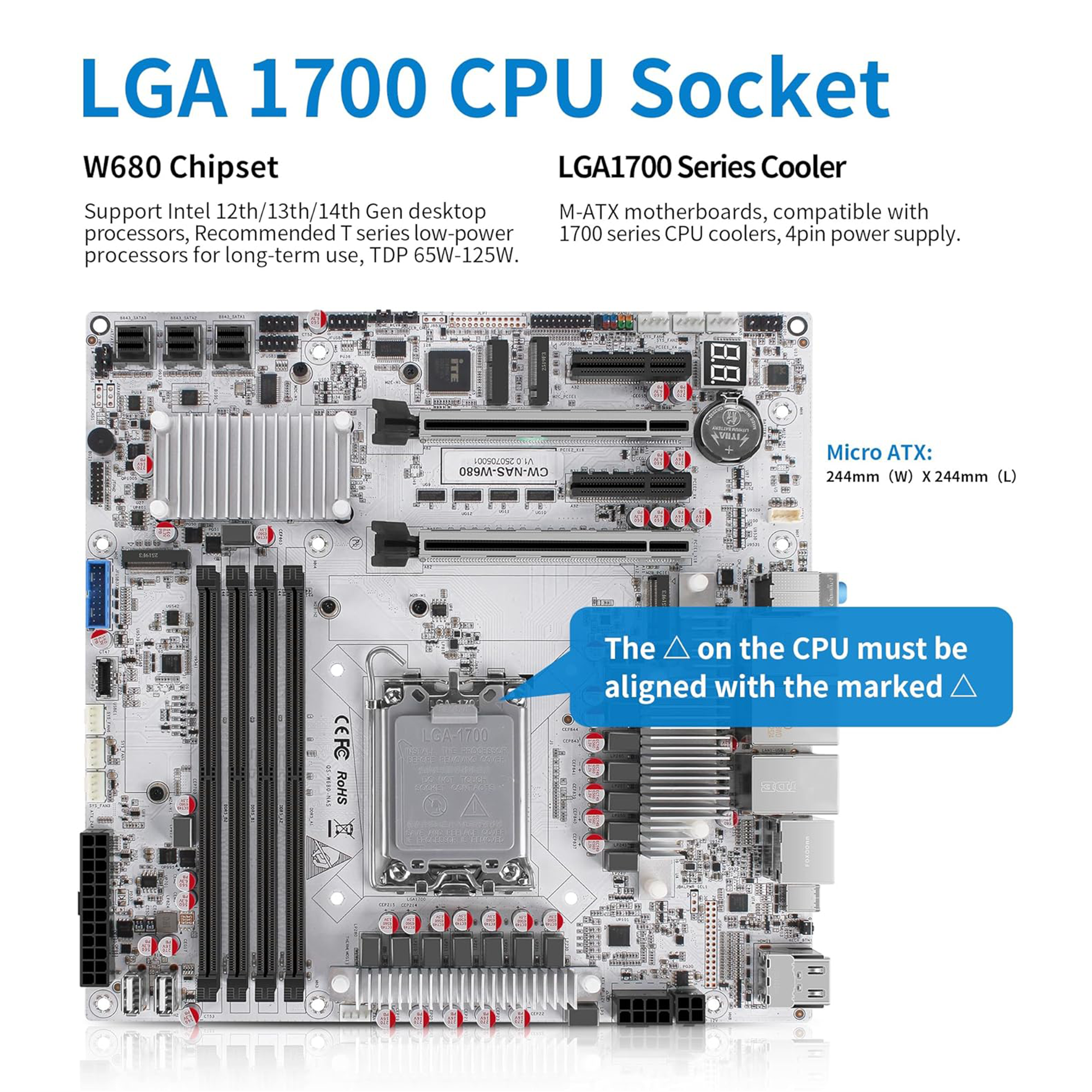

LGA 1700 CPU Socket
W680 Chipset
support Intel 12th/13th/14th Gen desktop processors, RecommendedT series low-power processors for long-term use, TDP
LGA1700 Series Cooler
M-ATX motherboards, compatible with 1700 series CPU coolers,4pin power supply.

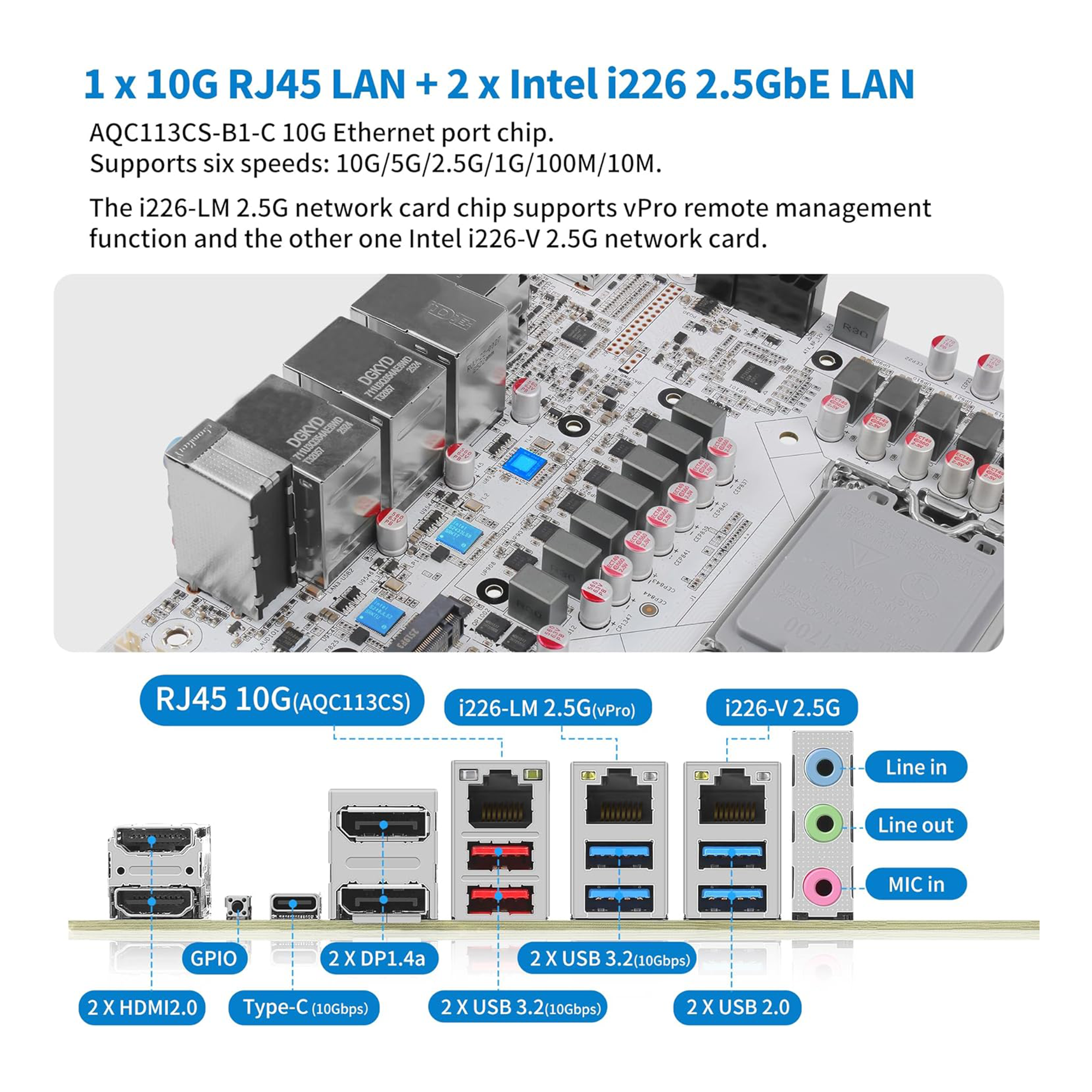

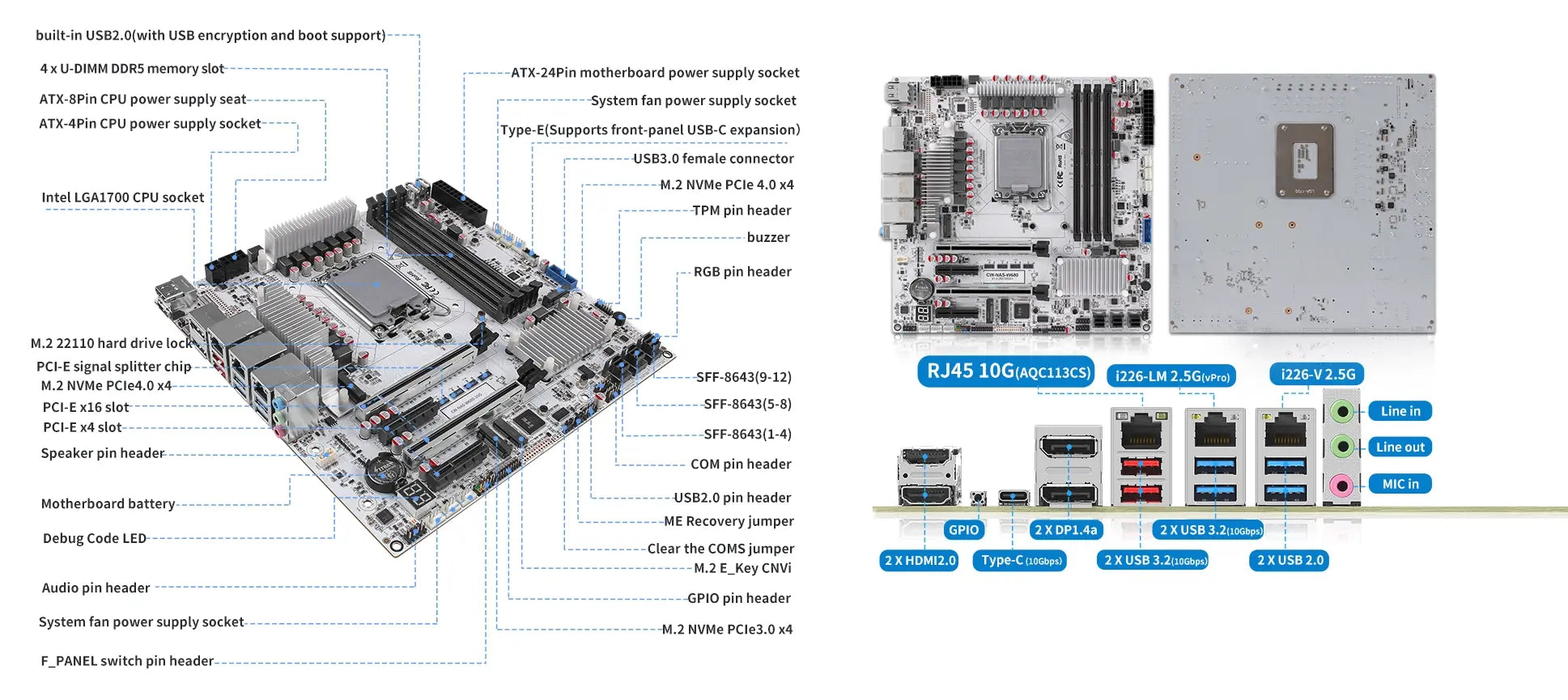

1 × 10GbE RJ45 LAN + 2 × Intel i226 2.5GbE LAN
AQC113CS-B1-C 10G Ethernet port chip.
Supports six speeds:10G/5G/2.5G/1G/100M/10M.
The i226-LM 2.5G network card chip supports vPro remote management function and the other one intel i226-V2.5G network card.

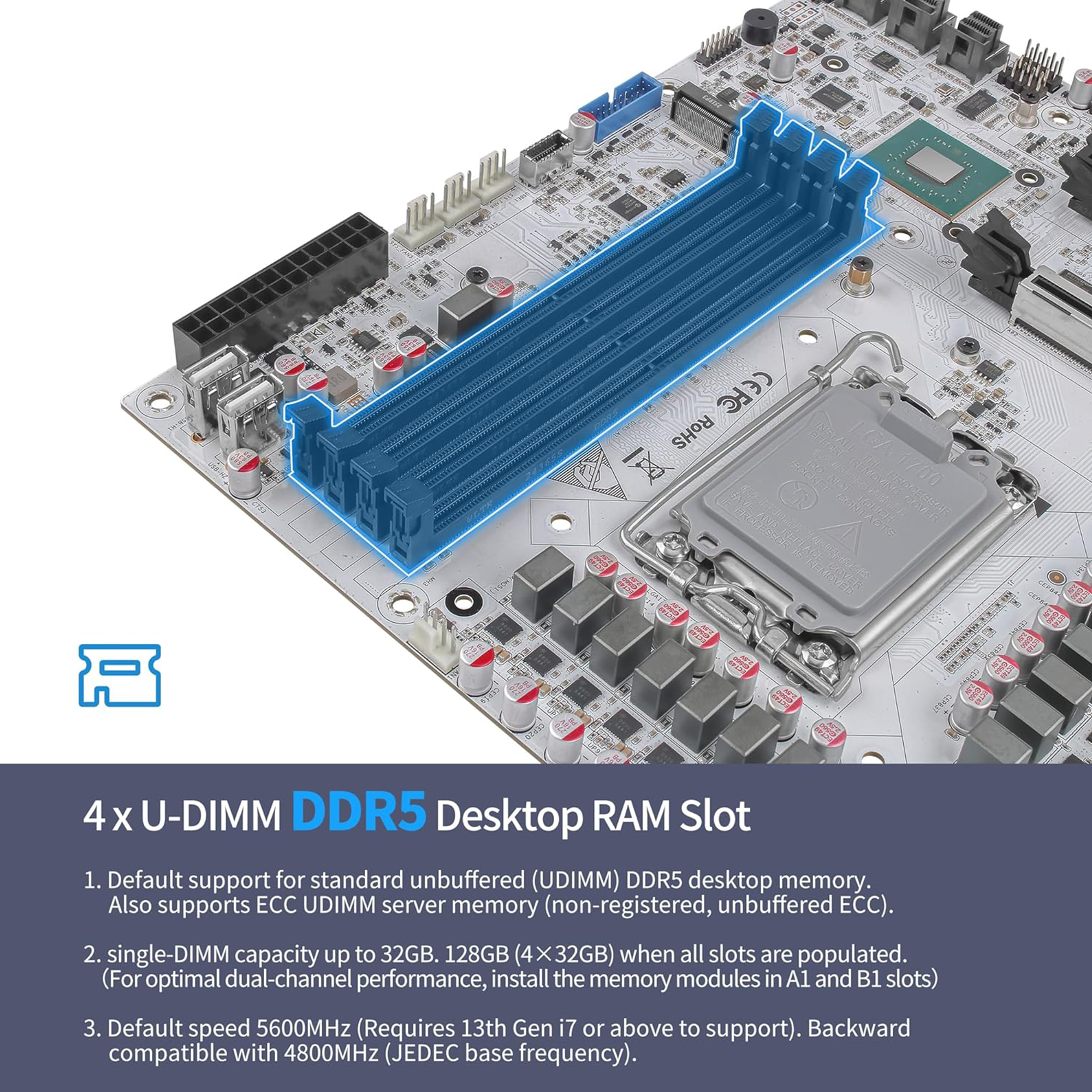

4 × U-DIMM DDR5 Desktop Memory Slots
Supports up to 128GB DDR5 memory with 4 × 32GB U-DIMM slots. ECC error correction is supported for better data reliability. DDR5 5600MHz memory is supported by default, depending on CPU compatibility.

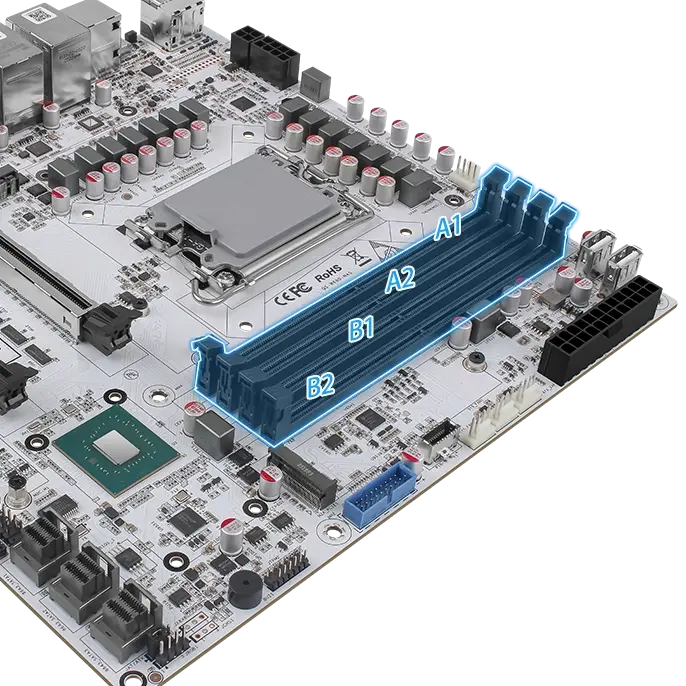

RAM Installation Order:
For 1 DDR5 module, install it in DIMM B2.
For 2 DDR5 modules, install them in DIMM A2 + DIMM B2.
For 4 DDR5 modules, use DIMM A1 + DIMM A2 + DIMM B1 + DIMM B2.
Note: Incorrect RAM installation order may cause the system to fail to boot.

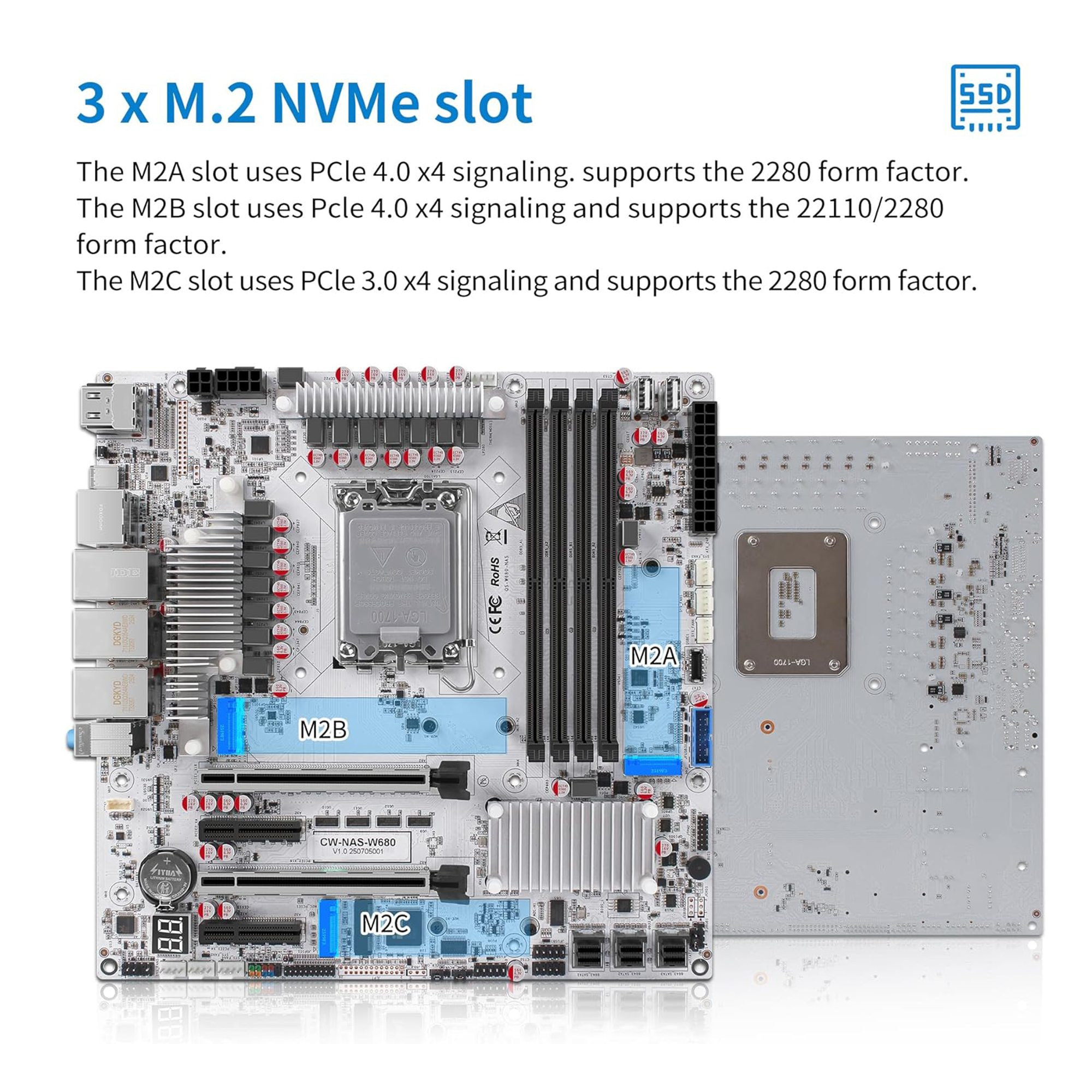

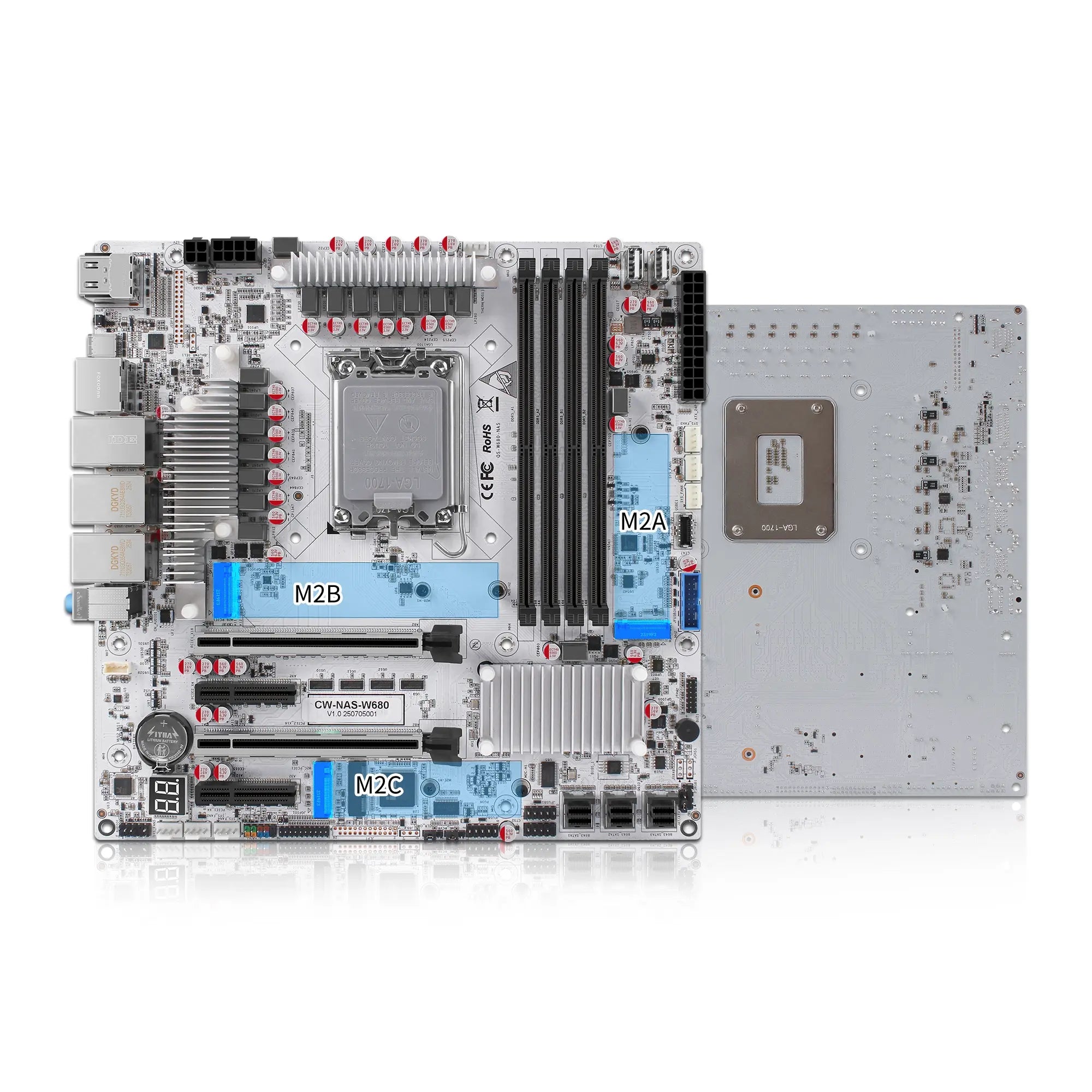

3 × M.2 NVMe SSD Slots for High-Speed Storage
The system supports three M.2 NVMe SSD slots for high-speed storage expansion. The M2A and M2B slots support PCIe 4.0 ×4 NVMe SSDs, delivering much faster data transfer performance than PCIe 3.0 and SATA 3.0 SSDs, with PCIe 4.0 ×4 bandwidth up to 7.88 GB/s.

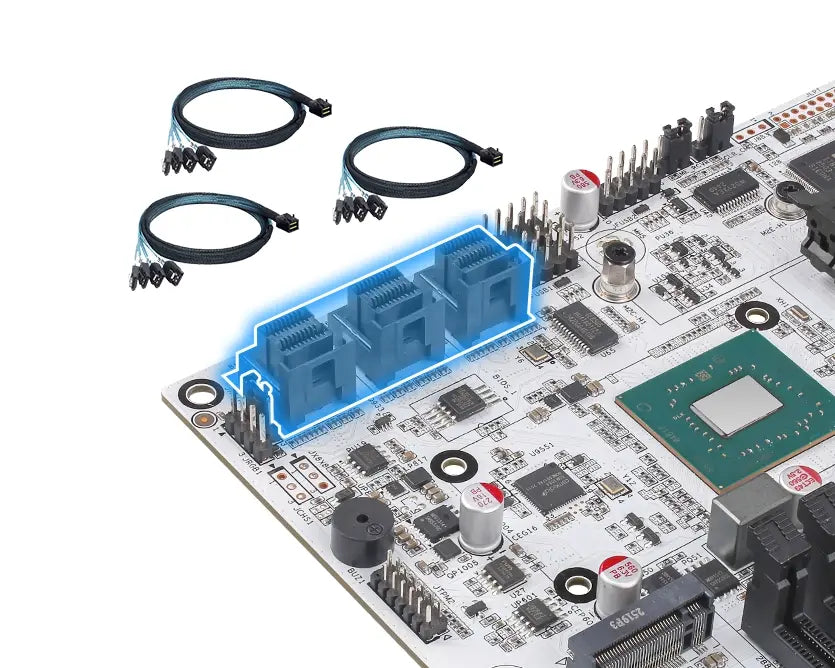

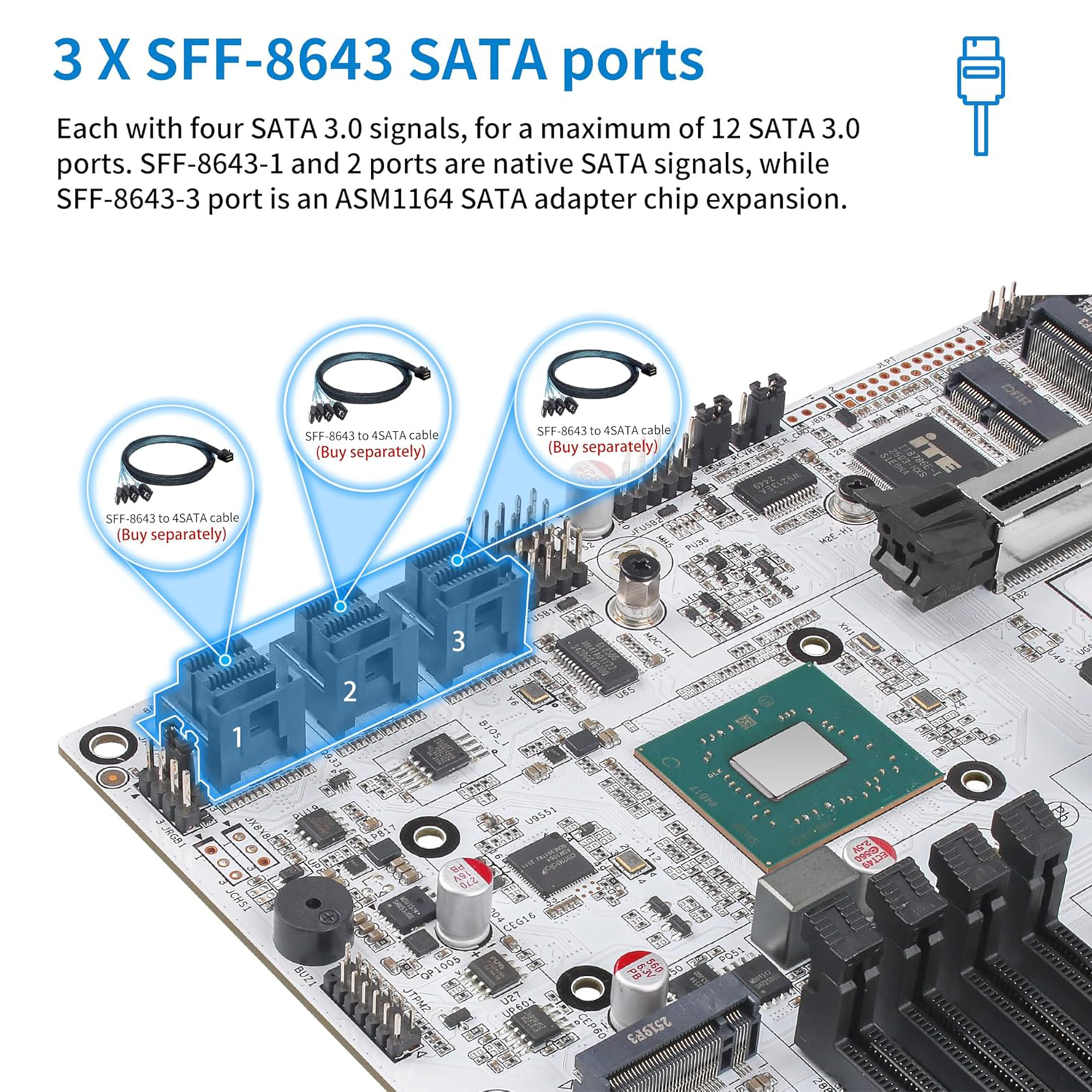

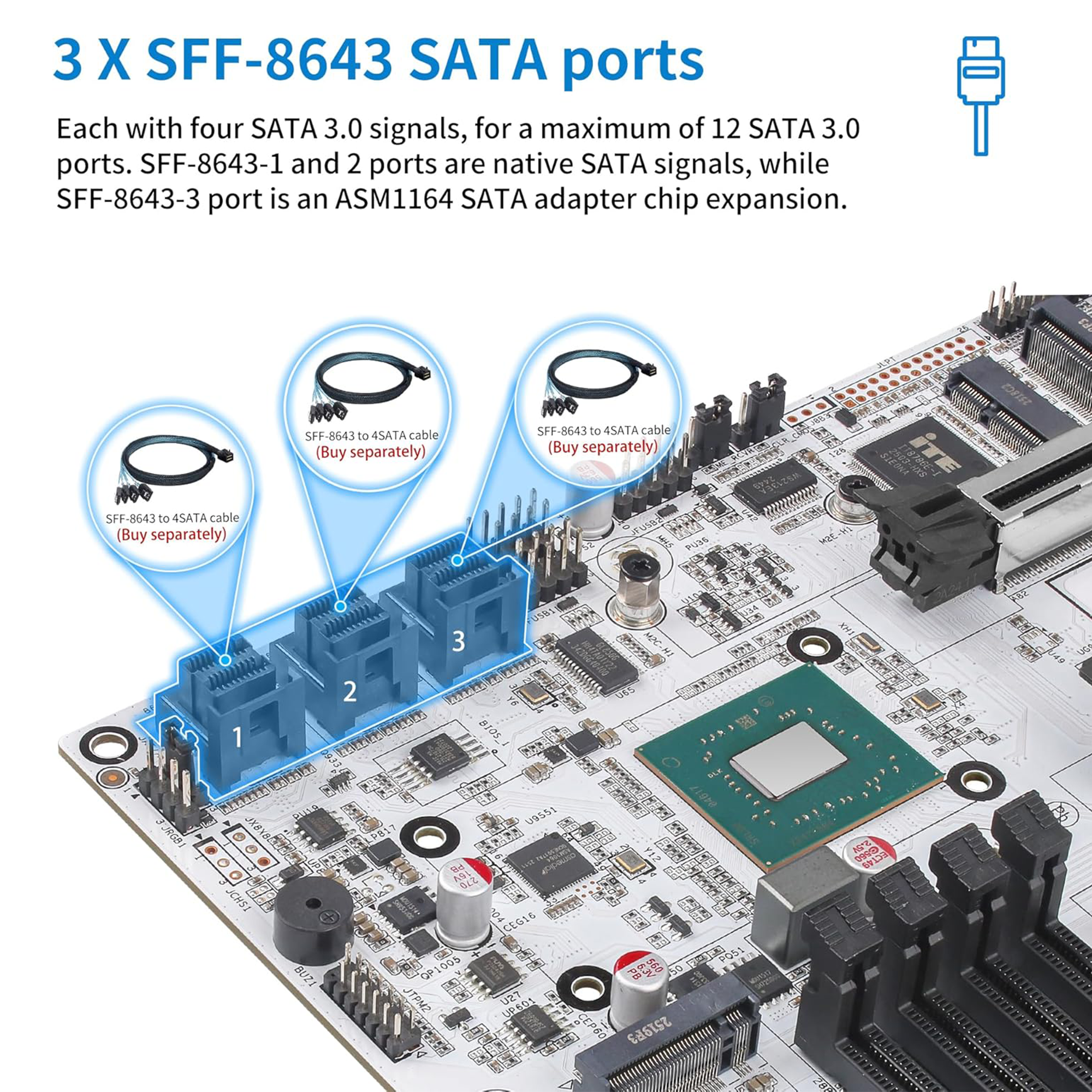

3 × SFF-8643 Ports for Up to 12 SATA Drives
The motherboard provides 3 × SFF-8643 SATA ports, with each connector carrying four SATA 3.0 signals, supporting up to 12 SATA 3.0 drives in total. The SFF-8643-1 and SFF-8643-2 ports use native SATA signals, while the SFF-8643-3 port is expanded through the ASM1164 SATA controller chip.
Optional Cable:
SFF-8643 to 4 × SATA cable is optional and can be used for multi-drive storage expansion.

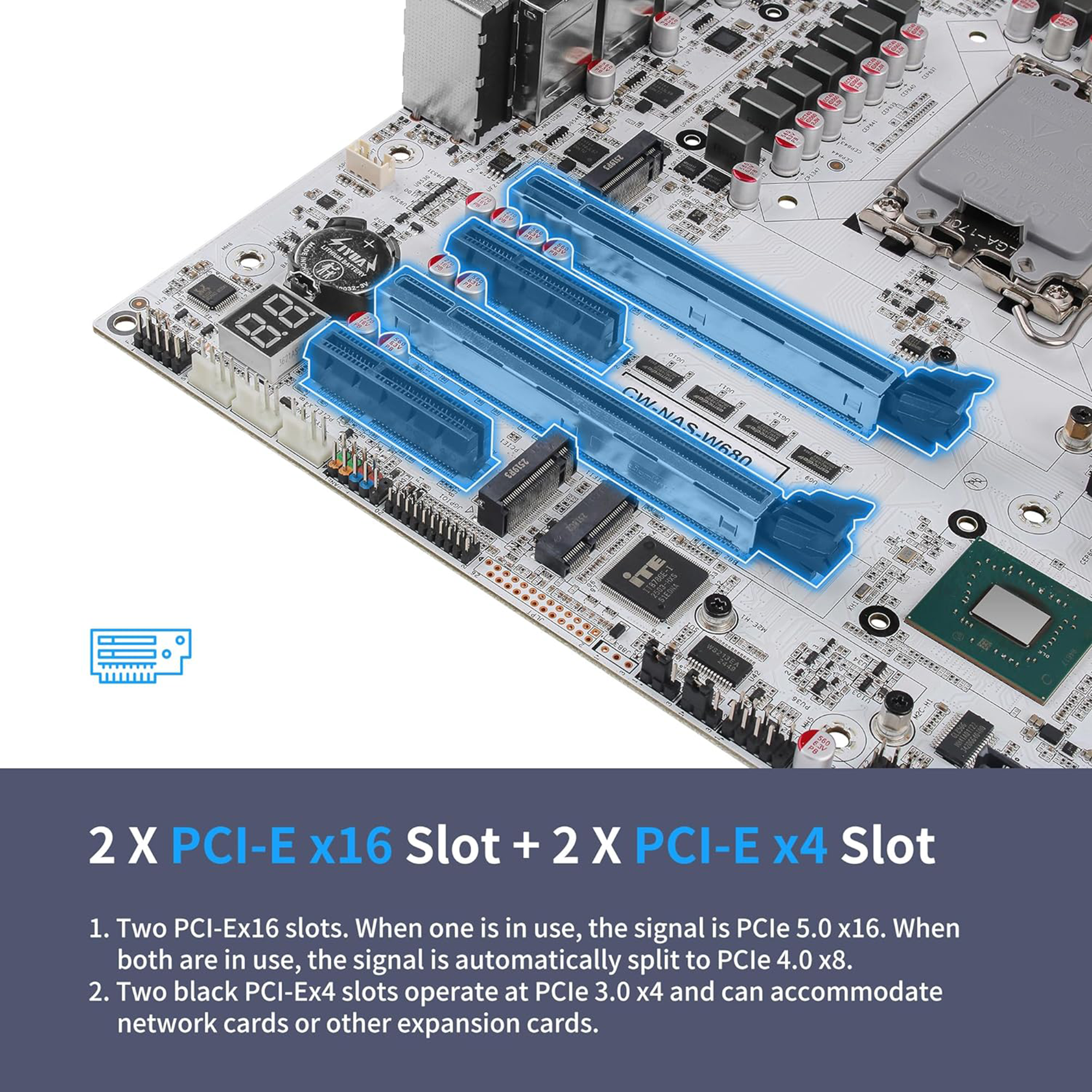

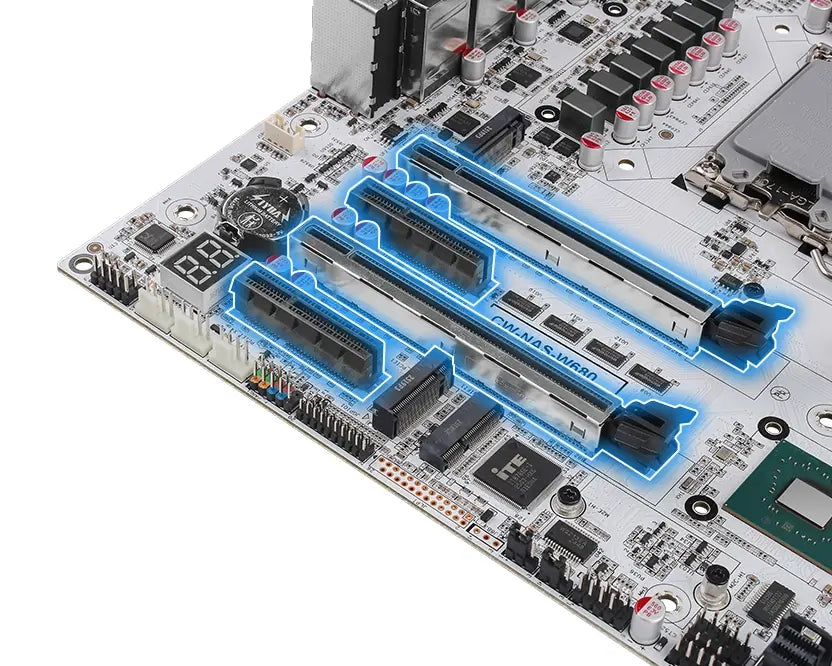

2 × PCIe x16 Slots + 2 × PCIe x4 Expansion Slots
The motherboard includes two PCIe x16 slots for high-performance expansion. When a single x16 slot is used, it supports up to PCIe 5.0 x16 bandwidth. When both x16 slots are used at the same time, the lanes are automatically divided into PCIe 4.0 x8 + x8.
It also provides two PCIe x4 slots, operating at PCIe 3.0 x4, suitable for adding network cards, storage expansion cards, or other PCIe devices.
