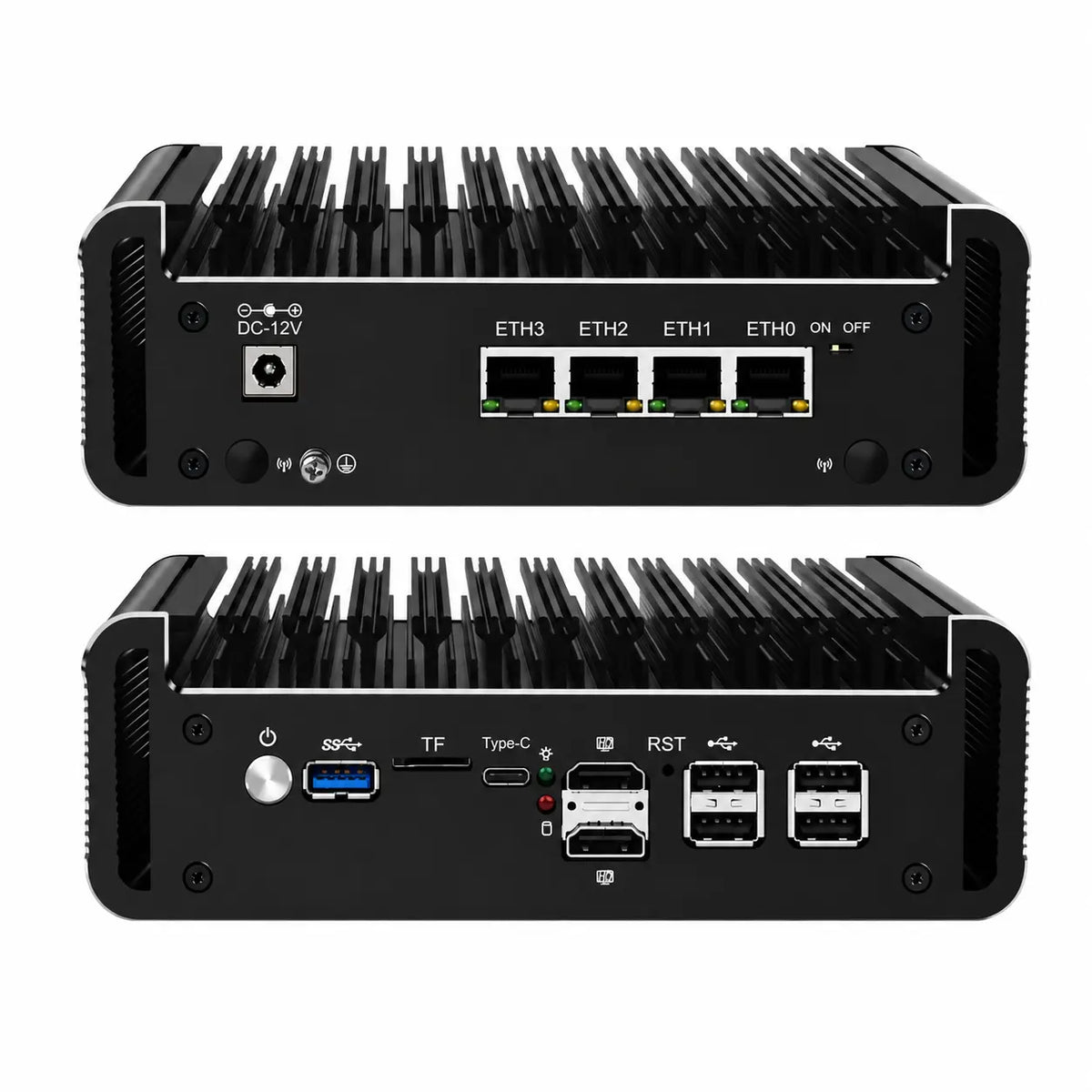

CWWK F23 4-Port 2.5GbE Firewall Mini ITX
The CWWK F23 is a fanless 4-port 2.5GbE firewall mini PC powered by the Intel J6413 processor. It combines four Intel i226-V network interfaces, dual-channel DDR5 memory, dual M.2 NVMe storage, dual SATA expansion, triple-display connectivity and passive aluminum cooling for firewall, routing and home lab deployments.
Intel J6413 Low-Power Firewall Platform
F23 uses the Intel J6413 processor for compact network appliances, routing services and continuously running low-power systems.
Four Intel i226-V 2.5GbE Network Ports
Four onboard Intel i226-V controllers provide four independent 2.5GbE RJ45 interfaces for WAN/LAN separation, VLANs, gateways and segmented networks.
Dual-Channel DDR5 Memory
The F23 motherboard provides two SO-DIMM memory slots for dual-channel DDR5 configurations with up to 32GB per module.
Dual M.2 NVMe and Dual SATA Storage
F23 provides two M.2 NVMe interfaces and two SATA III connections, allowing users to combine high-speed solid-state storage with additional 2.5-inch SATA drives.
The combination of dual NVMe and dual SATA allows F23 to separate the system drive, logs, virtual machines and local service data across multiple storage devices.
Fanless Passive Cooling with Copper Heat-Conduction Plate
F23 uses fanless passive cooling. A copper heat-conduction plate transfers processor heat into the aluminum enclosure for passive dissipation without requiring an active CPU fan.
The passive thermal structure reduces moving parts and operating noise, making F23 suitable for continuously running network appliances and quiet home lab environments.
F23 also supports an optional 80 × 80 × 10 mm 8010 chassis fan when additional airflow is required.
View Compatible 8010 FanAluminum Chassis with VESA Mounting
F23 measures 178 × 145 × 58 mm and supports VESA mounting for more flexible installation behind displays or on compatible mounting surfaces.
HDMI, DisplayPort and USB-C Triple Display Output
HDMI, DisplayPort and USB-C provide flexible display connectivity for local system management and multi-monitor configurations.
Firewall, Routing and Home Lab Deployment
Four 2.5GbE ports, dual-channel memory, dual NVMe and dual SATA storage make F23 suitable for network services that also require local storage.
Front and Rear I/O Connectivity
- 4 × Intel i226-V 2.5GbE RJ45
- 1 × HDMI
- 1 × DisplayPort
- 1 × USB-C
- 1 × USB 3.0
- 4 × USB 2.0
- 2 × TF card slots
- DC power input
- Power button
- Power and storage activity LEDs
Technical Specifications
| Model | CWWK F23 |
|---|---|
| Processor | Intel J6413 |
| Network | 4 × Intel i226-V 2.5GbE RJ45 |
| Memory | 2 × SO-DIMM DDR5, up to 32GB per module and 64GB total |
| NVMe Storage | 2 × M.2 NVMe |
| SATA Storage | 2 × SATA III |
| Display | HDMI + DisplayPort + USB-C |
| USB | 1 × USB 3.0 + 4 × USB 2.0 + USB-C |
| Card Reader | 2 × TF card slots |
| Cooling | Fanless passive cooling with copper heat-conduction plate; optional 8010 chassis fan supported |
| Mounting | VESA mounting supported |
| Dimensions | 178 × 145 × 58 mm / 17.8 × 14.5 × 5.8 cm |
| Chassis | Aluminum fanless chassis |
