The CWWK F16 is a fanless 4-port 2.5GbE firewall mini PC built around an AMD Ryzen mobile platform. It combines four Intel i226-V network interfaces, dual-channel DDR4 memory, flexible NVMe and SATA storage, triple-display connectivity and a compact aluminum chassis with passive heat dissipation.

AMD Ryzen 5 5500U and Ryzen 7 5800U, 5825U & 7730U Options

F16 supports four AMD Ryzen processor options for different routing, virtualization and home lab requirements.

Ryzen 5 5500U 6 cores and 12 threads for firewall, routing and general multi-service workloads.

Ryzen 7 5800U 8 cores and 16 threads for heavier multitasking, virtual machines and containers.

Ryzen 7 5825U 8 cores and 16 threads for higher sustained compute requirements.

Ryzen 7 7730U 8 cores and 16 threads for users requiring additional processing headroom in compact deployments.

Four Intel i226-V 2.5GbE Network Ports

Four onboard Intel i226-V controllers provide four independent 2.5GbE RJ45 interfaces for multi-WAN, LAN segmentation, VLANs, firewall and routing applications.

4 × 2.5GbE RJ45 Four onboard multi-gigabit Ethernet ports without an additional network card.

Intel i226-V Dedicated Intel 2.5GbE network controllers for each LAN interface.

Flexible Network Topology Suitable for WAN/LAN separation, VLAN routing, gateway and segmented networks.

CWWK F16 front and rear I/O with four Intel i226-V 2.5GbE ports

Shared AMD Platform with Dual-Channel DDR4

F16 and F29 use the same AMD motherboard platform with dual-channel SO-DIMM DDR4 3200 memory and support for up to 64GB RAM.

2 × SO-DIMM DDR4 slots
DDR4 3200 memory support
Up to 64GB RAM
4 × Intel i226-V 2.5GbE LAN
HDMI, DisplayPort and full-function USB-C
DC 12–19V and USB-C 12–20V power input

CWWK F16 and F29 shared AMD motherboard with DDR4 memory, NVMe and four 2.5GbE ports

CWWK F16 and F29 shared motherboard I/O interface layout

Dual M.2 NVMe and Dual 2.5-Inch SATA Storage

F16 provides flexible storage expansion for firewall logs, virtual machines, containers, local services and additional data storage.

Up to 2 × M.2 NVMe The platform supports two NVMe storage paths, including a PCIe 3.0 x4 path and an additional NVMe configuration through the corresponding expansion route.

2 × 2.5-Inch SATA Two dedicated non-standard SATA power and data interfaces support 2.5-inch SATA SSD or HDD installation.

The motherboard also provides an M.2 wireless expansion route that can be used as part of the additional NVMe configuration. When this interface is occupied by storage expansion, it cannot simultaneously be used for the corresponding wireless module.

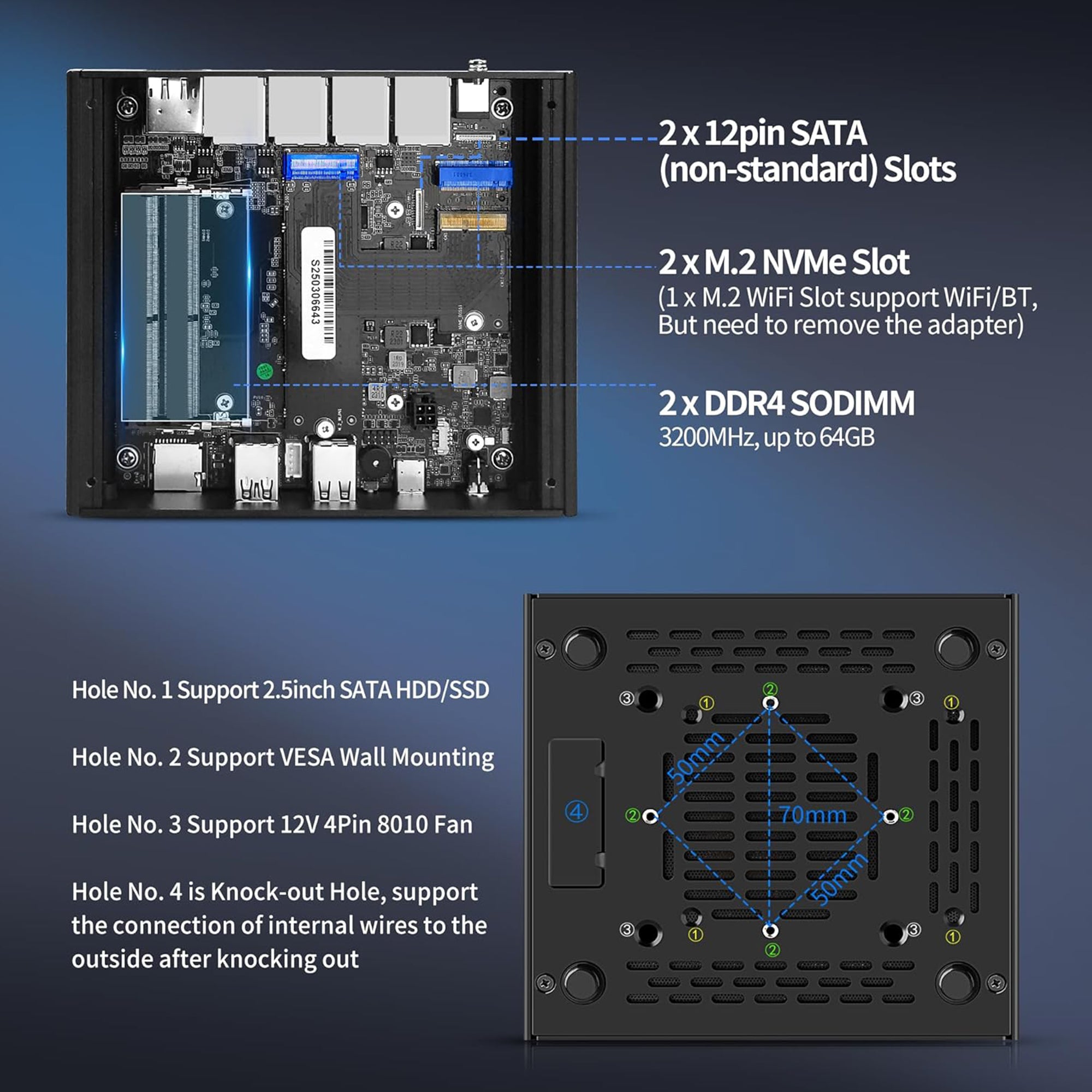

CWWK F16 internal layout with bottom cover removed showing motherboard, memory and storage interfaces

Fanless Passive Cooling with Copper-Alloy Heat Conduction

F16 is designed around fanless passive cooling. An internal copper-alloy heat-conduction structure transfers processor heat to the aluminum enclosure, allowing the chassis to dissipate heat without relying on a CPU cooling fan.

This design reduces moving parts and operating noise while maintaining a compact form factor for firewall, routing and home lab deployments.

Fanless Passive Cooling Copper-Alloy Heat Conduction Aluminum Chassis

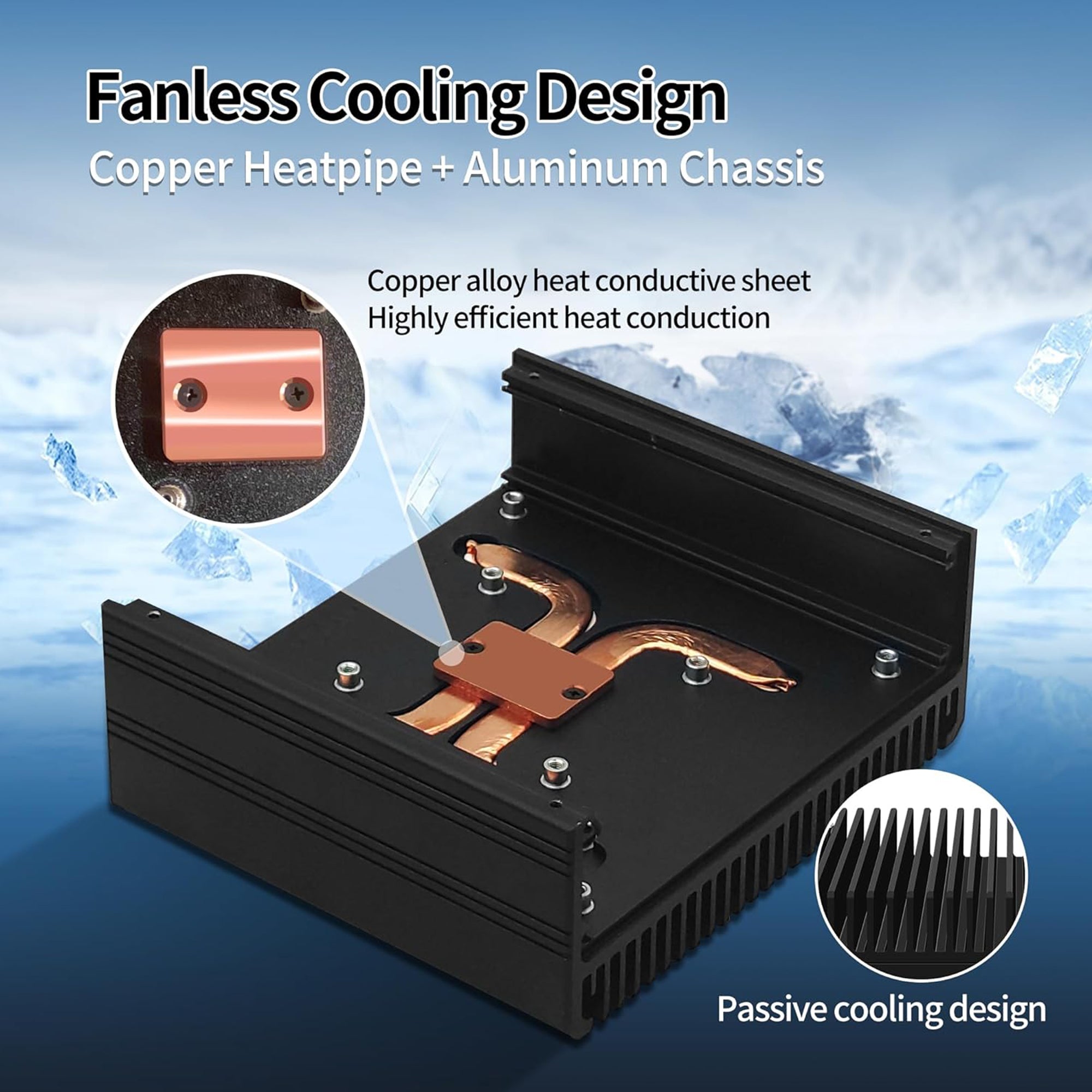

CWWK F16 copper-alloy heat-conduction plate for fanless passive cooling

F16 also supports an optional 80 × 80 × 10 mm 8010 chassis fan when additional airflow is required by the installation environment.

View Compatible 8010 Fan

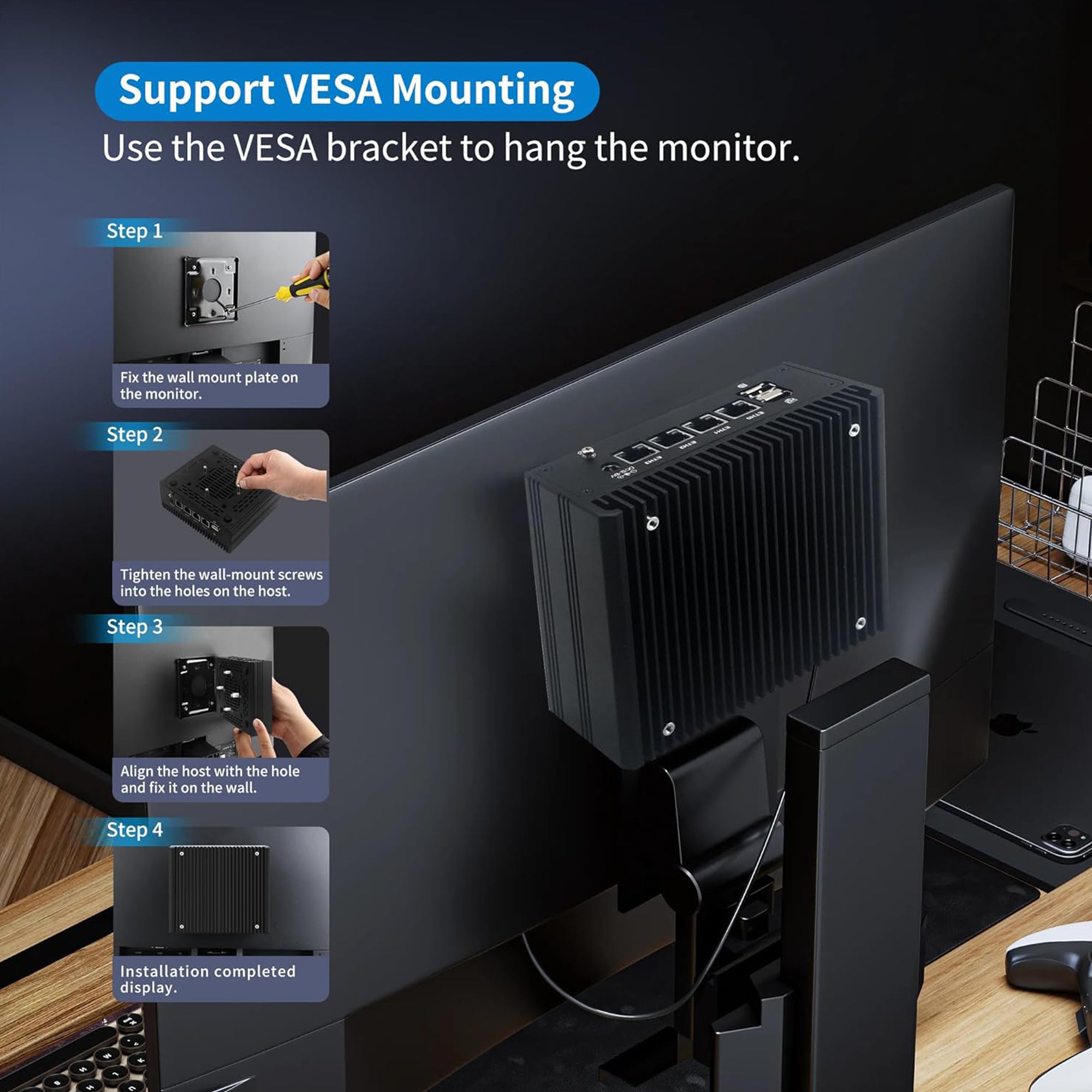

Compact Aluminum Chassis with VESA Mounting

The F16 chassis measures 150 × 130 × 55 mm and supports VESA mounting for flexible installation behind a monitor, on a compatible mounting surface or in space-constrained network environments.

150 × 130 × 55 mm Compact enclosure dimensions for desktop, network and embedded deployment.

VESA Mounting Supports VESA installation for cleaner deployment and reduced desktop footprint.

Optional 8010 Fan Additional chassis airflow can be added when required.

HDMI, DisplayPort and USB-C Triple Display Output

HDMI, DisplayPort and full-function USB-C provide three display output options for local management, desktop use and multi-monitor environments.

HDMI Digital display output for standard monitors and management consoles.

DisplayPort Additional digital display interface for multi-screen configurations.

Full-Function USB-C Supports data, display output and supported power functions through one interface.

Firewall, Virtualization and Home Lab Deployment

Ryzen multi-core processing, four 2.5GbE interfaces, up to 64GB DDR4 and flexible storage allow F16 to handle more than basic routing.

Firewall & Routing Four independent 2.5GbE interfaces support multi-zone networks, gateways and routing workloads.

Virtualization Multi-core processors and dual-channel memory provide resources for virtual machines and containers.

Home Lab & Edge Services NVMe, SATA and multi-gigabit networking support compact local infrastructure and edge services.

Front and Rear I/O Connectivity

4 × Intel i226-V 2.5GbE RJ45
1 × HDMI
1 × DisplayPort
1 × Full-function USB-C
2 × USB 3.1
2 × USB 2.0
1 × TF card slot
WiFi antenna reserved holes
BIOS reset / Clear CMOS
Power button
DC-IN 12–19V
USB-C 12–20V power input

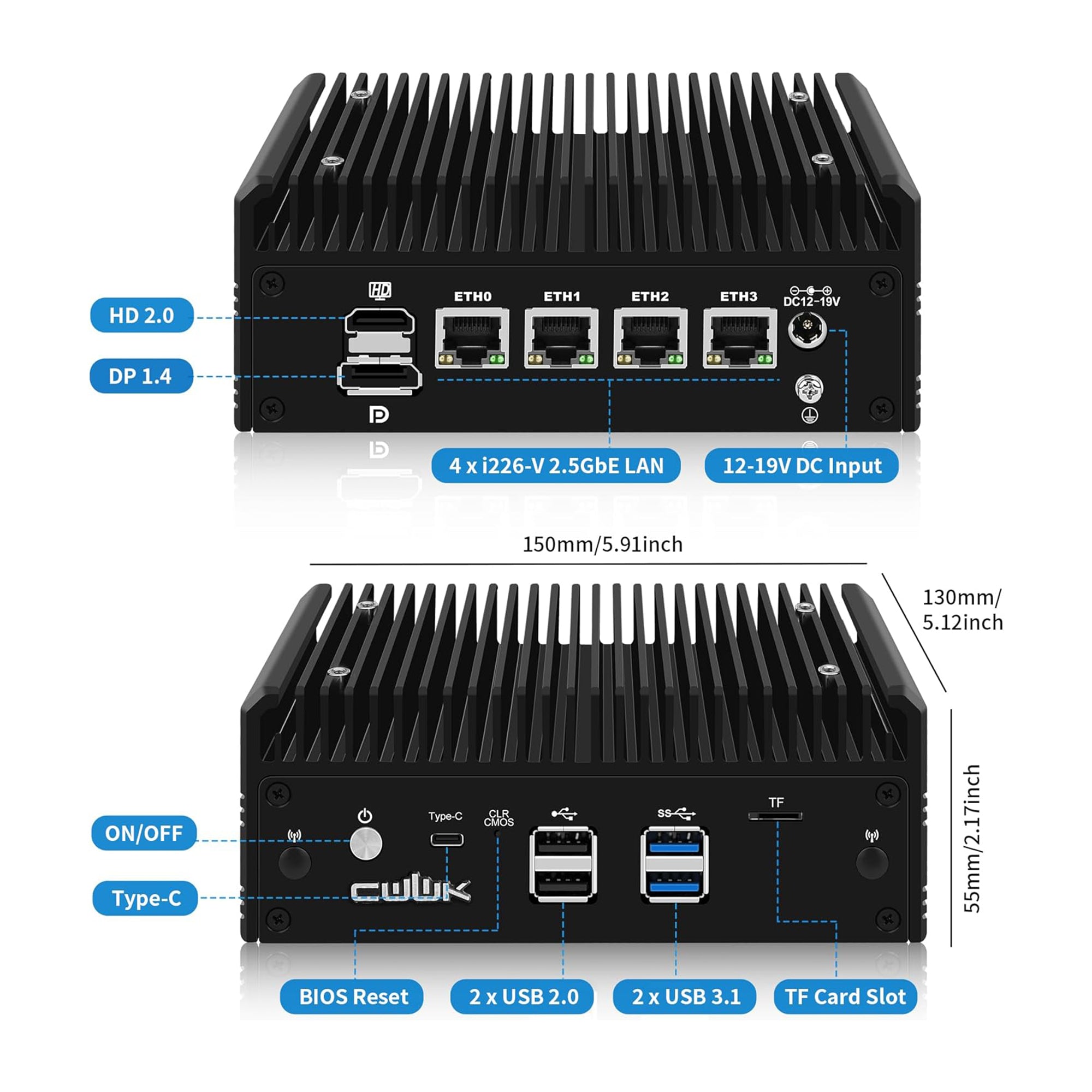

CWWK F16 front and rear connectivity including USB, HDMI, DisplayPort, USB-C and four 2.5GbE ports

Technical Specifications

Model	CWWK F16
Processor Options	AMD Ryzen 5 5500U / Ryzen 7 5800U / Ryzen 7 5825U / Ryzen 7 7730U
Network	4 × Intel i226-V 2.5GbE RJ45
Memory	2 × SO-DIMM DDR4 3200, dual-channel, up to 64GB
NVMe Storage	Up to 2 × M.2 NVMe, including PCIe 3.0 x4 storage expansion
SATA Storage	2 × 2.5-inch SATA via dedicated non-standard power/data interfaces
Display	HDMI + DisplayPort + full-function USB-C
USB	2 × USB 3.1 + 2 × USB 2.0 + USB-C
Cooling	Fanless passive cooling with internal copper-alloy heat-conduction structure; optional 8010 chassis fan supported
Mounting	VESA mounting supported
Power Input	DC-IN 12–19V / USB-C 12–20V
Dimensions	150 × 130 × 55 mm
Chassis	Aluminum chassis

FAQ

Is the CWWK F16 fanless?

Yes. F16 uses fanless passive cooling with an internal copper-alloy heat-conduction structure. An optional 8010 chassis fan can also be installed when additional airflow is required.

What processors are available for F16?

F16 supports AMD Ryzen 5 5500U, Ryzen 7 5800U, Ryzen 7 5825U and Ryzen 7 7730U configurations.

What is the difference between F16 and F29?

F16 and F29 share the same AMD motherboard platform. F16 uses a compact fanless passive-cooling chassis with VESA support, while F29 uses a larger actively cooled enclosure with copper-tube turbo fan cooling.

How much memory does F16 support?

F16 provides two SO-DIMM DDR4 3200 slots and supports up to 64GB of dual-channel memory.

Can F16 use two NVMe SSDs?

Yes. The platform supports up to two M.2 NVMe storage configurations, including a PCIe 3.0 x4 path and an additional expansion route.

Does F16 support 2.5-inch SATA drives?

Yes. Two dedicated non-standard SATA power and data interfaces are available for 2.5-inch SATA SSD or HDD installation.

Does F16 support VESA mounting?

Yes. F16 supports VESA mounting for flexible installation behind displays or on compatible mounting surfaces.

What are the dimensions of F16?

The F16 chassis measures 150 × 130 × 55 mm.

Can I add an 8010 fan to F16?

Yes. F16 supports an optional 80 × 80 × 10 mm chassis fan. View the compatible CWWK 8010 fan.
