CWWK F9 6-Port 2.5GbE Firewall Mini PC

$392.19

$499.00

The CWWK F9 is a 6-port 2.5GbE firewall and network appliance based on CWWK's flagship N-Series motherboard platform. It combines six Intel i226-V 2.5GbE LAN ports, DDR5 memory, dual M.2 NVMe storage, VESA mounting support, optional 8010 fan expansion, and a Large-Back aluminum chassis designed around high-efficiency external heat-dissipation fins.

Intel N-Series Processor Platform

The F9 platform supports Intel N100, N150, N200, Core i3-N305, and Core 3 N355 processor configurations. Available CPU options may vary depending on current inventory and product configuration.

N100 4 cores / 4 threads for firewall, routing, VLAN, and low-power network services.

N150 4 cores / 4 threads for firewall, VPN, routing, and everyday network workloads.

N300 8 cores / 8 threads with stronger multitasking headroom for multi-service networking.

N305 8 cores / 8 threads for Proxmox, containers, virtual firewalls, and heavier workloads.

N355 8 cores / 8 threads for more demanding virtualization and multi-service deployments.

Six Intel i226-V 2.5GbE Network Ports

Six Intel i226-V 2.5GbE LAN ports provide dedicated interfaces for Multi-WAN routing, isolated LAN segments, NAS connectivity, access points, cameras, IoT devices, guest networks, and home lab environments.

6 × 2.5GbE Assign physical interfaces to WAN, LAN, NAS, access points, cameras, IoT equipment, or test networks.

Multi-WAN Configure multiple upstream connections for failover, load balancing, or separate gateway routes.

Network Segmentation Separate servers, trusted devices, guests, IoT equipment, and lab systems using physical ports or VLANs.

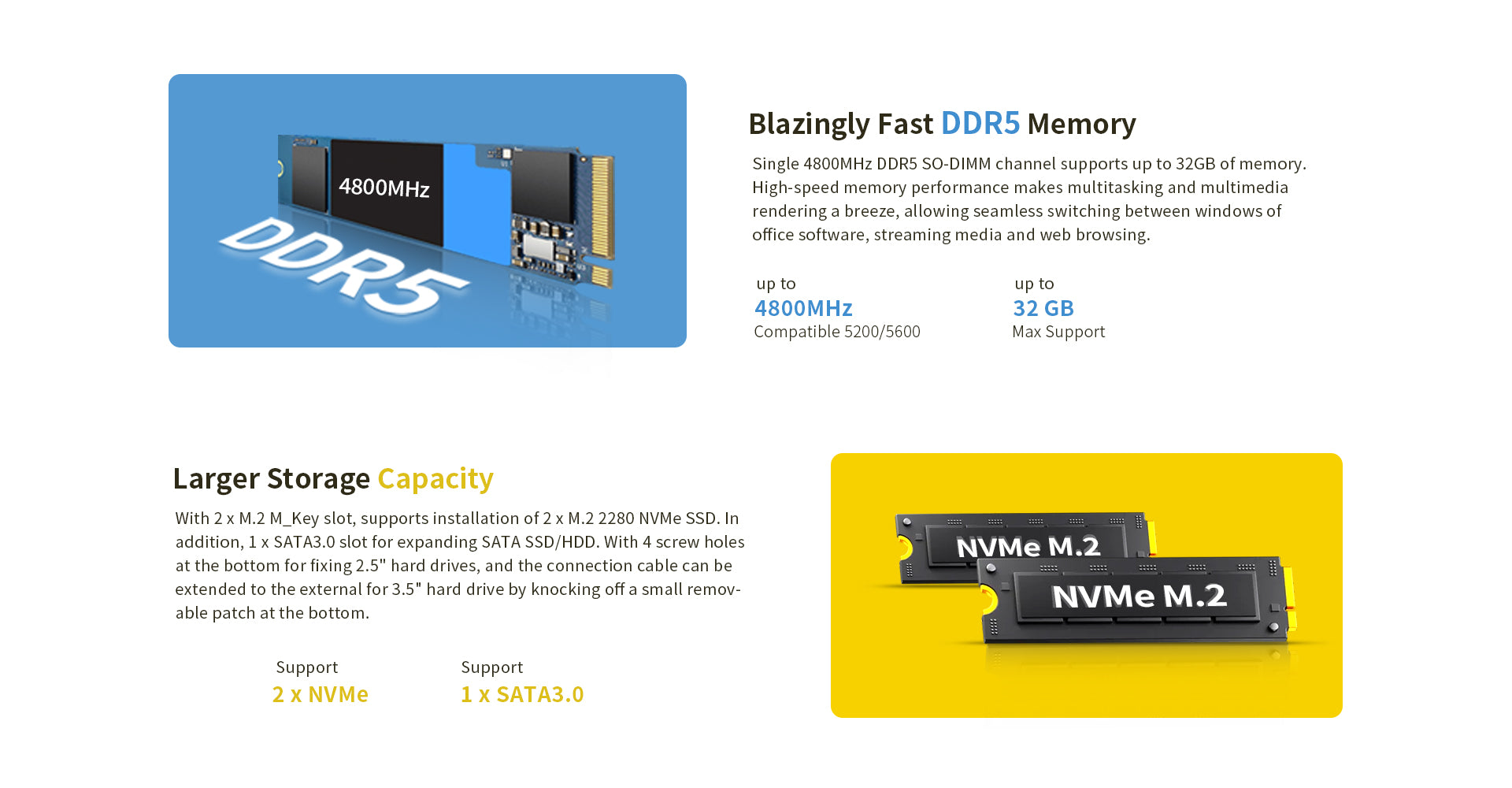

Flagship Motherboard, DDR5 and Dual NVMe Storage

The F9 uses CWWK's flagship 6-port N-Series motherboard with six Intel i226-V 2.5GbE controllers, one SO-DIMM DDR5 memory slot, two M.2 NVMe SSD positions, and one SATA 3.0 interface. The same core motherboard platform is also used by the F5, F7 and F11 chassis variants.

Flagship 6-port N-Series motherboard
1 × SO-DIMM DDR5 memory slot
2 × M.2 NVMe SSD slots
1 × SATA 3.0 interface
6 × Intel i226-V 2.5GbE controllers
Suitable for firewall and virtualization workloads

CWWK F9 flagship motherboard internal layout and VESA mounting structure

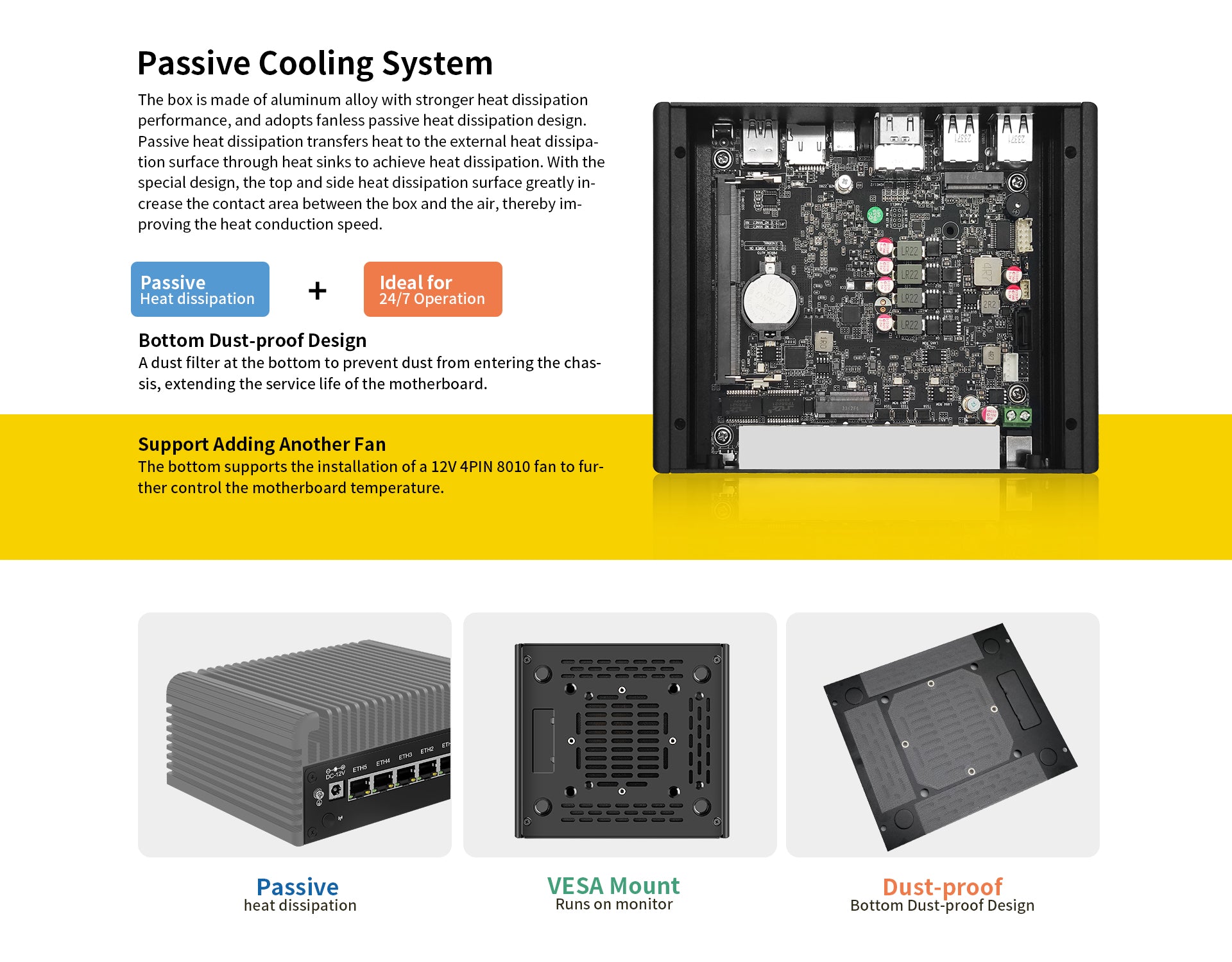

Large-Back Chassis with High-Efficiency Heat-Dissipation Fins

155 × 135 × 65 mm

15.5 × 13.5 × 6.5 cm
6.10 × 5.31 × 2.56 in

Large-Back Chassis High-Efficiency Fins Dust-Resistant Design VESA Mounting 8010 Fan Supported

The F9 is distinguished by its Large-Back aluminum chassis and heat-dissipation fin structure. Among the F5, F7, F9 and F11 chassis variants, the F9 uses the most effective fin-based heat-dissipation design, increasing the external surface area available for transferring heat away from the internal hardware.

The chassis also supports VESA installation and incorporates a dust-resistant structural design. For workloads or environments that require additional airflow, an optional 12V 4-pin 80 × 80 × 10 mm 8010 cooling fan can also be installed.

Shop 8010 Cooling Fan →

CWWK F9 Large-Back chassis heat-dissipation fins VESA mounting and dust-resistant design

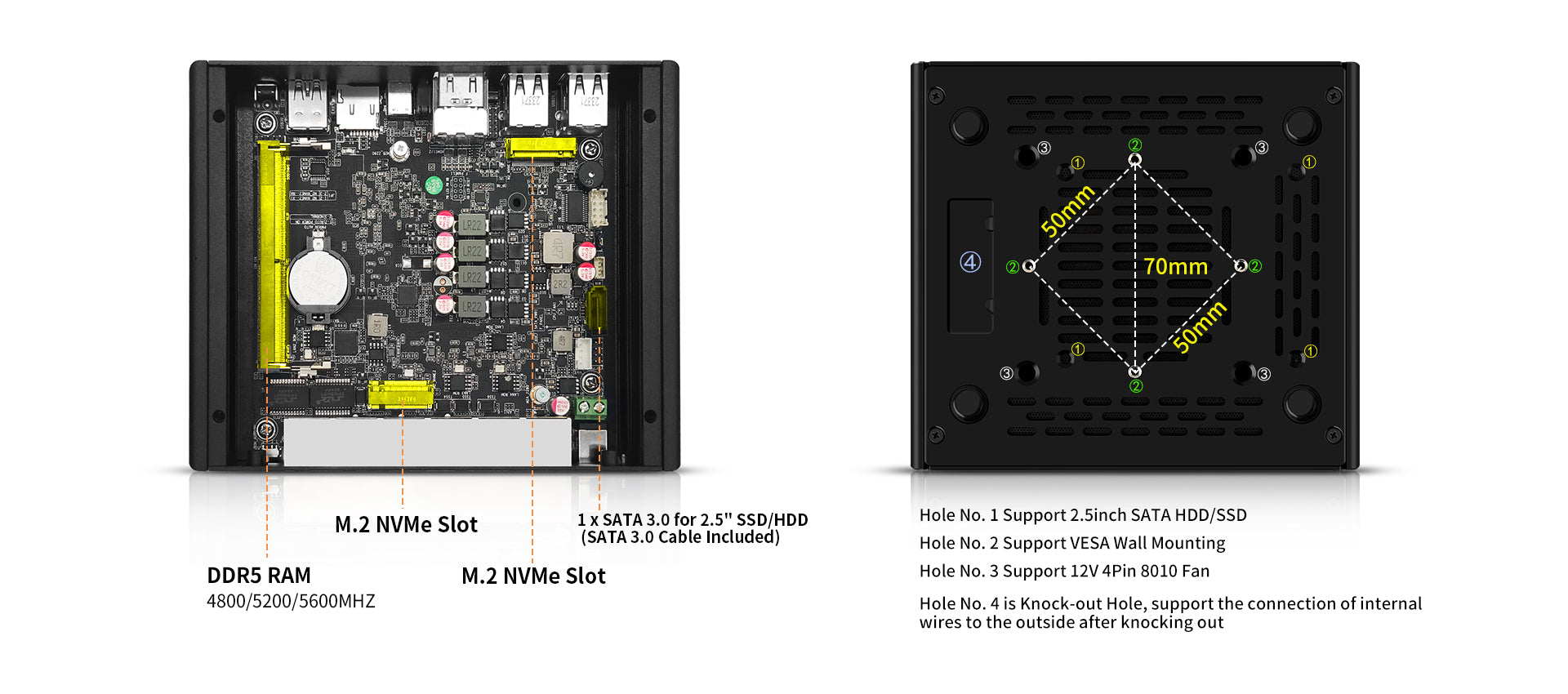

VESA Mounting and Internal Chassis Layout

The F9 chassis provides VESA mounting support for installation behind compatible displays, on mounting plates, or in other space-efficient deployments. Its internal layout accommodates the flagship motherboard while maintaining access to DDR5 memory, dual NVMe storage, SATA connectivity, networking, and optional cooling expansion.

OPNsense, pfSense, OpenWrt and Proxmox Compatibility

The F9 supports OPNsense, pfSense, OpenWrt, Proxmox, Linux, Ubuntu, Debian, ESXi, Windows, and other compatible x86 operating systems. Its six network ports make it suitable for firewall routing, VLAN segmentation, Multi-WAN, VPN gateways, virtualized network services, and home lab deployments.

Firewall & Routing Deploy OPNsense, pfSense, OpenWrt, Multi-WAN, VPN gateways, and VLAN routing.

Home Lab Run virtual firewalls, containers, lightweight servers, and network services on one platform.

Sustained Network Workloads Use the larger finned chassis where increased passive heat-transfer surface area is preferred.

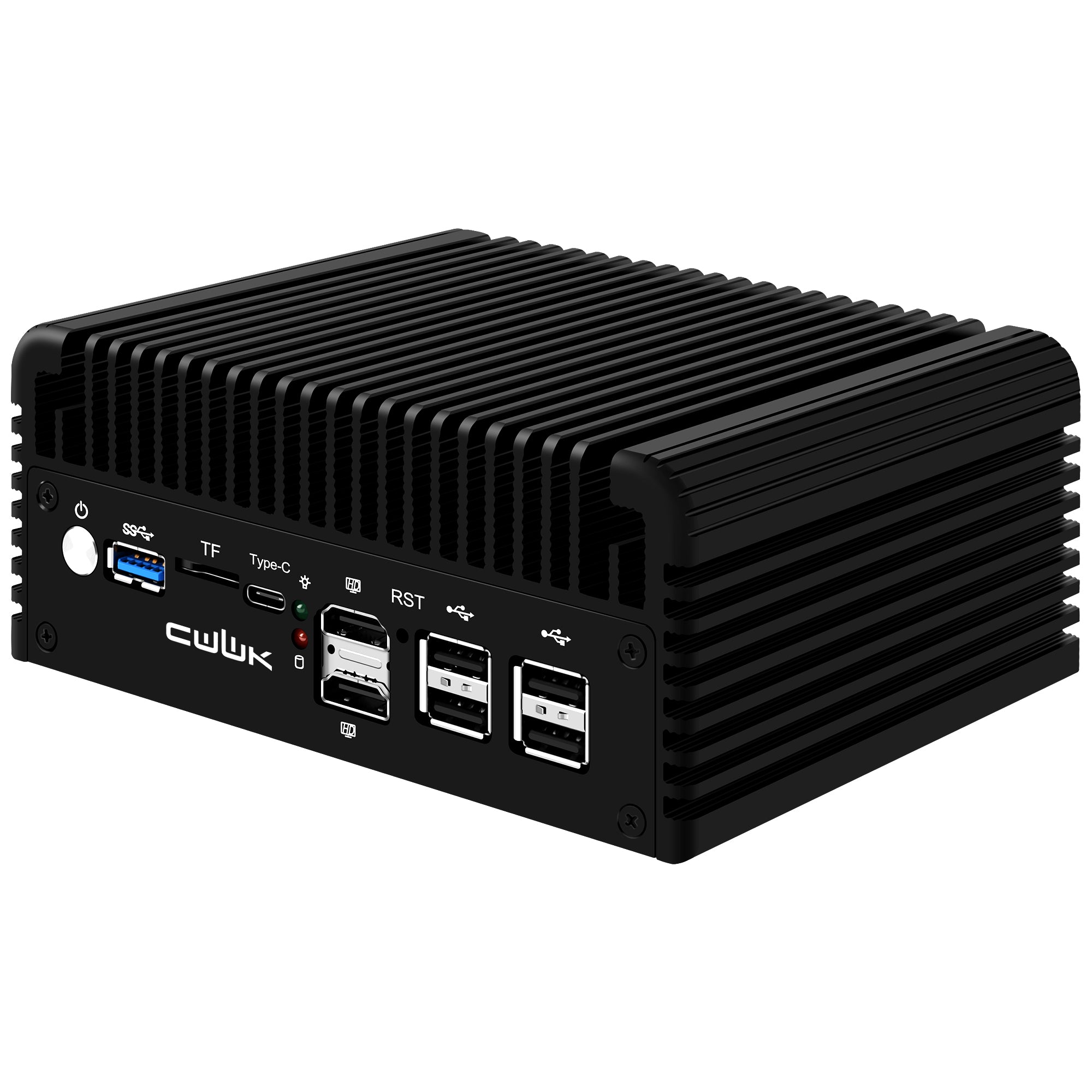

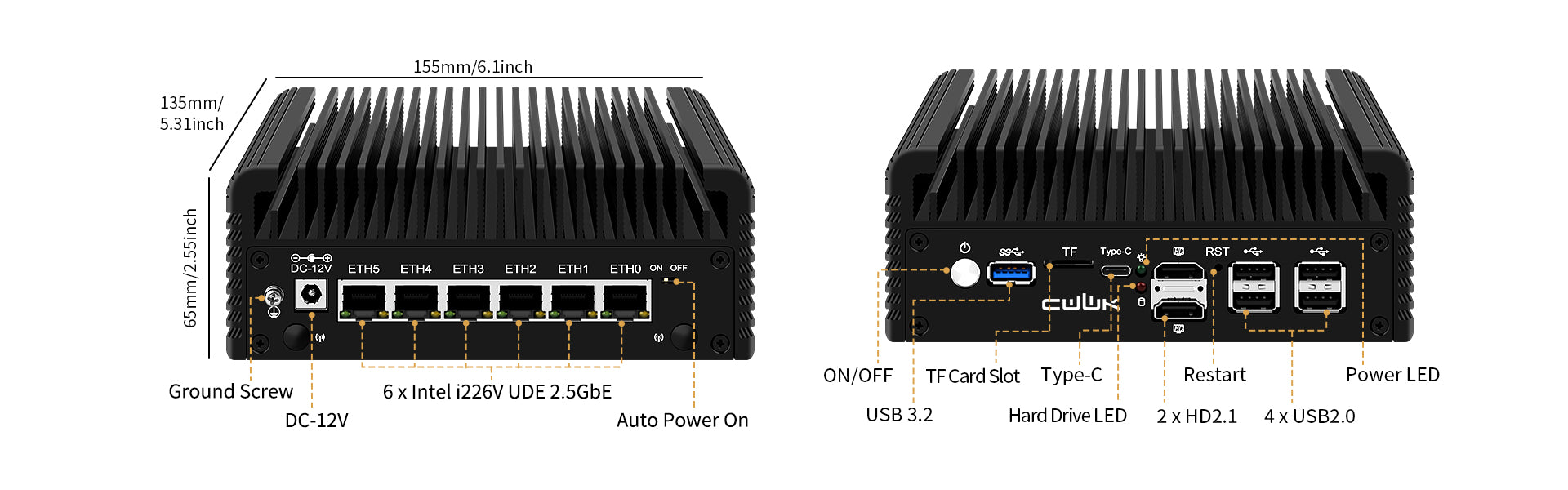

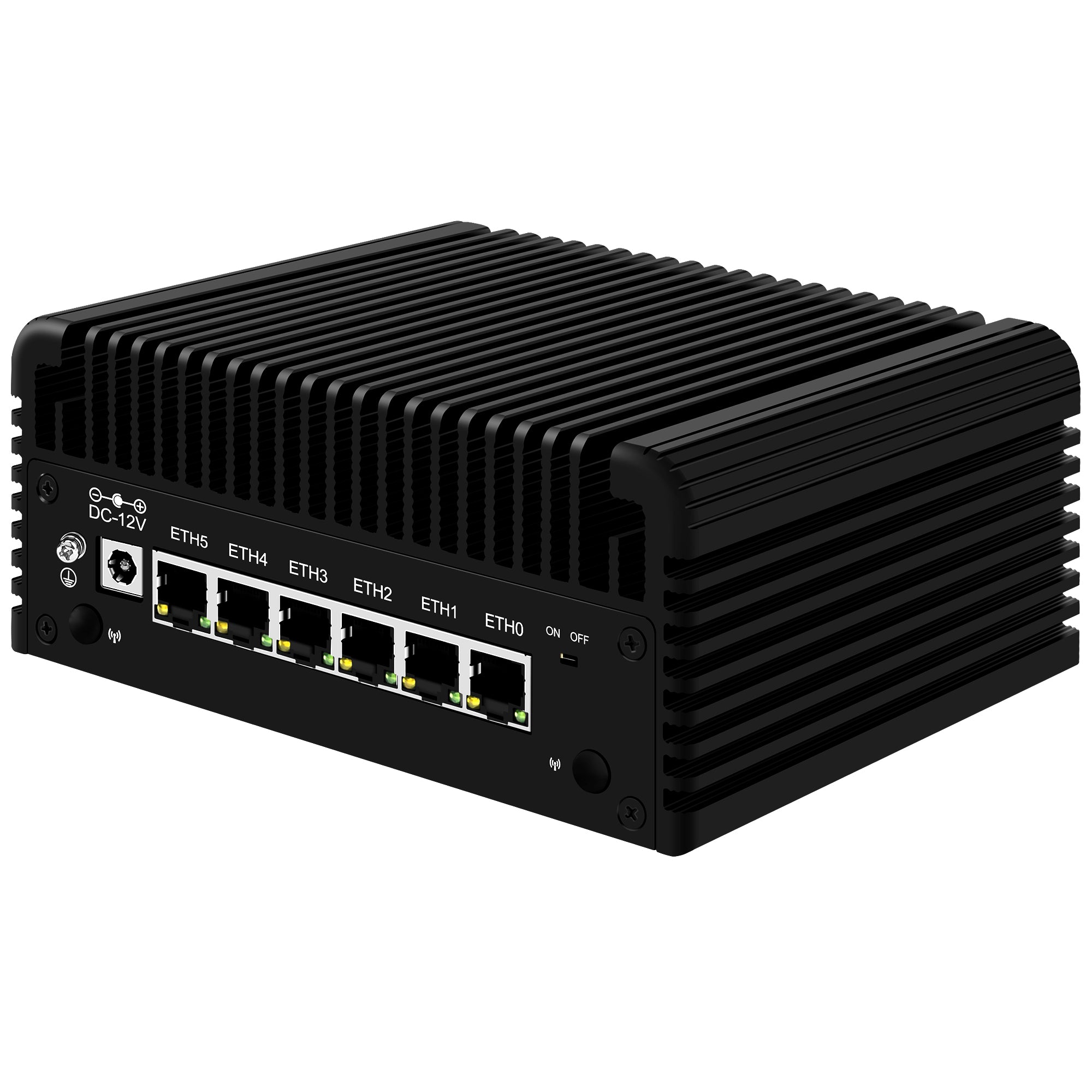

Front and Rear I/O Connectivity

The F9 provides front and rear interfaces for networking, local system installation, display output, USB peripherals, storage access, and power. Six Intel i226-V 2.5GbE LAN ports form the core of its firewall and routing connectivity.

CWWK F9 front and rear I O interfaces with six Intel i226-V 2.5GbE LAN ports USB display and power connections

Technical Specifications

Key hardware specifications, networking, storage, chassis dimensions, thermal design, VESA mounting, optional cooling, and operating system compatibility for the CWWK F9.

Model	CWWK F9
Processor Platform	Intel N100, N150, N200, Core i3-N305, and Core 3 N355
CPU Availability	Available processor options vary depending on current inventory and product configuration
Motherboard	CWWK flagship 6-port N-Series motherboard
Ethernet	6 × Intel i226-V 2.5GbE RJ45 LAN ports
Memory	1 × SO-DIMM DDR5 slot
NVMe Storage	2 × M.2 NVMe SSD slots
SATA Storage	1 × SATA 3.0 interface
Chassis	CWWK Large-Back aluminum chassis
Dimensions	155 × 135 × 65 mm 15.5 × 13.5 × 6.5 cm 6.10 × 5.31 × 2.56 in
Thermal Design	High-efficiency external aluminum heat-dissipation fin structure
Dust Protection	Dust-resistant chassis design
VESA Mounting	Supported
Optional Cooling	Supports optional 12V 4-pin 80 × 80 × 10 mm 8010 cooling fan
Operating Systems	OPNsense, pfSense, OpenWrt, Proxmox, Linux, Ubuntu, Debian, ESXi and Windows
Typical Applications	Firewall, router, VPN gateway, VLAN gateway, Multi-WAN, home lab, Proxmox host and network services

FAQ

What makes the CWWK F9 different from the F5, F7 and F11?

The F5, F7, F9 and F11 use the same flagship 6-port N-Series motherboard platform and all support VESA mounting and an optional 8010 cooling fan. The F9 is distinguished by its Large-Back chassis and the most effective heat-dissipation fin design among the four chassis variants.

What are the dimensions of the CWWK F9?

The F9 measures 155 × 135 × 65 mm, or 15.5 × 13.5 × 6.5 cm. In inches, it measures approximately 6.10 × 5.31 × 2.56 in.

What is special about the F9 heat-dissipation fin design?

The F9 Large-Back chassis uses a more effective external fin structure to increase the aluminum surface area available for heat transfer. Among the F5, F7, F9 and F11 chassis variants, its fin design provides the strongest fin-based heat-dissipation performance.

Does the F9 support VESA mounting?

Yes. The F9 supports VESA installation for compatible mounting applications.

Does the F9 use a dust-resistant design?

Yes. The F9 chassis incorporates a dust-resistant structural design intended to reduce direct dust exposure around the enclosure openings.

Can I install an 8010 cooling fan in the F9?

Yes. The F9 supports an optional 12V 4-pin 80 × 80 × 10 mm 8010 cooling fan. The fan is sold separately and can be purchased here .

Which processors does the CWWK F9 support?

The F9 platform supports Intel N100, N150, N200, Core i3-N305, and Core 3 N355 processor configurations. Available options may vary depending on current inventory.

How many 2.5GbE ports does the F9 have?

The F9 provides six Intel i226-V 2.5GbE RJ45 LAN ports for WAN, LAN, VLAN, NAS, access points, IoT devices, guest networks, cameras, and isolated network segments.

Does the CWWK F9 support OPNsense and pfSense?

Yes. The F9 supports OPNsense and pfSense as well as OpenWrt and other compatible x86 network operating systems.

Can the CWWK F9 run Proxmox?

Yes. The F9 can run Proxmox for virtual firewall instances, containers, network services, and home lab workloads. Higher-core-count processor configurations provide additional resources for heavier virtualization.

How many NVMe SSDs does the F9 support?

The F9 provides two M.2 NVMe SSD slots together with one SATA 3.0 interface for additional storage.
