CWWK F5 6-Port 2.5GbE Firewall Mini PC

Welcome to the CWWK Official Store

Free Worldwide DDP Shipping

Freight, duties and customs clearance included

Your cart is empty

$392.19

The CWWK F5 is a 6-port 2.5GbE firewall mini PC based on CWWK's flagship N-Series motherboard platform. It is currently available with Intel N150, Core i3-N300, and Core 3 N355 processors and combines six Intel i226-V 2.5GbE LAN ports, DDR5 memory, dual M.2 NVMe storage, VESA mounting support, optional 8010 fan expansion, and an official aluminum chassis with an internal copper-alloy heat-conduction plate.

Intel N150, N300 and N355 Processor Options

The F5 is currently available with three Intel N-Series configurations. The N150 is suited to firewall and routing workloads, while the 8-core N300 and N355 provide additional CPU resources for virtualization, containers, VPN services, and multi-service home labs.

N150 4 cores / 4 threads. Suitable for OPNsense, pfSense, OpenWrt, routing, VLAN segmentation, VPN, and everyday network services.

N300 8 cores / 8 threads. Provides additional CPU resources for Proxmox, containers, multi-service networking, and home lab workloads.

N355 8 cores / 8 threads. The higher-performance option for virtualization, VPN services, and more demanding network deployments.

Six Intel i226-V 2.5GbE Network Ports

Six Intel i226-V 2.5GbE LAN ports provide dedicated physical interfaces for Multi-WAN routing, isolated LAN segments, NAS connectivity, wireless access points, IoT devices, guest networks, cameras, and home lab environments.

6 × 2.5GbE Assign dedicated interfaces to WAN, LAN, NAS, access points, cameras, IoT equipment, or test networks.

Multi-WAN Configure multiple upstream connections for failover, load balancing, or separate gateway routes.

Network Segmentation Separate trusted devices, servers, guests, IoT equipment, and lab systems using physical ports or VLANs.

Flagship Motherboard, DDR5 and Dual NVMe Storage

The F5 uses CWWK's flagship 6-port N-Series motherboard with six Intel i226-V 2.5GbE controllers, one SO-DIMM DDR5 memory slot, two M.2 NVMe SSD positions, and one SATA 3.0 interface. This provides storage flexibility for the operating system, logs, virtual machines, containers, and additional local data.

Flagship 6-port N-Series motherboard
1 × SO-DIMM DDR5 memory slot
2 × M.2 NVMe SSD slots
1 × SATA 3.0 interface
6 × Intel i226-V 2.5GbE controllers
Suitable for firewall and virtualization workloads

F5 Internal Layout and Bottom Mounting Design

The F5 internal layout shows the flagship motherboard installed inside the official chassis together with the available memory, NVMe, SATA, networking, and cooling components. The chassis bottom also includes dedicated mounting and installation holes, including support for VESA deployment.

CWWK F5 internal flagship motherboard layout and bottom VESA mounting hole design

Official Chassis with Copper Alloy Heat Conduction

178.3 × 145.4 × 58.7 mm

17.83 × 14.54 × 5.87 cm
7.02 × 5.72 × 2.31 in

Official Chassis Copper Alloy Plate Heat-Dissipation Fins VESA Mounting 8010 Fan Supported

The F5's defining thermal feature is its internal copper-alloy heat-conduction plate. The plate transfers processor heat toward the aluminum chassis, where the external heat-dissipation fins provide additional surface area for thermal transfer.

For sustained workloads or environments that require additional airflow, the F5 also supports an optional 12V 4-pin 80 × 80 × 10 mm 8010 cooling fan. The fan is sold separately.

Shop 8010 Cooling Fan →

CWWK F5 copper alloy heat-conduction plate and aluminum heat-dissipation fin cooling design

OPNsense, pfSense, OpenWrt and Proxmox Compatibility

The F5 supports OPNsense, pfSense, OpenWrt, Proxmox, Linux, Ubuntu, Debian, ESXi, Windows, and other compatible x86 operating systems. Its six physical network interfaces make it suitable for firewall routing, VLAN segmentation, Multi-WAN, VPN gateways, virtualized network services, and home lab deployments.

Firewall & Routing Deploy OPNsense, pfSense, OpenWrt, Multi-WAN, VPN gateways, and VLAN routing.

Home Lab Run virtual firewalls, containers, lightweight servers, and network services on one compact platform.

Small Network Separate NAS systems, access points, cameras, office devices, guests, and IoT equipment.

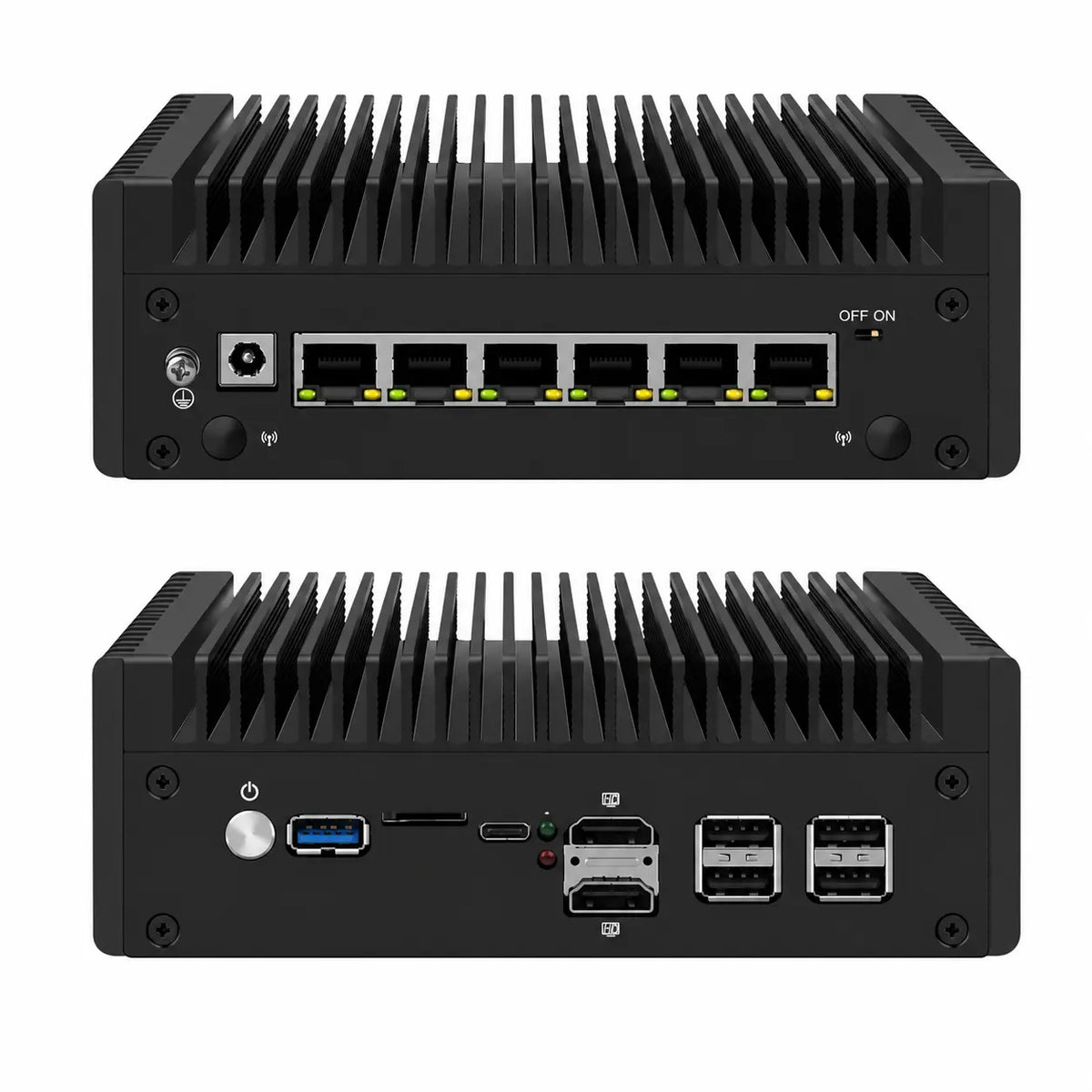

Front and Rear I/O Connectivity

The F5 provides front and rear interfaces for networking, local system installation, display output, USB peripherals, storage access, and power. Six Intel i226-V 2.5GbE LAN interfaces form the core of the system's firewall and routing connectivity.

CWWK F5 front and rear I O interfaces with six Intel i226-V 2.5GbE LAN ports USB display and power connections

Technical Specifications

Key hardware specifications, networking, storage, chassis, thermal design, mounting support, and operating system compatibility for the CWWK F5.

Model	CWWK F5
Processor Options	Intel N150, Core i3-N300, and Core 3 N355
Motherboard	CWWK flagship 6-port N-Series motherboard
Ethernet	6 × Intel i226-V 2.5GbE RJ45 LAN ports
Memory	1 × SO-DIMM DDR5 slot
NVMe Storage	2 × M.2 NVMe SSD slots
SATA Storage	1 × SATA 3.0 interface
Chassis	CWWK official aluminum chassis
Dimensions	178.3 × 145.4 × 58.7 mm 17.83 × 14.54 × 5.87 cm 7.02 × 5.72 × 2.31 in
Thermal Design	Internal copper-alloy heat-conduction plate with aluminum heat-dissipation fins
Optional Cooling	Supports optional 12V 4-pin 80 × 80 × 10 mm 8010 cooling fan
VESA Mounting	Supported through chassis-bottom mounting points
Operating Systems	OPNsense, pfSense, OpenWrt, Proxmox, Linux, Ubuntu, Debian, ESXi and Windows
Typical Applications	Firewall, router, VPN gateway, VLAN gateway, Multi-WAN, home lab, Proxmox host and network services

FAQ

What makes the CWWK F5 different from the F7, F9 and F11?

The F5, F7, F9 and F11 use the same flagship 6-port N-Series motherboard platform and all support VESA mounting and an optional 8010 cooling fan. The F5 is distinguished by its official chassis and internal copper-alloy heat-conduction plate, which transfers processor heat toward the aluminum enclosure.

What are the dimensions of the CWWK F5?

The CWWK F5 measures 178.3 × 145.4 × 58.7 mm, or 17.83 × 14.54 × 5.87 cm. In inches, it measures approximately 7.02 × 5.72 × 2.31 in.

How does the F5 copper-alloy heat-conduction plate work?

The internal copper-alloy plate conducts heat away from the processor toward the aluminum chassis. The external heat-dissipation fins then increase the available surface area for transferring that heat to the surrounding air.

Does the F5 support VESA mounting?

Yes. The F5 chassis includes bottom mounting points that support VESA installation.

Can I install an 8010 cooling fan in the F5?

Yes. The F5 supports an optional 12V 4-pin 80 × 80 × 10 mm 8010 cooling fan. The fan is sold separately and can be purchased here .

Which processors are currently available for the CWWK F5?

The F5 is currently available with Intel N150, Core i3-N300, and Core 3 N355 processor options.

Which F5 processor should I choose?

The N150 is suitable for firewall, routing, VLAN, and general network workloads. The 8-core N300 and N355 provide more CPU resources for Proxmox, containers, VPN services, and multi-service home lab environments.

How many 2.5GbE ports does the F5 have?

The F5 provides six Intel i226-V 2.5GbE RJ45 LAN ports for WAN, LAN, VLAN, NAS, access points, IoT devices, guest networks, cameras, and isolated network segments.

Does the CWWK F5 support OPNsense and pfSense?

Yes. The F5 supports OPNsense and pfSense as well as OpenWrt and other compatible x86 network operating systems.

Can the CWWK F5 run Proxmox?

Yes. The F5 can run Proxmox for virtual firewall instances, containers, network services, and home lab workloads. The N300 and N355 configurations provide more CPU resources for heavier virtualization.

How many NVMe SSDs does the F5 support?

The F5 provides two M.2 NVMe SSD slots together with one SATA 3.0 interface for additional storage.
