CWWK F18/F20 Intel Core 6-Port 2.5GbE Firewall Mini PC

The CWWK F18 and F20 are 6-port 2.5GbE firewall mini PCs built around the same MBX-AD12 REV 2.0 platform. Both models combine Intel Core processors, six Intel i226-V network interfaces, dual-channel DDR5 memory, two native M.2 NVMe slots, dual SATA expansion and USB4 connectivity. F18 uses a fanless chassis with passive copper heat-pipe cooling, while F20 uses an active CPU cooling system with a copper heat pipe and fan.

Intel Core i3-1215U, i5-1235U and i5-1240P Options

F18 and F20 are available with Intel 12th Gen Core processor options for firewall, routing, virtualization and multi-service workloads.

Intel Core i3-1215U Suitable for multi-port firewall, routing, VPN and general network-service deployments.

Intel Core i5-1235U Provides additional multi-task performance for virtualization, containers and multiple simultaneous services.

Intel Core i5-1240P Designed for users requiring higher compute capacity for heavier multi-service and sustained workloads.

Six Intel i226-V 2.5GbE Network Ports

Six onboard Intel i226-V controllers provide six independent 2.5GbE RJ45 interfaces for multi-WAN, segmented LAN, VLAN, gateway and virtualized networking environments.

6 × 2.5GbE RJ45 Six multi-gigabit ports support more complex network topologies than standard four-port appliances.

Intel i226-V Dedicated Intel 2.5GbE controllers are used across all six Ethernet interfaces.

Flexible Network Segmentation Suitable for WAN, LAN, VLAN, guest, IoT and isolated lab network separation.

MBX-AD12 REV 2.0 Platform with Dual-Channel DDR5

F18 and F20 share the same MBX-AD12 REV 2.0 motherboard platform. Two SO-DIMM slots provide dual-channel DDR5 memory support with up to 64GB total capacity.

2 × SO-DIMM DDR5 slots
DDR5 4800 memory support
Compatible with DDR5 5200 / 5600 modules
Up to 32GB per SO-DIMM slot
Up to 64GB total system memory
6 × Intel i226-V 2.5GbE LAN

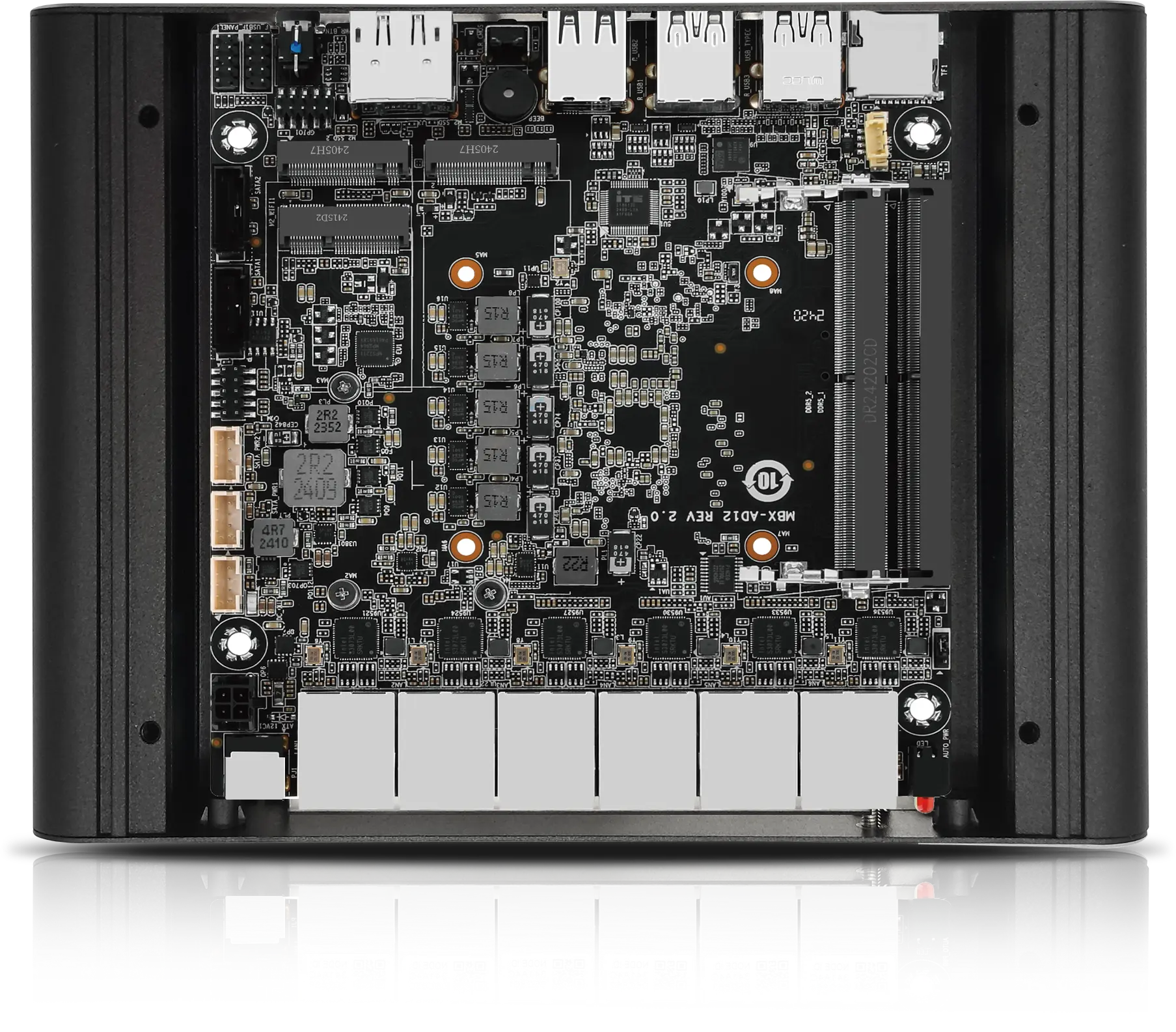

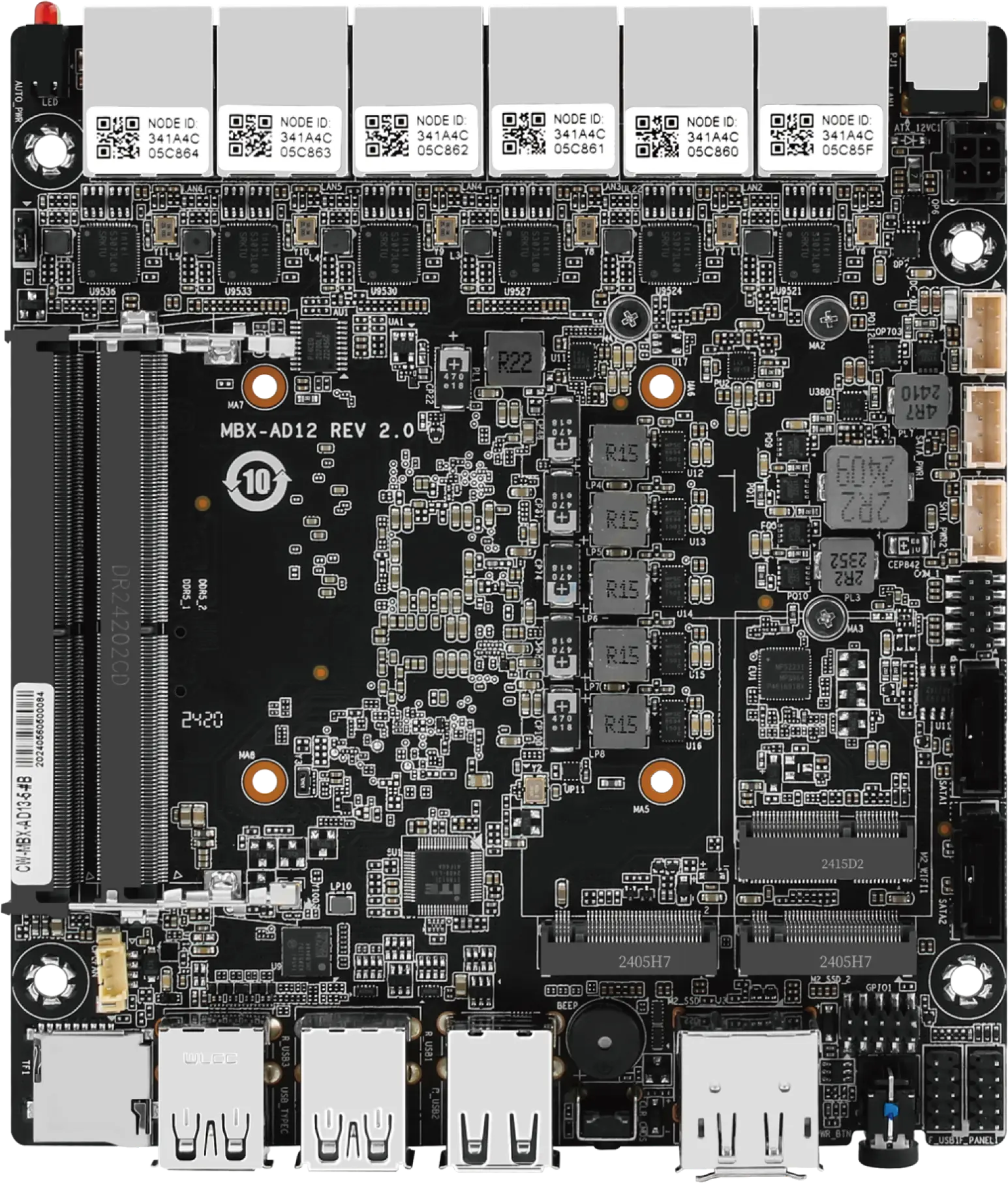

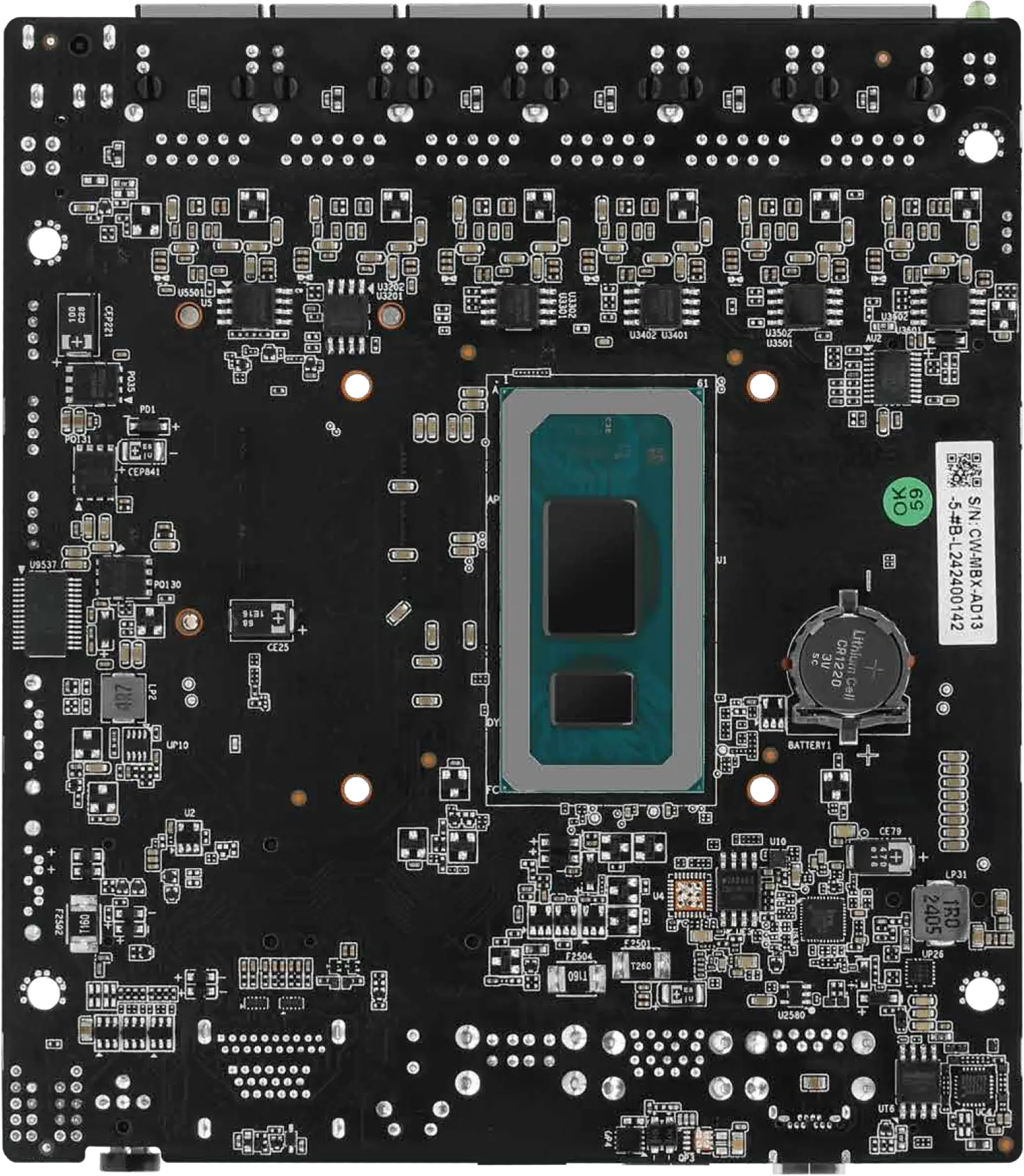

CWWK F18 and F20 shared MBX-AD12 REV 2.0 motherboard and interface layout

Dual Native M.2 NVMe and Dual SATA Storage

The MBX-AD12 REV 2.0 provides two native M.2 NVMe interfaces plus two SATA 3.0 connectors and a separate M.2 E-Key WiFi slot.

M.2 SSD1 — PCIe 4.0 x4 Primary M.2 2280 NVMe interface connected through a PCIe 4.0 x4 storage path.

M.2 SSD2 — PCIe 3.0 x4 Second native M.2 2280 NVMe interface using a PCIe 3.0 x4 connection.

2 × SATA 3.0 Two onboard SATA 3.0 connectors provide additional SATA SSD or HDD expansion.

The M.2 E-Key WiFi interface is separate from both native M.2 NVMe slots. Installing a WiFi module therefore does not require giving up either NVMe interface.

PCIe 4.0 x4 + PCIe 3.0 x4 NVMe Architecture

The two native NVMe interfaces use separate PCIe resource paths. M.2 SSD1 uses PCIe 4.0 x4, while M.2 SSD2 uses PCIe 3.0 x4.

Primary PCIe 4.0 x4 NVMe The first M.2 interface provides the highest-bandwidth native storage path for the primary NVMe SSD.

Expandable PCIe 3.0 x4 Path The second M.2 PCIe 3.0 x4 resource can be divided into four PCIe x1 signals for use with a compatible multi-NVMe expansion board.

F18 vs F20: Fanless or Active-Cooled Chassis

F18 and F20 use the same motherboard and processor options. Their main differences are the enclosure, thermal design and VESA mounting support.

F18

Fanless Passive Cooling

F18 uses a fanless aluminum chassis with copper heat pipes, a copper heat-conduction plate and internal thermal-transfer components that move processor heat into the metal enclosure for passive dissipation.

Fanless Passive Cooling Copper Heat Pipe Copper Plate VESA

Dimensions: 178 × 145 × 58 mm / 17.8 × 14.5 × 5.8 cm.

CWWK F18 fanless 6-port 2.5GbE firewall mini PC front and rear I/O

CWWK F18 copper heat-conduction plate and heat-pipe passive cooling structure

F20

Copper Heat Pipe and Fan Active Cooling

F20 uses the large active-cooling chassis with a copper heat-pipe CPU cooler and dedicated fan for additional thermal capacity during sustained processor workloads.

Active Cooling Copper Heat Pipe CPU Fan Non-VESA

Dimensions: 131.7 × 154.6 × 63.9 mm / 13.17 × 15.46 × 6.39 cm / 5.19 × 6.09 × 2.52 in.

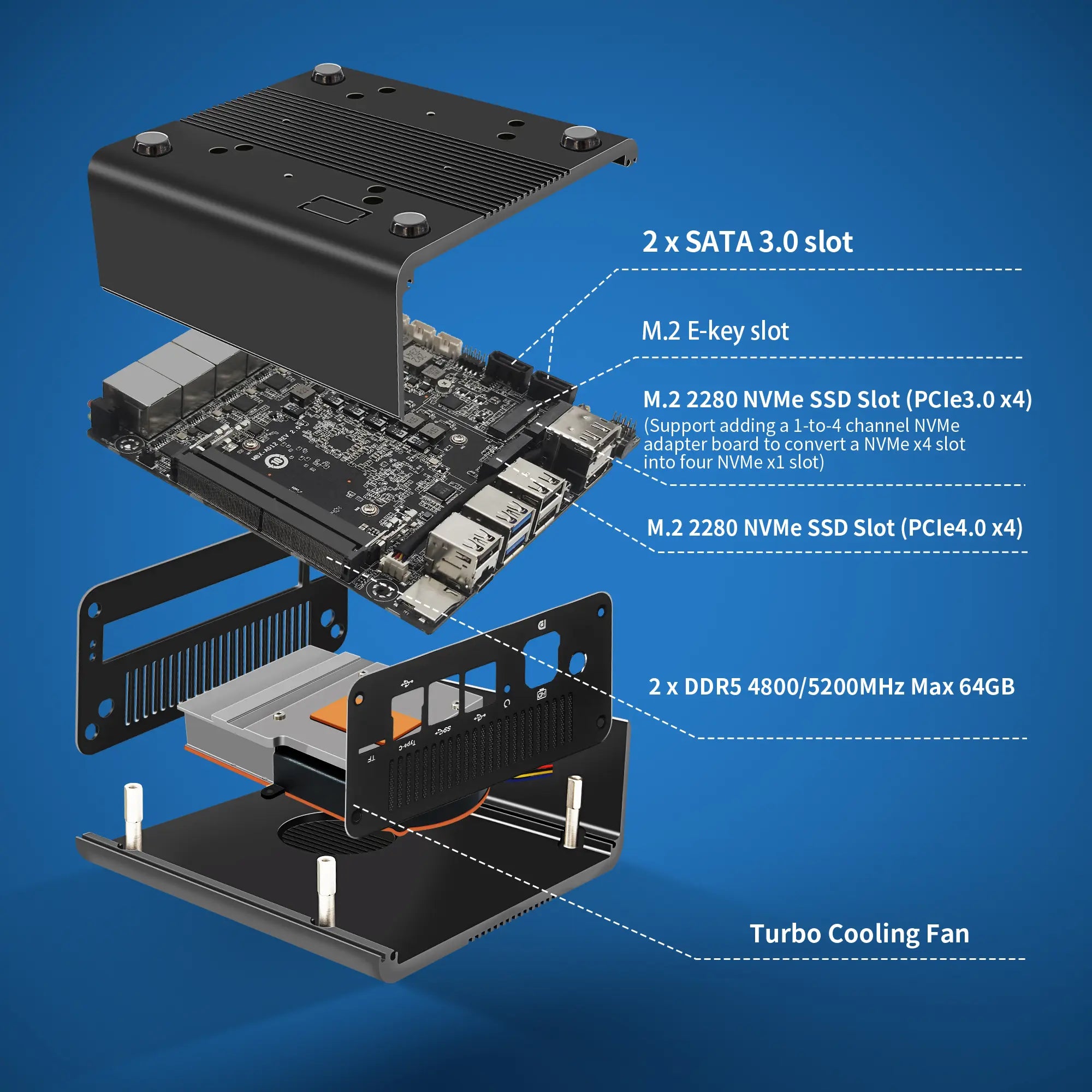

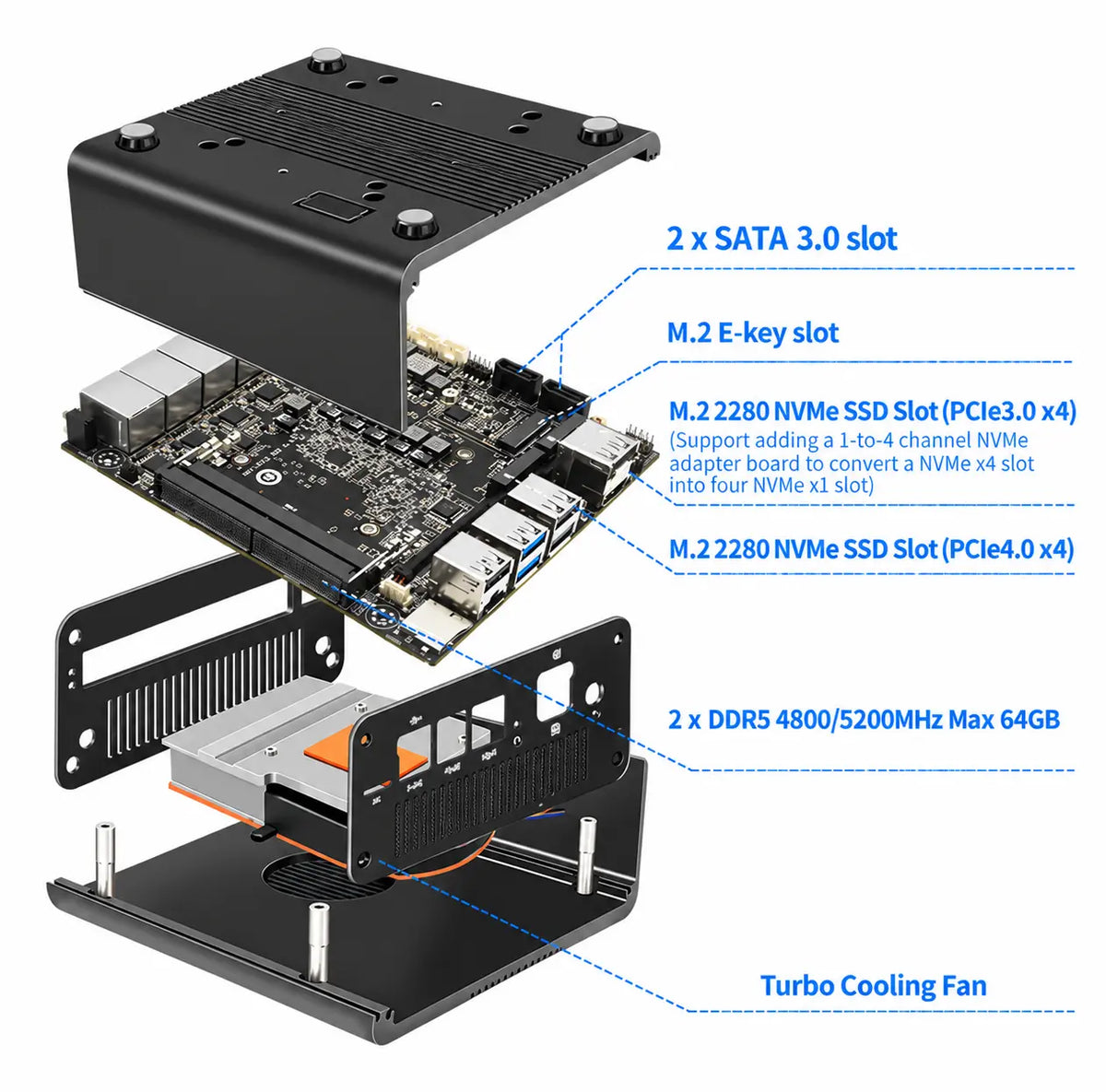

CWWK F20 exploded view showing motherboard and active cooling layout

Choose F18 when fanless operation and VESA mounting are preferred. Choose F20 when active CPU cooling is preferred for sustained processor workloads. Both models support an optional 80 × 80 × 10 mm 8010 chassis fan.

View Compatible 8010 Fan

F20 Copper Heat Pipe CPU Cooling

The F20 CPU cooling system combines a copper heat pipe with active fan cooling to transfer and dissipate processor heat during longer periods of system load.

CWWK F20 copper heat pipe CPU cooler with active cooling fan

HDMI 2.0, DisplayPort 1.4 and USB4 Connectivity

The shared motherboard provides HDMI 2.0, DisplayPort 1.4 and USB-C with USB4 for local display, high-speed data and system-management connectivity.

HDMI 2.0 Digital display connectivity for compatible monitors and local management.

DisplayPort 1.4 Additional high-resolution digital display output.

USB4 Type-C Supports up to 40Gbps data connectivity together with compatible display and power functions.

Firewall, Virtualization and Home Lab Deployment

Intel Core processors, six 2.5GbE ports, up to 64GB DDR5 and dual native NVMe storage allow F18 and F20 to combine network functions with local compute workloads.

Firewall & Routing Six independent 2.5GbE interfaces provide flexibility for multi-WAN, VLAN and segmented network deployments.

Virtualization Intel Core processors, DDR5 memory and dual NVMe storage provide resources for virtual machines and containers.

Home Lab & Local Services Multi-gigabit networking and flexible storage suit continuously running home lab and compact server workloads.

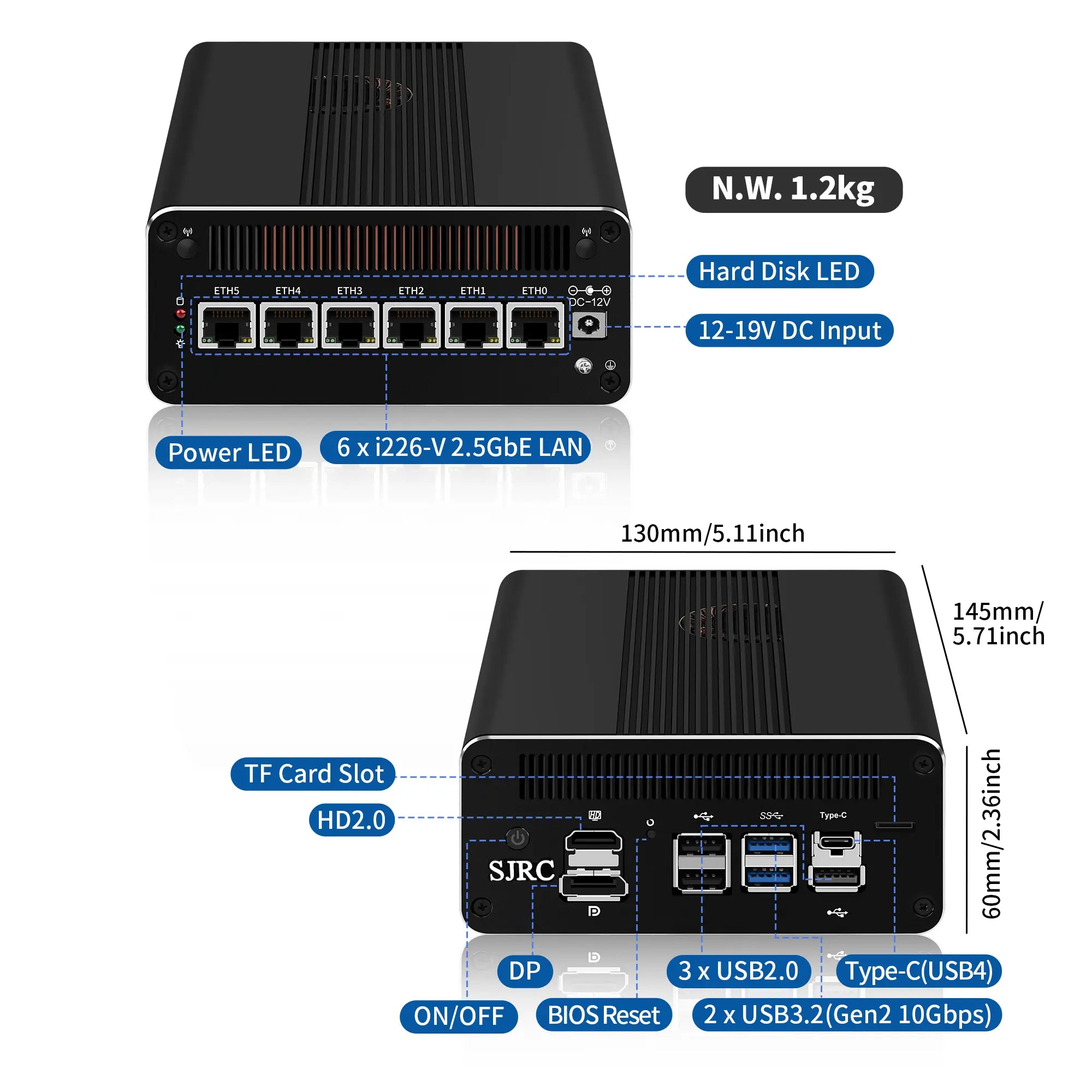

Front and Rear I/O Connectivity

6 × Intel i226-V 2.5GbE RJ45
1 × HDMI 2.0
1 × DisplayPort 1.4
1 × USB-C / USB4
2 × USB 3.2 Gen 2
3 × USB 2.0
1 × TF card slot
1 × M.2 E-Key WiFi slot
BIOS recovery button
Power button
Power and storage activity LEDs
DC 12–19V input

CWWK F18 and F20 shared motherboard front and rear I/O interface layout

CWWK F18 front and rear I/O with six Intel i226-V 2.5GbE ports

CWWK F20 front and rear I/O with six Intel i226-V 2.5GbE ports

Technical Specifications

Models	CWWK F18 / F20
Processor Options	Intel Core i3-1215U / Core i5-1235U / Core i5-1240P
Motherboard	MBX-AD12 REV 2.0
Network	6 × Intel i226-V 2.5GbE RJ45
Memory	2 × SO-DIMM DDR5 dual-channel, up to 32GB per slot and 64GB total
M.2 SSD1	1 × M.2 2280 NVMe, PCIe 4.0 x4
M.2 SSD2	1 × M.2 2280 NVMe, PCIe 3.0 x4
NVMe Expansion	M.2 SSD2 PCIe 3.0 x4 resource can be divided into 4 × PCIe x1 signals for a compatible multi-NVMe expansion board
SATA	2 × SATA 3.0 motherboard connectors
WiFi	1 × M.2 E-Key 2230, independent from the two native M.2 NVMe slots
Display	HDMI 2.0 + DisplayPort 1.4 + USB-C / USB4
USB	2 × USB 3.2 Gen 2 + 3 × USB 2.0 + USB4 Type-C
Card Reader	1 × TF card slot
Power	DC 12–19V / USB-C PD 19V, 65W or higher
F18 Cooling	Fanless passive cooling with copper heat pipes, copper heat-conduction plate and aluminum chassis
F20 Cooling	Copper heat-pipe active CPU cooling with fan
8010 Fan	Optional 80 × 80 × 10 mm chassis fan supported by both F18 and F20
F18 Mounting	VESA mounting supported
F20 Mounting	VESA mounting not supported
F18 Dimensions	178 × 145 × 58 mm / 17.8 × 14.5 × 5.8 cm
F20 Dimensions	131.7 × 154.6 × 63.9 mm / 13.17 × 15.46 × 6.39 cm / 5.19 × 6.09 × 2.52 in

FAQ

What processors are available for F18 and F20?

The current F18 and F20 configurations use Intel Core i3-1215U, Core i5-1235U and Core i5-1240P processors.

Do F18 and F20 use the same motherboard?

Yes. Both models use the same MBX-AD12 REV 2.0 motherboard platform. Their main differences are the chassis, cooling system and VESA mounting support.

What is the difference between F18 and F20?

F18 uses a fanless aluminum chassis with passive copper heat-pipe and copper-plate cooling and supports VESA mounting. F20 uses a large active-cooling chassis with a copper heat-pipe CPU cooler and fan and does not support VESA mounting.

How many 2.5GbE ports do F18 and F20 have?

Both models provide six onboard Intel i226-V 2.5GbE RJ45 network interfaces.

How much memory do F18 and F20 support?

The motherboard provides two SO-DIMM DDR5 slots with up to 32GB per slot and up to 64GB total system memory.

Do F18 and F20 have two native NVMe slots?

Yes. M.2 SSD1 uses PCIe 4.0 x4 and M.2 SSD2 uses PCIe 3.0 x4. Both are native M.2 NVMe interfaces.

Does WiFi use the second NVMe slot?

No. The motherboard has a separate M.2 E-Key WiFi interface, so WiFi does not require giving up either of the two native M.2 NVMe slots.

Can the second NVMe interface be expanded?

Yes. The PCIe 3.0 x4 resource used by M.2 SSD2 can be divided into four PCIe x1 signals for use with a compatible multi-NVMe expansion board.

Does F18 support VESA mounting?

Yes. F18 supports VESA mounting.

Does F20 support VESA mounting?

No. F20 does not support VESA mounting.

Can an additional 8010 fan be installed?

Yes. Both F18 and F20 support an optional 80 × 80 × 10 mm chassis fan. View the compatible CWWK 8010 fan.
