CWWK S3 4×2.5GbE + Dual 10GbE SFP+ Firewall Mini PC

$476.33

$499.00

The CWWK S3 is a dual 10GbE SFP+ firewall mini PC based on an Intel N-Series platform. It combines four onboard Intel i226-V 2.5GbE RJ45 ports with two Intel 82599ES 10GbE SFP+ interfaces through the PCIe expansion architecture.

Intel N100, N150, N200 and N305 Processor Options

The S3 supports Intel N100, N150, N200 and Core i3-N305 processor configurations for firewall routing, 10GbE networking, VPN services, VLAN segmentation, virtualization and multi-service network environments.

N100 4 cores / 4 threads for firewall, routing, VLAN, VPN and general network services.

N150 4 cores / 4 threads for efficient gateway, firewall and network workloads.

N200 4 cores / 4 threads with additional performance headroom for multi-service networking.

N305 8 cores / 8 threads for Proxmox, virtual firewalls, containers and heavier network workloads.

Four Intel i226-V 2.5GbE and Dual 10GbE SFP+ Ports

The S3 combines four Intel i226-V 2.5GbE RJ45 interfaces with two 10GbE SFP+ ports controlled by Intel 82599ES, providing both multi-gigabit copper networking and high-speed SFP+ connectivity.

4 × 2.5GbE RJ45 Four Intel i226-V interfaces for WAN, LAN, access points, servers and isolated network segments.

2 × 10GbE SFP+ Dual Intel 82599ES 10GbE SFP+ interfaces for high-bandwidth uplinks, storage and backbone connectivity.

Mixed Network Topology Combine 2.5GbE edge connectivity with 10GbE SFP+ uplinks in one firewall or routing platform.

Shared N-Series Motherboard with DDR5 and PCIe Expansion

The S3 uses the same Intel N-Series motherboard platform as the CWWK F13. The motherboard provides four onboard Intel i226-V 2.5GbE ports, one DDR5 SO-DIMM slot, NVMe and SATA storage interfaces and a PCIe expansion slot for the dual 10GbE SFP+ adapter.

4 × onboard Intel i226-V 2.5GbE
1 × DDR5 SO-DIMM, up to 32GB
1 × M.2 NVMe storage interface
1 × SATA 3.0 interface
PCIe x8 physical expansion slot
Mini-PCIe / MPE expansion interface

CWWK F13 and S3 N-Series motherboard layout showing network storage DDR5 and PCIe expansion interfaces

CWWK S3 N-Series motherboard with four Intel i226-V 2.5GbE ports DDR5 NVMe SATA and PCIe expansion

PCIe x8 Physical Slot with PCIe 3.0 x4 Signal

The S3 motherboard uses a physical PCIe x8 slot with a PCIe 3.0 x4 electrical connection. The slot is used for the Intel 82599ES dual 10GbE SFP+ expansion adapter.

The PCIe connector is physically x8, but the available electrical signal is PCIe 3.0 x4. It should not be interpreted as a full-bandwidth PCIe x8 electrical connection.

Intel 82599ES Dual 10GbE SFP+ Expansion Card

The S3 uses an Intel 82599ES-based PCIe network expansion card to provide two 10GbE SFP+ interfaces. These ports complement the motherboard's four Intel i226-V 2.5GbE RJ45 interfaces for higher-bandwidth network links.

Intel 82599ES Dual 10GbE SFP+ controller for high-speed fiber and compatible SFP+ networking.

Dual 10GbE Uplinks Suitable for 10GbE switches, storage networks, backbone links and high-bandwidth firewall deployments.

CWWK S3 PCIe adapter with Intel 82599ES dual 10GbE SFP+ network card

CPU Heatsink and Turbo Fan Active Cooling

The S3 uses a dedicated CPU heatsink and turbo cooling fan to actively cool the Intel N-Series processor. The fan is part of the CPU thermal system rather than the chassis itself.

Because the supported N100, N150, N200 and N305 processors are low-power platforms, the standard CPU cooling system is generally sufficient for typical firewall, routing and networking workloads.

CWWK S3 CPU heatsink and turbo cooling fan for Intel N-Series processor

Large Aluminum Chassis and Internal Layout

131.7 × 154.6 × 63.9 mm

13.17 × 15.46 × 6.39 cm
5.19 × 6.09 × 2.52 in

Large Chassis Aluminum Housing Dual 10GbE SFP+ CPU Fan Cooling VESA Mounting

The S3 uses CWWK's large aluminum chassis to accommodate the motherboard, Intel 82599ES dual 10GbE SFP+ expansion adapter, CPU heatsink and turbo cooling fan, and front and rear I/O assemblies.

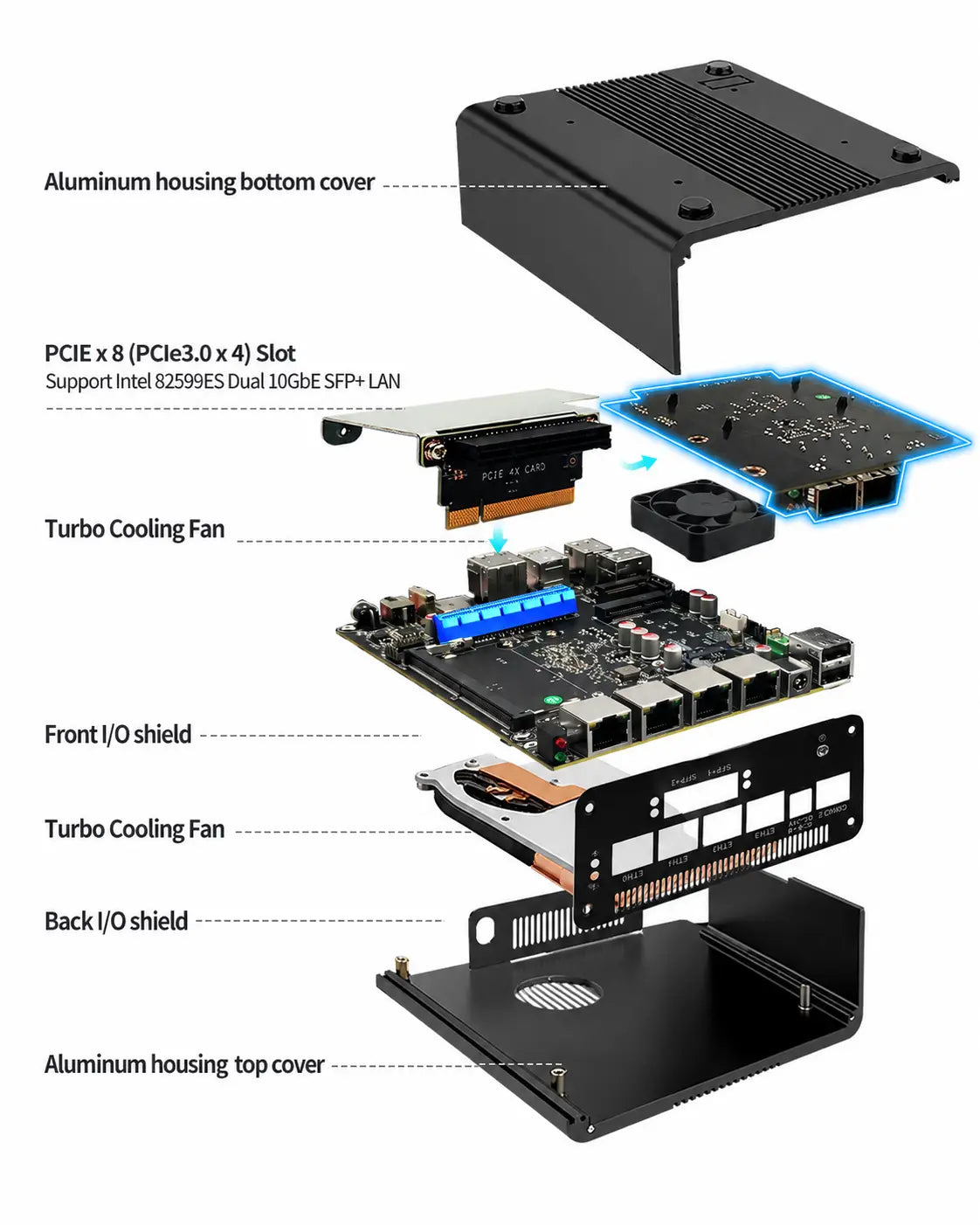

The exploded structure shows the aluminum top and bottom covers, PCIe 10GbE expansion assembly, CPU cooling components, motherboard and front and rear I/O shields.

CWWK S3 exploded structure with aluminum housing Intel 82599ES dual 10GbE SFP+ adapter and CPU turbo cooling fan

VESA Mounting for Flexible Installation

The S3 supports VESA mounting for compatible wall, display-back, mounting-plate and other space-efficient installations, providing additional flexibility for firewall, routing and 10GbE network deployments.

CWWK S3 VESA mounting installation guide and mounting points

OPNsense, pfSense, OpenWrt and Proxmox Compatibility

The S3 supports OPNsense, pfSense, OpenWrt, Proxmox, Linux, Ubuntu, Debian, ESXi, Windows and other compatible x86 operating systems. Its combination of four 2.5GbE RJ45 ports and dual 10GbE SFP+ interfaces is suitable for firewall routing, high-speed uplinks, VLAN segmentation, VPN gateways and virtualized network services.

10GbE Firewall Use dual SFP+ links for high-speed uplinks, routed networks and firewall deployments.

Storage & Backbone Connect 10GbE switches, storage systems or backbone links while retaining four 2.5GbE edge interfaces.

Proxmox Networking Run virtual firewalls, containers and network services with both 2.5GbE and 10GbE physical connectivity.

Front and Rear I/O Connectivity

The S3 provides four Intel i226-V 2.5GbE RJ45 ports, two Intel 82599ES 10GbE SFP+ interfaces and additional display, USB, system management and power connections.

CWWK S3 front and rear I O with four Intel i226-V 2.5GbE RJ45 ports and dual Intel 82599ES 10GbE SFP+ ports

Technical Specifications

Model	CWWK S3
Processor Options	Intel N100, N150, N200 and Core i3-N305
2.5GbE Ethernet	4 × Intel i226-V 2.5GbE RJ45 ports
10GbE Ethernet	2 × 10GbE SFP+ ports
10GbE Controller	Intel 82599ES
Memory	1 × DDR5 SO-DIMM, up to 32GB
NVMe Storage	1 × M.2 NVMe PCIe 3.0 x1
SATA Storage	1 × SATA 3.0
PCIe Slot	PCIe x8 physical slot, electrically PCIe 3.0 x4
Other Expansion	Mini-PCIe / MPE interface
Chassis	Large aluminum chassis without external cooling fins
Dimensions	131.7 × 154.6 × 63.9 mm 13.17 × 15.46 × 6.39 cm 5.19 × 6.09 × 2.52 in
CPU Cooling	Dedicated heatsink and turbo cooling fan
Optional Chassis Fan	Supports an optional 80 × 80 × 10 mm 8010 fan for additional internal airflow; generally not required for typical N-Series use
VESA Mounting	Supported
Operating Systems	OPNsense, pfSense, OpenWrt, Proxmox, Linux, Ubuntu, Debian, ESXi and Windows

FAQ

What network ports does the CWWK S3 provide?

The S3 provides four Intel i226-V 2.5GbE RJ45 ports and two Intel 82599ES 10GbE SFP+ interfaces.

Which processors does the S3 support?

The S3 supports Intel N100, N150, N200 and Core i3-N305 processor configurations.

Which controller is used for the S3 dual 10GbE SFP+ ports?

The S3 uses the Intel 82599ES controller for its dual 10GbE SFP+ network interfaces.

Is the S3 PCIe slot electrically x8?

No. The slot is physically PCIe x8, while the electrical connection operates at PCIe 3.0 x4.

How is the S3 CPU cooled?

The S3 uses a dedicated CPU heatsink and turbo cooling fan. The fan directly cools the Intel N-Series processor and is separate from the optional chassis fan position.

Does the S3 need an additional 8010 chassis fan?

Generally no for typical use. The Intel N-Series processors are low-power and already use a dedicated CPU heatsink and turbo fan. An optional 8010 chassis fan can be installed when additional internal airflow is required for a specific installation environment.

Does the S3 support VESA mounting?

Yes. The S3 supports compatible VESA mounting installations.

Does the S3 support OPNsense, pfSense and Proxmox?

Yes. The S3 supports OPNsense, pfSense, OpenWrt, Proxmox and other compatible x86 operating systems.

What is the difference between S3 and F13?

S3 and F13 use the same N-Series motherboard platform. S3 uses the PCIe expansion interface for an Intel 82599ES dual 10GbE SFP+ adapter, while F13 uses the same expansion path to add four Intel i226-V 2.5GbE ports for a total of eight 2.5GbE interfaces.
