CWWK F7 6-Port 2.5GbE Mini ITX

$314.77

$499.00

The CWWK F7 is a compact 6-port 2.5GbE network appliance based on CWWK's flagship N-Series motherboard platform. It combines six Intel i226-V 2.5GbE LAN ports, DDR5 memory, dual M.2 NVMe storage, VESA mounting support, optional 8010 fan expansion, and the smallest enclosure among the F5, F7, F9 and F11 chassis variants.

Intel N-Series Processor Options

The F7 supports Intel N-Series processor configurations ranging from efficient 4-core models for firewall and routing workloads to 8-core options for virtualization, containers, VPN services, and multi-service home labs.

N97 4 cores / 4 threads for firewall, routing, VLAN, and general network workloads.

N100 4 cores / 4 threads for OPNsense, pfSense, OpenWrt, and low-power networking.

N150 4 cores / 4 threads for firewall, VPN, routing, and everyday network services.

N200 4 cores / 4 threads with additional performance headroom for multi-service networking.

N300 8 cores / 8 threads for Proxmox, containers, virtual firewalls, and home labs.

N305 8 cores / 8 threads for virtualization, VPN services, and heavier network workloads.

N355 8 cores / 8 threads for more demanding virtualization and multi-service deployments.

Six Intel i226-V 2.5GbE Network Ports

Six Intel i226-V 2.5GbE LAN ports provide dedicated physical interfaces for Multi-WAN routing, separate LAN segments, NAS connectivity, wireless access points, cameras, IoT devices, guest networks, and isolated lab environments.

6 × 2.5GbE Assign physical interfaces to WAN, LAN, NAS, access points, cameras, IoT equipment, or test networks.

Multi-WAN Configure multiple upstream links for failover, load balancing, or separate gateway routes.

Network Segmentation Separate trusted devices, guests, servers, IoT equipment, and lab systems through physical ports or VLANs.

Flagship Motherboard, DDR5 and Dual NVMe Storage

The F7 uses CWWK's flagship 6-port N-Series motherboard with six Intel i226-V 2.5GbE controllers, one SO-DIMM DDR5 memory slot, two M.2 NVMe SSD positions, and one SATA 3.0 interface. The same core motherboard platform is also used by the F5, F9 and F11 chassis variants.

Flagship 6-port N-Series motherboard
1 × SO-DIMM DDR5 memory slot
2 × M.2 NVMe SSD slots
1 × SATA 3.0 interface
6 × Intel i226-V 2.5GbE controllers
Suitable for firewall and virtualization workloads

CWWK flagship N-Series motherboard used in the F7 with six Intel i226-V 2.5GbE ports DDR5 and dual NVMe storage

Smallest Chassis in the F5/F7/F9/F11 Series

145.6 × 125.6 × 53.6 mm

14.56 × 12.56 × 5.36 cm
5.73 × 4.94 × 2.11 in

High-Y Chassis Smallest Enclosure VESA Mounting 8010 Fan Supported

The F7 uses the High-Y aluminum chassis and is the smallest enclosure among the F5, F7, F9 and F11 versions of this flagship 6-port motherboard platform. Its external dimensions are 145.6 × 125.6 × 53.6 mm, giving it the most compact overall footprint in the group.

This makes the F7 suitable where installation space is more limited while retaining the same six 2.5GbE ports, DDR5 memory, dual NVMe storage, VESA mounting capability, and optional 8010 fan support as the larger chassis variants.

Shop 8010 Cooling Fan →

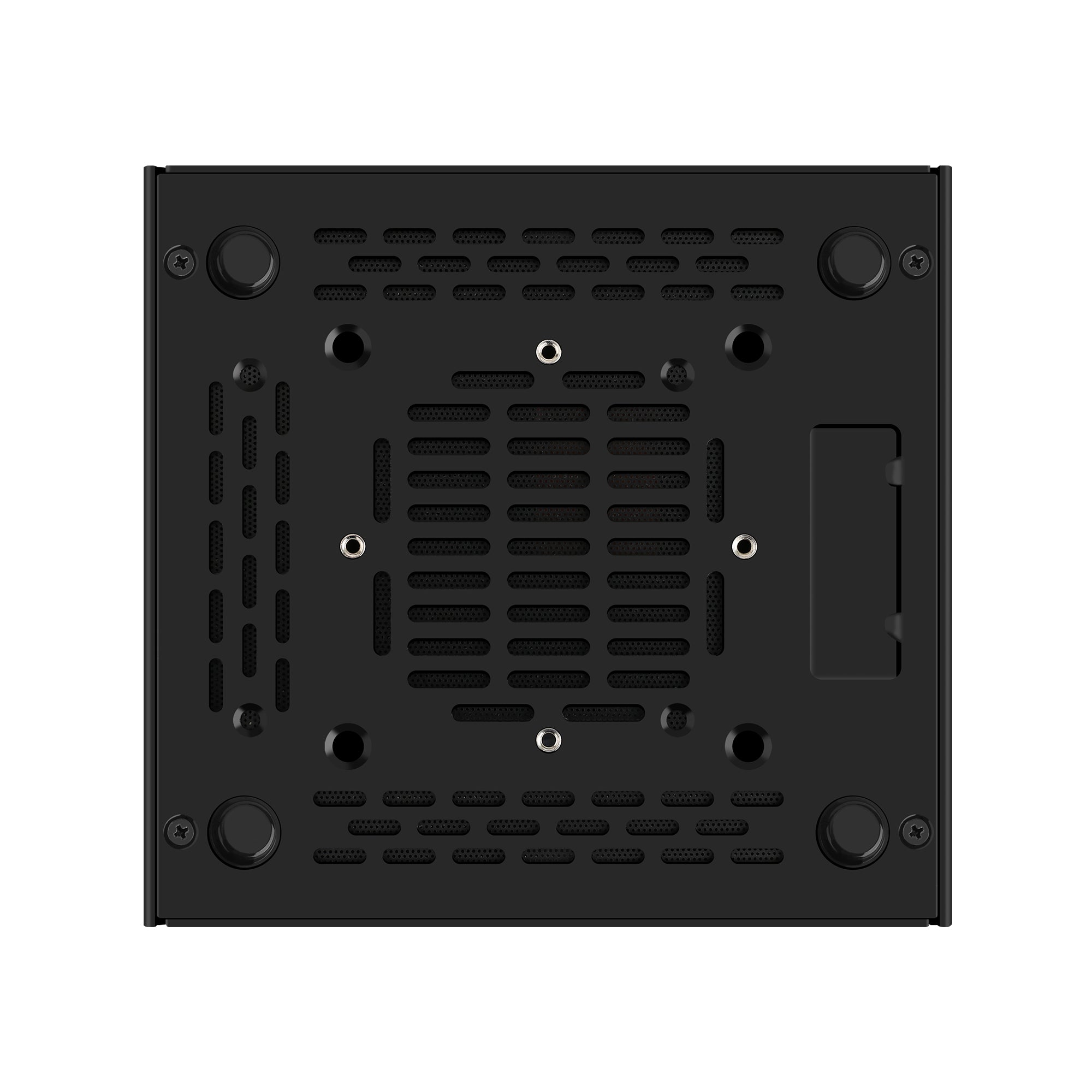

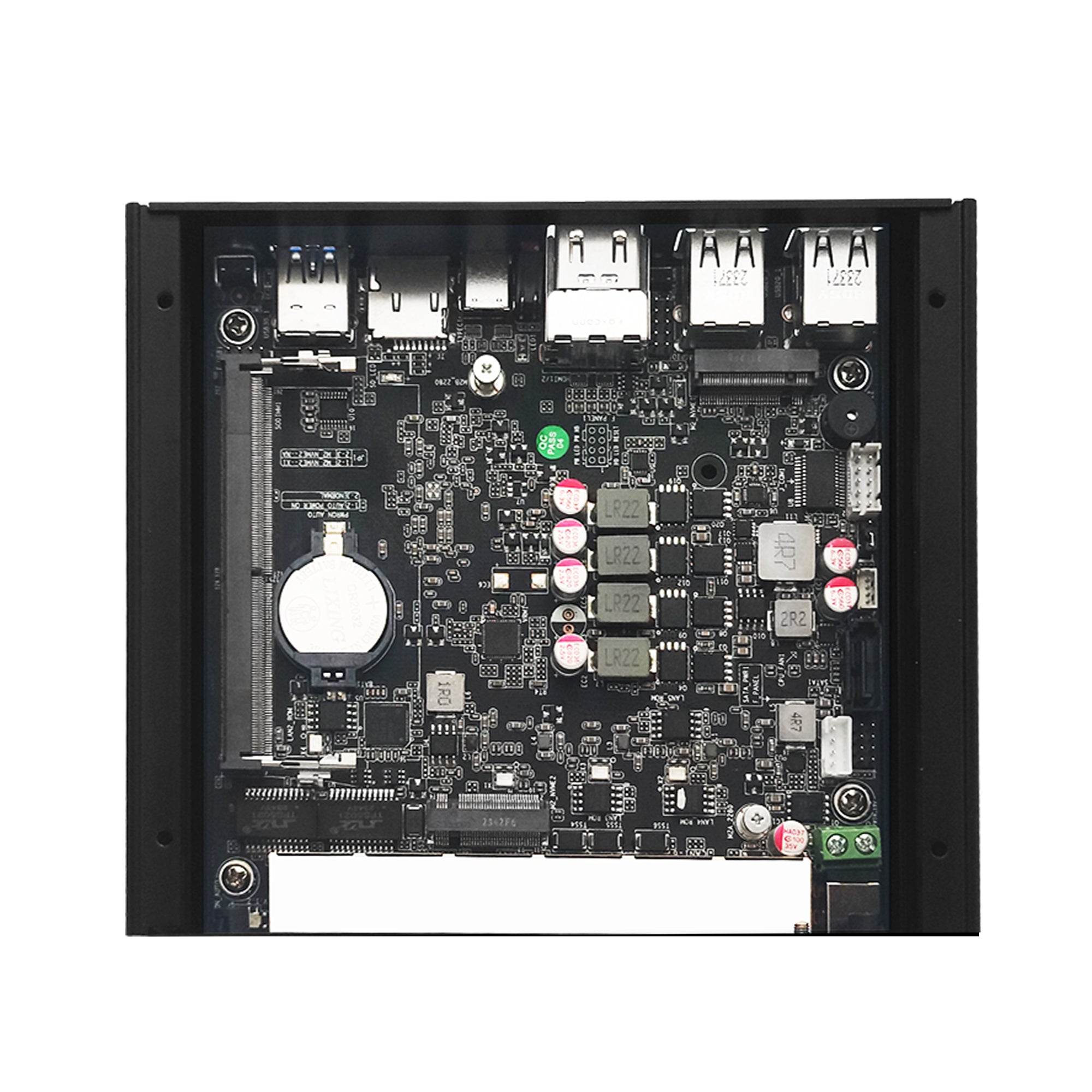

Internal Layout and VESA Mounting Design

The F7 internal layout places the flagship motherboard inside the compact High-Y chassis while maintaining access to memory, NVMe storage, SATA connectivity, networking, and the optional cooling-fan connection. The chassis bottom includes dedicated mounting points for VESA installation and other chassis functions.

CWWK F7 internal motherboard installation and bottom VESA mounting hole layout

OPNsense, pfSense, OpenWrt and Proxmox Compatibility

The F7 supports OPNsense, pfSense, OpenWrt, Proxmox, Linux, Ubuntu, Debian, ESXi, Windows, and other compatible x86 operating systems. Its six network interfaces make it suitable for firewall routing, VLAN segmentation, Multi-WAN, VPN gateways, virtualized network services, and compact home lab deployments.

Firewall & Routing Deploy OPNsense, pfSense, OpenWrt, Multi-WAN, VPN gateways, and VLAN routing.

Compact Home Lab Run virtual firewalls, containers, lightweight servers, and network services where installation space is limited.

Small Network Separate NAS systems, access points, cameras, office devices, guests, and IoT equipment.

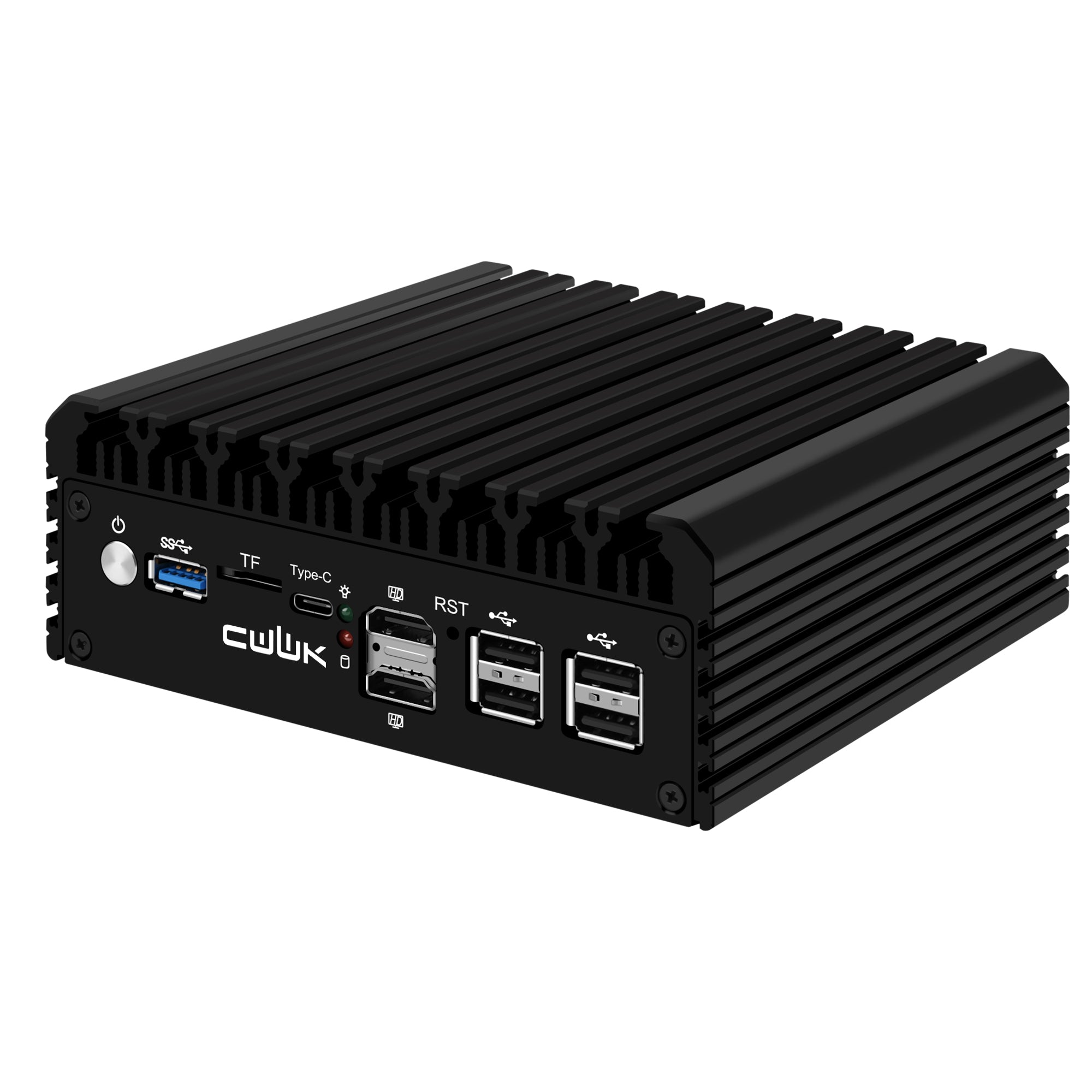

Front and Rear I/O Connectivity

The F7 provides front and rear interfaces for networking, local system installation, display output, USB peripherals, storage access, and power. Six Intel i226-V 2.5GbE LAN ports remain the core of its firewall and routing connectivity despite the smaller chassis.

CWWK F7 front and rear I O interfaces with six Intel i226-V 2.5GbE LAN ports USB display and power connections

Technical Specifications

Key hardware specifications, networking, storage, chassis dimensions, VESA mounting, optional cooling, and operating system compatibility for the CWWK F7.

Model	CWWK F7
Processor Options	Intel N97, N100, N150, N200, Core i3-N300, Core i3-N305, and Core 3 N355
Motherboard	CWWK flagship 6-port N-Series motherboard
Ethernet	6 × Intel i226-V 2.5GbE RJ45 LAN ports
Memory	1 × SO-DIMM DDR5 slot
NVMe Storage	2 × M.2 NVMe SSD slots
SATA Storage	1 × SATA 3.0 interface
Chassis	CWWK High-Y aluminum chassis
Dimensions	145.6 × 125.6 × 53.6 mm 14.56 × 12.56 × 5.36 cm 5.73 × 4.94 × 2.11 in
Chassis Positioning	Smallest enclosure among the F5, F7, F9 and F11 chassis variants
VESA Mounting	Supported through chassis-bottom mounting points
Optional Cooling	Supports optional 12V 4-pin 80 × 80 × 10 mm 8010 cooling fan
Operating Systems	OPNsense, pfSense, OpenWrt, Proxmox, Linux, Ubuntu, Debian, ESXi and Windows
Typical Applications	Firewall, router, VPN gateway, VLAN gateway, Multi-WAN, compact home lab, Proxmox host and network services

FAQ

What makes the CWWK F7 different from the F5, F9 and F11?

The F5, F7, F9 and F11 use the same flagship 6-port N-Series motherboard platform and all support VESA mounting and an optional 8010 cooling fan. The F7 is distinguished by its High-Y chassis, which measures 145.6 × 125.6 × 53.6 mm and is the smallest enclosure among the four versions.

Is the F7 the smallest of the F5, F7, F9 and F11?

Yes. Based on the external chassis dimensions, the F7 has the smallest overall enclosure among these four models.

What are the dimensions of the CWWK F7?

The F7 measures 145.6 × 125.6 × 53.6 mm, or 14.56 × 12.56 × 5.36 cm. In inches, it measures approximately 5.73 × 4.94 × 2.11 in.

Does the F7 use the same motherboard as the F5, F9 and F11?

Yes. All four models use CWWK's flagship 6-port N-Series motherboard platform. Their main differences are the chassis design, dimensions, and thermal characteristics.

Does the F7 support VESA mounting?

Yes. The F7 chassis includes bottom mounting points for VESA installation.

Can I install an 8010 cooling fan in the F7?

Yes. The F7 supports an optional 12V 4-pin 80 × 80 × 10 mm 8010 cooling fan. The fan is sold separately and can be purchased here .

Which processors does the CWWK F7 support?

The F7 supports Intel N97, N100, N150, N200, Core i3-N300, Core i3-N305, and Core 3 N355 processor configurations. Available options may vary depending on inventory.

How many 2.5GbE ports does the F7 have?

The F7 provides six Intel i226-V 2.5GbE RJ45 LAN ports for WAN, LAN, VLAN, NAS, access points, IoT devices, guest networks, cameras, and isolated network segments.

Does the CWWK F7 support OPNsense and pfSense?

Yes. The F7 supports OPNsense and pfSense as well as OpenWrt and other compatible x86 network operating systems.

Can the CWWK F7 run Proxmox?

Yes. The F7 can run Proxmox for virtual firewall instances, containers, network services, and home lab workloads. The N300, N305, and N355 configurations provide more CPU resources for heavier virtualization.

How many NVMe SSDs does the F7 support?

The F7 provides two M.2 NVMe SSD slots together with one SATA 3.0 interface for additional storage.
