CWWK F3 4-Port 2.5GbE Firewall Mini PC

The CWWK F3 is a fanless 4-port 2.5GbE firewall mini PC built around CWWK's Elite N-Series motherboard and Flagship aluminum chassis. It supports Intel N100, N150, Core i3-N305, and Core 3 N355 processors, four Intel i226 2.5GbE LAN ports, DDR5 memory, dual M.2 NVMe storage, 2.5-inch SATA installation, VESA mounting, optional 8010 fan installation, and a passive thermal system combining a large finned aluminum enclosure with an internal heat pipe.

Intel N100, N150, N305 and N355 Processor Options

The F3 supports Intel N100, N150, Core i3-N305, and Core 3 N355 processor configurations. The 4-core N100 and N150 are suitable for firewall, routing, VLAN, and VPN workloads, while the 8-core N305 and N355 provide additional CPU resources for virtualization, containers, and multi-service home lab deployments.

N100 4 cores / 4 threads for OPNsense, pfSense, OpenWrt, routing, VLAN segmentation, and low-power networking.

N150 4 cores / 4 threads for firewall, VPN, routing, and everyday multi-interface network services.

N305 8 cores / 8 threads for Proxmox, virtual firewalls, containers, VPN services, and heavier workloads.

N355 8 cores / 8 threads for more demanding virtualization and multi-service home lab deployments.

Four Intel i226 2.5GbE Network Ports

Four Intel i226 2.5GbE LAN ports provide dedicated physical interfaces for WAN, LAN, VLANs, access points, NAS systems, cameras, IoT devices, and isolated network segments.

4 × 2.5GbE Assign dedicated interfaces to WAN, LAN, NAS, access points, cameras, IoT devices, or independent lab networks.

Multi-WAN Configure multiple network interfaces for separate upstream connections, failover, or independent gateway routes.

Network Segmentation Separate trusted devices, servers, guests, IoT equipment, and test environments using physical ports or VLANs.

Elite Motherboard, DDR5 and Dual NVMe Storage

The F3 uses CWWK's Elite 4-port N-Series motherboard platform. The board provides four Intel i226 2.5GbE network interfaces, one SO-DIMM DDR5 memory slot, two M.2 NVMe SSD positions, and two SATA interfaces for operating systems, logs, virtual machines, containers, and additional local storage.

Elite 4-port N-Series motherboard
4 × Intel i226 2.5GbE LAN ports
1 × SO-DIMM DDR5 memory slot
2 × M.2 NVMe SSD slots
2 × SATA interfaces
No additional motherboard expansion interface

CWWK F3 Elite motherboard layout with four Intel i226 2.5GbE ports DDR5 dual NVMe and SATA interfaces

Flagship Aluminum Chassis with Wider Heat Dissipation Area

178 × 126 × 55 mm

17.8 × 12.6 × 5.5 cm
7.01 × 4.96 × 2.17 in

Flagship Chassis Aluminum Alloy Fanless More Cooling Fins Internal Heat Pipe Dust-Resistant

The F3 uses CWWK's Flagship aluminum alloy chassis with a larger heat-dissipation surface and more external cooling fins. The thermally conductive enclosure transfers heat away from the internal components and spreads it across the finned chassis for passive dissipation.

Compared with the smaller enclosure options in the same Elite motherboard family, the Flagship chassis provides a wider passive cooling area. This allows the F3 to maintain fanless operation while providing stronger overall thermal performance.

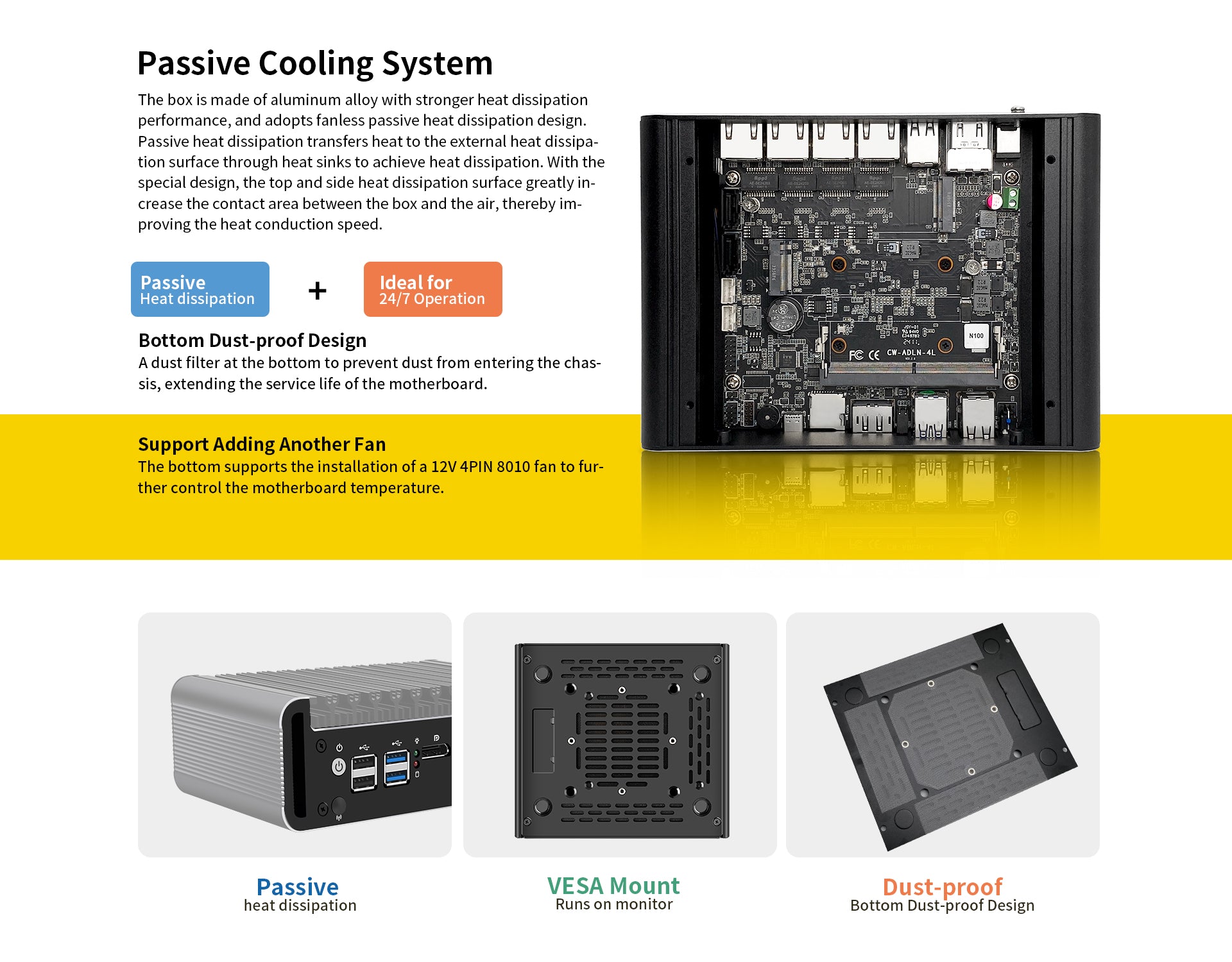

CWWK F3 Flagship aluminum chassis with passive cooling fins fanless design dust resistance and VESA mounting

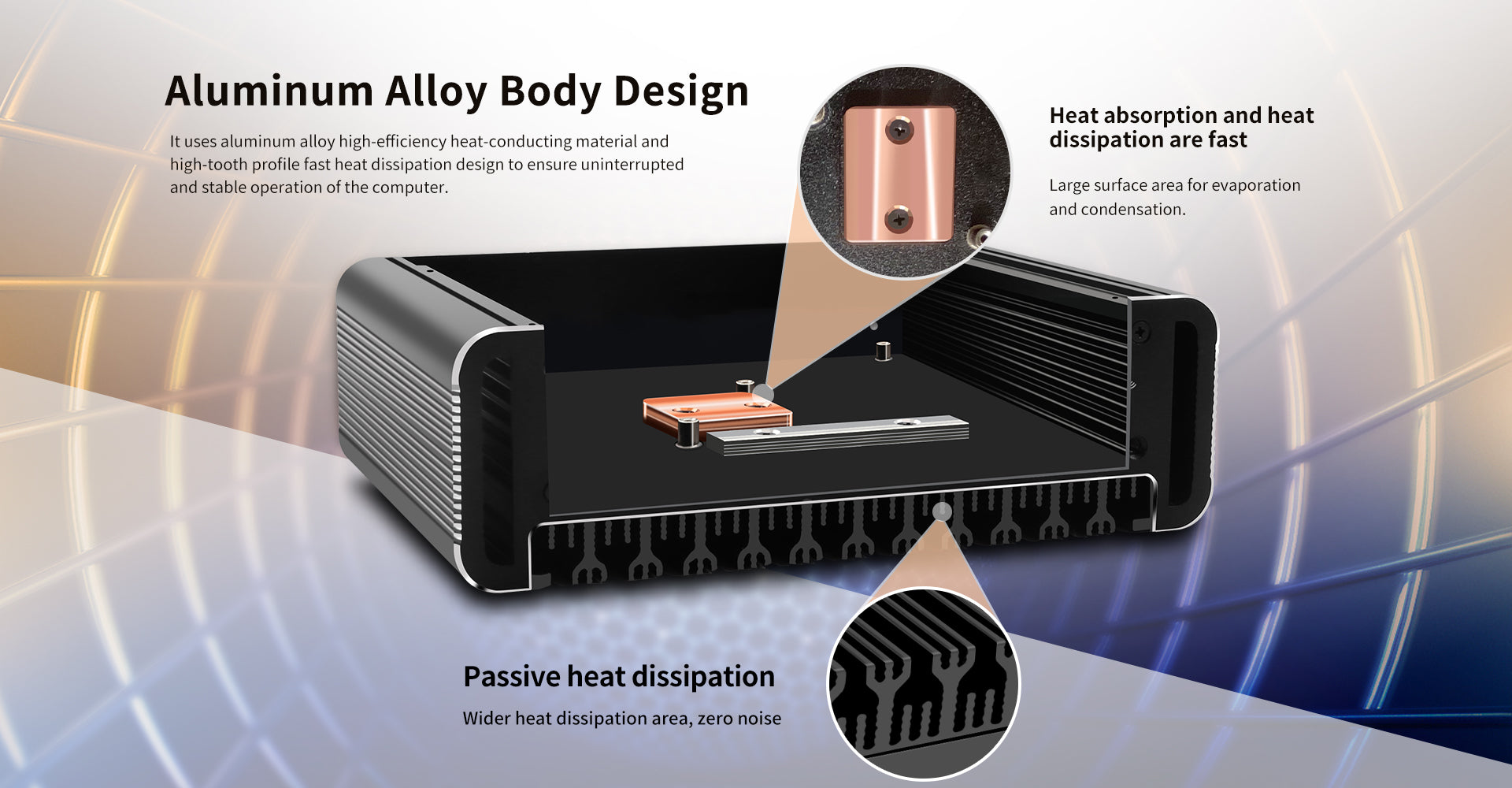

Internal Heat Pipe and Passive Thermal Design

In addition to the large aluminum cooling surface, the F3 uses an internal heat pipe to transfer heat from the processor area toward the chassis cooling structure. Heat is absorbed at the source, transferred through the heat pipe, and distributed to the larger aluminum heat-dissipation area.

01 Heat Transfer The internal heat pipe moves thermal energy away from the processor area toward the chassis cooling structure.

02 Large Cooling Surface The Flagship enclosure provides a wider finned surface area for transferring accumulated heat to the surrounding air.

03 Passive Cooling Heat pipe transfer and the aluminum enclosure work together to dissipate heat without requiring a continuously running fan.

CWWK F3 internal heat pipe and aluminum alloy passive heat dissipation structure

F3 vs F1 and F2 Chassis Design

F1, F2, and F3 use the same Elite motherboard architecture, so their processor, networking, memory, and core storage capabilities are closely related. Their primary difference is the chassis and thermal design. F1 prioritizes a compact High-Y enclosure, F2 uses a larger Large-Back chassis, and F3 uses the Flagship enclosure with a wider cooling surface and internal heat-pipe-assisted thermal transfer.

F1 145.6 × 125.6 × 53.6 mm Compact High-Y chassis with Y-profile passive cooling fins.

F2 155 × 135 × 65 mm Larger Large-Back chassis with increased enclosure volume and stronger passive heat dissipation.

F3 178 × 126 × 55 mm Flagship chassis with a wider cooling surface, more heat-dissipation fins, and internal heat-pipe-assisted thermal transfer.

Internal Layout and Bottom Mounting Design

The F3 installs the Elite motherboard inside the Flagship chassis while retaining access to DDR5 memory, dual NVMe storage, SATA connectivity, network interfaces, and optional cooling expansion. The bottom mounting structure also supports compatible VESA installation.

CWWK F3 internal Elite motherboard layout and bottom chassis mounting points

8010 Fan and 2.5-Inch SATA Installation

The F3 operates as a fanless system but also supports an optional 12V 4-pin 80 × 80 × 10 mm 8010 cooling fan when additional airflow is required. The internal layout also supports installation of a 2.5-inch SATA drive for additional local storage alongside the onboard M.2 NVMe SSDs.

Shop 8010 Cooling Fan →

CWWK F3 optional 8010 cooling fan installation and 2.5-inch SATA drive installation

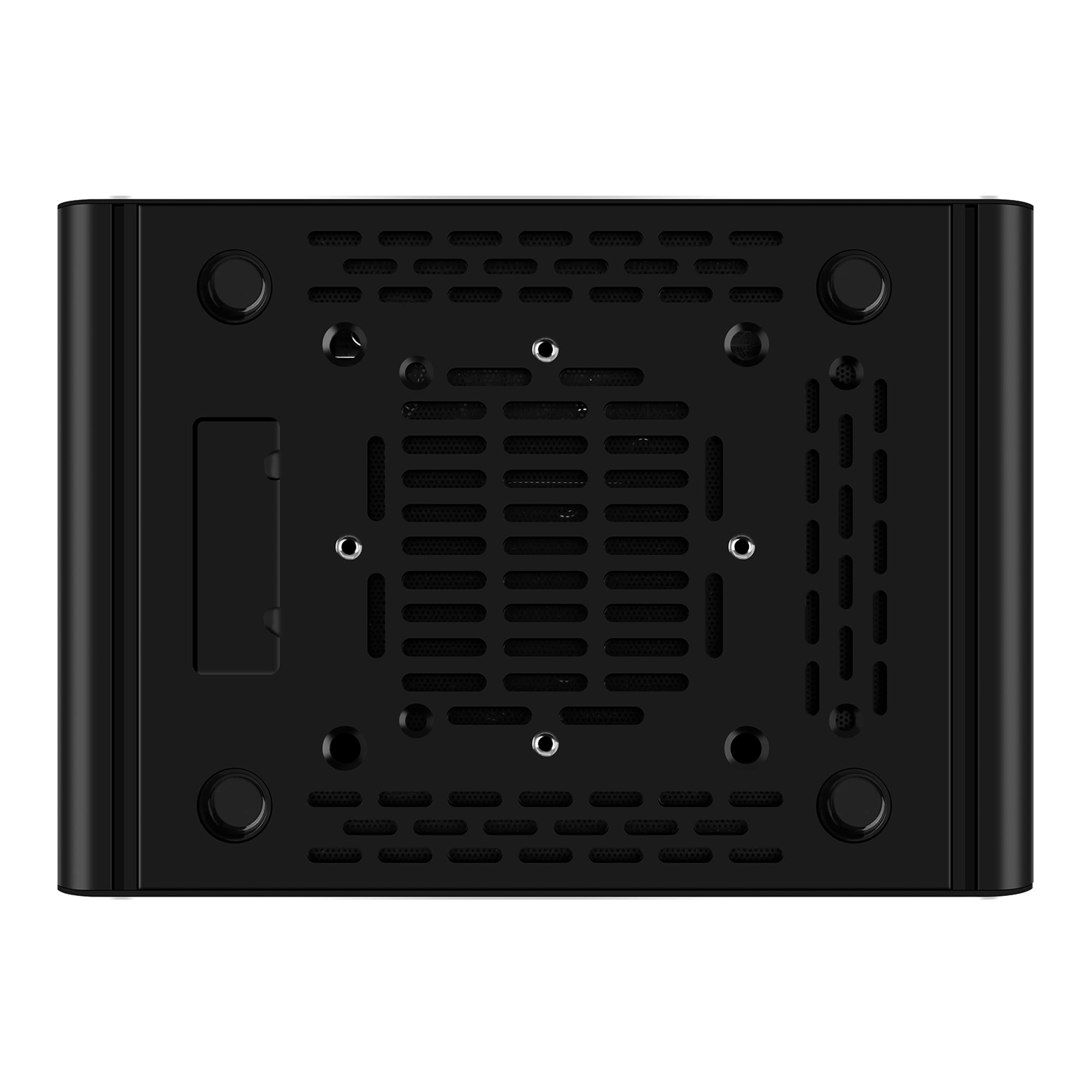

VESA Mounting and Dust-Resistant Design

The F3 supports VESA mounting for space-efficient installation behind compatible displays, on mounting plates, or in other supported locations. Its Flagship chassis also incorporates a dust-resistant structural design while maintaining the external surface area required for passive heat dissipation.

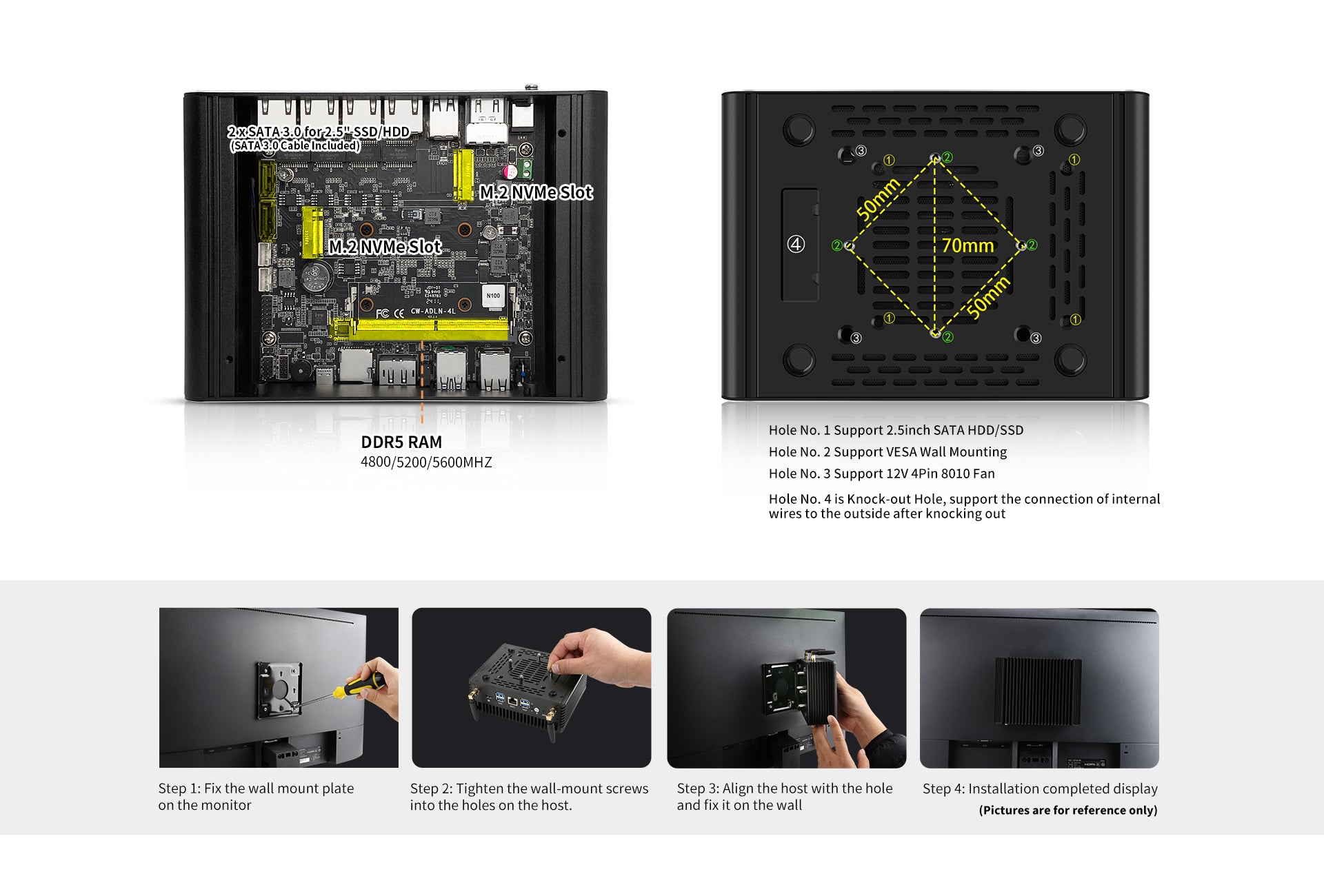

CWWK F3 VESA mounting installation steps using bottom chassis mounting points

OPNsense, pfSense, OpenWrt and Proxmox Compatibility

The F3 supports OPNsense, pfSense, OpenWrt, Proxmox, Linux, Ubuntu, Debian, ESXi, Windows, and other compatible x86 operating systems. Its four physical 2.5GbE network interfaces are suitable for firewall routing, VLAN segmentation, VPN gateways, virtualized network services, and home lab deployments.

Firewall & Routing Deploy OPNsense, pfSense, OpenWrt, VPN gateways, VLAN routing, and multi-interface network services.

Home Lab Run virtual firewalls, containers, lightweight server workloads, and network services on the Elite N-Series platform.

Fanless Continuous Operation Use the Flagship chassis and internal heat-pipe-assisted cooling where zero fan noise and stronger passive thermal performance are preferred.

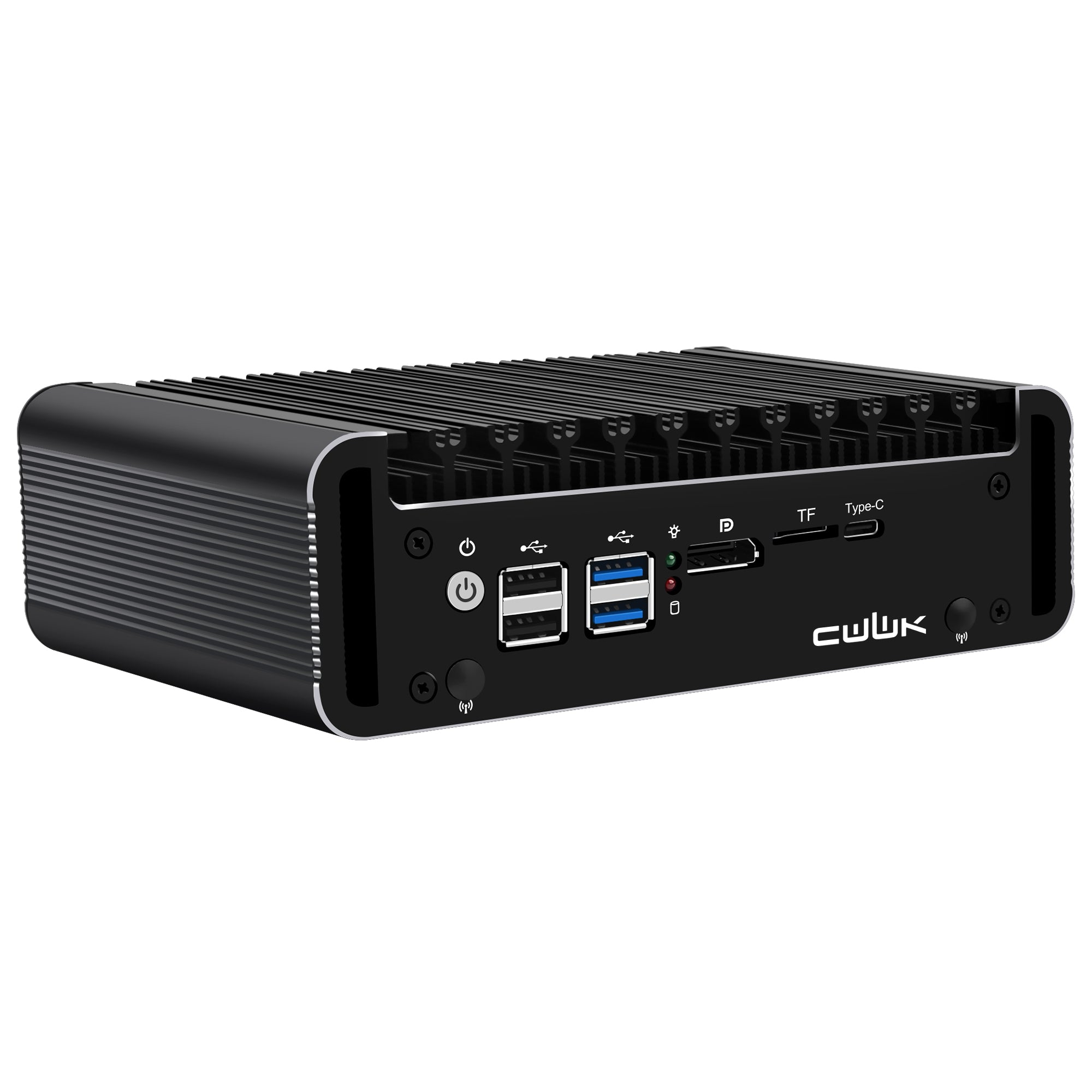

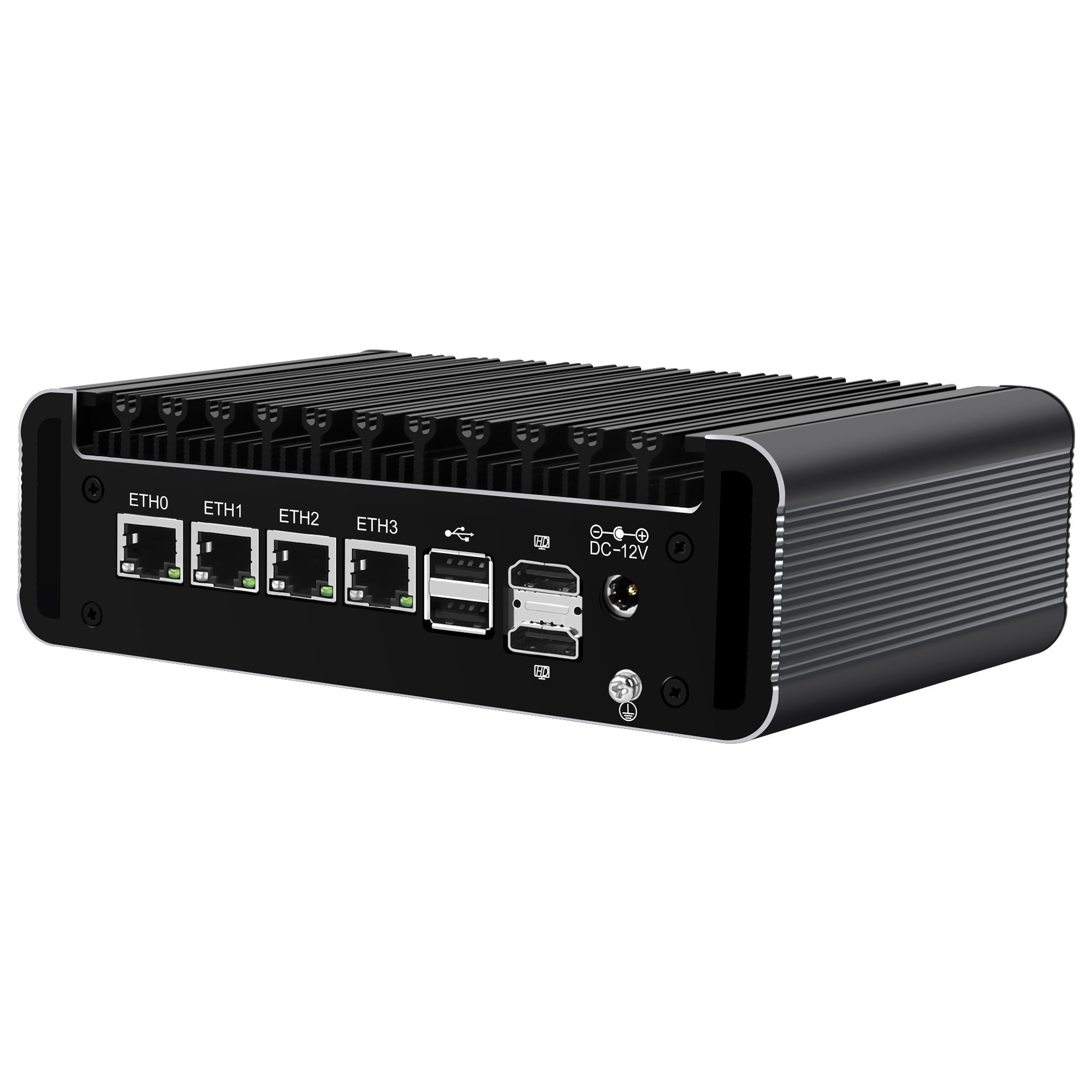

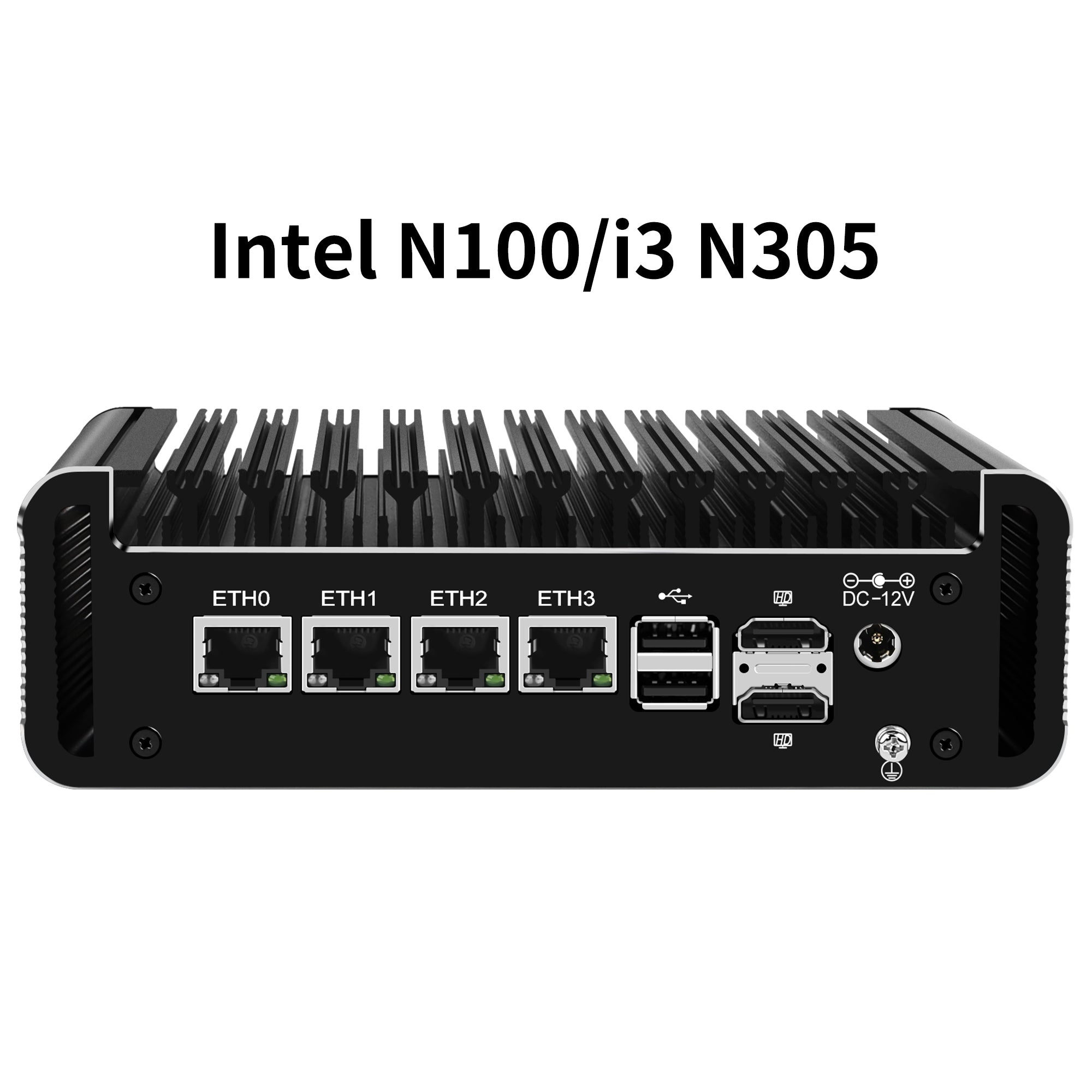

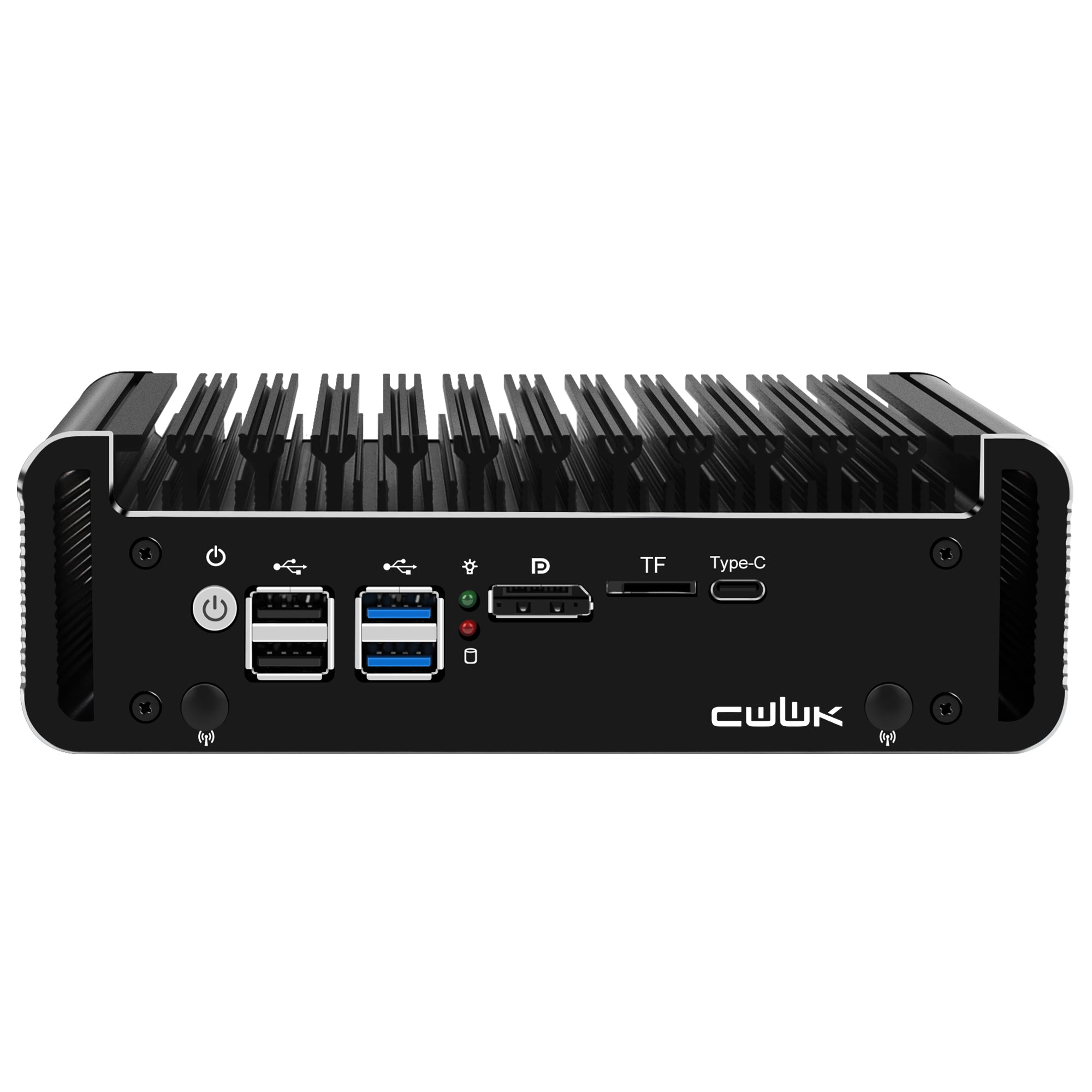

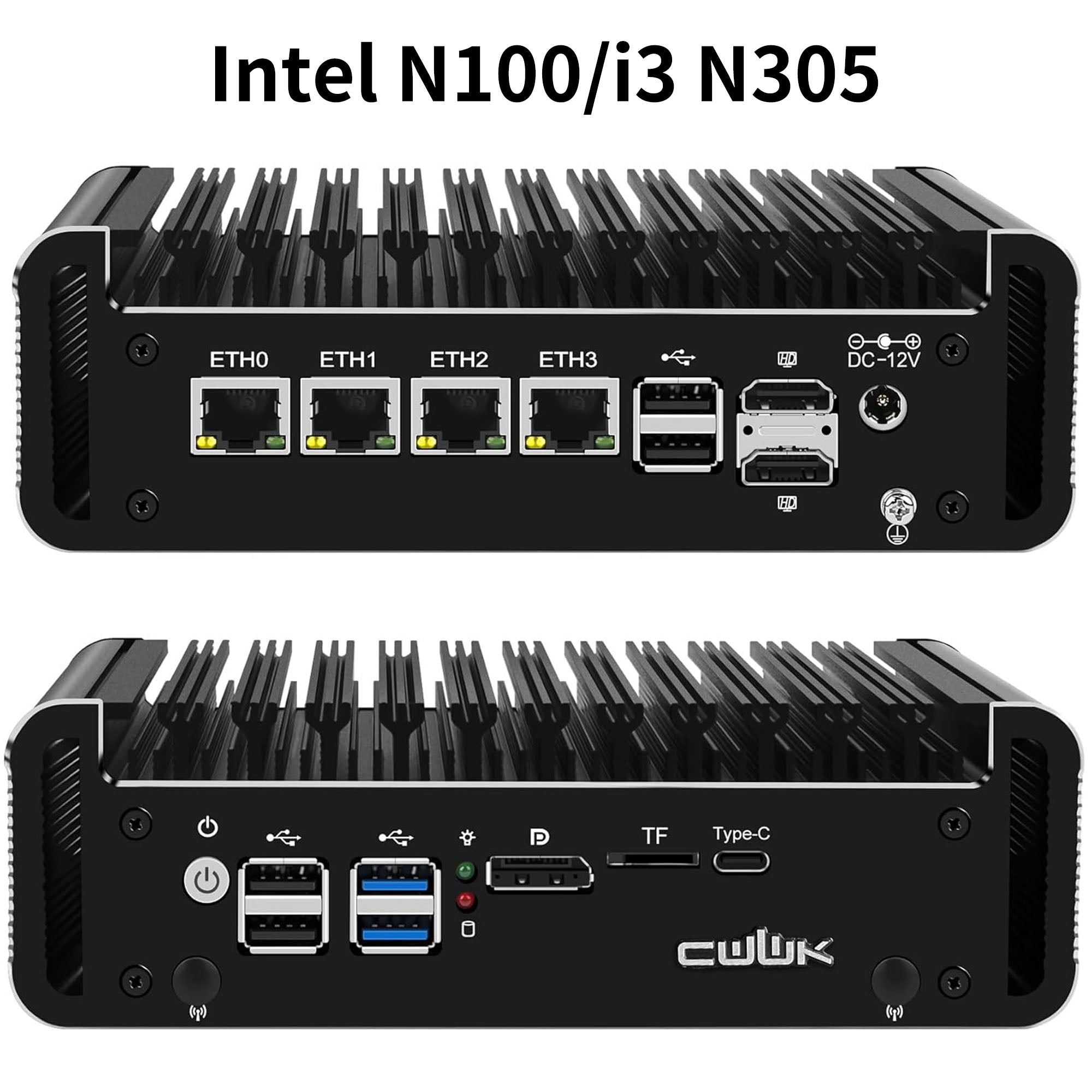

Front and Rear I/O Connectivity

The F3 provides front and rear interfaces for networking, system installation, display output, USB peripherals, storage access, and power. Four Intel i226 2.5GbE LAN ports provide the primary network connectivity for firewall, routing, and segmented network deployments.

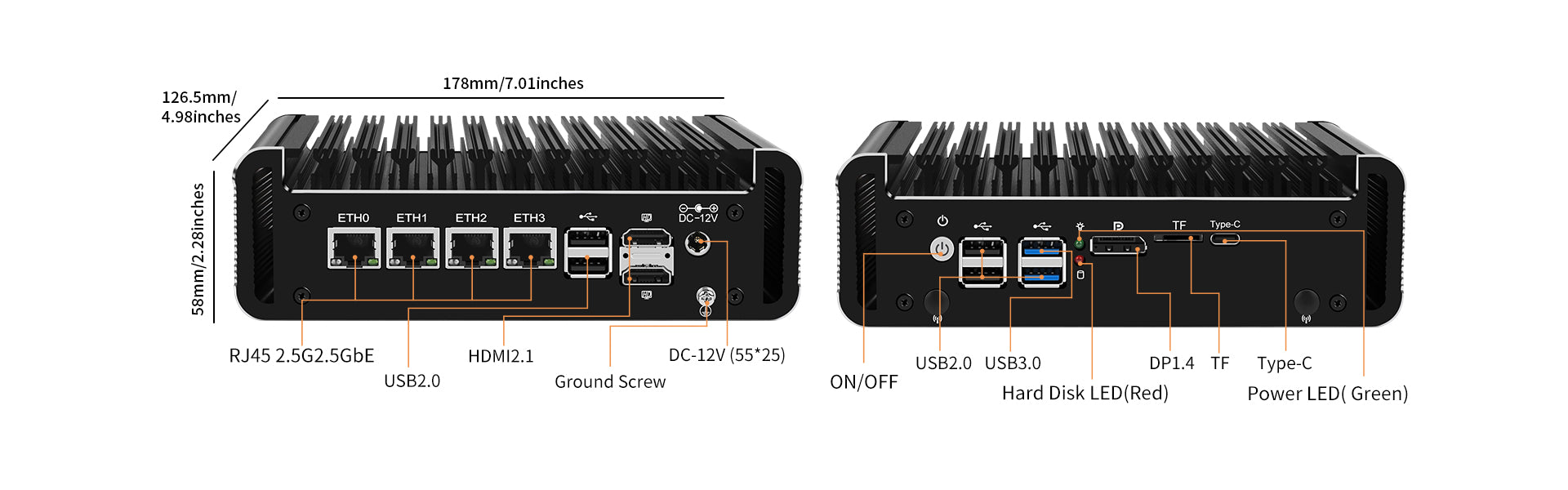

CWWK F3 front and rear I O interfaces with four Intel i226 2.5GbE LAN ports USB display and power connections

Technical Specifications

Key processor, networking, storage, chassis, passive cooling, VESA mounting, and installation specifications for the CWWK F3.

Model	CWWK F3
Processor Options	Intel N100, N150, Core i3-N305, and Core 3 N355
Motherboard	CWWK Elite 4-port N-Series motherboard
Ethernet	4 × Intel i226 2.5GbE RJ45 LAN ports
Memory	1 × SO-DIMM DDR5 slot
NVMe Storage	2 × M.2 NVMe SSD slots
SATA	2 × SATA interfaces; supports 2.5-inch SATA drive installation
Chassis	Flagship aluminum alloy chassis
Dimensions	178 × 126 × 55 mm 17.8 × 12.6 × 5.5 cm 7.01 × 4.96 × 2.17 in
Cooling	Fanless passive cooling using aluminum chassis, external heat-dissipation fins, and internal heat pipe
Thermal Structure	Wide finned heat-dissipation area with internal heat-pipe-assisted thermal transfer
Dust Protection	Dust-resistant chassis design
VESA Mounting	Supported
Optional Cooling	Supports optional 12V 4-pin 80 × 80 × 10 mm 8010 cooling fan
Operating Systems	OPNsense, pfSense, OpenWrt, Proxmox, Linux, Ubuntu, Debian, ESXi and Windows
Typical Applications	Firewall, router, VPN gateway, VLAN gateway, home lab, Proxmox host and network services

FAQ

Which processors does the CWWK F3 support?

The F3 supports Intel N100, N150, Core i3-N305, and Core 3 N355 processor configurations.

What are the dimensions of the CWWK F3?

The F3 measures 178 × 126 × 55 mm, or 17.8 × 12.6 × 5.5 cm. In inches, it measures approximately 7.01 × 4.96 × 2.17 in.

Is the CWWK F3 fanless?

Yes. The F3 uses passive cooling through its aluminum Flagship chassis, external heat-dissipation fins, and internal heat pipe.

Does the CWWK F3 use a heat pipe?

Yes. The F3 includes an internal heat pipe that transfers heat from the processor area toward the larger chassis heat-dissipation structure.

How does the F3 cooling design work?

Heat is transferred from the processor area through the internal heat pipe and distributed toward the aluminum enclosure. The larger finned chassis surface then dissipates that heat passively into the surrounding air.

What is the difference between F1, F2 and F3?

All three use the same Elite N-Series motherboard platform. F1 uses a compact High-Y chassis, F2 uses a larger Large-Back chassis, and F3 uses the Flagship chassis with a wider cooling area, more heat-dissipation fins, and an internal heat pipe.

Does F3 provide stronger passive cooling than F1 and F2?

The F3 is designed with a wider heat-dissipation area, more external cooling fins, and an internal heat pipe, giving the Flagship chassis stronger overall passive thermal performance.

Does the F3 have a dust-resistant design?

Yes. The F3 incorporates a dust-resistant chassis design.

Can the F3 install a 2.5-inch SATA drive?

Yes. The F3 supports installation of a 2.5-inch SATA drive for additional local storage alongside its M.2 NVMe SSDs.

Does the F3 support VESA mounting?

Yes. The F3 supports compatible VESA mounting using the corresponding chassis mounting points.

Can I install an 8010 cooling fan in the F3?

Yes. The F3 supports an optional 12V 4-pin 80 × 80 × 10 mm 8010 cooling fan. The fan is sold separately and can be purchased here .

How many 2.5GbE ports does the F3 have?

The F3 provides four Intel i226 2.5GbE RJ45 LAN ports for WAN, LAN, VLANs, NAS systems, access points, IoT devices, and isolated network segments.

How many NVMe SSDs does the F3 support?

The F3 provides two M.2 NVMe SSD slots together with SATA connectivity for additional local storage.

Does the CWWK F3 support OPNsense and pfSense?

Yes. The F3 supports OPNsense and pfSense as well as OpenWrt and other compatible x86 network operating systems.

Can the CWWK F3 run Proxmox?

Yes. The F3 can run Proxmox for virtual firewall instances, containers, network services, and home lab workloads. N305 and N355 configurations provide additional CPU resources for heavier virtualization.
