CWWK F10 4-Port 2.5GbE Firewall Mini PC

The CWWK F10 is a fanless 4-port 2.5GbE firewall mini PC based on CWWK's Pioneer N-Series motherboard. It supports Intel N100, N150, Core i3-N305, and Core 3 N355 processors, four Intel i226-V 2.5GbE LAN ports, DDR5 memory, up to five NVMe SSDs, VESA mounting, optional 8010 fan installation, and a Flagship aluminum chassis with a heat-conduction plate, internal heat pipe, and wider three-sided cooling fins.

Intel N100, N150, N305 and N355 Processor Options

The F10 supports Intel N100, N150, Core i3-N305, and Core 3 N355 processor configurations. N100 and N150 provide low-power options for firewall, routing, VLAN, and VPN workloads, while N305 and N355 provide additional CPU resources for virtualization, containers, and multi-service home lab deployments.

N100 4 cores / 4 threads for OPNsense, pfSense, OpenWrt, routing, VLAN segmentation, VPN, and low-power networking.

N150 4 cores / 4 threads for firewall, routing, VPN, VLAN, and everyday multi-interface network services.

N305 8 cores / 8 threads for Proxmox, virtual firewalls, containers, VPN services, and heavier network workloads.

N355 8 cores / 8 threads for more demanding virtualization and multi-service home lab deployments.

Four Intel i226-V 2.5GbE Network Ports

Four Intel i226-V 2.5GbE LAN ports provide independent physical interfaces for WAN, LAN, VLANs, NAS systems, wireless access points, cameras, IoT devices, and isolated network segments.

4 × 2.5GbE Assign dedicated interfaces to WAN, LAN, NAS, access points, cameras, IoT devices, or independent lab networks.

Multi-WAN Configure multiple physical interfaces for separate upstream connections, failover, or independent gateway routes.

Network Segmentation Separate trusted devices, servers, guests, IoT equipment, and lab systems through physical ports or VLANs.

Pioneer Motherboard with PCIe 3.0 x4 NVMe Expansion

The F10 uses CWWK's Pioneer N-Series motherboard with a dedicated NVME1 PCIe 3.0 x4 expansion path. NVME1 can connect to the separately sold NV4-E1 1V4 adapter board, dividing the x4 connection into four PCIe x1 channels for four M.2 2280 NVMe SSDs.

Pioneer N-Series motherboard
4 × Intel i226-V 2.5GbE LAN ports
1 × SO-DIMM DDR5 memory slot
NVME1: PCIe 3.0 x4 expansion path
NVME2: PCIe 3.0 x1 through M.2 Wi-Fi conversion
SATA3.0 and M.2 Wi-Fi connectivity

CWWK F10 Pioneer motherboard layout with Intel i226-V 2.5GbE DDR5 PCIe 3.0 x4 NVMe expansion SATA and Wi-Fi interfaces

CWWK F10 internal construction with Pioneer motherboard installed inside the Flagship chassis

Up to 5 NVMe or 4 NVMe + SATA Storage Expansion

The F10 provides two NVMe storage paths. NVME1 uses PCIe 3.0 x4 with the separately sold NV4-E1 1V4 adapter board to support four M.2 2280 NVMe x1 SSDs. NVME2 provides one additional PCIe 3.0 x1 NVMe connection by converting the M.2 Wi-Fi E-Key interface to M-Key.

NVME1: 4 × NVMe PCIe 3.0 x4 connects to the 1V4 adapter board and expands into four M.2 2280 NVMe PCIe x1 SSD positions.

NVME2: +1 NVMe The M.2 Wi-Fi E-Key interface can be converted to M-Key to provide one additional PCIe 3.0 x1 NVMe connection.

Flexible Storage Layout Configure up to five NVMe SSDs, or use four NVMe SSDs together with one SATA3.0 drive.

NVME2 and SATA3.0 cannot be used at the same time. To use the M.2 Wi-Fi interface for a Wi-Fi/BT module, remove the E-Key to M-Key storage adapter and install the wireless module instead.

View NV4-E1 4-NVMe Expansion Board →

CWWK F10 NV4-E1 expansion board supporting four M.2 2280 NVMe SSDs

Flagship Chassis with Wider Three-Sided Cooling Fins

178 × 126 × 55 mm

17.8 × 12.6 × 5.5 cm
7.01 × 4.96 × 2.17 in

Flagship Chassis Fanless Wider Cooling Fins Three-Sided Cooling Heat Pipe Dust-Resistant VESA Mounting

The F10 uses CWWK's Flagship aluminum chassis, measuring 178 × 126 × 55 mm. The enclosure provides a broad passive cooling structure while maintaining a relatively low-profile form factor.

Heat-dissipation fins extend across the top, left, and right sides of the enclosure. Compared with the other Pioneer chassis designs, the F10 uses a wider and more extensive fin structure to provide a larger external surface for passive heat dissipation.

CWWK F10 Flagship chassis with wider three-sided passive cooling fins dust-resistant design and VESA support

Heat-Conduction Plate and Internal Heat Pipe

The F10 passive thermal system combines a heat-conduction plate, internal heat pipe, aluminum chassis, and the wider three-sided fin structure. Heat is transferred away from the processor area through the internal thermal components and distributed toward the larger external cooling surface.

Heat-Conduction Plate Provides a direct thermal path from the processor area toward the internal cooling structure.

Internal Heat Pipe Transfers thermal energy from the primary heat source toward the surrounding aluminum chassis.

Wider Fin Surface A broader fin structure increases the external surface area available for passive heat dissipation.

Three-Sided Cooling Top, left, and right-side fins distribute heat across multiple external surfaces without continuous fan operation.

CWWK F10 internal heat pipe and heat-conduction structure for passive cooling

8010 Fan and 2.5-Inch SATA Installation

The F10 operates as a fanless system but supports an optional 12V 4-pin 80 × 80 × 10 mm 8010 cooling fan when additional airflow is required. A 2.5-inch SATA drive can be installed when the system uses the 4-NVMe + SATA storage configuration.

Shop 8010 Cooling Fan →

CWWK F10 optional 8010 cooling fan and 2.5-inch SATA drive installation

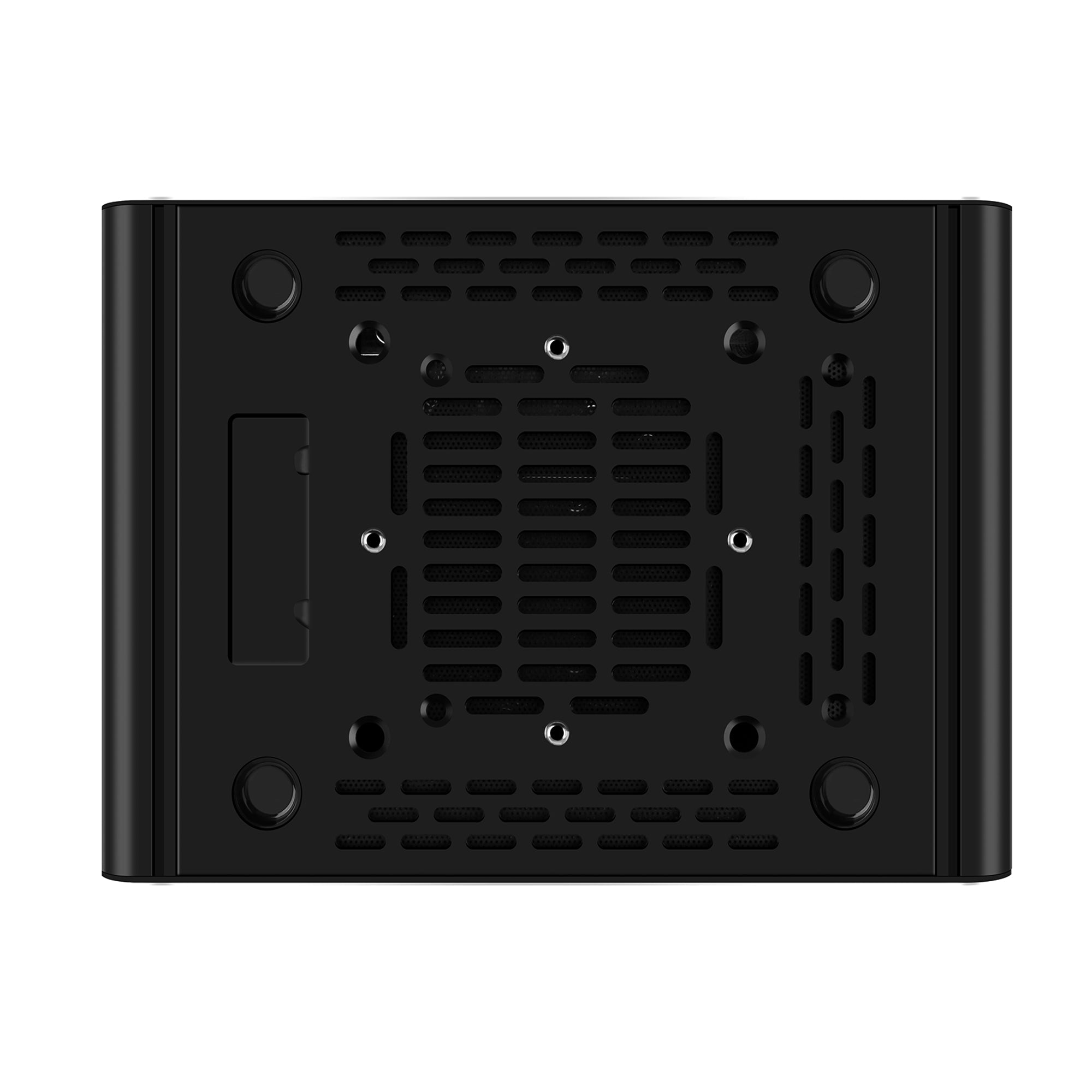

VESA Mounting and Dust-Resistant Design

The F10 supports VESA mounting for installation behind compatible displays, on mounting plates, or in other supported locations. Its fanless Flagship enclosure also incorporates a dust-resistant structural design.

CWWK F10 VESA mounting installation steps and chassis mounting points

OPNsense, pfSense, OpenWrt and Proxmox Compatibility

The F10 supports OPNsense, pfSense, OpenWrt, Proxmox, Linux, Ubuntu, Debian, ESXi, Windows, and other compatible x86 operating systems. Its four 2.5GbE interfaces and flexible multi-NVMe architecture make it suitable for firewall routing, VLAN segmentation, VPN gateways, home labs, and virtualized network services.

Firewall & Routing Deploy OPNsense, pfSense, OpenWrt, VPN gateways, VLAN routing, and multi-interface network services.

Storage-Focused Home Lab Use multi-NVMe storage for virtual machines, containers, local services, and compact lab infrastructure.

High-Capacity Passive Cooling Use the Flagship chassis, internal heat pipe, and wider three-sided fin structure for sustained fanless operation.

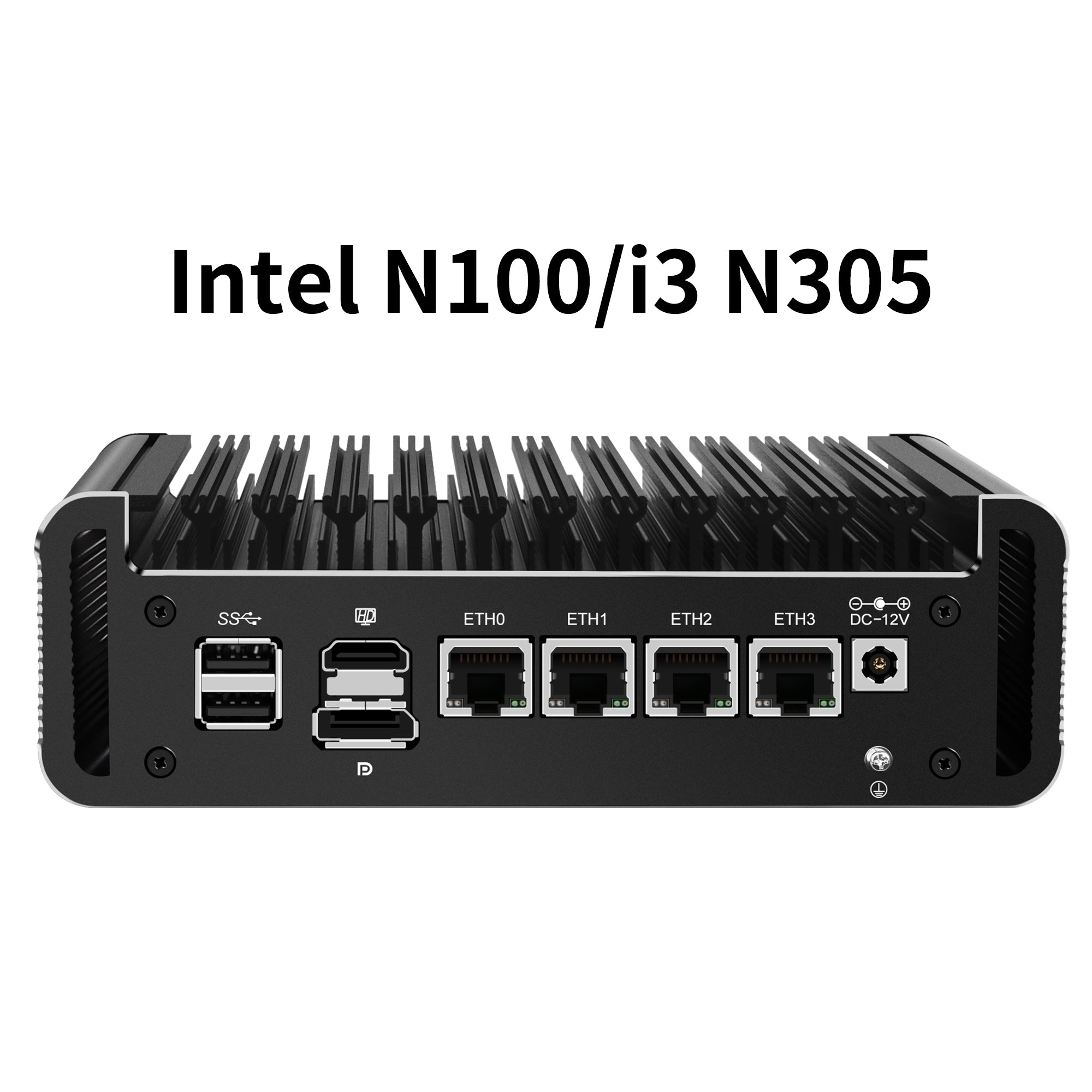

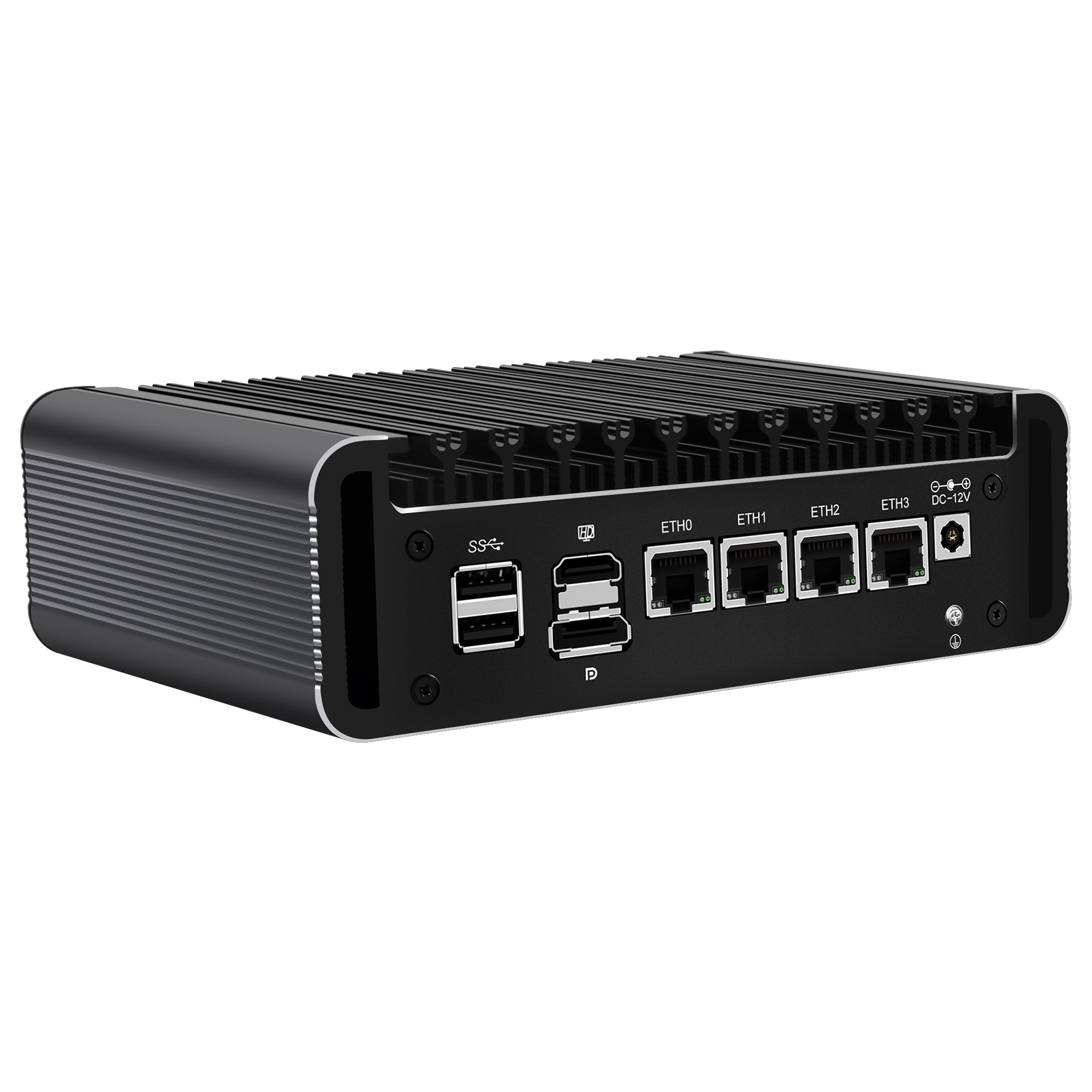

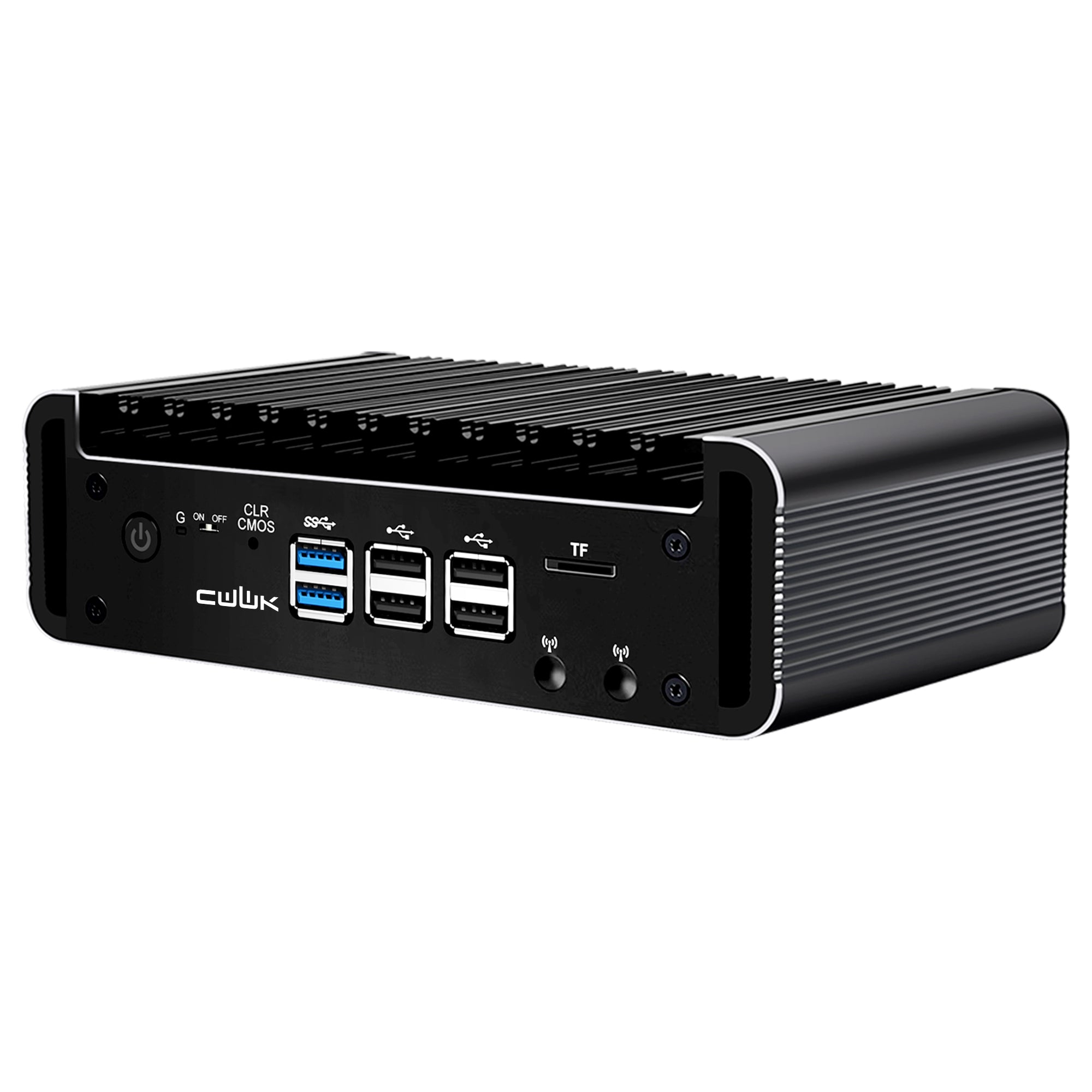

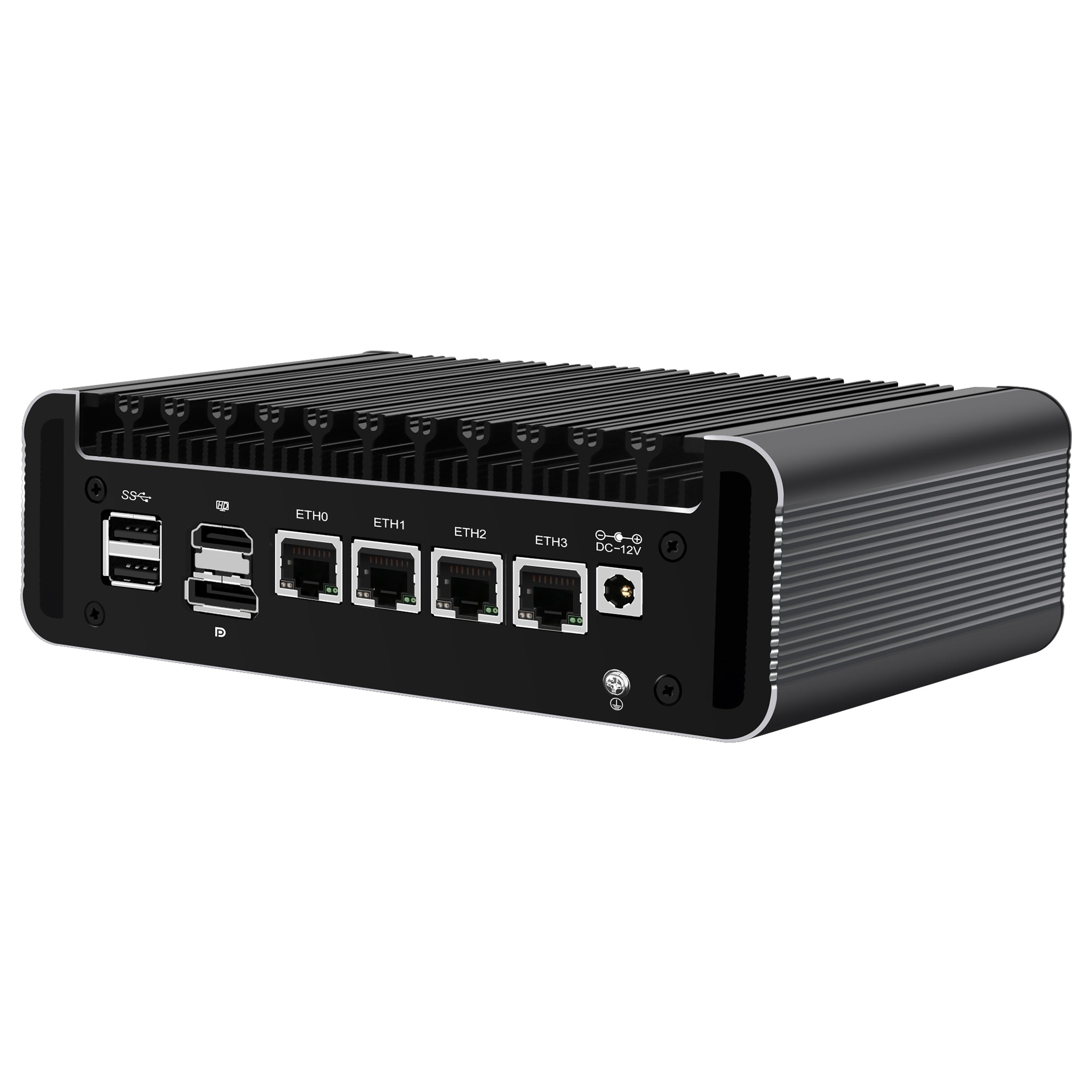

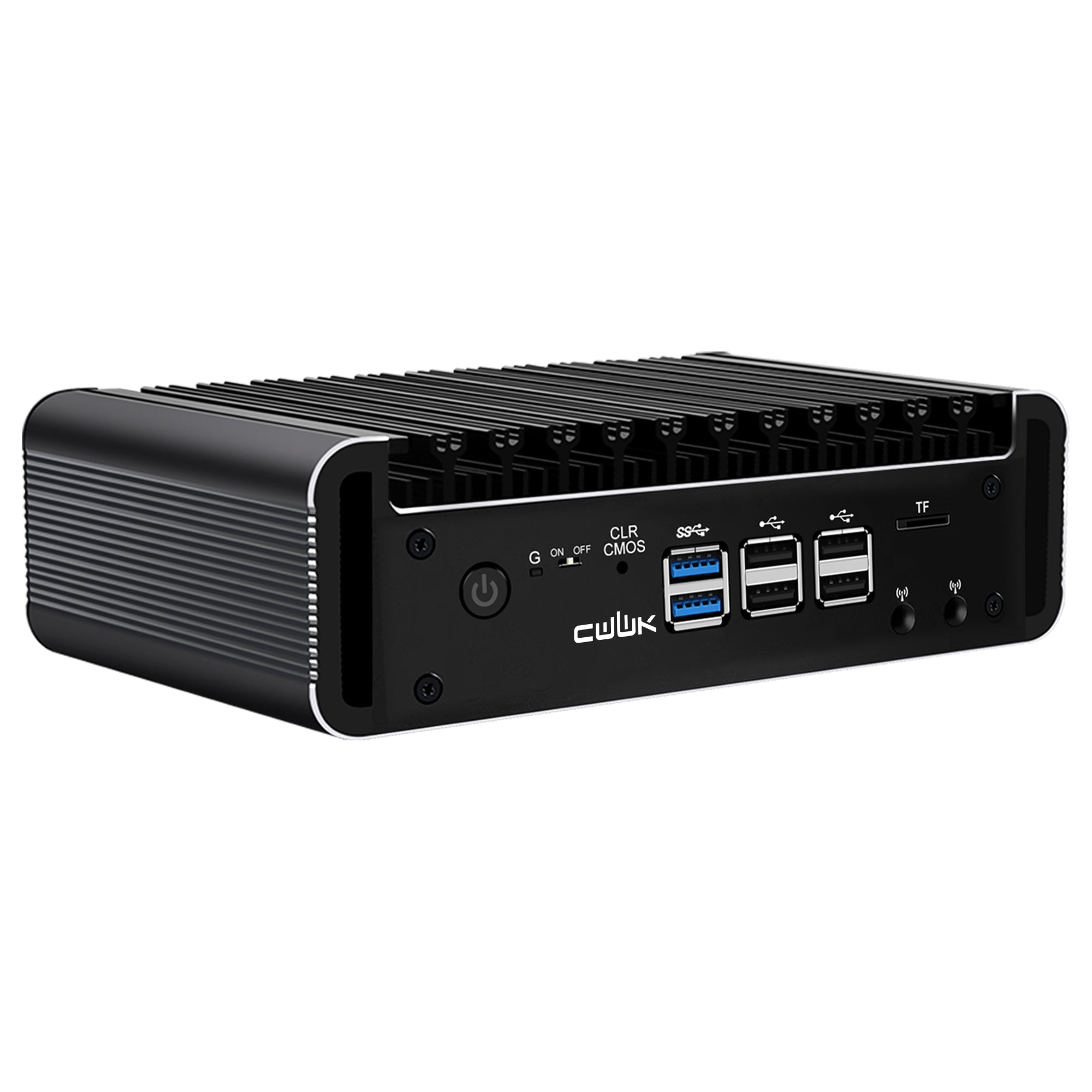

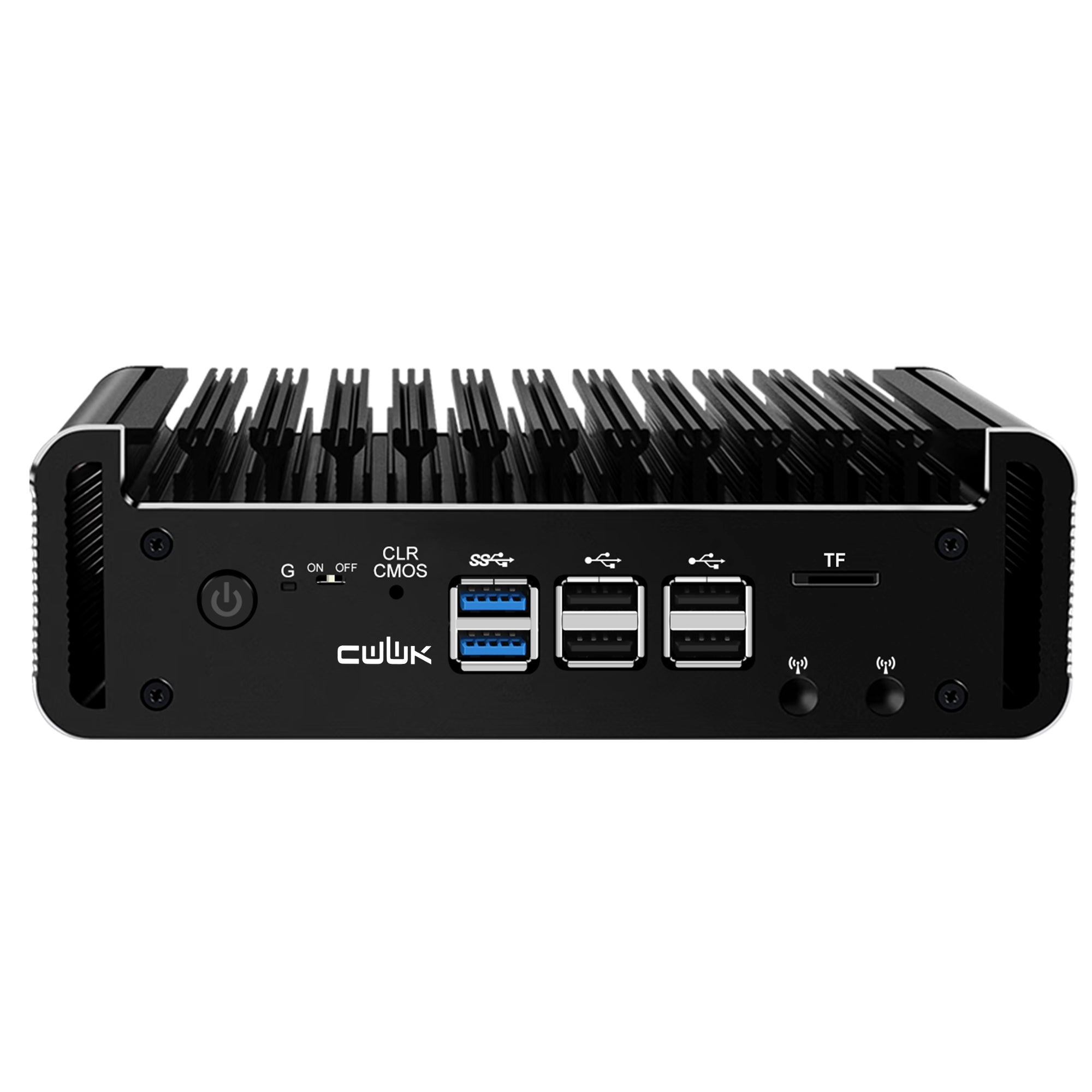

Front and Rear I/O Connectivity

The F10 provides front and rear interfaces for networking, system installation, display output, USB peripherals, storage connectivity, and power. Four Intel i226-V 2.5GbE LAN ports provide the primary connectivity for firewall and routing deployments.

CWWK F10 front and rear I O interfaces with four Intel i226-V 2.5GbE LAN ports USB display and power connections

Technical Specifications

Model	CWWK F10
Processor Options	Intel N100, N150, Core i3-N305, and Core 3 N355
Motherboard	CWWK Pioneer 4-port N-Series motherboard
Ethernet	4 × Intel i226-V 2.5GbE RJ45 LAN ports
Memory	1 × SO-DIMM DDR5 slot
NVME1	PCIe 3.0 x4; supports separately sold 1V4 adapter board for 4 × M.2 2280 NVMe PCIe x1 SSDs
NVME2	PCIe 3.0 x1 converted from the M.2 Wi-Fi E-Key interface through an E-Key to M-Key adapter
Maximum NVMe	Up to 5 × NVMe SSDs
Alternative Storage	4 × NVMe SSDs + 1 × SATA3.0 drive
Signal Limitation	NVME2 and SATA3.0 cannot be used at the same time
Wi-Fi / Bluetooth	M.2 Wi-Fi E-Key supports Wi-Fi/BT module after removing the E-Key to M-Key storage adapter
Chassis	Flagship aluminum chassis
Dimensions	178 × 126 × 55 mm 17.8 × 12.6 × 5.5 cm 7.01 × 4.96 × 2.17 in
Cooling	Fanless passive cooling using heat-conduction plate, internal heat pipe, aluminum chassis, and wider three-sided cooling fins
Thermal Structure	Heat-conduction plate and internal heat pipe
Cooling Fin Layout	Wider heat-dissipation fins on the top, left, and right sides of the chassis
Dust Protection	Dust-resistant chassis design
VESA Mounting	Supported
Optional Cooling	Supports optional 12V 4-pin 80 × 80 × 10 mm 8010 cooling fan
Operating Systems	OPNsense, pfSense, OpenWrt, Proxmox, Linux, Ubuntu, Debian, ESXi and Windows

FAQ

Which processors does the CWWK F10 support?

The F10 supports Intel N100, N150, Core i3-N305, and Core 3 N355 processor configurations.

How many NVMe SSDs can the CWWK F10 support?

The F10 can support up to five NVMe SSDs. NVME1 can expand to four M.2 2280 NVMe SSDs through the optional NV4-E1 adapter board, while NVME2 provides one additional NVMe connection through the M.2 Wi-Fi E-Key interface.

Can the F10 use four NVMe SSDs and SATA together?

Yes. The F10 supports four NVMe SSDs through NVME1 together with one SATA3.0 drive.

Can the F10 use five NVMe SSDs and SATA at the same time?

No. The fifth NVMe SSD uses NVME2, and NVME2 cannot be used at the same time as SATA3.0.

Is the NV4-E1 expansion board included with the F10?

No. The NV4-E1 1V4 expansion board is sold separately and can be purchased here .

What makes the F10 different from F4, F6 and F8?

All four models use the same Pioneer motherboard architecture. F10 uses the Flagship chassis with a wider three-sided fin structure, heat-conduction plate, and internal heat pipe for a larger passive cooling surface.

Does the F10 use an internal heat pipe?

Yes. The F10 includes an internal heat pipe as part of its passive thermal structure.

Does the F10 use a heat-conduction plate?

Yes. The F10 uses a heat-conduction plate together with the internal heat pipe and aluminum chassis to transfer heat away from the processor area.

Does the F10 have wider cooling fins than the other Pioneer chassis options?

Yes. The Flagship chassis uses a wider and more extensive fin structure across the top and sides to provide a larger passive heat-dissipation surface.

What are the dimensions of the CWWK F10?

The F10 measures 178 × 126 × 55 mm, or approximately 7.01 × 4.96 × 2.17 inches.

Is the CWWK F10 fanless?

Yes. The F10 uses passive cooling through its heat-conduction plate, internal heat pipe, aluminum enclosure, and wider three-sided cooling fins.

Can the F10 install a 2.5-inch SATA drive?

Yes. A 2.5-inch SATA drive can be installed when the F10 uses the 4-NVMe + SATA storage configuration.

Does the F10 support VESA mounting?

Yes. The F10 supports compatible VESA mounting.

Does the F10 have a dust-resistant design?

Yes. The F10 incorporates a dust-resistant chassis design.

Can I install an 8010 cooling fan in the F10?

Yes. The F10 supports an optional 12V 4-pin 80 × 80 × 10 mm 8010 cooling fan.

Does the F10 support OPNsense, pfSense and Proxmox?

Yes. The F10 supports OPNsense, pfSense, OpenWrt, Proxmox, and other compatible x86 operating systems.
