CWWK F29 Ryzen 5 5500U 4-Port 2.5GbE Firewall Mini PC

$406.00

$499.00

The CWWK F29 is an actively cooled 4-port 2.5GbE firewall mini PC built around an AMD Ryzen mobile platform. It combines four Intel i226-V network interfaces, dual-channel DDR4 memory, flexible NVMe and SATA storage, triple-display connectivity and copper-tube turbo fan cooling for sustained firewall, virtualization and home lab workloads.

AMD Ryzen 5 5500U and Ryzen 7 5800U, 5825U & 7730U Options

F29 supports multiple AMD Ryzen processor configurations for different network, virtualization and local-service workloads.

Ryzen 5 5500U 6 cores and 12 threads for firewall, routing and general multi-service workloads.

Ryzen 7 5800U 8 cores and 16 threads for heavier multitasking, virtualization and container workloads.

Ryzen 7 5825U 8 cores and 16 threads for users running multiple services or higher sustained CPU workloads.

Ryzen 7 7730U 8 cores and 16 threads for higher compute requirements in compact network and home lab environments.

Four Intel i226-V 2.5GbE Network Ports

Four onboard Intel i226-V controllers provide four independent 2.5GbE RJ45 network interfaces for multi-WAN, LAN segmentation, VLAN routing, gateways and virtualized network environments.

4 × 2.5GbE RJ45 Four onboard multi-gigabit Ethernet ports without requiring an additional network expansion card.

Intel i226-V Dedicated Intel 2.5GbE controllers provide multi-gigabit connectivity across all four LAN interfaces.

Flexible Network Topology Suitable for WAN/LAN separation, VLANs, gateways, routing and segmented network environments.

Shared AMD Platform with Dual-Channel DDR4

F29 shares its motherboard platform with F16 and supports dual-channel SO-DIMM DDR4 3200 memory with up to 64GB capacity.

2 × SO-DIMM DDR4 memory slots
DDR4 3200 support
Up to 64GB system memory
4 × Intel i226-V 2.5GbE LAN
HDMI, DisplayPort and full-function USB-C
DC-IN 12–19V and USB-C 12–20V power input

CWWK F16 and F29 shared AMD motherboard with DDR4 memory, NVMe and four Intel i226-V 2.5GbE ports

CWWK F16 and F29 shared motherboard I/O interface layout

Dual M.2 NVMe and Dual 2.5-Inch SATA Storage

The F29 motherboard provides flexible storage expansion for virtual machines, containers, logs, local services and additional data storage.

Up to 2 × M.2 NVMe One NVMe path uses PCIe 3.0 x4, while an additional NVMe configuration can be provided through the corresponding M.2 expansion route.

2 × 2.5-Inch SATA Two dedicated non-standard SATA power and data interfaces support 2.5-inch SATA SSD or HDD installation.

The M.2 wireless expansion interface can also be configured as part of the additional NVMe storage path. When this interface is used for NVMe expansion, it cannot simultaneously be used for the corresponding wireless module.

Copper-Tube Turbo Fan Active Cooling

F29 uses an active thermal system built around copper-tube heat transfer and turbo fan cooling. This provides additional cooling capacity compared with the fanless F16 and is better suited to sustained processor workloads.

The active cooling system helps transfer heat away from the processor while maintaining airflow through the larger aluminum enclosure during longer periods of CPU utilization.

Active Cooling Copper Heat Pipe Turbo Fan Aluminum Chassis

Designed for Sustained Workloads Suitable for users running multiple virtual machines, containers, routing services or other workloads that can maintain higher processor utilization for extended periods.

F29 also supports an optional 80 × 80 × 10 mm 8010 chassis fan when additional internal airflow is required.

View Compatible 8010 Fan

Large Aluminum Chassis and Internal Layout

F29 uses a larger aluminum enclosure measuring 168 × 131.7 × 60 mm. The additional chassis volume supports the active cooling system and flexible internal storage configuration.

168 × 131.7 × 60 mm Larger enclosure dimensions designed around active cooling and internal expansion.

Active Airflow The enclosure works together with the copper-tube turbo cooling system to move heat away from internal components.

Flexible Storage Supports NVMe and 2.5-inch SATA configurations for virtual machines, logs and local services.

HDMI, DisplayPort and USB-C Triple Display Output

F29 provides HDMI, DisplayPort and full-function USB-C display connectivity for local system management, desktop use and multi-monitor environments.

HDMI Digital display output for standard monitors and management consoles.

DisplayPort Additional digital display interface for multi-monitor configurations.

Full-Function USB-C Supports data, display output and supported power functions through a single interface.

Firewall, Virtualization and Home Lab Deployment

Ryzen multi-core processors, four 2.5GbE ports, up to 64GB DDR4, flexible storage and active cooling allow F29 to support both networking and local compute workloads.

Firewall & Routing Four independent 2.5GbE interfaces support gateways, multi-zone networks and segmented routing environments.

Virtualization Ryzen multi-core processors and dual-channel DDR4 provide resources for virtual machines and containers.

Home Lab & Edge Services Active cooling, NVMe storage and multi-gigabit networking suit continuously running local services and compact edge workloads.

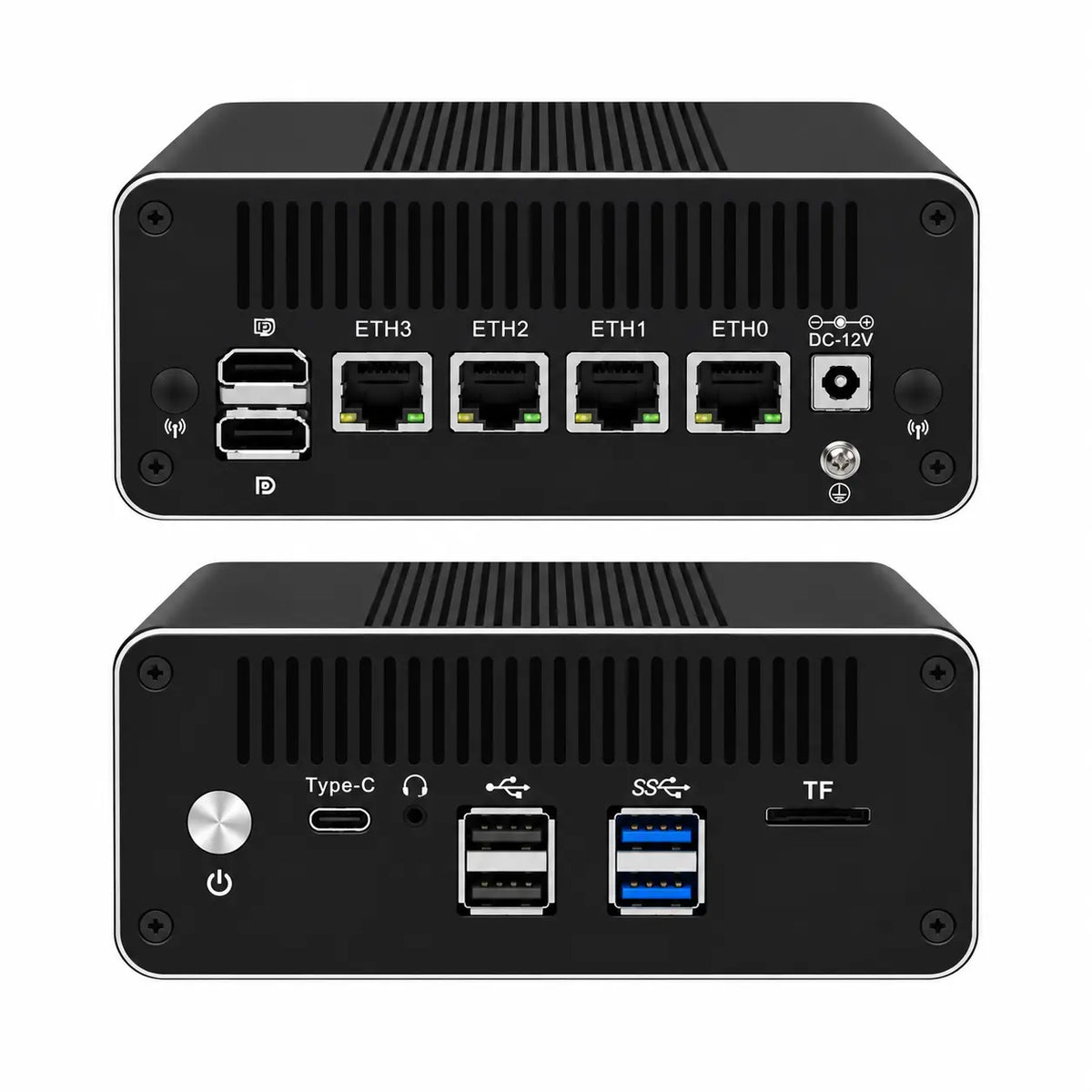

Front and Rear I/O Connectivity

4 × Intel i226-V 2.5GbE RJ45
1 × HDMI
1 × DisplayPort
1 × Full-function USB-C
2 × USB 3.1
2 × USB 2.0
1 × TF card slot
WiFi antenna reserved holes
BIOS reset / Clear CMOS
Power button
DC-IN 12–19V
USB-C 12–20V power input

CWWK F29 motherboard I/O layout with four 2.5GbE ports, HDMI, DisplayPort and USB-C

Technical Specifications

Model	CWWK F29
Processor Options	AMD Ryzen 5 5500U / Ryzen 7 5800U / Ryzen 7 5825U / Ryzen 7 7730U
Network	4 × Intel i226-V 2.5GbE RJ45
Memory	2 × SO-DIMM DDR4 3200, dual-channel, up to 64GB
NVMe Storage	Up to 2 × M.2 NVMe, including a PCIe 3.0 x4 storage path
SATA Storage	2 × 2.5-inch SATA via dedicated non-standard power and data interfaces
Display	HDMI + DisplayPort + full-function USB-C
USB	2 × USB 3.1 + 2 × USB 2.0 + USB-C
TF Card	1 × TF card slot
Cooling	Copper-tube turbo fan active cooling; optional 8010 chassis fan supported
Power Input	DC-IN 12–19V / USB-C 12–20V
Dimensions	168 × 131.7 × 60 mm
Chassis	Aluminum active-cooling chassis

FAQ

What processors are available for CWWK F29?

F29 supports AMD Ryzen 5 5500U, Ryzen 7 5800U, Ryzen 7 5825U and Ryzen 7 7730U configurations.

Is the CWWK F29 fanless?

No. F29 uses copper-tube turbo fan active cooling for additional cooling capacity during sustained workloads.

What is the difference between F29 and F16?

F29 and F16 share the same AMD motherboard platform. F29 uses a larger 168 × 131.7 × 60 mm chassis with copper-tube turbo fan active cooling, while F16 uses a smaller 150 × 130 × 55 mm fanless chassis with passive cooling and VESA mounting support.

How many 2.5GbE ports does F29 have?

F29 provides four onboard Intel i226-V 2.5GbE RJ45 network ports.

How much memory does F29 support?

F29 provides two SO-DIMM DDR4 3200 memory slots and supports up to 64GB of dual-channel memory.

Can F29 use two NVMe SSDs?

Yes. The platform supports up to two M.2 NVMe storage configurations, including a PCIe 3.0 x4 storage path and an additional expansion route.

Does F29 support 2.5-inch SATA drives?

Yes. The motherboard provides two dedicated non-standard SATA power and data interfaces for 2.5-inch SATA SSD or HDD installation.

What are the dimensions of F29?

The F29 chassis measures 168 × 131.7 × 60 mm.

Can an additional 8010 fan be installed in F29?

Yes. F29 supports an optional 80 × 80 × 10 mm chassis fan when additional airflow is required. View the compatible CWWK 8010 fan.
