CWWK F4 4-Port 2.5GbE Firewall Mini PC

The CWWK F4 is a fanless 4-port 2.5GbE firewall mini PC based on CWWK's Pioneer N-Series motherboard. It supports Intel N150, Core i3-N305, and Core 3 N355 processors, four Intel i226-V 2.5GbE LAN ports, DDR5 memory, flexible NVMe storage expansion, VESA mounting, optional 8010 fan installation, and an Official aluminum chassis with a copper alloy heat conductive sheet and internal heat pipe.

Intel N150, N305 and N355 Processor Options

The F4 supports Intel N150, Core i3-N305, and Core 3 N355 processor configurations. N150 provides a low-power platform for firewall, routing, VLAN, and VPN workloads, while N305 and N355 provide additional CPU resources for virtualization, containers, and multi-service home lab deployments.

N150 4 cores / 4 threads for OPNsense, pfSense, OpenWrt, routing, VLAN segmentation, and low-power networking.

N305 8 cores / 8 threads for Proxmox, virtual firewalls, containers, VPN services, and heavier network workloads.

N355 8 cores / 8 threads for more demanding virtualization and multi-service home lab deployments.

Four Intel i226-V 2.5GbE Network Ports

Four Intel i226-V 2.5GbE LAN ports provide dedicated physical interfaces for WAN, LAN, VLANs, NAS systems, wireless access points, cameras, IoT devices, and isolated network segments.

4 × 2.5GbE Assign dedicated interfaces to WAN, LAN, NAS, access points, cameras, IoT devices, or independent lab networks.

Multi-WAN Configure multiple interfaces for separate upstream connections, failover, or independent gateway routes.

Network Segmentation Separate trusted devices, servers, guests, IoT equipment, and lab systems through physical ports or VLANs.

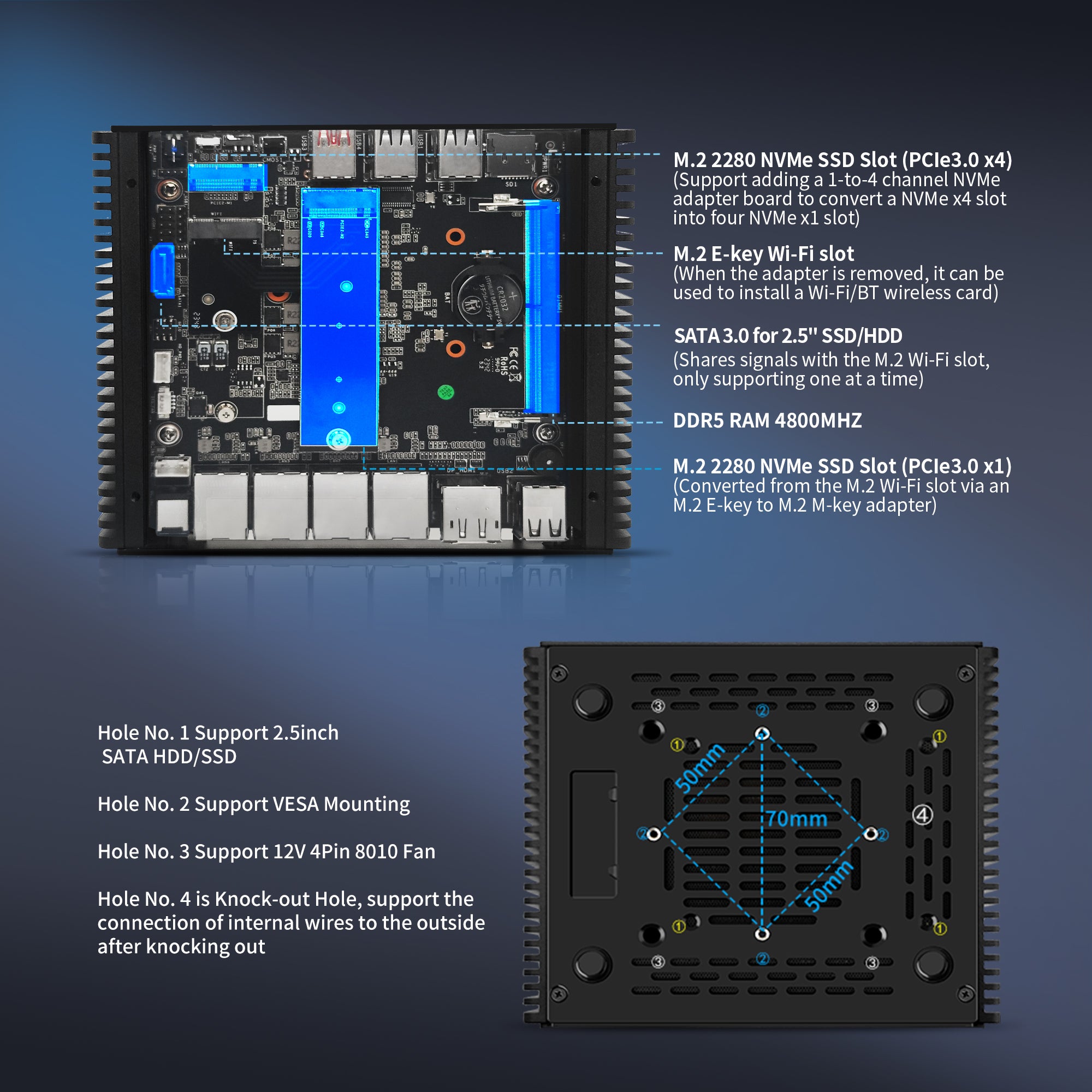

Pioneer Motherboard with PCIe 3.0 x4 NVMe Expansion

The F4 uses CWWK's Pioneer N-Series motherboard with a dedicated NVME1 PCIe 3.0 x4 expansion path. NVME1 can connect to the separately sold 1V4 adapter board, dividing the x4 connection into four PCIe x1 channels for four M.2 2280 NVMe SSDs.

Pioneer N-Series motherboard
4 × Intel i226-V 2.5GbE LAN ports
1 × SO-DIMM DDR5 memory slot
NVME1: PCIe 3.0 x4 expansion path
NVME2: PCIe 3.0 x1 through M.2 Wi-Fi conversion
SATA3.0 and M.2 Wi-Fi connectivity

CWWK F4 Pioneer motherboard layout with Intel i226-V 2.5GbE DDR5 PCIe x4 NVMe expansion SATA and Wi-Fi interfaces

Up to 5 NVMe or 4 NVMe + SATA Storage Expansion

The F4 provides two storage expansion paths. NVME1 uses the PCIe 3.0 x4 connection with a separately sold 1V4 adapter board to support four M.2 2280 NVMe x1 SSDs. NVME2 provides one additional PCIe 3.0 x1 NVMe connection by converting the M.2 Wi-Fi E-Key interface to M-Key.

NVME1: 4 × NVMe PCIe 3.0 x4 connects to the 1V4 adapter board and expands into four M.2 2280 NVMe PCIe x1 SSD positions.

NVME2: +1 NVMe The M.2 Wi-Fi E-Key interface can be converted to M-Key through an adapter to provide one additional PCIe 3.0 x1 NVMe connection.

Flexible Storage Layout Configure the system with up to 5 NVMe SSDs, or use 4 NVMe SSDs together with one SATA3.0 drive.

NVME2 and SATA3.0 cannot be used at the same time. To use the M.2 Wi-Fi slot for a Wi-Fi/BT module, remove the E-Key to M-Key storage adapter and install the wireless module instead.

View NV4-E1 4-NVMe Expansion Board →

CWWK F4 NV4-E1 1V4 expansion board supporting four M.2 2280 NVMe SSDs

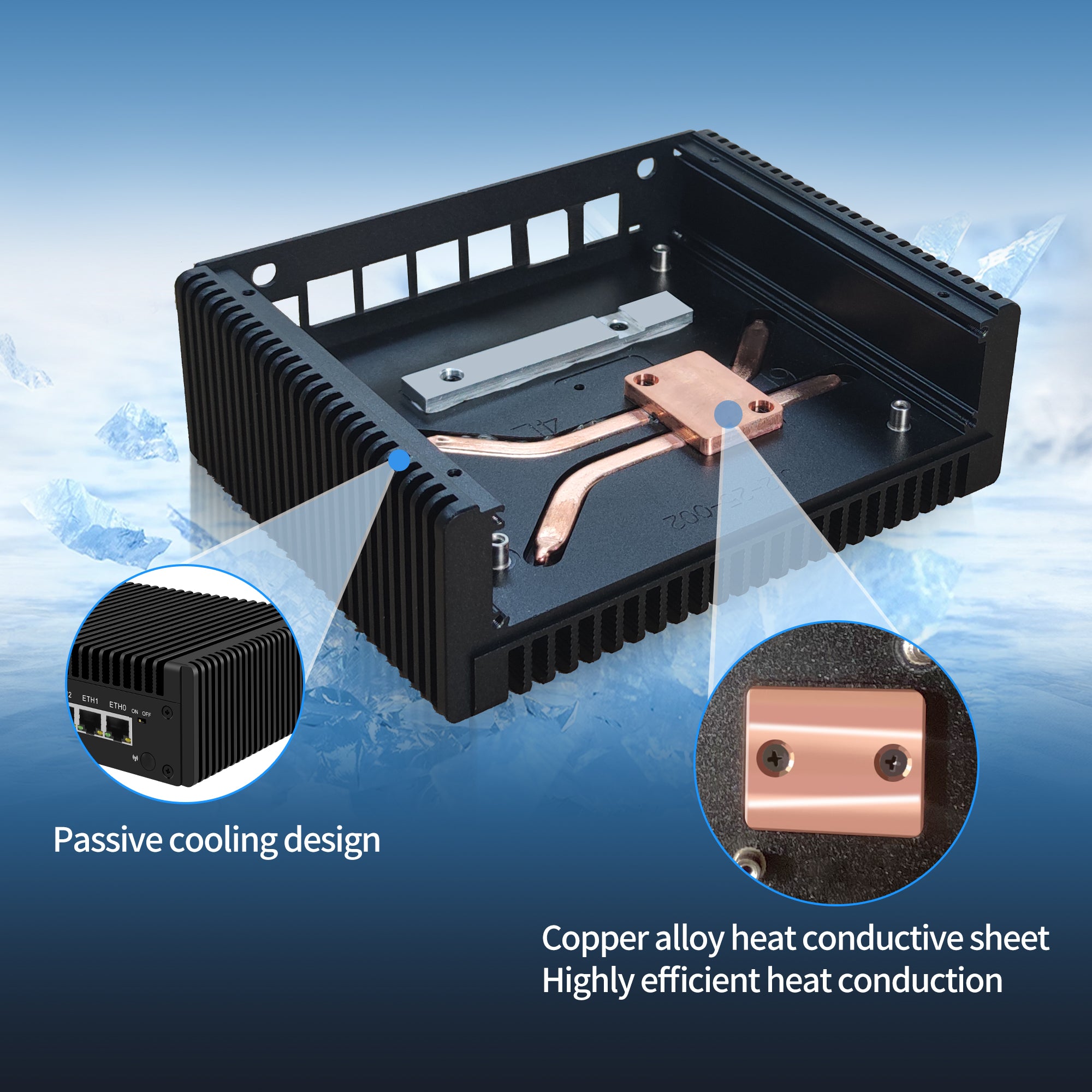

Official Chassis with Copper Alloy Heat Conductive Sheet

178.3 × 145.4 × 58.7 mm

17.83 × 14.54 × 5.87 cm
7.02 × 5.72 × 2.31 in

Official Chassis Fanless Copper Alloy Sheet Heat Pipe Dust-Resistant VESA Mounting

The F4 uses CWWK's Official aluminum chassis with a clean rectangular profile. Its passive cooling system combines a copper alloy heat conductive sheet, internal heat-conduction structure, heat pipe, aluminum enclosure, and external cooling fins.

The copper alloy sheet provides high-efficiency thermal conduction from the processor area, while the heat pipe transfers thermal energy toward the larger chassis surface for passive dissipation without requiring continuous fan operation.

Copper Alloy Heat Conductive Sheet High-efficiency copper alloy material helps transfer heat away from the processor area quickly.

Heat-Conduction Structure Provides a direct thermal path between the main heat source and the internal cooling system.

Internal Heat Pipe Transfers thermal energy toward the larger aluminum chassis heat-dissipation area.

Passive Fanless Cooling The aluminum enclosure and external fins release transferred heat without continuous fan operation.

CWWK F4 Official aluminum chassis passive cooling structure with heat pipe and external cooling fins

CWWK F4 copper alloy heat conductive sheet for high-efficiency passive heat transfer

8010 Fan and 2.5-Inch SATA Installation

The F4 operates as a fanless system but supports an optional 12V 4-pin 80 × 80 × 10 mm 8010 cooling fan when additional airflow is required. The chassis also supports a 2.5-inch SATA drive when the system is configured for the 4-NVMe + SATA storage layout.

Shop 8010 Cooling Fan →

CWWK F4 optional 8010 cooling fan and 2.5-inch SATA drive installation

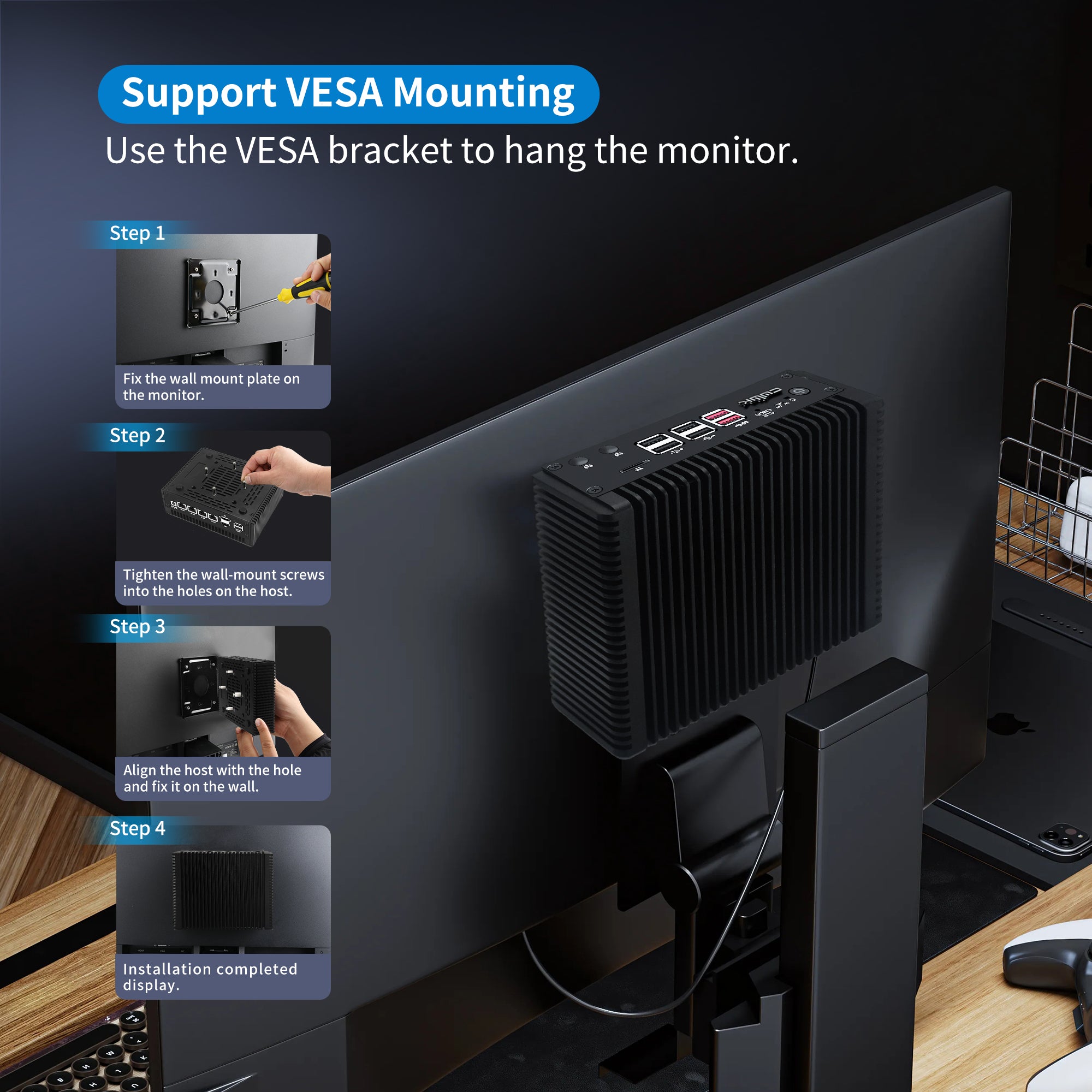

VESA Mounting and Dust-Resistant Design

The F4 supports VESA mounting for installation behind compatible displays, on mounting plates, or in other supported locations. Its chassis also incorporates a dust-resistant structural design for firewall, networking, and home lab deployments.

CWWK F4 VESA mounting installation steps and bottom chassis mounting points

OPNsense, pfSense, OpenWrt and Proxmox Compatibility

The F4 supports OPNsense, pfSense, OpenWrt, Proxmox, Linux, Ubuntu, Debian, ESXi, Windows, and other compatible x86 operating systems. Its four physical 2.5GbE interfaces and flexible storage architecture make it suitable for firewall routing, VLAN segmentation, VPN gateways, storage-focused home labs, and virtualized network services.

Firewall & Routing Deploy OPNsense, pfSense, OpenWrt, VPN gateways, VLAN routing, and multi-interface network services.

Storage-Focused Home Lab Use up to five NVMe SSDs for virtual machines, containers, local services, and compact lab storage.

Fanless Network Appliance Run network services with passive cooling while retaining optional 8010 fan expansion when additional airflow is required.

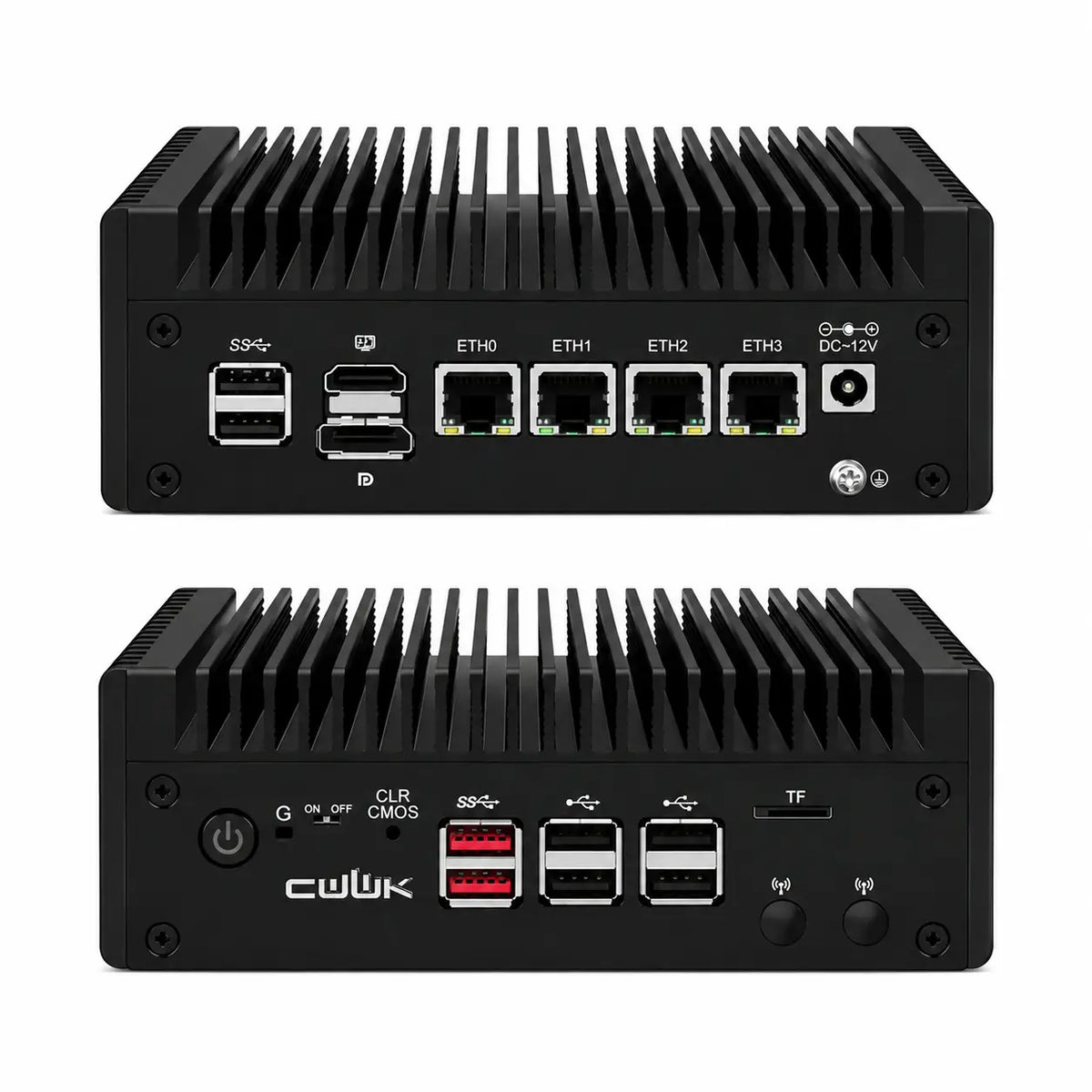

Front and Rear I/O Connectivity

The F4 provides front and rear interfaces for networking, system installation, display output, USB peripherals, storage connectivity, and power. Four Intel i226-V 2.5GbE LAN ports provide the primary connectivity for firewall and routing deployments.

CWWK F4 front and rear I O interfaces with four Intel i226-V 2.5GbE LAN ports USB display and power connections

Technical Specifications

Model	CWWK F4
Processor Options	Intel N150, Core i3-N305, and Core 3 N355
Motherboard	CWWK Pioneer 4-port N-Series motherboard
Ethernet	4 × Intel i226-V 2.5GbE RJ45 LAN ports
Memory	1 × SO-DIMM DDR5 slot
NVME1	PCIe 3.0 x4; supports separately sold 1V4 adapter board for 4 × M.2 2280 NVMe PCIe x1 SSDs
NVME2	PCIe 3.0 x1 converted from the M.2 Wi-Fi E-Key interface through an E-Key to M-Key adapter
Maximum NVMe	Up to 5 × NVMe SSDs
Alternative Storage	4 × NVMe SSDs + 1 × SATA3.0 drive
Signal Limitation	NVME2 and SATA3.0 cannot be used at the same time
Wi-Fi / Bluetooth	M.2 Wi-Fi E-Key supports Wi-Fi/BT module after removing the E-Key to M-Key storage adapter
Chassis	CWWK Official aluminum chassis
Dimensions	178.3 × 145.4 × 58.7 mm 17.83 × 14.54 × 5.87 cm 7.02 × 5.72 × 2.31 in
Cooling	Fanless passive cooling using copper alloy heat conductive sheet, heat-conduction structure, internal heat pipe, aluminum chassis, and external cooling fins
Dust Protection	Dust-resistant chassis design
VESA Mounting	Supported
Optional Cooling	Supports optional 12V 4-pin 80 × 80 × 10 mm 8010 cooling fan
Operating Systems	OPNsense, pfSense, OpenWrt, Proxmox, Linux, Ubuntu, Debian, ESXi and Windows

FAQ

Which processors does the CWWK F4 support?

The F4 supports Intel N150, Core i3-N305, and Core 3 N355 processor configurations.

How many NVMe SSDs can the CWWK F4 support?

The F4 can support up to five NVMe SSDs. NVME1 can expand to four M.2 2280 NVMe SSDs through the optional 1V4 adapter board, while NVME2 can provide one additional NVMe connection through the M.2 Wi-Fi E-Key interface.

Can the F4 use four NVMe SSDs and a SATA drive together?

Yes. The F4 supports a configuration with four NVMe SSDs through NVME1 together with one SATA3.0 drive.

Can the F4 use five NVMe SSDs and SATA at the same time?

No. The fifth NVMe SSD uses the NVME2 path converted from the M.2 Wi-Fi interface, and NVME2 cannot be used at the same time as SATA3.0.

Is the NV4-E1 expansion board included with the F4?

No. The 1V4 NVMe expansion board is sold separately and can be purchased here .

Can the M.2 Wi-Fi slot be converted to NVMe?

Yes. The M.2 Wi-Fi E-Key interface can be converted to an M.2 M-Key NVMe connection through a compatible adapter, providing the NVME2 PCIe 3.0 x1 storage path.

Can the F4 use Wi-Fi or Bluetooth?

Yes. The M.2 Wi-Fi E-Key interface supports a Wi-Fi/BT module. The E-Key to M-Key storage adapter must be removed before installing the wireless module.

Does the F4 use a copper alloy heat conductive sheet?

Yes. The F4 uses a copper alloy heat conductive sheet as part of its passive cooling structure to improve heat transfer efficiency.

Is the CWWK F4 fanless?

Yes. The F4 uses passive cooling through its copper alloy thermal structure, internal heat pipe, aluminum chassis, and external cooling fins.

What are the dimensions of the CWWK F4?

The F4 measures 178.3 × 145.4 × 58.7 mm, or approximately 7.02 × 5.72 × 2.31 inches.

Can the F4 install a 2.5-inch SATA drive?

Yes. A 2.5-inch SATA drive can be used with the 4-NVMe + SATA storage configuration.

Does the F4 support VESA mounting?

Yes. The F4 supports compatible VESA mounting using the chassis mounting points shown in the installation diagram.

Can I install an 8010 cooling fan in the F4?

Yes. The F4 supports an optional 12V 4-pin 80 × 80 × 10 mm 8010 cooling fan.

Does the F4 support OPNsense, pfSense and Proxmox?

Yes. The F4 supports OPNsense, pfSense, OpenWrt, Proxmox, and other compatible x86 operating systems.
