CWWK CW-S4 10GbE Firewall Mini PC

$466.87

$499.00

The CWWK S4 is a dual 10GbE SFP+ firewall mini PC based on an Intel Alder Lake and Raptor Lake U/P platform. It combines four onboard Intel i226-V 2.5GbE RJ45 ports with an Intel 82599ES dual 10GbE SFP+ PCIe expansion adapter, together with dual DDR5 memory slots, PCIe 4.0 x4 NVMe storage and dual SATA connectivity.

Intel 8505, Intel Processor U300E and Core i5-1240P Options

The S4 is available with Intel Pentium 8505, Intel Processor U300E and Intel Core i5-1240P processor options for 10GbE routing, firewall services, VPN, virtualization and multi-service network environments.

Intel Pentium 8505 A practical option for firewall, routing and mixed 2.5GbE and 10GbE network services.

Intel Processor U300E Balanced processing capability for VPN, gateway, virtualization and multi-service workloads.

Intel Core i5-1240P Higher-performance option for Proxmox, virtual firewalls and more demanding 10GbE deployments.

Four Intel i226-V 2.5GbE and Dual 10GbE SFP+ Ports

The S4 combines four Intel i226-V 2.5GbE RJ45 interfaces with two 10GbE SFP+ ports based on the Intel 82599ES controller, providing both multi-gigabit copper networking and high-speed SFP+ connectivity.

4 × 2.5GbE RJ45 Four onboard Intel i226-V interfaces for WAN, LAN, access points and segmented networks.

2 × 10GbE SFP+ Dual Intel 82599ES 10GbE interfaces for high-speed uplinks, storage and backbone connectivity.

Mixed Network Topology Combine 2.5GbE edge connectivity with 10GbE SFP+ uplinks in one network appliance.

Shared Alder Lake and Raptor Lake Motherboard with DDR5

The S4 shares its motherboard platform with the CWWK F14. The board provides four onboard Intel i226-V 2.5GbE ports, two DDR5 SO-DIMM slots, one M.2 2280 PCIe 4.0 x4 NVMe slot, two SATA interfaces, a TF card slot and dedicated CPU_FAN and SYS_FAN connectors.

4 × onboard Intel i226-V 2.5GbE
2 × DDR5 SO-DIMM, up to 64GB total
1 × M.2 2280 PCIe 4.0 x4 NVMe
2 × SATA interfaces
PCIe x8 physical expansion slot
CPU_FAN and SYS_FAN connectors

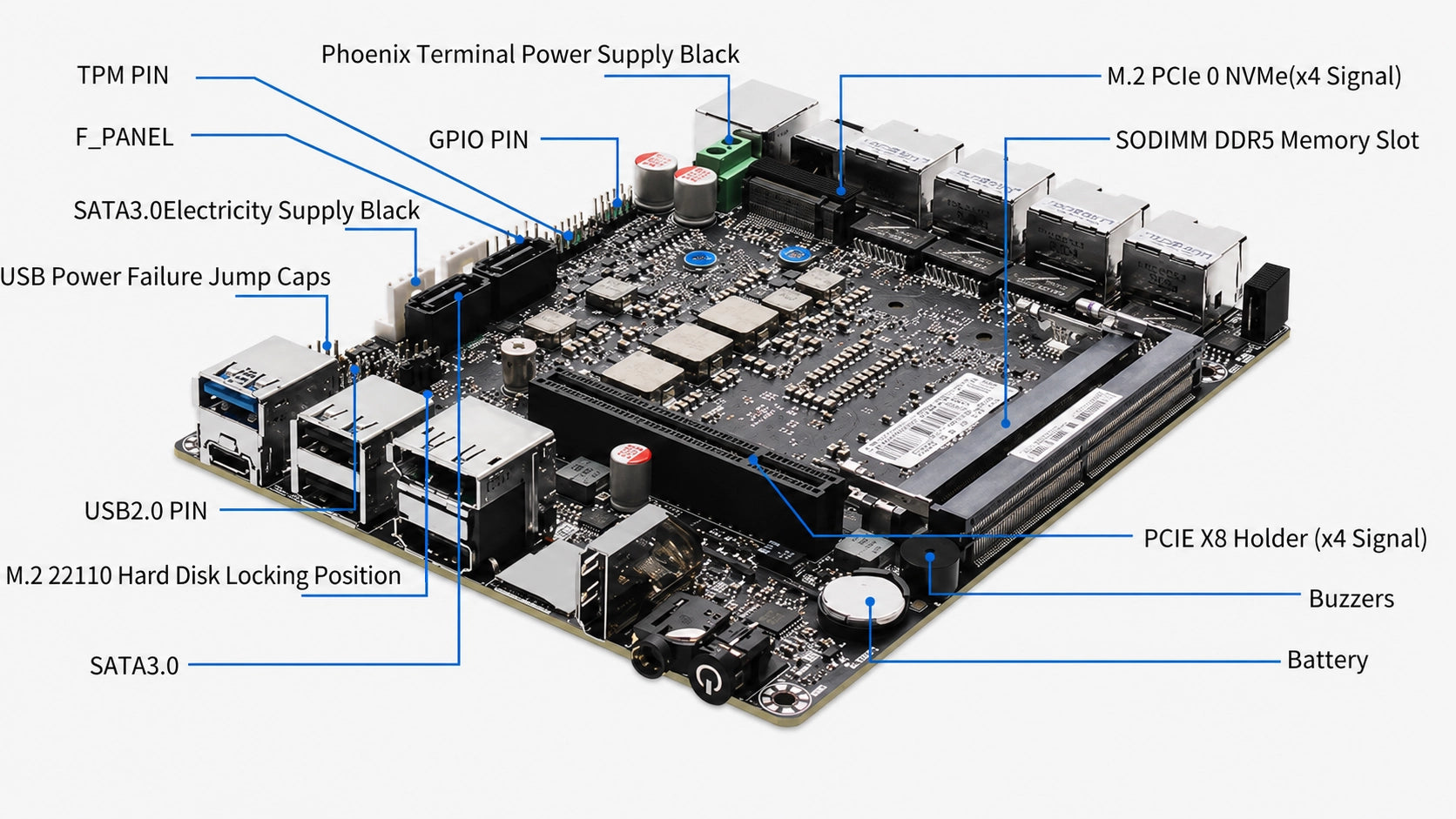

CWWK F14 and S4 motherboard layout showing DDR5 SATA NVMe fan headers and PCIe expansion

CWWK S4 motherboard with Intel i226-V network controllers dual DDR5 memory slots NVMe and PCIe expansion

PCIe x8 Physical Slot with x4 Electrical Connection

The S4 motherboard uses a physical PCIe x8 expansion slot with an x4 electrical connection. The slot is used for the Intel 82599ES dual 10GbE SFP+ expansion adapter.

The connector is physically PCIe x8 but operates with x4 electrical connectivity. The PCIe generation of this expansion interface is not specified here.

Intel 82599ES Dual 10GbE SFP+ Expansion Card

The S4 uses an Intel 82599ES-based PCIe network expansion card to provide two 10GbE SFP+ interfaces. These ports complement the four onboard Intel i226-V 2.5GbE RJ45 interfaces for higher-bandwidth network links.

Intel 82599ES Dual 10GbE SFP+ network controller for high-speed optical and compatible SFP+ networking.

Dual 10GbE Uplinks Suitable for 10GbE switches, storage networks, backbone links and high-bandwidth firewall deployments.

CWWK S4 PCIe expansion adapter with Intel 82599ES dual 10GbE SFP+ network card

CPU Heatsink and Turbo Fan Active Cooling

The S4 uses a dedicated CPU heatsink and turbo cooling fan to actively cool the processor. The fan is part of the CPU thermal assembly rather than the chassis itself.

The large chassis also supports an optional 12V 4-pin 80 × 80 × 10 mm 8010 fan for additional internal airflow when required.

CWWK S4 CPU heatsink and turbo cooling fan assembly

CWWK optional 12V 4-pin 80 x 80 x 10 mm 8010 chassis cooling fan for S4

View 8010 Cooling Fan →

Large Aluminum Chassis and Internal Layout

131.7 × 154.6 × 63.9 mm

13.17 × 15.46 × 6.39 cm
5.19 × 6.09 × 2.52 in

Large Chassis Aluminum Housing Dual 10GbE SFP+ CPU Fan Cooling Optional 8010 Fan

The S4 uses CWWK's large aluminum chassis to accommodate the motherboard, Intel 82599ES dual 10GbE SFP+ expansion card, CPU heatsink and turbo fan, storage devices and front and rear I/O assemblies.

The chassis does not use external cooling fins and does not support VESA mounting.

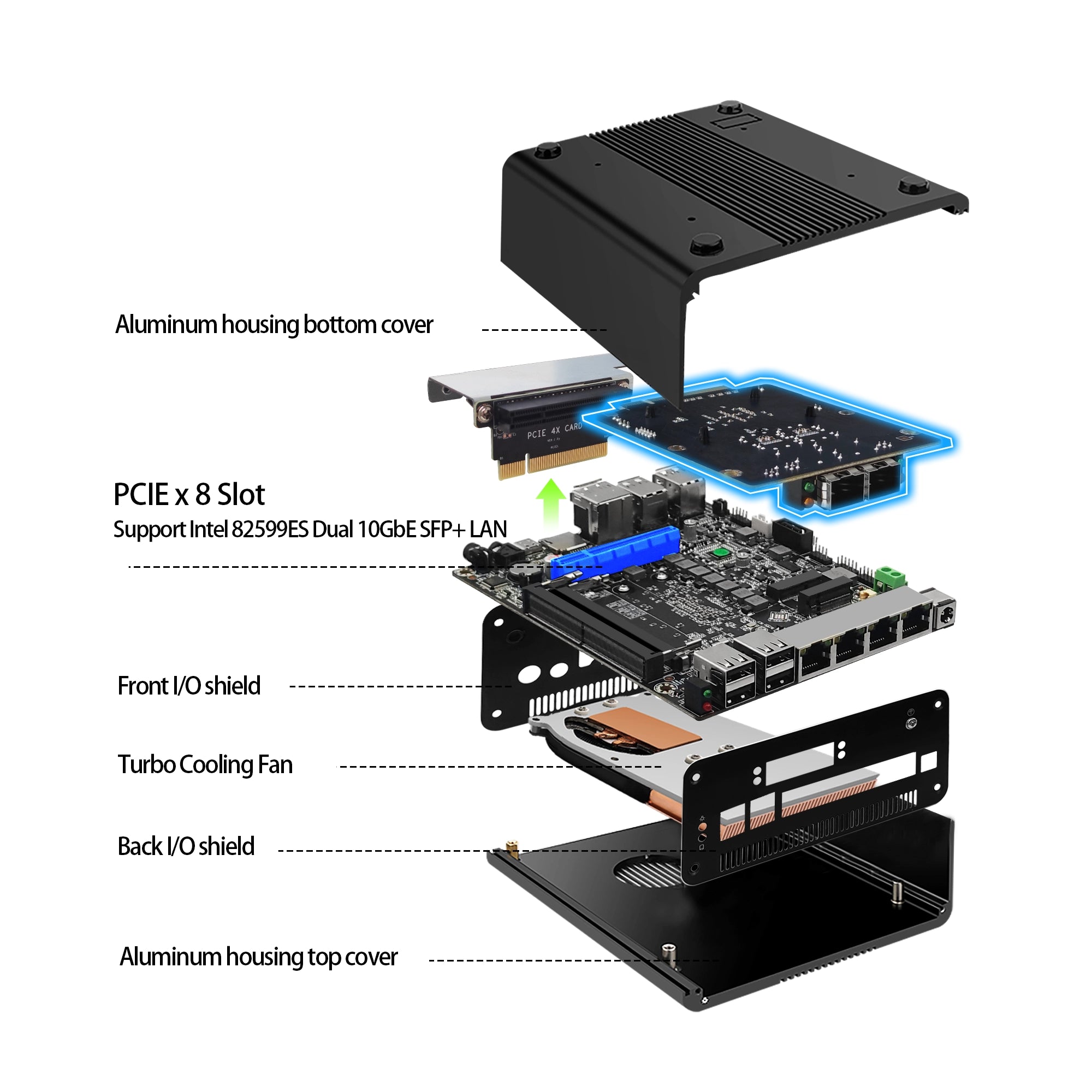

CWWK S4 exploded internal structure with large aluminum chassis Intel 82599ES dual 10GbE SFP+ expansion and CPU cooling

PCIe 4.0 x4 NVMe and Dual SATA Storage

The S4 provides one M.2 2280 PCIe 4.0 x4 NVMe slot together with two SATA interfaces. Both SATA ports can be used simultaneously, providing flexible storage for the operating system, virtual machines, logs and local network services.

M.2 2280 NVMe One PCIe 4.0 x4 NVMe slot for high-speed solid-state storage.

2 × SATA Two SATA storage interfaces can be used simultaneously.

Flexible Storage Suitable for firewall boot storage, Proxmox, logs and lightweight storage services.

OPNsense, pfSense, OpenWrt and Proxmox Compatibility

The S4 supports OPNsense, pfSense, OpenWrt, Proxmox, Windows and Linux environments. Its combination of four 2.5GbE RJ45 interfaces, dual 10GbE SFP+ ports, dual DDR5 memory slots and stronger U/P-series processor options is suitable for high-speed firewall, routing and virtualized network workloads.

10GbE Firewall Use dual SFP+ interfaces for high-speed uplinks, routed networks and firewall deployments.

Storage & Backbone Connect 10GbE switches or storage networks while retaining four 2.5GbE RJ45 interfaces.

Proxmox Networking Run virtual firewalls and network services with up to 64GB DDR5 memory.

Front and Rear I/O Connectivity

The S4 provides four Intel i226-V 2.5GbE RJ45 ports, two Intel 82599ES 10GbE SFP+ interfaces, RJ45 COM, HDMI, DP + HDMI, USB-C, USB3.2 Gen1, USB2.0, audio, TF card, Clear CMOS, power button and DC input connectivity.

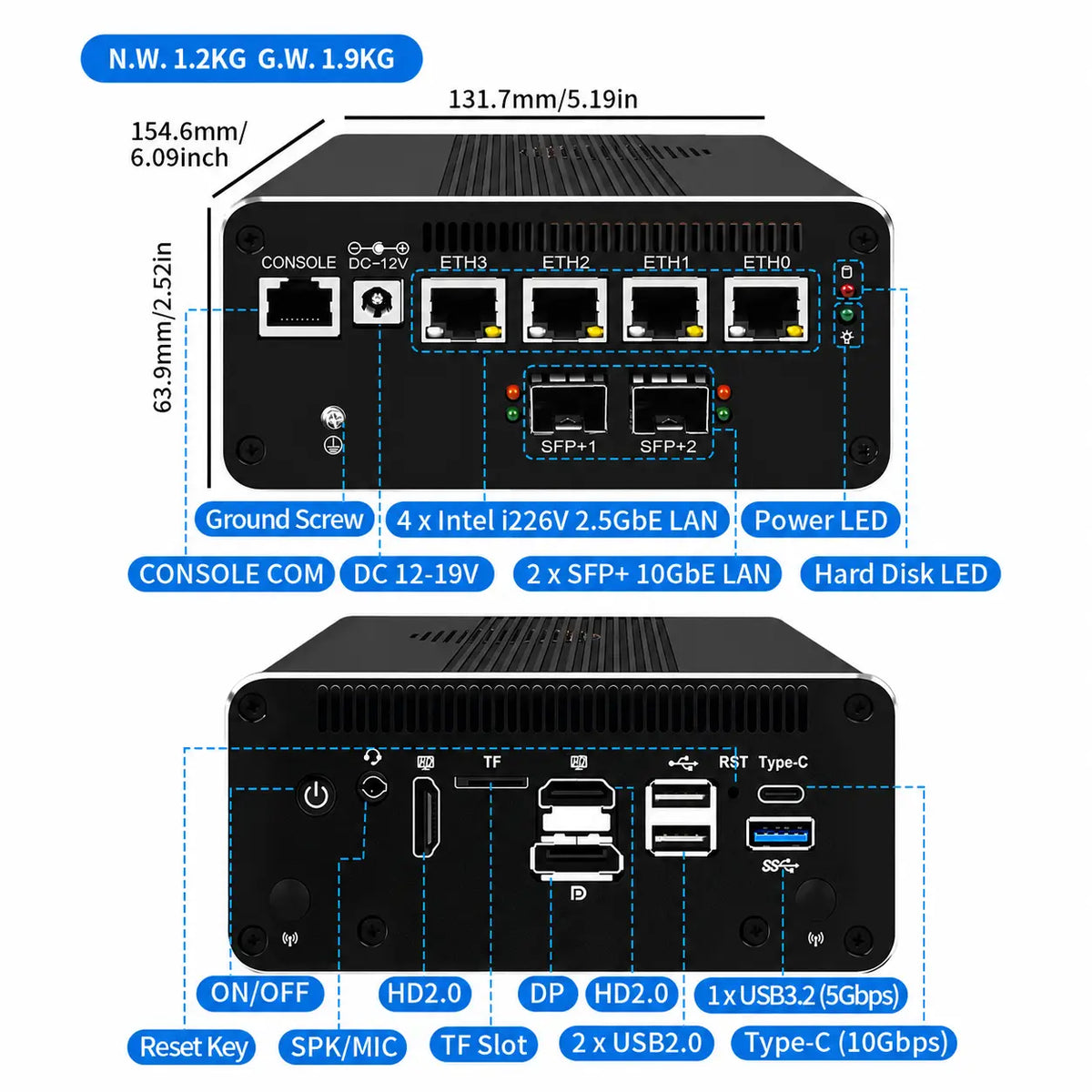

CWWK S4 front and rear I O with four Intel i226-V 2.5GbE ports dual Intel 82599ES 10GbE SFP+ ports display USB and power connections

Technical Specifications

Model	CWWK S4
Processor Options	Intel Pentium 8505, Intel Processor U300E, Intel Core i5-1240P
2.5GbE Ethernet	4 × Intel i226-V 2.5GbE RJ45 ports
10GbE Ethernet	2 × 10GbE SFP+ ports
10GbE Controller	Intel 82599ES
Memory	2 × DDR5 SO-DIMM, up to 64GB total
NVMe Storage	1 × M.2 2280 PCIe 4.0 x4 NVMe slot
SATA Storage	2 × SATA ports, both usable simultaneously
PCIe Expansion	PCIe x8 physical slot with x4 electrical connection
Display Output	DP + 2 × HDMI + USB-C, supporting up to four displays
Power Input	DC 12–19V
Chassis	Large aluminum chassis without external cooling fins
Dimensions	131.7 × 154.6 × 63.9 mm 13.17 × 15.46 × 6.39 cm 5.19 × 6.09 × 2.52 in
CPU Cooling	Dedicated heatsink and turbo cooling fan
Optional Chassis Fan	Supports optional 12V 4-pin 80 × 80 × 10 mm 8010 fan for additional internal airflow. View 8010 Cooling Fan
VESA Mounting	Not supported
Operating Systems	OPNsense, pfSense, OpenWrt, Proxmox, Windows and Linux

FAQ

What network interfaces does the CWWK S4 provide?

The S4 provides four Intel i226-V 2.5GbE RJ45 ports together with two Intel 82599ES 10GbE SFP+ interfaces.

Which processors are available for the S4?

The S4 is available with Intel Pentium 8505, Intel Processor U300E and Intel Core i5-1240P options.

How much DDR5 memory does the S4 support?

The S4 provides two DDR5 SO-DIMM slots and supports up to 64GB total memory.

Which controller is used for the S4 dual 10GbE SFP+ ports?

The S4 uses an Intel 82599ES-based expansion card for its dual 10GbE SFP+ interfaces.

What is the S4 PCIe expansion interface?

The S4 uses a physical PCIe x8 expansion slot with an x4 electrical connection.

Can both SATA ports be used at the same time?

Yes. The S4 provides two SATA interfaces and both can be used simultaneously.

Does the S4 support an additional 8010 chassis fan?

Yes. In addition to the dedicated CPU heatsink and turbo fan, the chassis supports an optional 12V 4-pin 80 × 80 × 10 mm 8010 fan for additional internal airflow.

Does the S4 support VESA mounting?

No. The S4 does not support VESA mounting.

What is the difference between S4 and F14?

S4 and F14 use the same motherboard platform. S4 uses the PCIe expansion interface for an Intel 82599ES dual 10GbE SFP+ adapter, while F14 uses the same expansion path to add four Intel i226-V 2.5GbE ports for a total of eight 2.5GbE interfaces.
