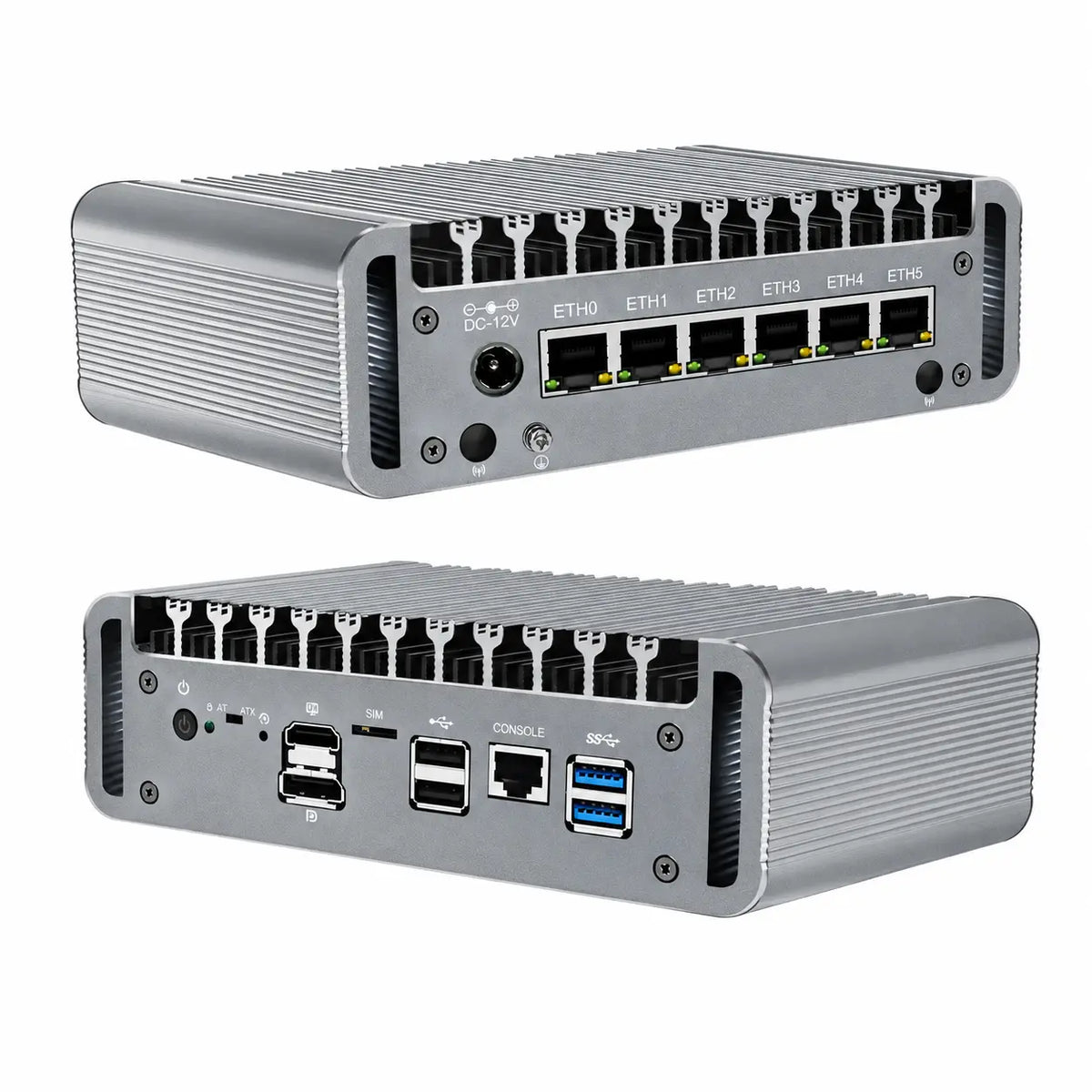

CWWK F24 J6413 Firewall Mini PC

The CWWK F24 is a fanless 6-port 2.5GbE firewall mini PC powered by the Intel J6413 processor. It combines six Intel i226-V network interfaces, dual-channel DDR4 memory, M.2 SATA and SATA 3.0 storage, Mini-PCIe wireless expansion and passive aluminum cooling for firewall, routing and network appliance deployments.

Intel J6413 Low-Power Firewall Platform

F24 uses the Intel J6413 processor for multi-port firewall, routing and continuously running network appliance workloads.

Six Intel i226-V 2.5GbE Network Ports

Six Intel i226-V 2.5GbE controllers provide six independent RJ45 network interfaces for more complex firewall and segmented network environments.

Dual-Channel DDR4 3200 Memory

F24 provides two SO-DIMM DDR4 memory slots and supports dual-channel DDR4 3200 configurations with up to 32GB total system memory.

M.2 2280 SATA SSD and SATA 3.0 Storage

F24 provides two SATA-based storage interfaces: one M.2 Key-M 2280 SATA SSD slot and one standard SATA 3.0 connection.

Mini-PCIe Expansion for WiFi or 4G

F24 includes one Mini-PCIe expansion slot for optional WiFi or 4G connectivity, providing additional deployment flexibility beyond wired Ethernet.

Fanless Passive Cooling with Copper Heat-Conduction Plate

F24 uses fanless passive cooling. A copper heat-conduction plate transfers processor heat into the aluminum enclosure for passive dissipation without requiring an active CPU fan.

The passive cooling design reduces moving parts and operating noise, making F24 suitable for continuously running firewall, routing and network appliance deployments.

Fanless Passive Cooling Copper Plate Aluminum Chassis

F24 also supports an optional 80 × 80 × 10 mm 8010 chassis fan when additional internal airflow is required.

Aluminum Chassis with VESA Mounting

F24 measures 178 × 145 × 58 mm and supports VESA mounting for flexible installation behind displays or on compatible mounting surfaces.

HDMI and DisplayPort Dual Display Output

HDMI and DisplayPort provide dual digital display connectivity for local system management and compatible multi-monitor environments.

Firewall, Routing and Network Appliance Deployment

Six 2.5GbE interfaces, low-power J6413 processing and fanless cooling make F24 suitable for continuously running network infrastructure.

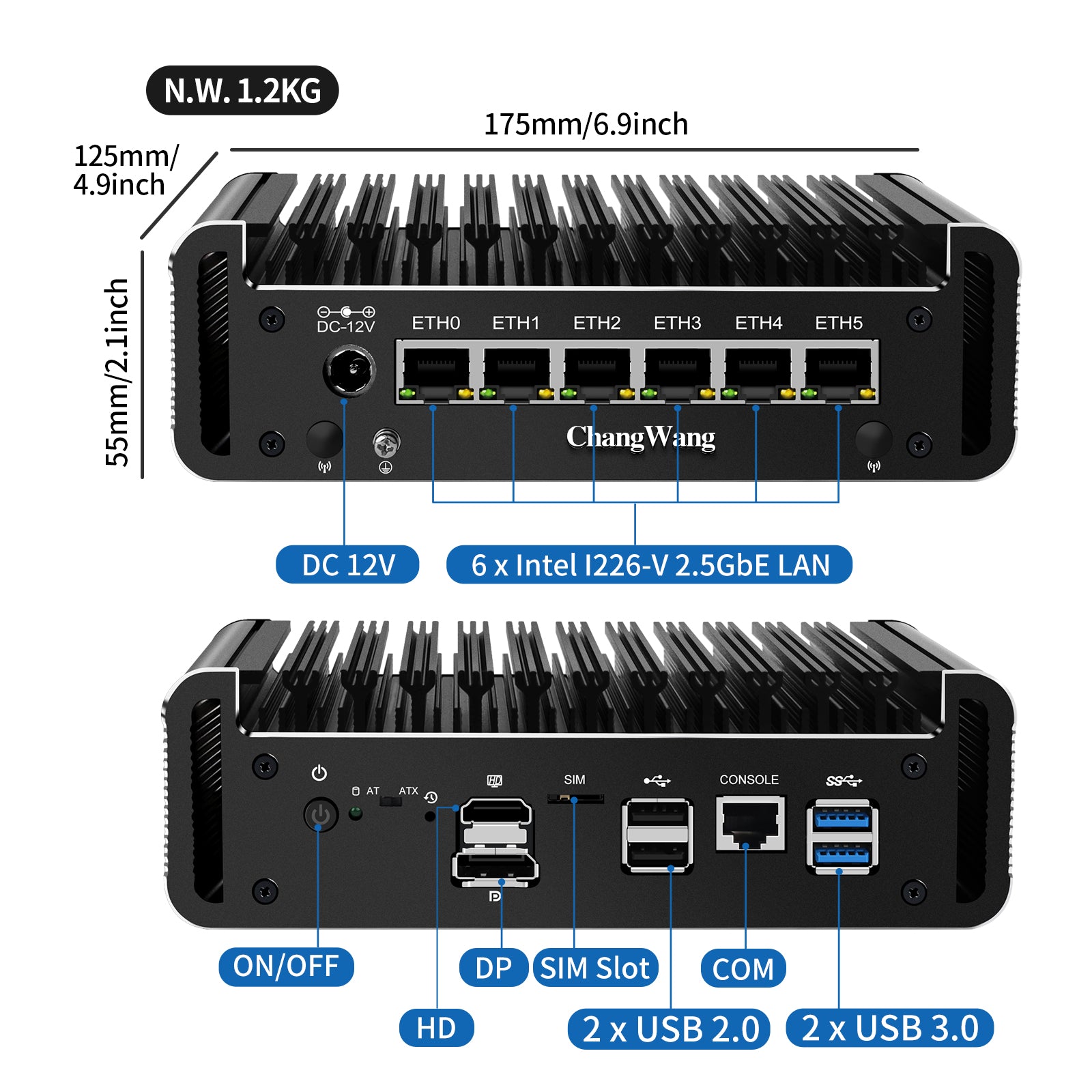

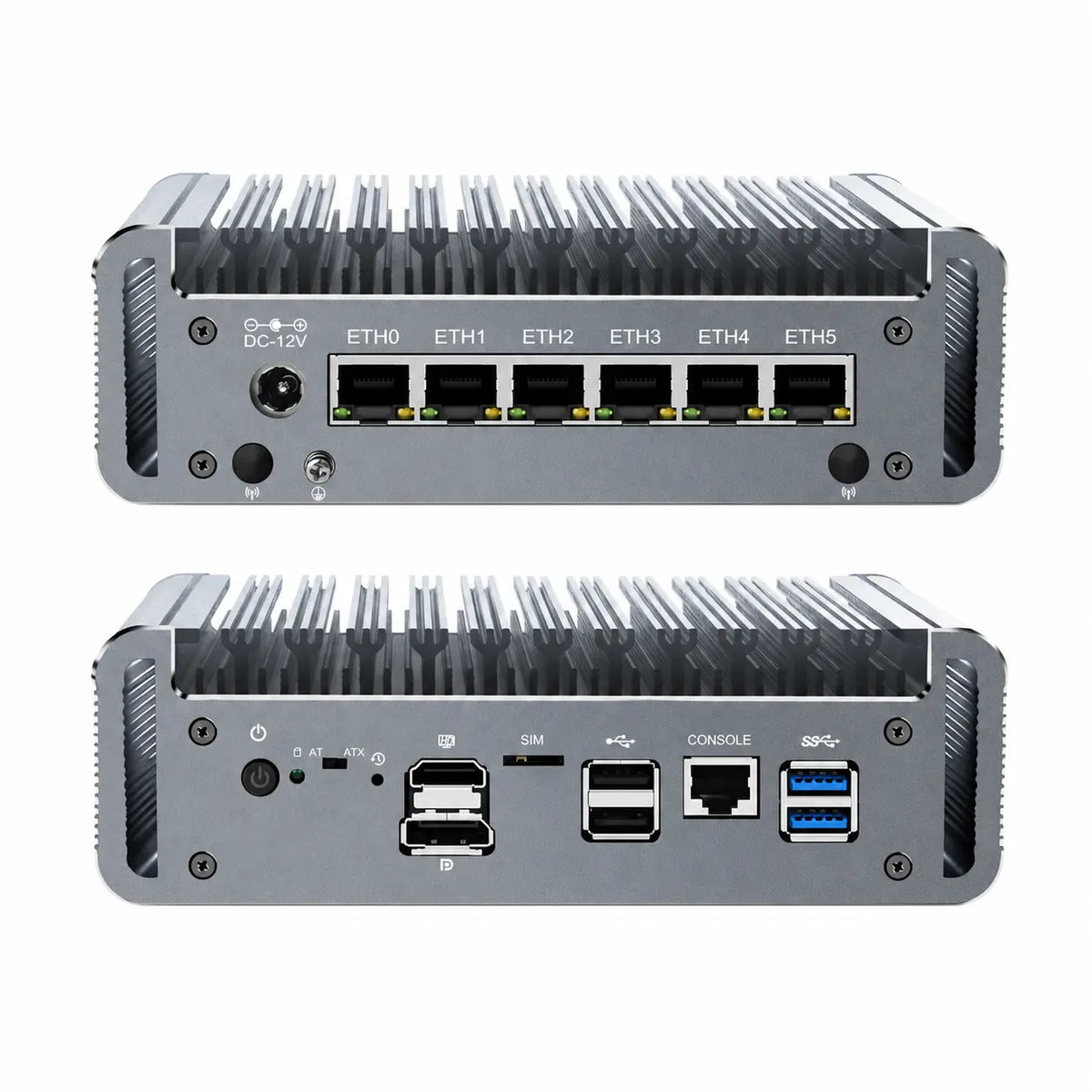

Front and Rear I/O Connectivity

• 6 × Intel i226-V 2.5GbE RJ45
• 1 × HDMI
• 1 × DisplayPort
• 2 × USB 3.1
• 2 × external USB 2.0
• 1 × RS232 console port
• 1 × SIM interface
• 1 × Mini-PCIe for WiFi / 4G
• 1 × M.2 Key-M 2280 SATA SSD
• 1 × SATA 3.0
• Clear CMOS control
• DC 12V power input

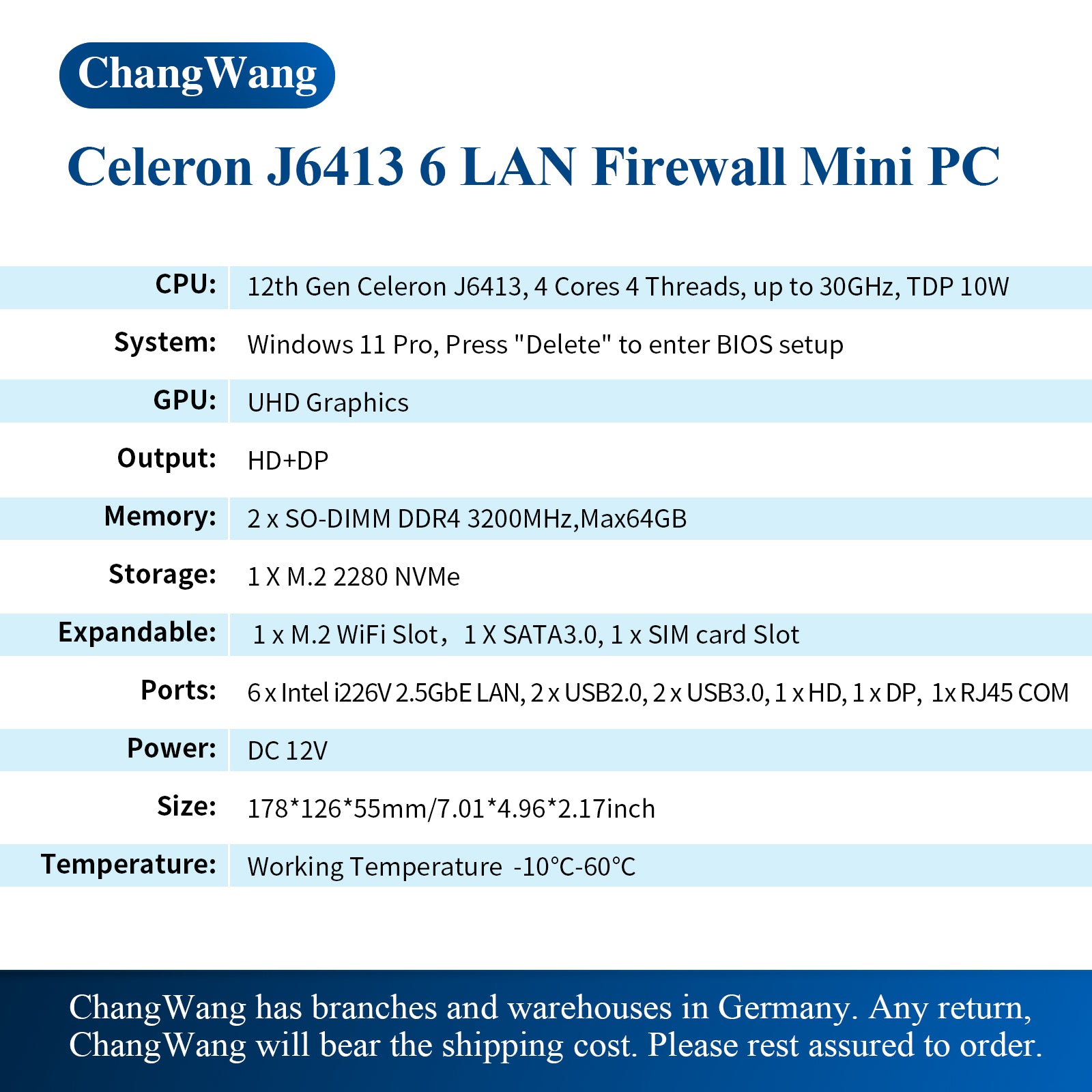

Technical Specifications
