CWWK F19 6-Port 2.5GbE Firewall Mini PC With Fan
The CWWK F19 is an actively cooled 6-port 2.5GbE firewall mini PC based on the MBX-AD12 DDR4 platform. It combines six Intel i226-V network interfaces, dual-channel DDR4 memory, flexible NVMe and SATA storage, triple-display connectivity and copper heat-pipe active cooling for sustained firewall, virtualization and home lab workloads.
Intel Pentium Gold 8505 and Intel Processor U300 Options
F19 supports Intel Pentium Gold 8505 and Intel Processor U300 configurations for routing, virtualization and continuously running network services.
Six Intel i226-V 2.5GbE Network Ports
Six onboard Intel i226-V controllers provide six independent 2.5GbE RJ45 interfaces without requiring an additional network expansion card.
Shared MBX-AD12 Platform with Dual-Channel DDR4
F19 and F17 share the MBX-AD12 DDR4 motherboard platform. Two SO-DIMM slots support up to 64GB of DDR4 memory for virtual machines, containers and multiple simultaneous network services.
- 2 × SO-DIMM DDR4 slots
- DDR4 3200 memory support
- Compatible with DDR4 2400 / 2666
- Up to 64GB system memory
- 6 × Intel i226-V 2.5GbE LAN
- HDMI, DisplayPort and USB-C display connectivity

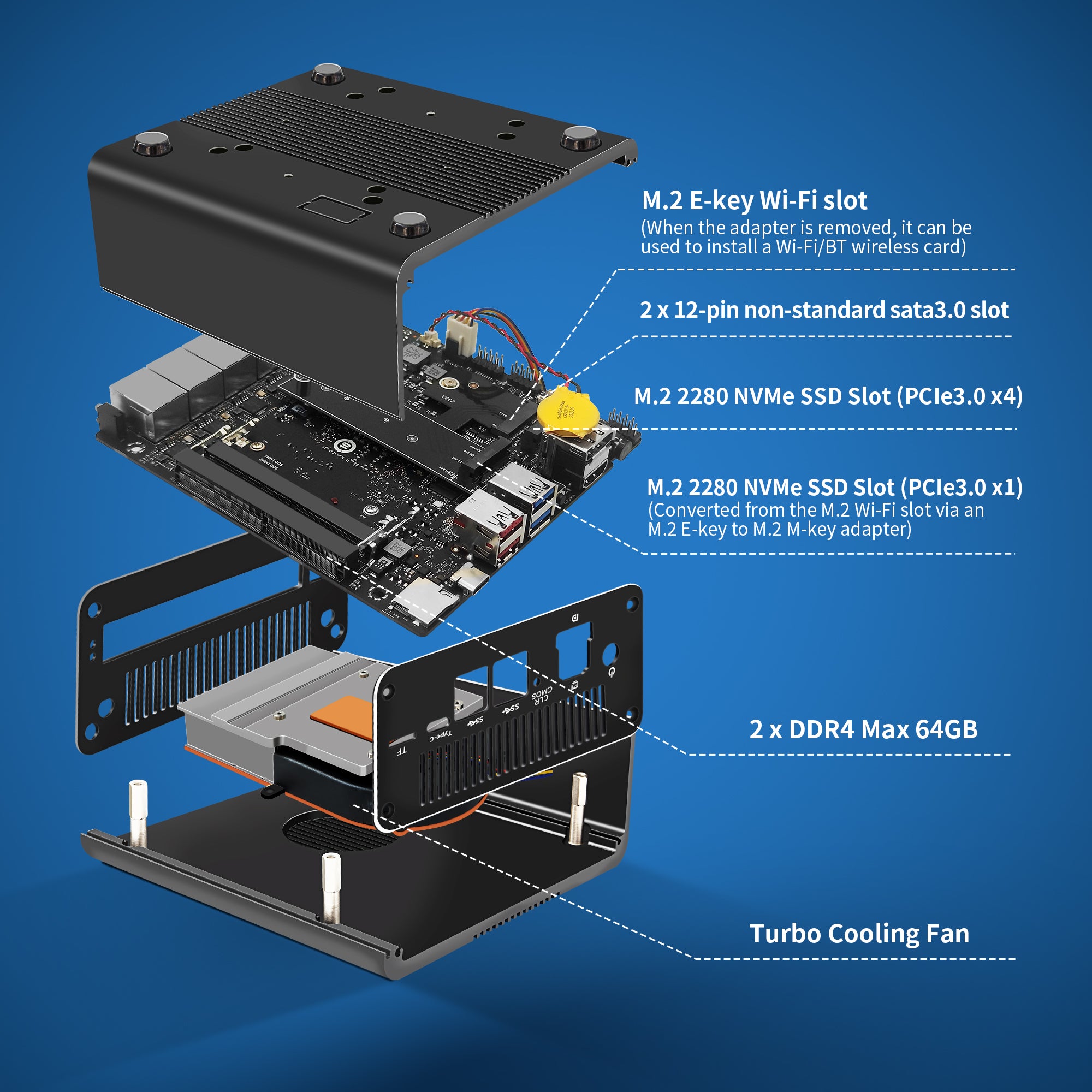

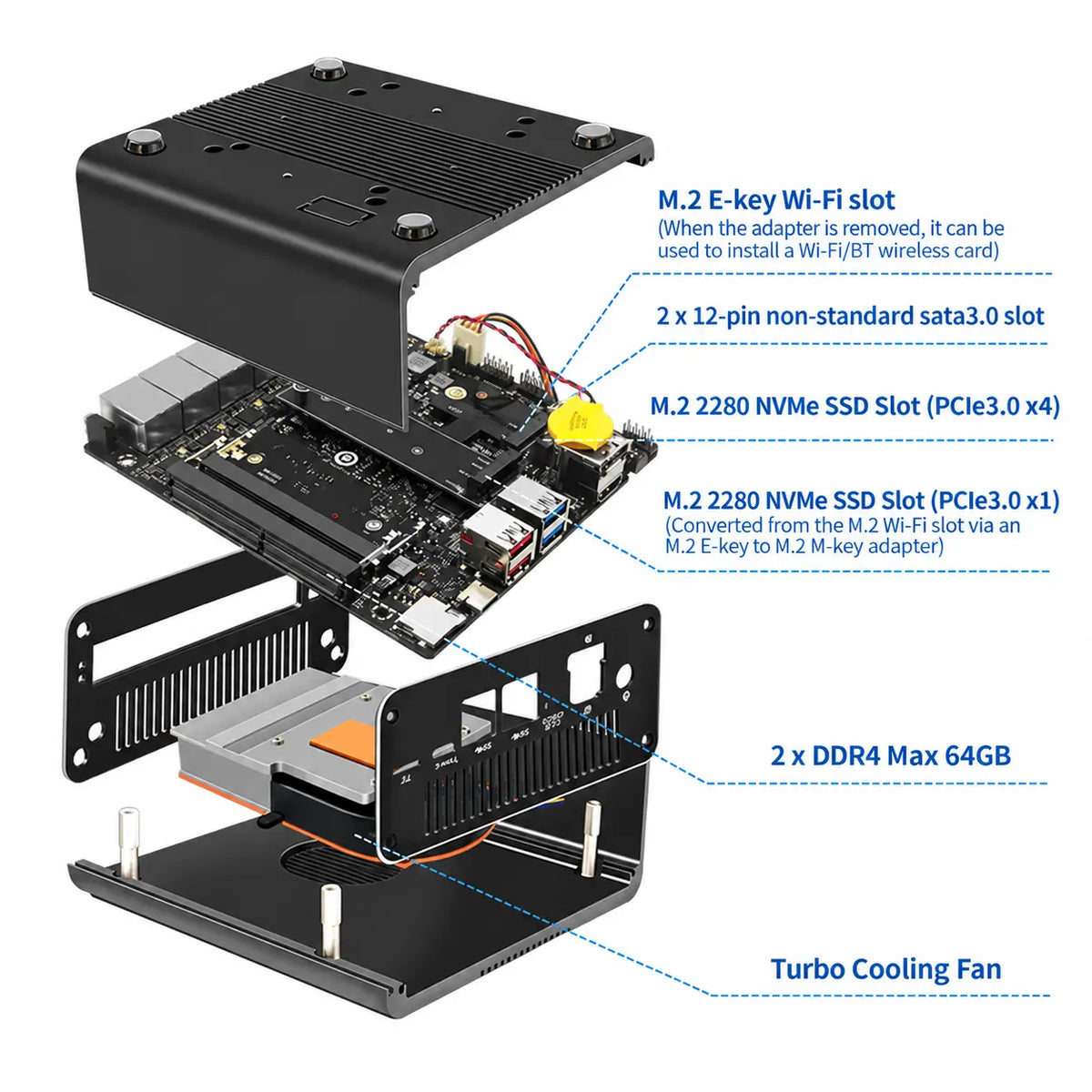

Native NVMe, WiFi-to-NVMe and Dual 2.5-Inch SATA Storage
The shared MBX-AD12 platform combines one native M.2 NVMe interface, an additional NVMe expansion route through the M.2 WiFi interface and two SATA connections for 2.5-inch drives.
WiFi and the second NVMe configuration use the same M.2 expansion route and are mutually exclusive. When this interface is converted for NVMe storage, it cannot simultaneously be used for WiFi.
Copper Heat Pipe and Fan Active Cooling
Unlike the fanless F17, F19 uses an active CPU cooling system with copper heat-pipe heat transfer and a dedicated cooling fan. The design provides additional thermal capacity for workloads that maintain higher processor utilization over longer periods.
Heat is transferred away from the processor through the copper thermal structure and dissipated through forced airflow, making F19 better suited to continuous virtualization, multi-service and higher-load environments.
F19 also supports an optional 80 × 80 × 10 mm 8010 chassis fan when additional internal airflow is required.
View Compatible 8010 FanLarge Chassis for Sustained Workloads
F19 uses the larger active-cooling chassis and measures 131.7 × 154.6 × 63.9 mm. The enclosure provides additional internal space for the CPU cooling system, storage and airflow.

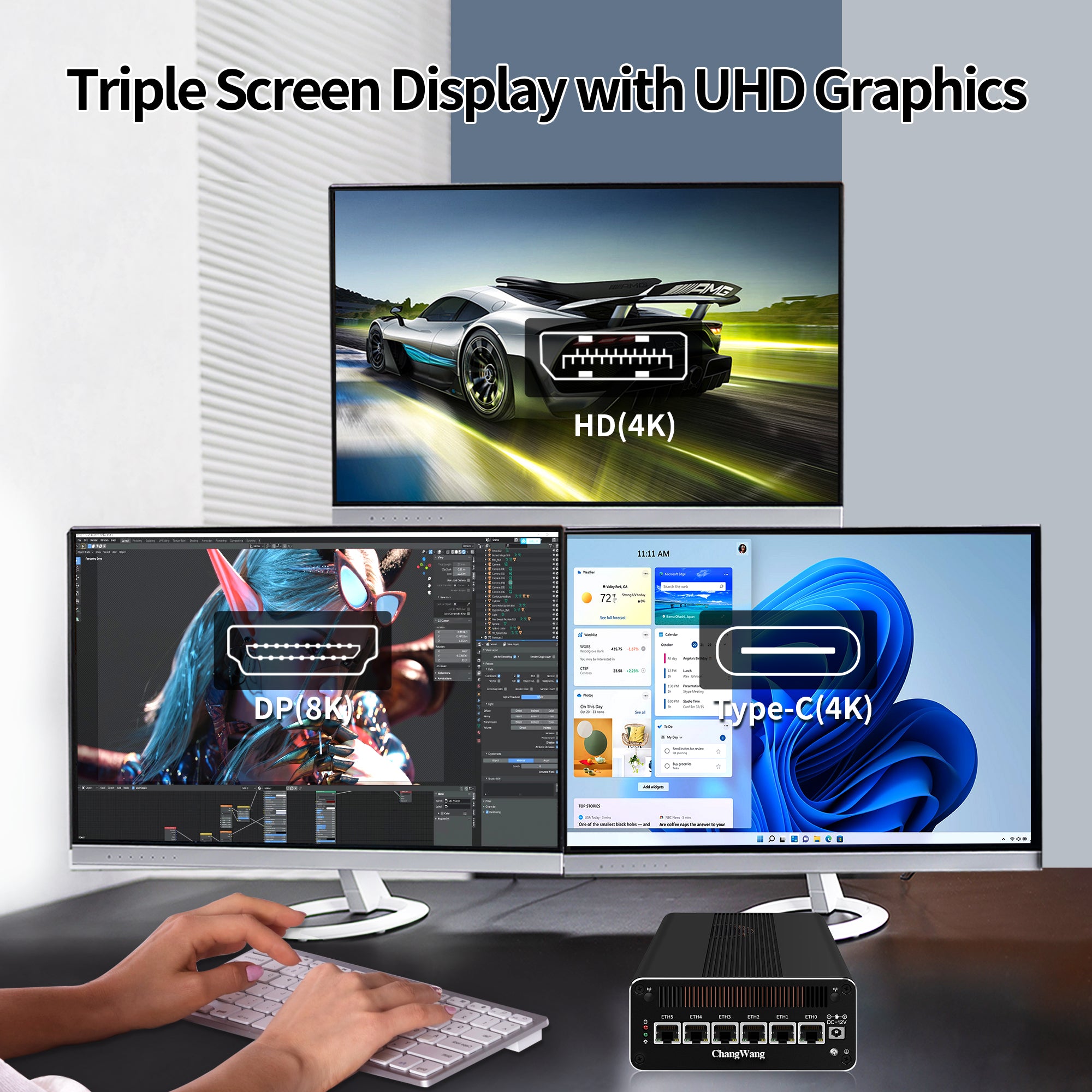

HDMI, DisplayPort and USB-C Triple Display Output
HDMI, DisplayPort and USB-C provide flexible local display connectivity for system management, desktop use and multi-monitor configurations.
Firewall, Virtualization and Home Lab Deployment
Six 2.5GbE interfaces, up to 64GB DDR4, flexible storage and active cooling make F19 suitable for networking systems that also run local compute workloads.
Front and Rear I/O Connectivity
- 6 × Intel i226-V 2.5GbE RJ45
- HDMI display output
- DisplayPort display output
- USB-C interface
- USB interfaces
- TF / MicroSD card support
- Power button
- Clear CMOS / BIOS reset
- DC-IN 12–19V
Technical Specifications
| Model | CWWK F19 |
|---|---|
| Processor Options | Intel Pentium Gold 8505 / Intel Processor U300 |
| Network | 6 × Intel i226-V 2.5GbE RJ45 |
| Memory | 2 × SO-DIMM DDR4 3200, compatible with DDR4 2400 / 2666, up to 64GB |
| Native NVMe | 1 × M.2 2280 NVMe, PCIe 3.0 x4 |
| Additional NVMe | 1 × NVMe via M.2 WiFi conversion, PCIe 3.0 x1 |
| WiFi / NVMe | M.2 WiFi and the second NVMe configuration are mutually exclusive |
| SATA Storage | 2 × SATA 3.0 for simultaneous installation of two 2.5-inch SATA SSDs or HDDs |
| Display | HDMI + DisplayPort + USB-C |
| Card Reader | TF / MicroSD card support |
| Cooling | Copper heat-pipe and fan active CPU cooling; optional 8010 chassis fan supported |
| Mounting | VESA mounting not supported |
| Power Input | DC-IN 12–19V |
| Dimensions | 131.7 × 154.6 × 63.9 mm / 13.17 × 15.46 × 6.39 cm / 5.19 × 6.09 × 2.52 in |
| Chassis | Large aluminum active-cooling chassis |
