Best CWWK Firewall Mini PC for OPNsense and pfSense

Which CWWK mini PC should you choose for OPNsense or pfSense? Start with the network interfaces you need, then check processor capacity, RAM, cooling, storage and the exact operating-system compatibility of the configuration you plan to purchase. This guide compares CWWK firewall options for home networks, multi-WAN setups, 10GbE links and home labs.

Important: Ethernet port speed is not a guarantee of actual firewall, VPN or IDS/IPS throughput. Performance depends on CPU, enabled features, configuration and traffic patterns. Check the current product specification and software release before purchase.

Quick Answer: Which CWWK Firewall Mini PC Should You Choose?

For a typical home installation, first consider a compact multi-port 2.5GbE appliance. Choose a six-port model when separate physical networks or additional WAN links are needed. Move to 10GbE RJ45 or SFP+ equipment only when your switch, upstream links and use case require those interfaces. For combined firewall and storage experiments, consider a platform with additional NVMe capacity, while remembering that combining services increases configuration complexity.

These recommendations compare product configurations and intended use cases, not benchmark rankings. Check the processor, network controllers and software support of the selected configuration before ordering.

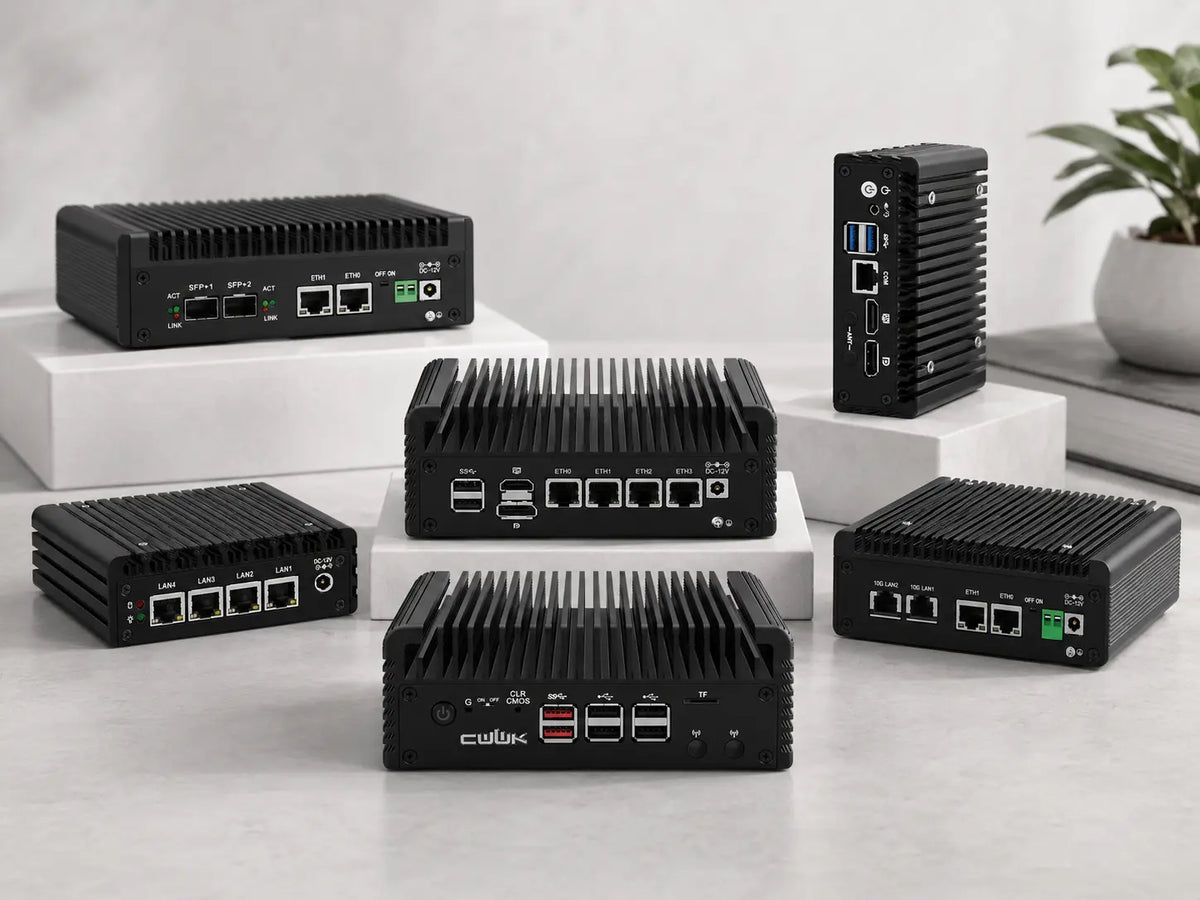

CWWK Firewall Mini PC Comparison

Best CWWK Firewall Mini PCs by Use Case

CWWK F8: A compact home firewall option

F8 provides four LAN ports for a compact home firewall setup. It is a practical starting point for WAN/LAN connectivity, network segmentation and home or small-office routing. The number of dedicated networks and the required throughput should guide your VLAN and switch design; verify the network-controller and operating-system compatibility of the configuration you select.

CWWK F11: More physical interfaces for advanced networks

F11 provides six Intel i226-V 2.5GbE LAN ports and is offered with an Intel Core i3-N305 configuration. Its additional physical interfaces are useful for multi-WAN, dedicated network segments, cameras and lab devices. The processor provides an option for more demanding setups, but actual VPN or IDS/IPS throughput depends on configuration and testing.

CWWK S7 Pro: 10GbE RJ45 networks

S7 Pro is intended for networks using 10GBASE-T switches and copper cabling. Its described interface layout combines two 10GbE RJ45 connections with two 2.5GbE ports, making it a candidate for mixed-speed infrastructure. Actual routed, inspected and VPN throughput depends on the chosen processor and configuration.

CWWK S8: 10GbE SFP+ networks

S8 targets installations using DAC cables or compatible optical SFP+ modules. Its described interfaces include two 10GbE SFP+ and two 2.5GbE RJ45 ports, with multiple processor options. Confirm transceiver compatibility and the operating-system driver support of the exact configuration.

CWWK X86-P5 / X86-P6: Firewall plus NAS or home lab experimentation

X86-P5 / X86-P6 may suit users who value NVMe storage and want to experiment with virtualized home-lab services. The platform is described with four M.2 slots and two 2.5GbE interfaces; check the model-specific storage and PCIe layout. Combining firewall and storage services increases setup complexity and potential single-device failure impact.

CWWK F37: Legacy low-power installations

F37 uses an Intel Pentium J3710 platform and is best viewed as a legacy option for lighter routing needs, rather than a first choice for demanding VPN, virtualization or IDS/IPS workloads. Check current availability and software support before selecting it for a new deployment.

How to Select OPNsense Hardware

CPU and security workloads

Basic routing, DNS, DHCP and modest firewall policies may require less processing capacity than encrypted VPN traffic, IDS/IPS inspection or multiple concurrent services. Select hardware using workload-specific measurements rather than inferring throughput from CPU generation or core count alone.

Ethernet ports, controller support and network design

Count physical interfaces based on the WAN and LAN separation you actually need. VLANs can reduce the number of dedicated physical ports needed when supported by appropriate switches. Verify the precise network controller and driver support against your intended OPNsense or pfSense version; Intel-branded controllers alone are not a blanket compatibility guarantee.

RAM, SSD and cooling

Size memory and storage for the actual firewall features, logging requirements and optional services. In fanless installations, allow for airflow and check operating temperatures under sustained load. Manufacturer TDP figures are not the same as measured device power consumption.

2.5GbE vs 10GbE

Choose 10GbE interfaces only where the rest of the network can benefit from them. A 10GbE NIC provides a link capability, not a promise of 10Gbps forwarding with stateful rules, IDS/IPS or VPN enabled.

OPNsense and pfSense Compatibility: What to Verify

• Exact hardware revision, CPU and network controller SKU.
• Supported installation and boot mode for the operating-system version you plan to run.
• Detection of every NIC, storage device and expected network feature after installation.
• Power, temperature and stability under your intended sustained workload.
• Measured throughput with the specific firewall rules, VPN configuration and security add-ons you will use.

Software support can vary by hardware revision and operating-system release. Confirm the exact network controller, boot configuration and supported drivers before installation; the models listed here should not be treated as universally certified for every release.

Frequently Asked Questions

What is the best CWWK hardware for running OPNsense?

There is no universal best model. For home networks, start with a verified multi-port 2.5GbE appliance. Choose more physical ports for separate segments, and consider 10GbE RJ45 or SFP+ hardware when your network design calls for those links. Confirm the precise configuration and software support before purchase.

Is Intel N100 enough for OPNsense?

An N100-based appliance can be a candidate for basic routing and firewall use, but suitability depends on line rate, packet sizes, VPN encryption, IDS/IPS and other enabled features. Use workload-specific testing to decide whether a higher-performance processor is required.

How many Ethernet ports do I need?

Two ports can cover basic WAN and LAN connectivity; additional ports may be useful for multiple WAN connections or dedicated network segments. VLAN-capable switches can also provide logical segmentation without requiring a physical firewall port for every network.

Should I choose 10GbE RJ45 or SFP+?

Choose based on your switch ports, cabling, transceiver/DAC compatibility, power and deployment constraints. S7 Pro and S8 serve different connection ecosystems, but neither should be described as delivering full 10Gbps firewall processing without evidence.

Can I install OPNsense or pfSense on every CWWK firewall mini PC?

Do not assume universal compatibility. Check the OS version, network-controller drivers, firmware settings and exact appliance revision. Where possible, use a model-specific installation or validation report.
