SFP+ vs 10GbE RJ45 for Firewall Hardware

Quick Answer

Choose SFP+ when the firewall connects to an SFP+ switch, you want DAC or fiber options, or the system sits in a rack with short backbone links. Choose 10GbE RJ45 when your switch and patching are already copper and you want standard twisted-pair connectors. Neither interface is inherently 'faster' at 10GbE; the practical differences are cabling, modules, power, distance and compatibility.

Key Takeaways

· SFP+ and 10GBASE-T both carry 10GbE but use different physical media.

· SFP+ can use DAC or optical transceivers; module compatibility matters.

· 10GBASE-T uses RJ45 and integrates easily with copper patch panels.

· 10GBASE-T PHYs generally require more power than simple short-reach SFP+ DAC links.

· Choose the interface that matches the switch and cabling you already have.

What SFP+ Gives You

SFP+ is a pluggable interface. The port itself does not define the medium; the inserted module or DAC cable does. That flexibility is useful in racks where you may want short passive copper links between firewall and switch or optical links over longer distances.

The downside is compatibility management. A module must be appropriate for both ends, and some network devices are more selective about supported transceivers than others. The firewall, switch and optic/DAC should be treated as one compatibility chain.

What 10GbE RJ45 Gives You

10GBASE-T uses familiar RJ45 connectors and twisted-pair cabling. It is convenient when the network already uses copper patch panels or when devices cannot accept SFP+ modules. Intel's X550 family is an example of an integrated 10GBASE-T controller.

Copper is familiar, but 10GbE over RJ45 can have higher PHY power and heat than lower-speed Ethernet. In a compact fanless appliance, that thermal cost matters. In a ventilated 1U chassis it is easier to manage.

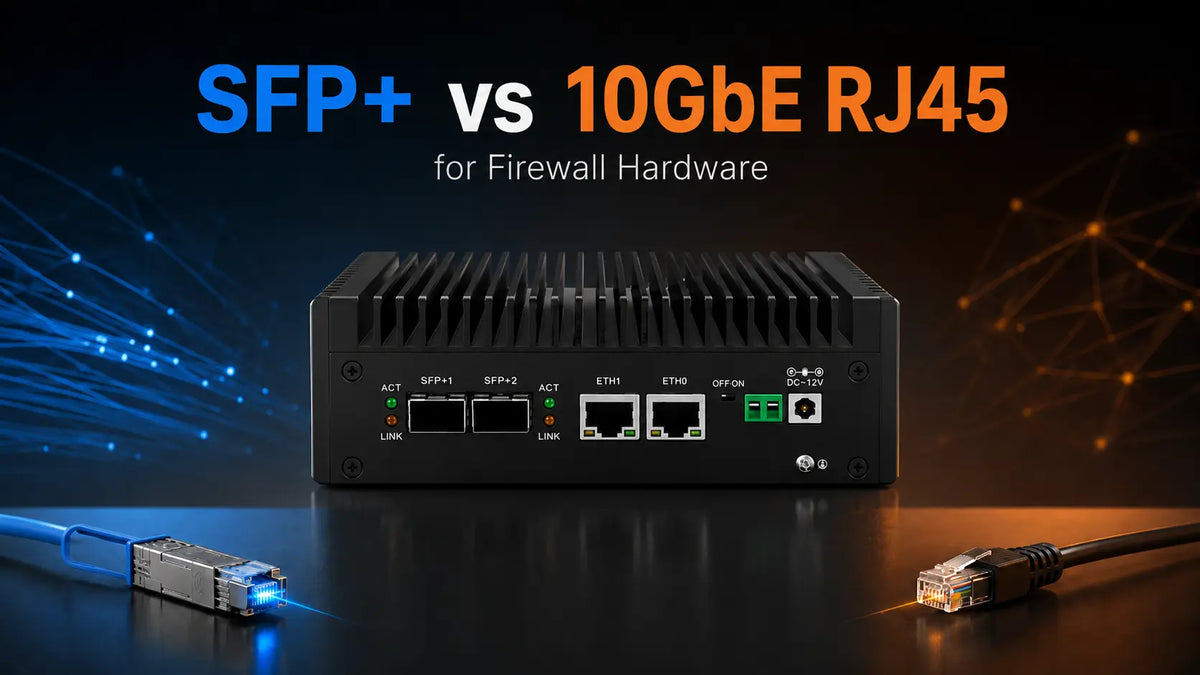

SFP+ and 10GbE RJ45 firewall connections compared using CWWK hardware, showing DAC or fiber versus copper Ethernet cabling

Latency and Throughput

For a firewall, the interface choice usually matters less than CPU processing, packet size, VPN and IDS/IPS. Both SFP+ and 10GBASE-T can provide a 10GbE link. The firewall still has to route or inspect the packets.

Do not choose SFP+ because you expect it to make a weak CPU process security rules faster. Interface selection and firewall compute sizing are separate decisions. See 10GbE Firewall Hardware Requirements for the CPU/NIC/PCIe side.

Cabling and Distance

Connection	Typical use	Advantages	Watch for
SFP+ DAC	Short rack links	Simple, low component count	Length is fixed
SFP+ fiber	Longer links / electrical isolation	Distance and cabling flexibility	Optic type and switch compatibility
10GBASE-T RJ45	Copper patching	Familiar connectors	Cable category, power and heat

For a firewall mounted next to a core switch, a short DAC can be very simple. For a firewall in a different room with existing copper infrastructure, RJ45 may be more practical. Fiber becomes attractive when distance or electrical isolation matters.

What CWWK 10GbE Platforms Use

Several CWWK 1U platforms offer 10GbE SFP+ alongside 2.5GbE RJ45. The CW-U23 and CW-U66 are examples of rackmount designs where 10GbE is intended as an uplink/backbone option while multiple 2.5GbE ports handle local segments.

This mixed design is often more useful than putting 10GbE on every physical port. It lets the firewall connect to a fast core while keeping access networks on lower-cost 2.5GbE.

How to Choose

· If the core switch is SFP+, choose SFP+ unless there is a strong reason not to.

· If the core switch is 10GBASE-T RJ45, choosing RJ45 avoids media conversion.

· For short rack links, evaluate DAC first.

· For longer runs, decide whether existing copper or fiber is more practical.

· Confirm exact module and switch compatibility before purchasing optics.

Can an SFP+ Port Use an RJ45 Transceiver?

Sometimes, but this should not be treated as equivalent to a native 10GBASE-T port. Copper SFP+ modules draw power and generate heat inside the SFP+ cage, supported distance can be more limited, and the switch or NIC may impose module restrictions. If several 10GBASE-T links are required, a platform designed with native RJ45 10GbE controllers is usually cleaner than filling every SFP+ cage with copper modules.

This matters in small firewall appliances because the cage area already has limited airflow. Always check the device vendor's supported-module guidance and the thermal limits of the module rather than assuming any generic 10GBASE-T SFP+ transceiver will behave correctly.
