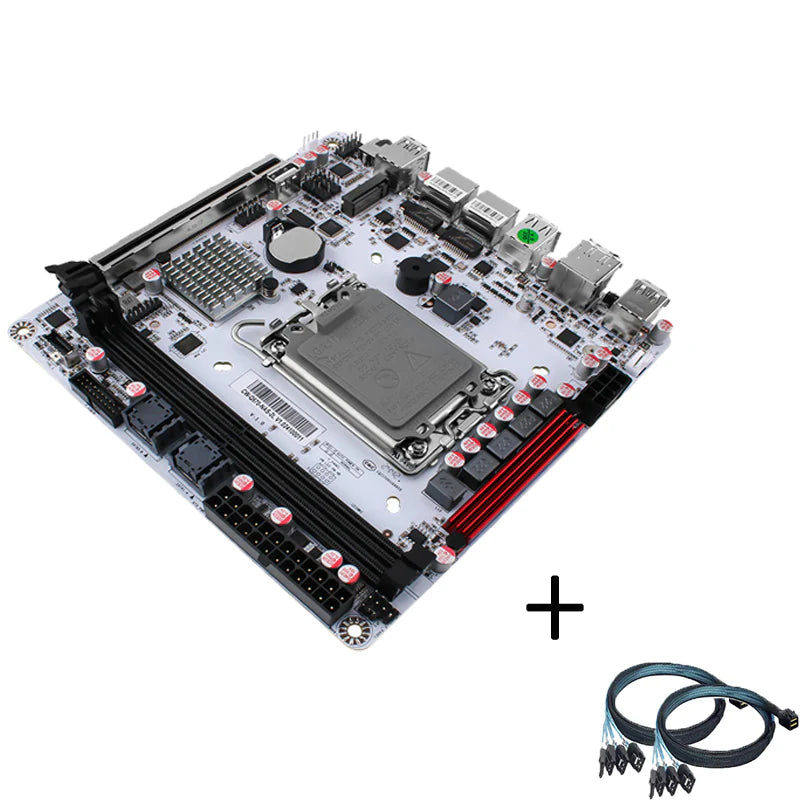

CWWK M67 Q670 Plus 8-Bay NAS Motherboard
CWWK M67 Q670 Plus 8-Bay NAS Motherboard
Sale price$244.74
Regular price$499.00

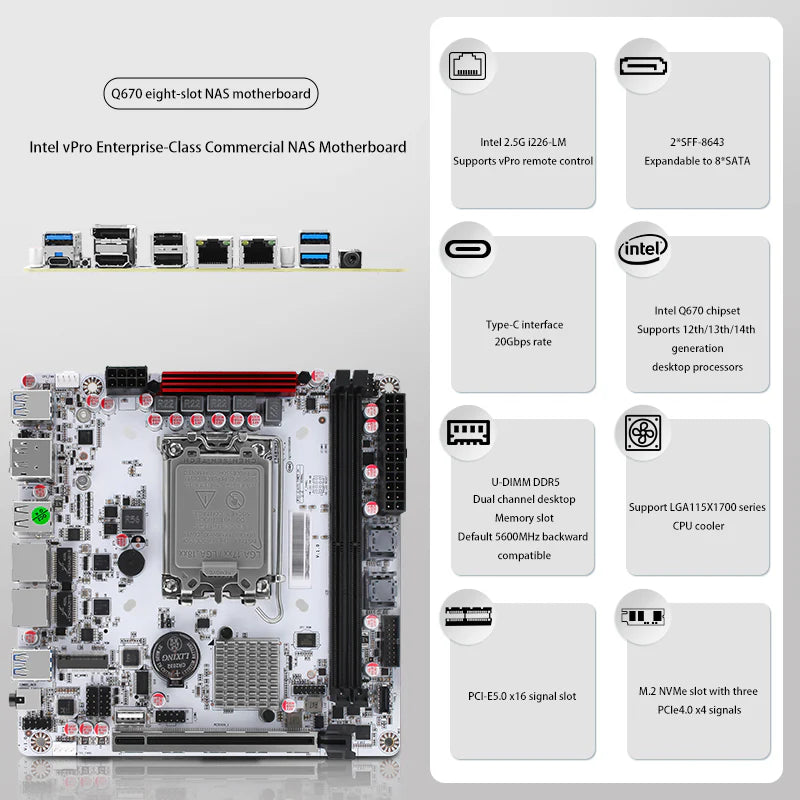

Q670 NAS Motherboard Built for Storage Density
CWWK M67 combines eight SATA 3.0 drive connections, three M.2 NVMe interfaces, dual Intel 2.5GbE networking and PCIe 5.0 x16 expansion in a standard 170 × 170 mm Mini-ITX platform.
8× SATA
2× SFF-8643 → 8 SATA 3.0 drives
3× NVMe
2× PCIe 4.0 x4 + 1× PCIe 3.0 x4
96GB DDR5
2× desktop U-DIMM slots
2× 2.5GbE
Intel i226-V + Intel i226-LM
PCIe 5.0 x16
High-speed PCIe expansion
8× SATA 3.0 + Triple M.2 NVMe

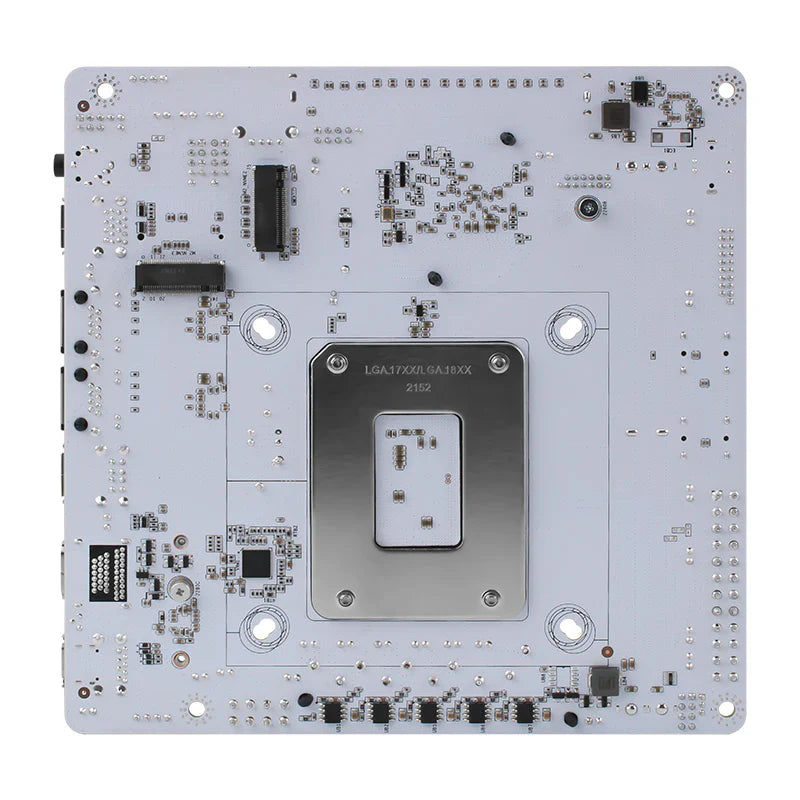

Two SFF-8643 connectors provide eight SATA 3.0 drive connections, while three M.2 NVMe interfaces add high-speed storage for the operating system, cache, applications or data.
Front M.2
PCIe 4.0 x4 · 2280 / 22110
Rear M.2 #1
PCIe 4.0 x4 · 2280
Rear M.2 #2
PCIe 3.0 x4 · 2280

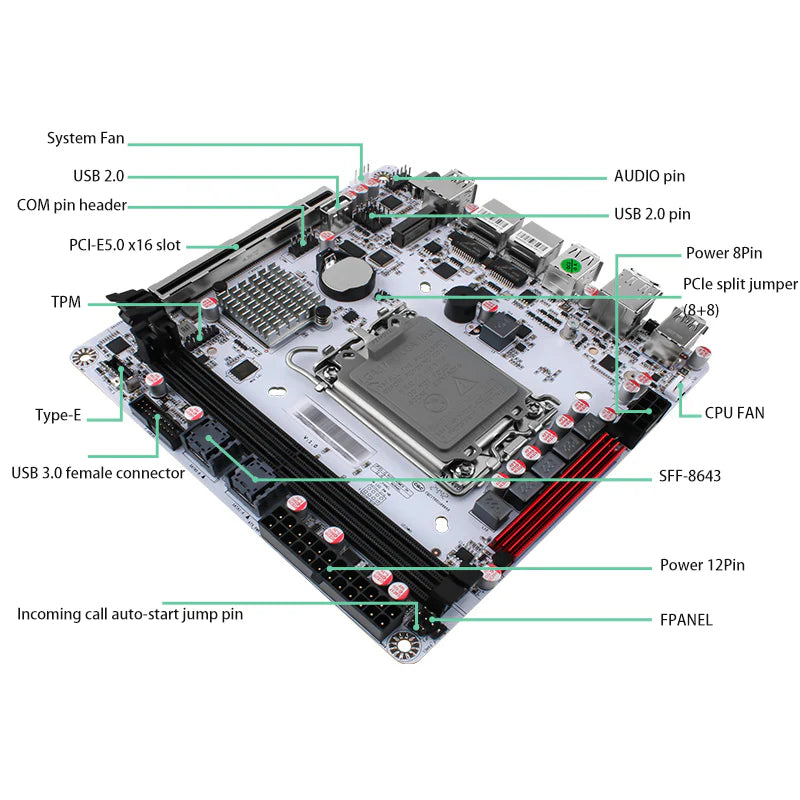

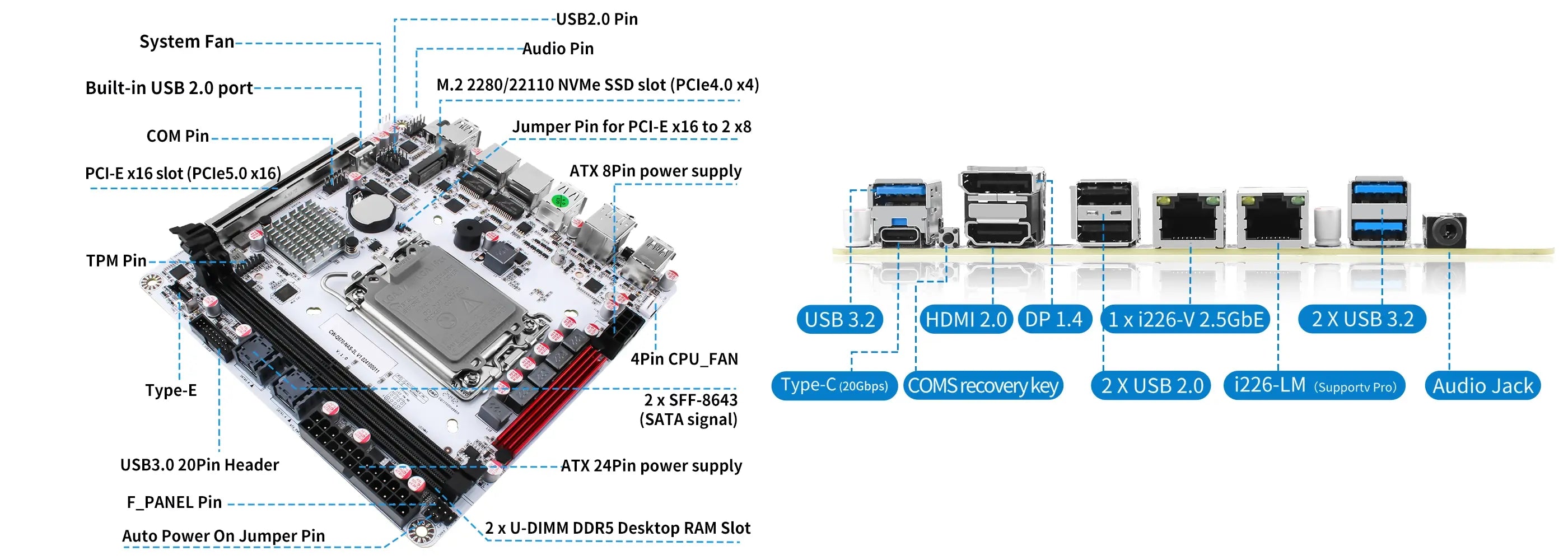

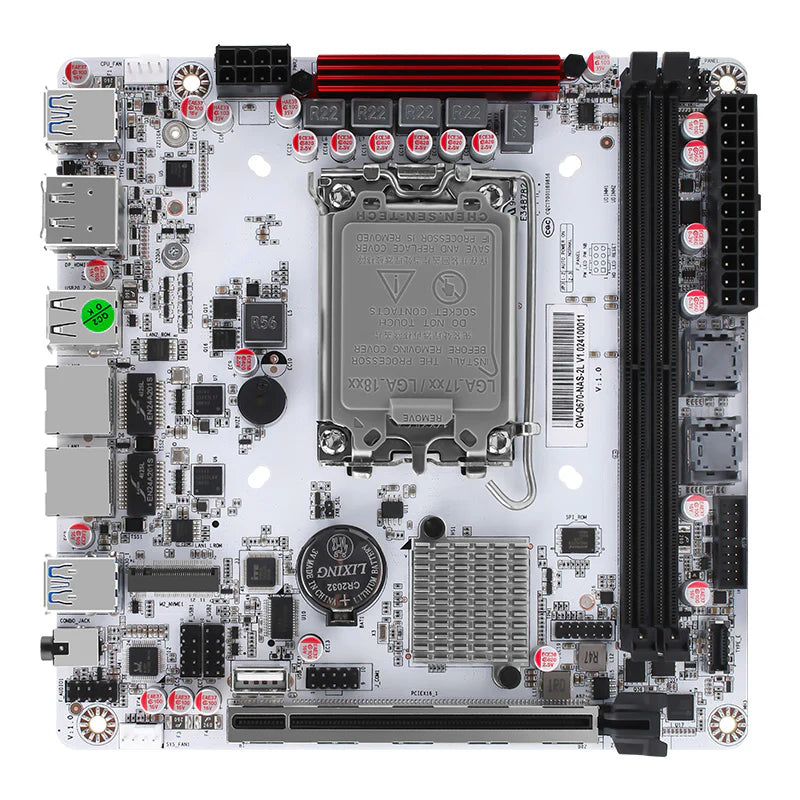

M67 Motherboard Layout
The 170 × 170 mm board integrates storage, DDR5 memory, dual 2.5GbE networking and PCIe expansion without moving beyond the standard Mini-ITX footprint.
2× SFF-8643
Breakout to 8× SATA 3.0
3× M.2 NVMe
Front + rear NVMe storage
2× DDR5 U-DIMM
Up to 96GB total memory
PCIe 5.0 x16
Full-length expansion

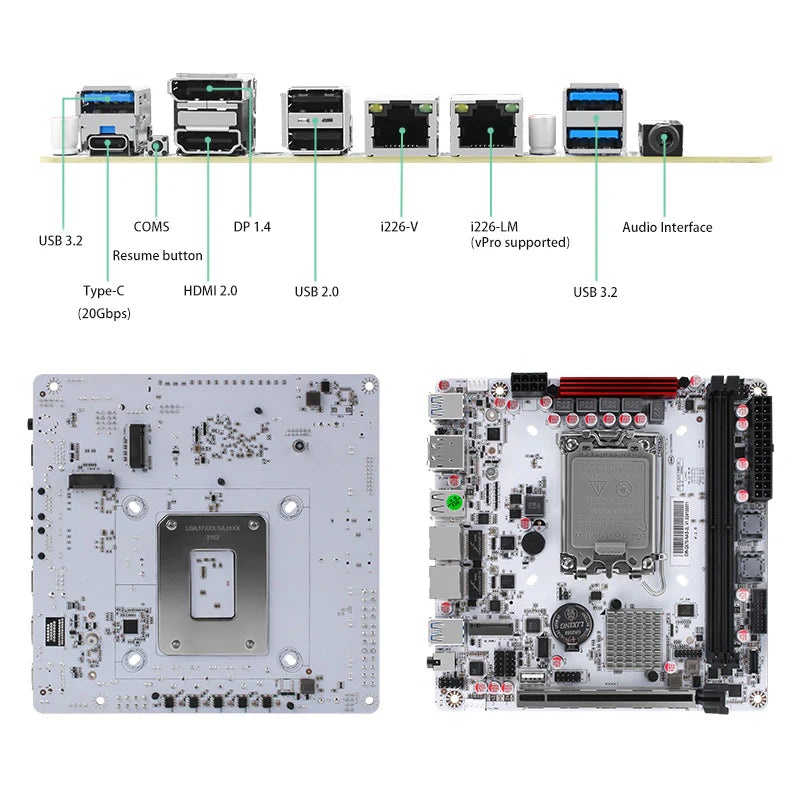

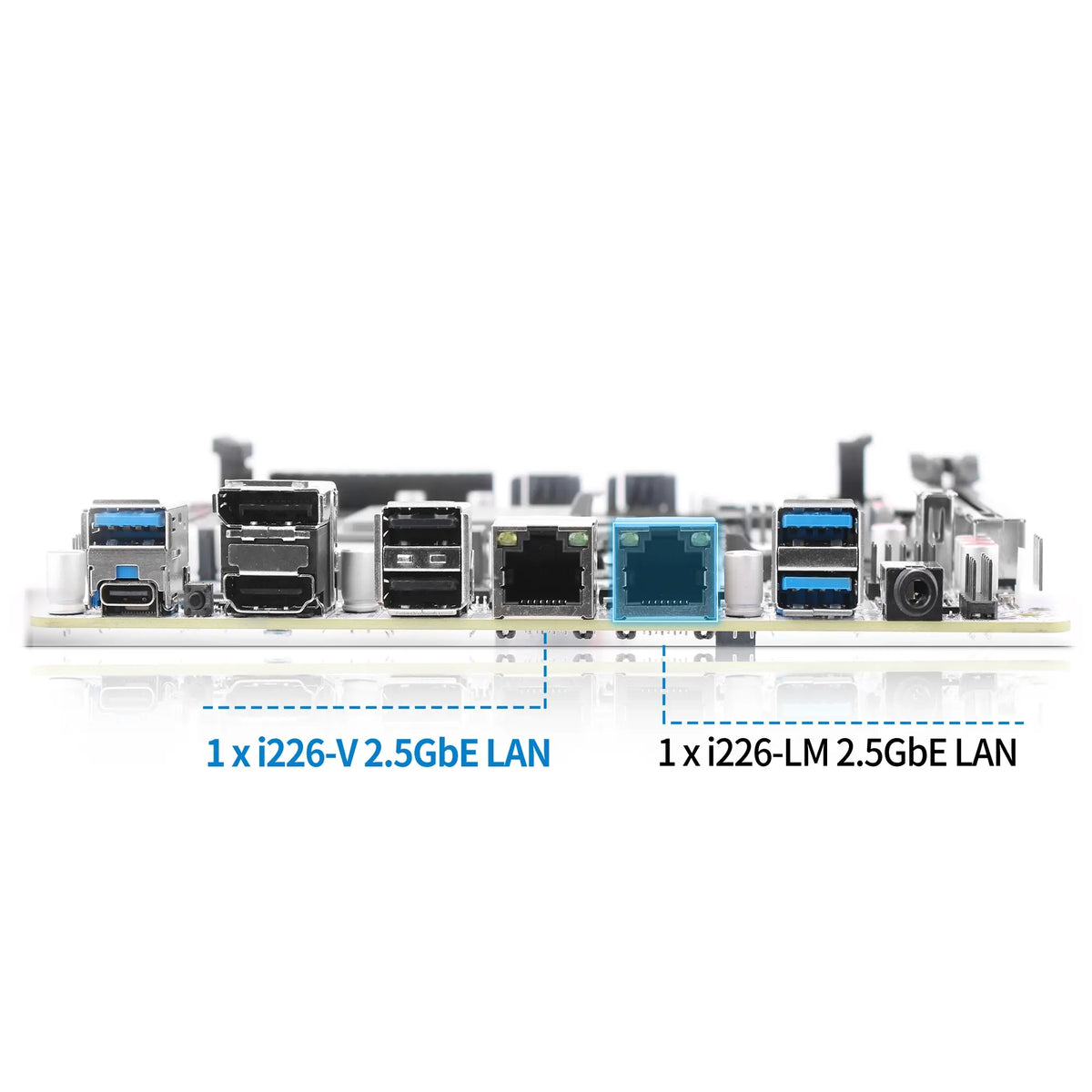

Dual Intel 2.5GbE and Rear I/O
Intel i226-V and i226-LM networking is combined with USB, USB-C, HDMI, DisplayPort and audio connectivity.
Intel i226-V
2.5GbE RJ45 Ethernet
Intel i226-LM
2.5GbE with Intel vPro support
HDMI 2.0 + DP 1.4
Up to 4K 60Hz
USB-C 20Gbps
USB 3.2 data connectivity

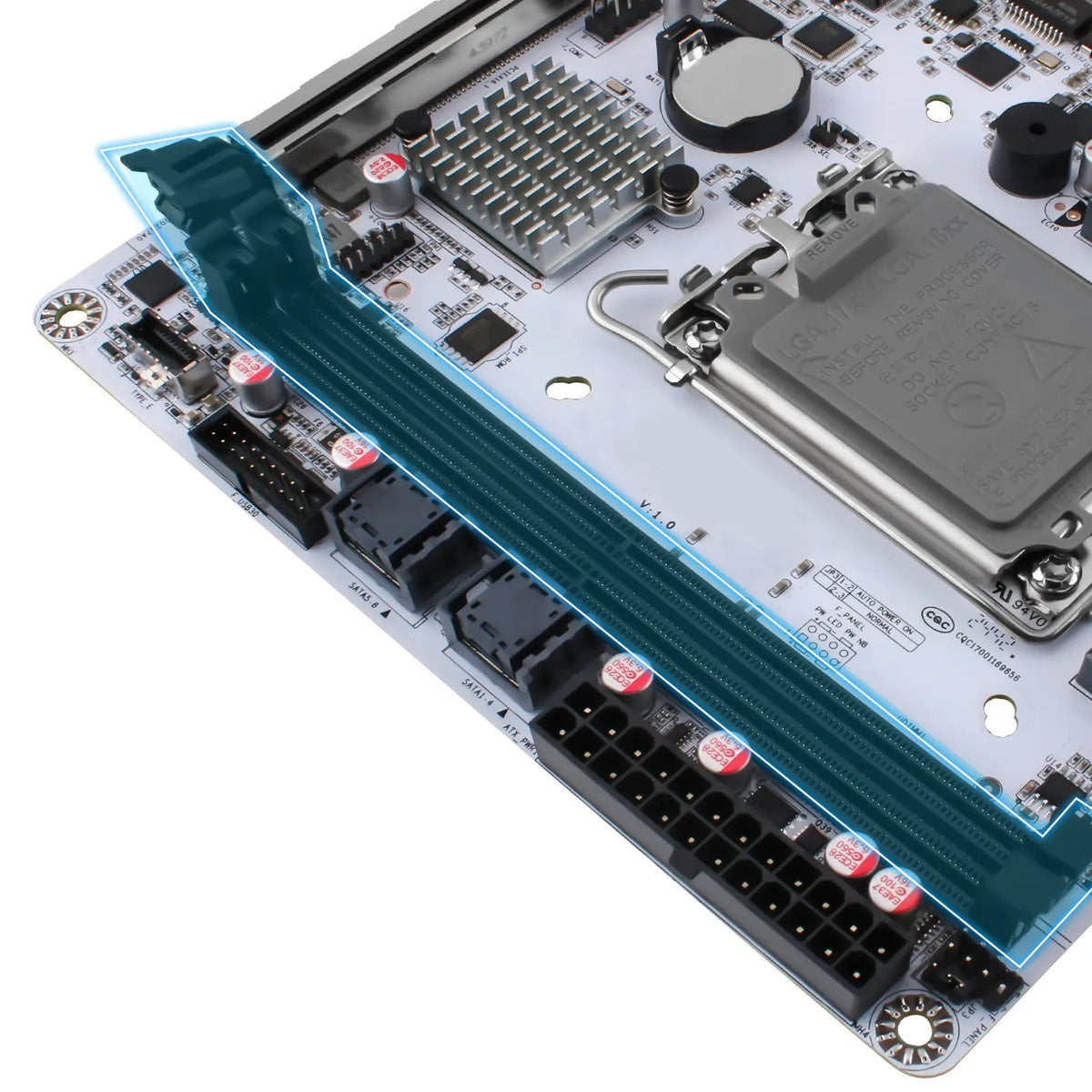

Up to 96GB DDR5 U-DIMM Memory
Two desktop U-DIMM DDR5 slots provide dual-channel memory support with up to 48GB per module and up to 96GB total capacity.
- 2× desktop U-DIMM DDR5 slots
- Dual-channel memory architecture
- Up to 96GB total capacity
- Up to DDR5-5600 depending on CPU generation
PCIe 5.0 x16 Expansion
A full-length PCIe 5.0 x16 slot allows M67 to expand beyond its onboard storage and networking interfaces.
- PCIe 5.0 x16 signal
- Compatible 10GbE network adapters
- Compatible graphics cards
- Other compatible PCIe expansion devices

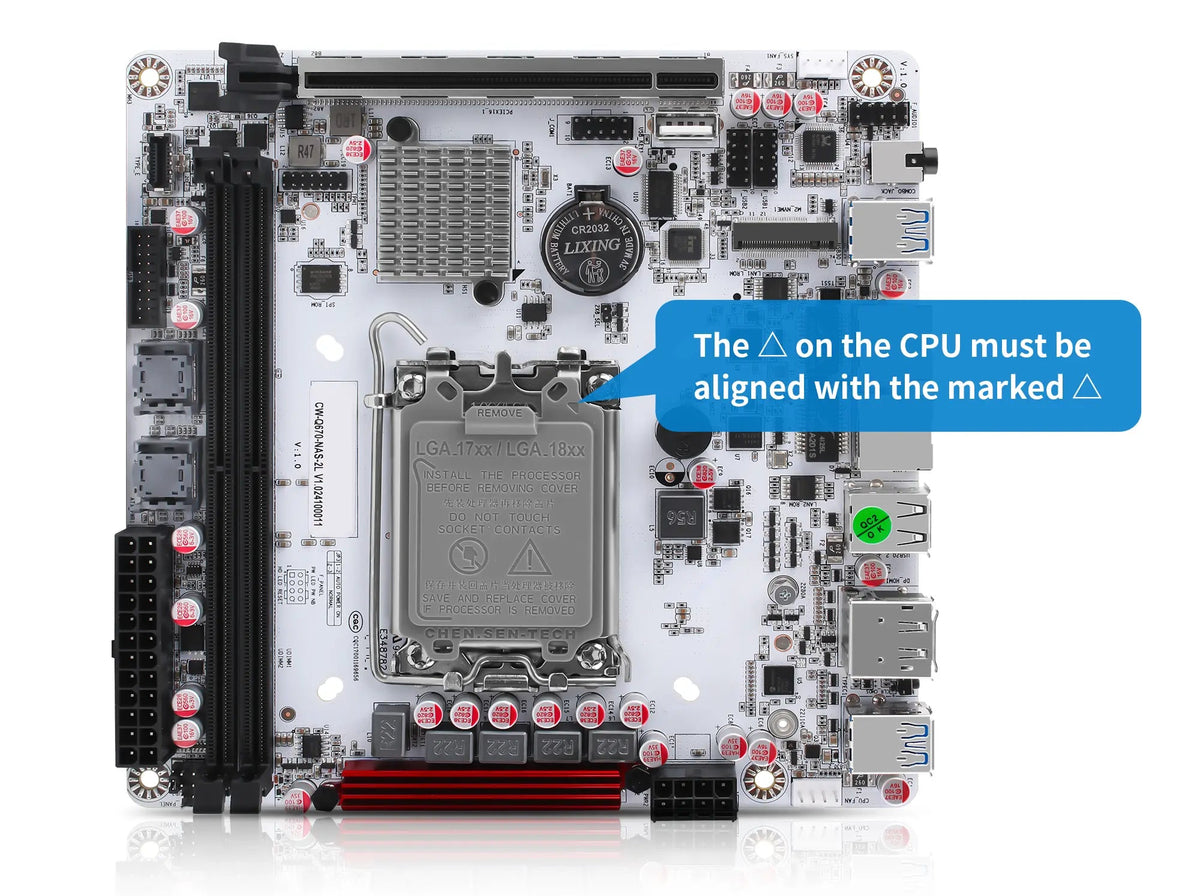

Intel Q670 with 12th–14th Gen LGA1700 Support
M67 supports Intel 12th, 13th and 14th Gen LGA1700 desktop processors. 65W-class processors are recommended for standard configurations, while T-series processors are better suited to lower-power, long-term NAS operation.
Processor Support
Intel 12th, 13th and 14th Gen LGA1700 desktop processors. K-series processors are not recommended.
24/7 NAS Builds
T-series processors are recommended when lower power consumption and continuous long-term operation are priorities.
Integrated graphics are required for the onboard display outputs.
Intel vPro functionality requires a compatible Intel processor.
Standard Mini-ITX Form Factor
170 × 170 mm
The compact Mini-ITX footprint integrates eight SATA connections, three M.2 NVMe interfaces, dual 2.5GbE and PCIe x16 expansion.
CWWK M67 Technical Specifications
| Model | CWWK M67 / CW-670-NAS |
|---|---|
| Chipset | Intel Q670 |
| CPU Socket | Intel LGA1700 |
| CPU Support | Intel 12th / 13th / 14th Gen desktop processors |
| Recommended CPU | 65W-class processors; T-series recommended for lower-power long-term operation |
| Memory | 2× DDR5 U-DIMM, dual-channel |
| Maximum Memory | Up to 96GB |
| SATA | 8× SATA 3.0 via 2× SFF-8643 connectors |
| SATA Breakout | Each SFF-8643 connector breaks out to 4× SATA |
| M.2 NVMe | 2× PCIe 4.0 x4 + 1× PCIe 3.0 x4 |
| PCIe | 1× PCIe 5.0 x16 |
| Networking | Intel i226-V 2.5GbE + Intel i226-LM 2.5GbE |
| Display | HDMI 2.0 + DisplayPort 1.4 |
| USB | 2× USB 3.0, 1× USB 3.2, 1× USB-C 20Gbps |
| Fan Headers | 1× CPU_FAN + 1× SYS_FAN |
| Power | 24-pin ATX + 8-pin ATX |
| Form Factor | Mini-ITX |
| Dimensions | 170 × 170 mm |
| Operating System | Windows 10/11 64-bit and Linux compatible |
M67 vs Previous M66 Q670 NAS Motherboard
CW-M66 is no longer scheduled for additional production batches. M67 continues the Q670 NAS platform with a stronger focus on storage density.
| Feature | CW-M66 | CW-M67 |
|---|---|---|
| Chipset | Intel Q670 | Intel Q670 |
| CPU Platform | Intel 12th / 13th / 14th Gen LGA1700 | Intel 12th / 13th / 14th Gen LGA1700 |
| Form Factor | Mini-ITX · 170 × 170 mm | Mini-ITX · 170 × 170 mm |
| Memory | 2× DDR5 SO-DIMM | 2× DDR5 U-DIMM |
| Maximum Memory | Up to 96GB | Up to 96GB |
| SATA | 6× SATA 3.0 | 8× SATA 3.0 |
| M.2 NVMe | 2× PCIe 4.0 | 3× NVMe |
| 2.5GbE | 4× Intel i226 | 2× Intel i226 |
| PCIe | PCIe x16 | PCIe 5.0 x16 |
| Primary Focus | Storage + multi-port networking | Higher-density NAS storage |
M67 is not a one-for-one replacement for every M66 configuration.
M67 increases SATA and NVMe storage capacity, while M66 provides
more onboard 2.5GbE network ports.
M67 Q670 NAS Motherboard FAQ
Does the CWWK M67 include a CPU?
No. M67 is sold as a motherboard. CPU, memory,
storage drives and other system components are not included.

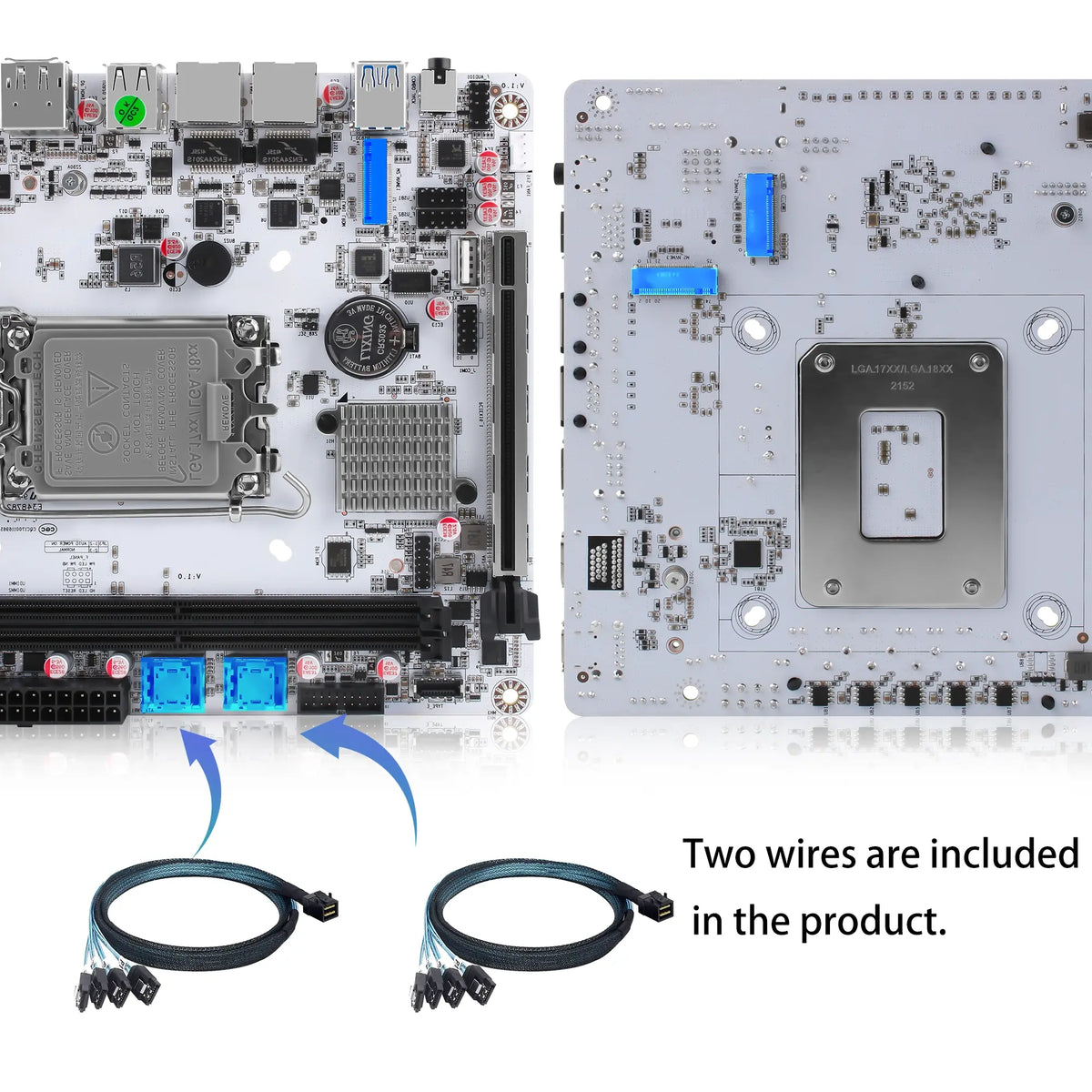

How does M67 support eight SATA drives?
M67 uses two SFF-8643 connectors. Each connector breaks out
to four SATA 3.0 interfaces through a compatible cable,
supporting up to eight SATA drives in total.
How many M.2 NVMe SSDs can be installed?
Three. M67 provides two PCIe 4.0 x4 interfaces
and one PCIe 3.0 x4 interface. The front slot supports
2280 and 22110 SSDs, while the two rear slots support 2280 SSDs.
Which Intel processors does M67 support?
M67 supports Intel 12th, 13th and 14th Gen LGA1700 desktop processors.
65W-class processors are recommended for standard configurations,
while T-series processors are suitable for lower-power long-term operation.
How much DDR5 memory does M67 support?
M67 provides two desktop DDR5 U-DIMM slots
and supports up to 96GB total memory capacity.
Does M67 support Intel vPro?
The onboard Intel i226-LM network controller supports Intel vPro
remote-management functionality when paired with a compatible Intel processor.
Can I install a 10GbE network card?
M67 includes a PCIe 5.0 x16 expansion slot that can be used
with compatible PCIe network adapters, including compatible 10GbE NICs.
What is the difference between M66 and M67?
M66 provides six SATA interfaces, two M.2 NVMe slots and four 2.5GbE ports.
M67 shifts the platform toward higher storage density with eight SATA
interfaces and three M.2 NVMe slots while using two 2.5GbE ports.
