CWWK CW-U2 1U 10GbE Rackmount Firewall Appliance
CW-U2 1U Network Appliance with Expandable 2.5GbE & 10GbE
A compact 1U network platform combining Intel N-Series processors, four onboard Intel i226-V 2.5GbE interfaces and PCIe expansion for up to eight 2.5GbE ports or dual 10GbE SFP+ networking.
Three Network Configurations
CW-U2 starts with four onboard Intel i226-V 2.5GbE interfaces. The PCIe expansion slot can then be paired with different network daughterboards to create an eight-port 2.5GbE configuration or add dual 10GbE SFP+ connectivity.
CONFIGURATION 01
4× 2.5GbE
Four native Intel i226-V 2.5GbE RJ45 interfaces integrated directly on the motherboard.
CONFIGURATION 02
8× 2.5GbE
Four onboard Intel i226-V ports plus a four-port Intel i226-V 2.5GbE expansion board.
CONFIGURATION 03
4× 2.5GbE
+ 2× 10GbE SFP+
Four onboard Intel i226-V ports plus two Intel 82599ES 10GbE SFP+ interfaces.
Five Intel Processor Options
Choose from five current processor configurations, ranging from efficient 4-core platforms for dedicated routing and firewall workloads to 8-core options with additional headroom for multi-service networking.
N100
Intel® Processor N100
Efficient choice for dedicated firewall, routing and basic VPN workloads.
N150
Intel® Processor N150
Updated 4-core option with additional frequency headroom for everyday network services.
N200
Intel® Processor N200
Higher-frequency 4-core option for multi-service routing, VPN and network appliance workloads.
N300
Intel® Core™ i3-N300
Eight-core option for heavier routing, concurrent network services and virtualization.
i3-N305
Intel® Core™ i3-N305
Highest-performance CW-U2 option for multi-service networking and more demanding workloads.
DDR5 Memory for Compact Network Computing
CW-U2 uses a DDR5 SO-DIMM memory architecture. Current online configurations are available with 8GB or 16GB RAM, while barebone configurations are available for customers preparing their own memory and storage.

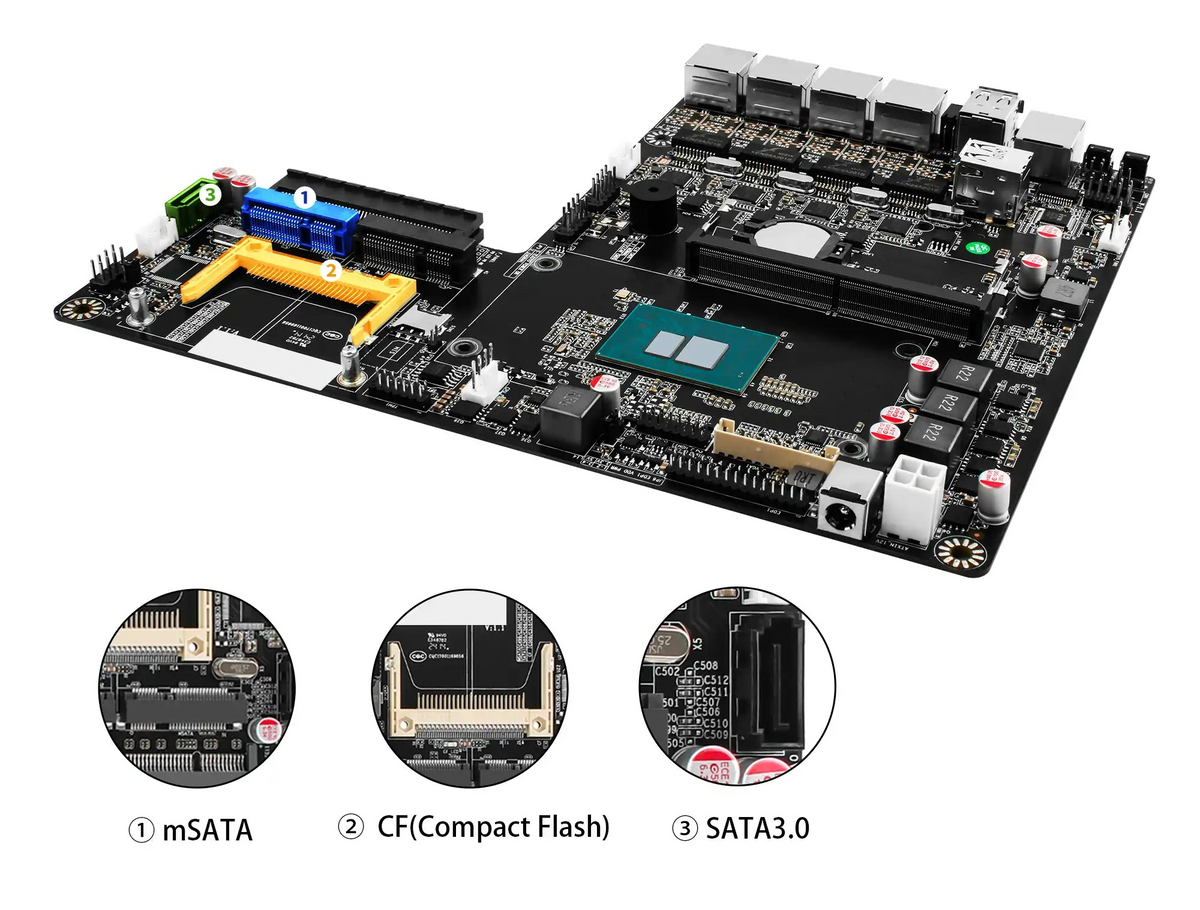

Flexible CF, mSATA & SATA Storage
The motherboard provides CF, mSATA and SATA 3.0 storage connectivity. These three storage interfaces use a shared configuration and operate on a one-out-of-three basis.
- 1× CF card interface
- 1× mSATA interface
- 1× SATA 3.0 6Gbps interface
- CF / mSATA / SATA 3.0 — choose one
Available Memory & Storage Configurations
Select a barebone system or choose from the currently available RAM and storage combinations.
PCIe Expansion for More Network Interfaces
The physical PCIe x8 slot carries a PCIe 3.0 x4 signal and provides the expansion path used for the additional 2.5GbE or 10GbE network daughterboards.
- 1× physical PCIe x8 slot
- PCIe 3.0 x4 signal
- Optional 4× Intel i226-V 2.5GbE daughterboard
- Optional 2× Intel 82599ES 10GbE SFP+ daughterboard
19-Inch 1U Rackmount Chassis
440 × 320 × 45 mm
The standard CW-U2 sold online uses the compact 1U chassis, combining multiple network configurations with a rack-efficient form factor for firewall and network infrastructure deployments.
Power Supply Options by Network Configuration
The 4× 2.5GbE and 8× 2.5GbE versions each include one power supply as standard. The 4× 2.5GbE + 2× 10GbE SFP+ version includes two power supplies as standard; no additional power supply purchase is required for this version.
Want Dual Power Supplies for a 4-Port or 8-Port Version?
The 4× 2.5GbE and 8× 2.5GbE versions ship with a single power supply. To configure either of these versions with dual power supplies, purchase one additional compatible 1U power supply separately. The 4× 2.5GbE + 2× 10GbE SFP+ version already includes two power supplies.
Technical Specifications
| Model | CW-U2 / CW-NET-ADLN-4L |
|---|---|
| CPU Options | Intel N100 / Intel N150 / Intel N200 / Intel Core i3-N300 / Intel Core i3-N305 |
| Memory | 1× DDR5 SO-DIMM; current configurations: 8GB / 16GB |
| Base Networking | 4× Intel i226-V 2.5GbE RJ45 |
| Network Configuration 1 | 4× Intel i226-V 2.5GbE RJ45 |
| Network Configuration 2 | 4× onboard Intel i226-V 2.5GbE + 4× Intel i226-V 2.5GbE expansion |
| Network Configuration 3 | 4× onboard Intel i226-V 2.5GbE + 2× Intel 82599ES 10GbE SFP+ |
| PCIe Expansion | 1× PCIe x8 physical slot, PCIe 3.0 x4 signal |
| Storage Interfaces | 1× SATA 3.0 / 1× mSATA / 1× CF card interface; one out of three |
| Current SSD Options | 64GB / 128GB / 256GB / 512GB, depending on selected RAM configuration |
| Wireless / Cellular | 1× miniPCIe interface |
| Console | 1× RJ45 Console |
| USB | USB 3.0 / USB 2.0 plus internal USB headers |
| Display | VGA / internal HDMI / EDP |
| Watchdog | 0–255 seconds |
| Network Features | Wake-on-LAN / PXE |
| Power Supply | 4× 2.5GbE and 8× 2.5GbE: one power supply included. 4× 2.5GbE + 2× 10GbE SFP+: two power supplies included. For dual power supplies on a 4-port or 8-port version, purchase one additional 1U power supply . |
| 1U Dimensions | 440 × 320 × 45 mm |
| 2U Custom Dimensions | 435 × 439 × 90 mm |
| Operating Temperature | 0°C to 60°C |
| Operating System | Windows 10 / 11, Windows Server, Linux |
Built for Flexible Network Deployments
Efficient Intel processors, four native 2.5GbE interfaces and PCIe network expansion allow CW-U2 to cover a wide range of rack-mounted networking roles.
01
Firewall Appliance
Four native 2.5GbE interfaces provide a practical foundation for firewall and segmented network deployments.
02
Multi-Port Router
Expand to eight 2.5GbE interfaces when additional physical network zones are required.
03
10GbE Gateway
Add dual 10GbE SFP+ connectivity for high-speed uplinks, gateways and network aggregation.
04
Edge Networking
Deploy routing, VPN and local network services inside a compact 1U rack footprint.
CW-U2 2U Custom Configuration
The CW-U2 sold through the online store is the standard 1U version. For projects requiring a larger chassis, additional internal space or enhanced cooling, a 2U version can be supplied through pre-sales customization and bulk purchasing.
The 2U chassis is not a standard online variant. Contact the CWWK pre-sales team if your project requires a 2U chassis or other volume customization.
Frequently Asked Questions
Which processors are currently available for CW-U2?
Current processor options include Intel N100, N150, N200, Core i3-N300 and Core i3-N305.
What is the difference between N100, N150, N200, N300 and i3-N305?
N100, N150 and N200 are 4-core, 4-thread options focused on efficient network workloads. Core i3-N300 and Core i3-N305 provide 8 cores and 8 threads for workloads that require more processing headroom.
How many network ports can CW-U2 support?
The motherboard provides four native Intel i226-V 2.5GbE ports. Current configurations can expand this to eight 2.5GbE ports or combine the four native 2.5GbE ports with two 10GbE SFP+ ports.
What is the difference between the three network configurations?
The base version provides 4×2.5GbE. The second configuration adds another four Intel i226-V 2.5GbE ports. The third configuration adds two Intel 82599ES 10GbE SFP+ ports alongside the four onboard 2.5GbE interfaces.
Can CF, mSATA and SATA drives be used at the same time?
No. The CF card, mSATA and SATA 3.0 storage interfaces use a one-out-of-three configuration.
Does CW-U2 include dual power supplies?
It depends on the selected network configuration. The 4× 2.5GbE and 8× 2.5GbE versions include one power supply each. The 4× 2.5GbE + 2× 10GbE SFP+ version includes two power supplies. For dual power supplies on either of the first two versions, purchase one additional compatible 1U power supply .
Can CW-U2 be ordered as a 2U system?
Yes. The standard online product is 1U. The 2U chassis is available through pre-sales customization and bulk purchasing.
