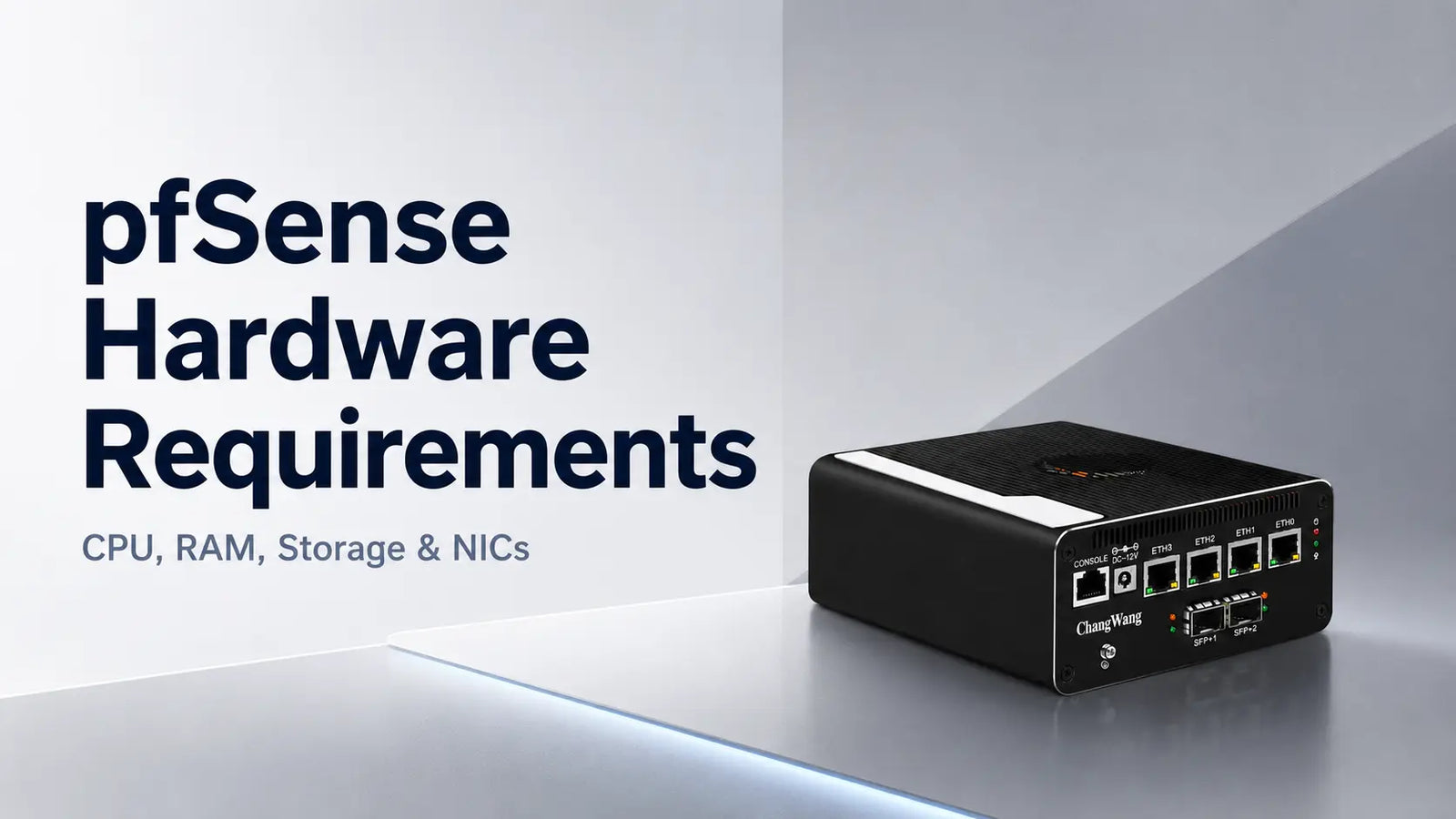

pfSense Hardware Requirements: CPU, RAM, Storage & NICs

Quick Answer

For third-party hardware, the current pfSense documentation lists a 64-bit amd64/x86-64 compatible CPU, at least 1 GB of RAM, an 8 GB or larger storage device, and one or more compatible network interfaces as the minimum hardware requirements. Netgate explicitly notes that these minimum requirements are not suitable for every deployment.

For a new dedicated home or Home Lab firewall, a more practical starting point is usually a modern low-power x86-64 CPU, 8 GB of RAM, a 32-64 GB SSD and at least two reliable Ethernet interfaces.

If the system will handle 2.5GbE or 10GbE routing, high VPN throughput, IDS/IPS, many packages or a large number of simultaneous connections, hardware should be sized around those workloads rather than the installation minimum.

Key Takeaways

• The official pfSense minimum is only an installation baseline: 64-bit x86-64 CPU, 1 GB RAM, 8 GB storage and compatible NICs.
• For a newly built home firewall, 8 GB RAM and a 32-64 GB SSD provide substantially more practical headroom.
• CPU requirements increase with VPN, IDS/IPS, small-packet traffic and multi-gigabit networking.
• NIC quality matters. Netgate recommends Intel NICs for third-party systems because of mature FreeBSD driver support and performance.
• 2.5GbE or 10GbE ports do not guarantee equivalent firewall throughput; CPU, packet size, firewall features and NIC implementation all matter.
• Snort and Suricata can add significant CPU and RAM requirements.
• Large state tables can consume substantial memory in high-connection environments.
• USB Ethernet adapters should be avoided for pfSense firewall interfaces.

Minimum vs Recommended pfSense Hardware Requirements

The official pfSense minimum hardware specification is deliberately modest.

For third-party systems, Netgate currently lists a 64-bit amd64-compatible processor, 1 GB or more RAM, an 8 GB or larger storage device and one or more compatible NICs.

However, Netgate also states that the minimum specification is not appropriate for every environment. Hardware sizing should instead be based primarily on required throughput and enabled features.

Minimum requirements answer whether pfSense can run. Recommended hardware answers whether pfSense can handle your actual network workload.

That difference becomes increasingly important as network speed and firewall services increase.

pfSense CPU Requirements

Basic Routing and Firewall

Basic pfSense services such as NAT, DHCP, DNS forwarding, VLANs and standard firewall rules are relatively lightweight.

For a typical home network, a modern low-power x86-64 processor usually provides sufficient CPU capacity.

This is one reason compact Intel N-Series firewall systems are commonly used for dedicated home firewall and Home Lab deployments.

However, CPU selection should not be based only on the advertised Ethernet port speed.

1GbE and 2.5GbE Routing

A CPU that handles a simple 1GbE firewall may face a very different workload once the network moves to 2.5GbE.

The actual requirement depends on:

• Packet size
• Packets per second
• Number of firewall rules
• NAT workload
• VLANs
• VPN
• IDS/IPS
• Traffic inspection
• Number of simultaneous connections

Netgate's hardware sizing guidance shows why packet rate matters. At the same packet rate, small packets produce dramatically less total throughput than large packets, meaning firewall performance cannot be evaluated from link speed alone.

For that reason, a device with 2.5GbE interfaces should not automatically be assumed to route every workload at full 2.5Gbps.

10GbE and High Packet-Rate Workloads

10GbE places significantly more pressure on the entire platform.

A 10GbE firewall should be evaluated as a complete system:

CPU -> PCIe bandwidth -> NIC -> memory -> firewall workload

The NIC may support 10GbE while the CPU becomes the actual bottleneck.

Small-packet workloads, complex firewall rules, traffic inspection and VPN encryption can further reduce achievable throughput.

For 10GbE deployments, leave substantially more CPU headroom than you would for a basic home firewall.

pfSense RAM Requirements

1 GB - Official Minimum

The current official minimum for third-party pfSense hardware is 1 GB RAM.

That number should not be treated as the ideal specification for a newly built firewall.

Low-memory systems have less room for packages, firewall states, updates and additional services. Netgate also notes that systems with 1 GB or less available memory can experience problems during upgrades depending on their configuration.

4 GB - Basic Dedicated Firewall

4 GB can be sufficient for a relatively simple dedicated firewall running workloads such as

• NAT
• DHCP
• DNS
• Basic firewall rules
• VLANs
• Light VPN use

If you already own suitable 4 GB hardware, there is not necessarily a reason to replace it purely because of memory capacity.

For new hardware, however, the price difference between 4 GB and 8 GB is often small compared with the additional headroom.

8 GB - Practical Starting Point

For most new home and Home Lab firewall builds, 8 GB is a more practical starting point.

It provides additional capacity for:

• Packages
• VPN services
• Larger state tables
• Monitoring
• More complex rules
• Future pfSense upgrades

It also avoids designing a new system around the absolute minimum specification.

16 GB or More - IDS/IPS and Heavier Workloads

16 GB or more becomes useful when the firewall runs heavier services such as:

• Snort
• Suricata
• Multiple VPN workloads
• Large state tables
• Numerous packages
• More demanding network monitoring

Memory should still be sized according to the workload rather than assuming every pfSense system needs 16 GB.

pfSense Storage Requirements

8 GB - Official Minimum

The official pfSense minimum specification lists an 8 GB or larger disk. SSDs and HDDs are both supported.

This is enough to satisfy the installation requirement, but it leaves relatively little capacity for long-term logs, packages and future system use.

Why 32-64 GB SSD Is More Practical

For a dedicated firewall, pfSense does not require hundreds of gigabytes of storage.

A 32 GB or 64 GB SSD is already a practical size for many installations and provides substantially more breathing room than the 8 GB minimum.

Larger storage may be useful if the system:

• Retains extensive logs
• Installs multiple packages
• Uses monitoring or reporting tools
• Requires additional upgrade headroom

For most firewall builds, SSD capacity is much less important than CPU capability, RAM and NIC quality.

pfSense NIC Requirements

The network interface is one of the most important components in a pfSense system.

A fast CPU paired with a poor-quality NIC can still result in low throughput, high CPU utilization or driver problems.

Intel NICs and FreeBSD Driver Support

Netgate's current hardware guidance specifically recommends Intel NICs for third-party pfSense systems because they generally have solid FreeBSD drivers and good performance.

Common x86 firewall platforms may use controllers such as:

• Intel i210 / i211
• Intel i225
• Intel i226
• Intel 10GbE controllers

The important point is not the model name alone. Confirm FreeBSD and pfSense compatibility for the exact hardware implementation.

1GbE vs 2.5GbE vs 10GbE

Choose NIC speed based on the rest of the network.

2.5GbE has become particularly useful for compact firewall systems because it offers more bandwidth than Gigabit Ethernet without the infrastructure cost of a complete 10GbE network.

For additional hardware options, see the CWWK Firewall Mini PC Collection.

How Many Ethernet Ports Do You Need?

Two interfaces are sufficient for the simplest topology:

WAN + LAN

More ports become useful for:

• Dual WAN
• Dedicated management
• Separate server network
• IoT network
• Camera network
• Physical DMZ
• Direct NAS or server connectivity

However, VLANs can create multiple logical networks over a smaller number of physical interfaces.

Do not buy six or eight physical ports unless the network topology actually requires them.

For a broader comparison, see the CWWK Firewall Mini PC Guide.

Avoid USB Ethernet Adapters

Netgate explicitly advises against using USB Ethernet adapters for pfSense because of reliability and performance limitations.

For a permanent firewall, use integrated or PCIe-connected Ethernet interfaces whenever possible.

pfSense VPN Hardware Requirements

VPN workloads increase CPU demand because traffic must be encrypted and decrypted.

The amount of CPU required depends on:

• VPN protocol
• Encryption algorithm
• Number of tunnels
• Number of simultaneous users
• Required VPN throughput

WireGuard

WireGuard is designed to be efficient, but high throughput still requires sufficient CPU capacity.

A few low-bandwidth remote-access tunnels place much less load on a firewall than many users or high-speed site-to-site traffic.

OpenVPN

OpenVPN performance can become CPU-sensitive, especially when high throughput is required.

Modern CPUs with cryptographic instruction support can reduce encryption overhead.

IPsec

IPsec can benefit substantially from hardware cryptographic acceleration.

Netgate documentation notes that technologies including AES-NI, IPsec-MB and QAT can improve VPN throughput and reduce CPU utilization, although the exact acceleration available depends on hardware and pfSense edition.

Does pfSense Require AES-NI?

AES-NI is not listed as part of the current pfSense minimum hardware requirements.

That does not mean hardware encryption capabilities are irrelevant.

If high VPN throughput is a priority, cryptographic acceleration can significantly reduce CPU overhead.

IDS/IPS, Packages and State Tables

Snort and Suricata

Running IDS/IPS changes the hardware requirements considerably.

Snort and Suricata inspect traffic rather than simply forwarding it, increasing both CPU and memory consumption.

Netgate states that these packages can require significant RAM. Around 1 GB should be considered a minimum for the IDS/IPS package itself, while some configurations may require 2 GB or more, excluding RAM already required by the operating system, state table and other packages.

That is why 8-16 GB of system RAM becomes much more reasonable for an IDS/IPS firewall than for a simple NAT router.

Large State Tables and Concurrent Connections

Every active connection passing through pfSense creates firewall state entries.

Netgate notes that a normal connection typically creates two states - one entering and one leaving the firewall - and estimates roughly 1 KB RAM per state.

This memory is only for state tracking. The operating system and packages still require their own RAM.

For an ordinary household, state-table memory is rarely the primary sizing issue. It becomes much more relevant in offices, public networks and environments with large numbers of concurrent clients or sessions.

Bare Metal vs Virtualized pfSense

pfSense can run directly on dedicated hardware or inside a hypervisor.

Bare Metal

Bare-metal installation offers the simplest architecture.

It is a strong fit when the device is the primary gateway for the entire network because there are fewer dependencies between the firewall and other systems.

Typical advantages include:

• Simpler troubleshooting
• Direct NIC access
• No hypervisor dependency
• Predictable boot process

Virtualized pfSense

Virtualization can make sense in a Home Lab or consolidated server environment.

Platforms such as Proxmox can host pfSense alongside other services, but the design should account for:

• Hypervisor downtime
• NIC passthrough or virtual bridges
• CPU and RAM allocation
• Network-interface behavior
• Recovery if the host fails

Virtualized NICs can also require additional tuning. Netgate notes that checksum offloading problems can occur with some virtualized or emulated network devices.

For a critical home or office gateway, the operational dependency on the hypervisor should be considered before choosing virtualization.

Practical pfSense Hardware Configurations

These are practical starting points rather than guaranteed performance specifications.

Do not interpret this table as a promise that a specific CPU will achieve a specific throughput.

Netgate explicitly warns that estimating performance for third-party or white-box hardware is difficult because real performance depends on traffic pattern, packet size, enabled features and hardware implementation.

If you are choosing between multi-port 2.5GbE and 10GbE platforms, see 2.5GbE vs 10GbE for Firewall Hardware.

FAQ

What Are the Minimum Hardware Requirements for pfSense?

For third-party hardware, pfSense currently requires a 64-bit amd64/x86-64 compatible CPU, at least 1 GB RAM, an 8 GB or larger storage device and one or more compatible network interfaces. These are installation minimums rather than recommendations for every workload.

How Much RAM Does pfSense Need?

1 GB is the official minimum. 4 GB can handle many basic dedicated firewall workloads, while 8 GB is a more practical starting point for new home and Home Lab systems. IDS/IPS, large state tables and multiple packages can justify 16 GB or more.

Is 4 GB RAM Enough for pfSense?

Yes, 4 GB can be sufficient for a basic dedicated firewall running NAT, DHCP, VLANs and standard firewall rules. For new hardware, 8 GB provides more headroom for packages, VPN and future configuration changes.

How Large an SSD Does pfSense Need?

The official minimum storage requirement is 8 GB. For a newly built firewall, a 32-64 GB SSD is a more practical choice and provides additional capacity for logs, packages and upgrades.

Is Intel N100 Suitable for pfSense?

Intel N100 can be a suitable processor for many dedicated home and Home Lab pfSense systems. Whether it is sufficient for a specific deployment depends on WAN speed, VPN throughput, IDS/IPS, packet rate and the services enabled. The presence of 2.5GbE NICs alone does not guarantee full 2.5Gbps performance under every workload.

Is Intel N305 Better Than N100 for pfSense?

N305 provides more CPU headroom than N100 and can be useful when the firewall runs additional services, heavier VPN workloads, IDS/IPS or more demanding network traffic. For a basic firewall, however, additional CPU performance may not materially improve the network if the existing processor is not the bottleneck.

Does pfSense Support 2.5GbE?

Yes, provided the network adapter has compatible FreeBSD drivers. Intel-based 2.5GbE NICs are commonly used in x86 firewall systems, but users should verify compatibility for the specific NIC and implementation.

Does pfSense Need Intel NICs?

Intel NICs are not an absolute requirement, but Netgate recommends them for third-party systems because of their mature FreeBSD drivers and generally strong performance.

Should I Use a USB Ethernet Adapter With pfSense?

No. Netgate advises against USB Ethernet adapters because of reliability and performance concerns.

Does pfSense Require AES-NI?

AES-NI is not part of the current pfSense minimum hardware requirements. However, cryptographic acceleration remains valuable for high VPN throughput and reducing CPU utilization.

Can pfSense Run on Proxmox?

Yes. pfSense can run inside a virtual machine, but the design should consider NIC configuration, resource allocation and what happens to Internet access when the hypervisor reboots or fails. For a primary gateway where simplicity and independence are priorities, bare metal remains easier to operate.

Choose pfSense Hardware for the Workload, Not the Minimum

pfSense can run on surprisingly modest hardware.

But a system that merely installs pfSense and a system expected to route multi-gigabit traffic, inspect packets, terminate VPN tunnels and serve thousands of simultaneous connections are fundamentally different hardware requirements.

Start with four questions:

• What network speed do you need?
• How many physical interfaces do you need?
• Will you run VPN or IDS/IPS?
• Will pfSense run on bare metal or inside a hypervisor?

Then select the CPU, RAM, storage and NICs around those requirements.
