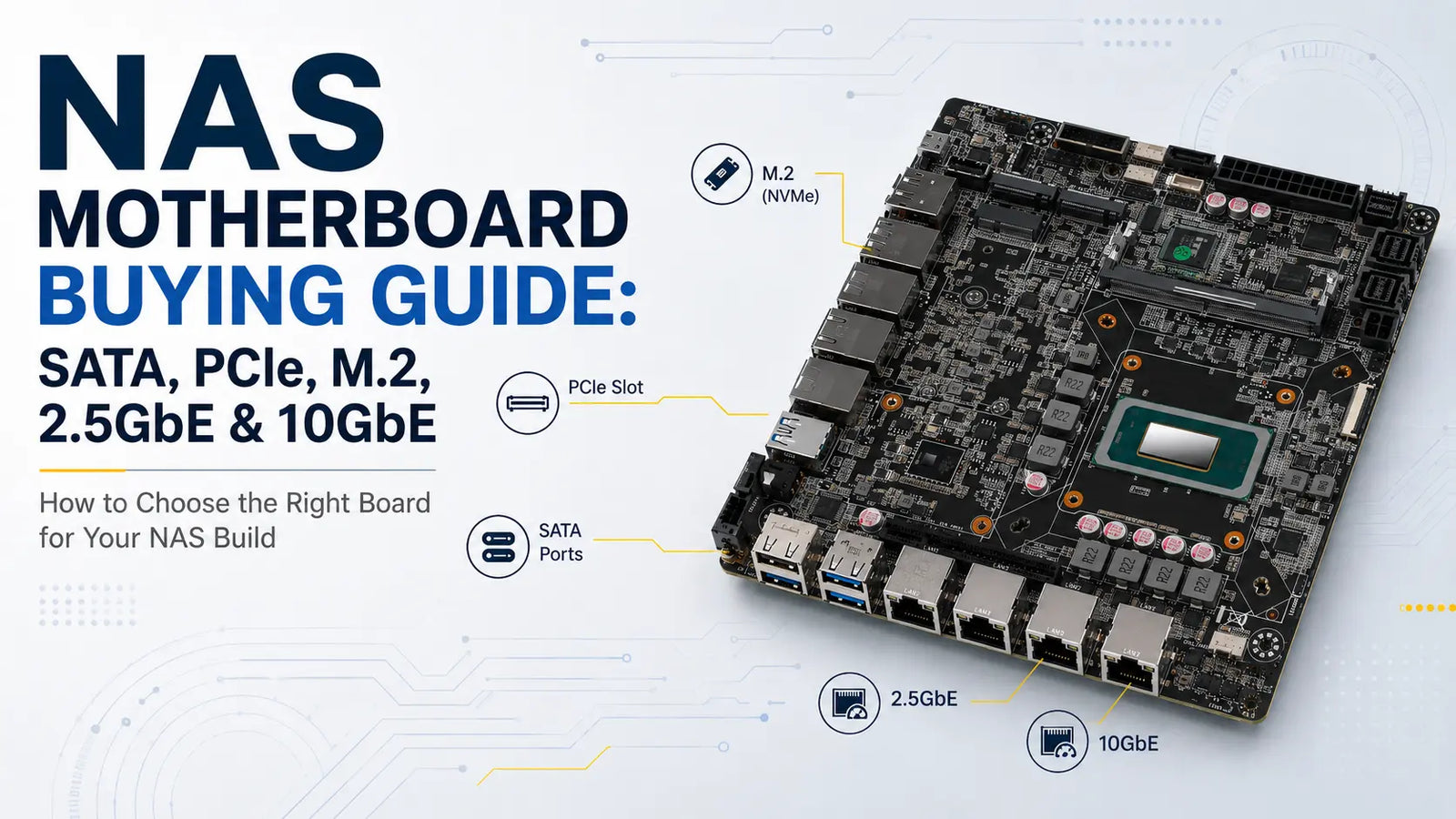

NAS Motherboard Buying Guide: SATA, PCIe, M.2, 2.5GbE & 10GbE
On This Page
Quick Answer
When choosing a NAS motherboard, first determine the number and type of drives, then confirm how these interfaces are connected, how much network bandwidth the storage array can actually use, and whether the system still has enough PCIe resources for a faster NIC, HBA, or accelerator.
Most DIY NAS systems generally fall into three directions: compact motherboards with 4–8 SATA ports and 2.5GbE, platforms with 8–12 SATA ports and stronger expansion capabilities, or platforms with a SATA/NVMe hybrid design and 10GbE. The CWWK NAS hardware collection covers these architectures.
Key Takeaways
- Count the number of drives you currently plan to install while also considering drives you may add in the future.
- Before assuming that every M.2 slot, SATA port, and expansion slot can operate at full speed simultaneously, check for PCIe lane sharing.
- Choose 2.5GbE or 10GbE based on the actual throughput capability of the storage pool rather than marketing claims.
- Plan memory capacity around workloads such as file services, ZFS cache, containers, and virtual machines rather than simply based on storage capacity.
- Keep at least one practical expansion path available for a future HBA, faster NIC, or other device.
Start With the Storage Topology, Not the CPU
Storage layout usually has a greater impact on a NAS motherboard than the processor. A four-bay backup server, an eight-bay ZFS system, and an all-flash NVMe system have completely different motherboard requirements.
SATA remains a practical interface for large-capacity HDD arrays because hard drives are less expensive and offer high capacity, and these workloads are usually more limited by the drives themselves than by interface bandwidth. When a workload requires low latency, high IOPS, or compact flash storage, M.2 NVMe is more suitable. Hybrid platforms can use SATA for high-capacity storage while using NVMe for applications, virtual machines, metadata, or a separate high-speed storage pool.
Before purchasing, list the planned drive layout, including the boot drive, data drives, cache drive or application storage pool, and one or two drives that may be added in the future. This makes it possible to immediately determine whether four SATA ports are sufficient or whether you should start with six, eight, or even twelve SATA channels.
The CWWK DIY NAS Overview introduces the broader choices between Mini PCs, NAS motherboards, and different storage types. If you have not yet decided on a specific hardware platform, you can refer to this article first.
PCIe Lanes Are the Hidden Constraint
When quickly comparing products, one of the most important but often overlooked specifications is PCIe lane topology. An M.2 slot may physically be x4, but its actual electrical lanes may be limited. A PCIe slot may also share resources with an M.2 interface. SATA ports may be connected through an onboard controller rather than directly to the chipset. These designs are not necessarily problematic, but they affect the performance the system can achieve when multiple devices operate simultaneously.
Four questions should be confirmed:
| Question | Why It Matters |
|---|---|
| How many PCIe lanes are actually connected to the main expansion slot? | Determines whether a 10GbE NIC, HBA, or accelerator can operate without creating an additional bottleneck. |
| Do the M.2 slots share lanes with SATA or PCIe? | Prevents discovering only after adding an NVMe SSD that interface resources are already occupied. |
| Are all SATA ports provided directly by the chipset, or are they provided by additional controllers? | Helps determine driver support and available upstream bandwidth. |
| After all planned devices are installed, can the motherboard still provide enough PCIe lanes? | The overall configuration is more important than any individual interface. |
This is especially important when the system has a large number of drives, SSDs, virtual machine storage, or 10GbE clients, because multiple interfaces may share a smaller upstream link.
Consider Future Expansion When Choosing the Number of SATA Ports
A practical rule is to choose the number of interfaces based on the planned storage array and reasonable future expansion rather than configuring the system around the largest number of drives you can imagine.
| Planned NAS | Sensible Motherboard Direction |
|---|---|
| 2–4 data drives | Compact motherboard with 4 SATA ports, or a small NVMe-oriented platform |
| 4–6 data drives | 6 SATA ports, at least one M.2 slot, and 2.5GbE |
| 6–8 data drives | 8 SATA ports, stronger expansion capability, and enough PCIe resources reserved for networking or an HBA |
| 8–12 data drives | A motherboard supporting 12 bays, or a platform designed around SFF/HBA expansion |
| All-flash NAS | Multiple M.2/U.2 channels, a reasonable PCIe topology, and usually 10GbE or faster networking |
Do not count a hot spare as additional usable capacity, and do not treat parity or RAID as a backup. A storage array with redundancy can maintain availability when a single drive fails, but it cannot protect against accidental deletion, ransomware, or a disaster affecting a second site.
For systems with higher drive counts, platforms such as the CWWK M10 12-bay NAS platform show why SFF interfaces and stronger PCIe expansion capabilities can be more practical than using a large number of individual SATA cables.
2.5GbE or 10GbE Should Be Determined by the Storage Pool
If the system is mainly used for HDD backup, a home file server, a media library, or a general home NAS, 2.5GbE is usually more suitable. Compared with 1GbE, it already provides a noticeable performance improvement while avoiding the cost and heat associated with a complete 10GbE network.
When the storage pool contains multiple SSDs, NVMe storage, a high-performance ZFS configuration, multiple concurrent clients, video editing workloads, or virtual machine storage capable of exceeding 2.5GbE performance, 10GbE can be considered. If 10GbE is planned, confirm that the NIC has a suitable PCIe connection and that the storage system itself can provide sufficient throughput. The CWWK 10GbE collection can be referenced when both storage and network capabilities need to scale together.
Memory Capacity Depends on Services, Not Just the Number of Drives
Memory should be planned according to the services running on the system rather than total storage capacity. A simple file server may need only 8–16 GB; Docker, media services, or light virtualization are generally better suited to 16–32 GB; a large number of virtual machines, deduplication, or integrated AI/RAG workloads may require 32–64 GB or more.
The current TrueNAS Hardware Guide lists 8 GB as the minimum configuration for a basic TrueNAS environment and clearly recommends adding more memory as the number of drives and clients increases or when using iSCSI, virtual machines, or other services. Compared with mechanically calculating memory based on a storage-capacity formula, this approach is more reasonable: add memory only when the workload requires it.
When data integrity and long-term unattended operation are very important, ECC memory has value, but ECC support depends on the platform formed by both the CPU and motherboard. If ECC is important for your project, verify support for the complete platform rather than only confirming that the DIMM itself supports ECC.
Expansion Capability Is More Important Than One Extra Feature Today
NAS hardware usually goes through multiple configuration upgrades. A usable PCIe expansion path should be reserved for adding an HBA, faster NIC, or accelerator in the future, while also confirming that installing M.2 devices will not disable that expansion path. Internal chassis space, power supply headroom, and drive cooling capability are just as important as electrical expansion capability.
Choose a NAS Motherboard Based on the Workload
| Workload | Storage | Network | Memory | Expansion Priority |
|---|---|---|---|---|
| Home backup | 4–6 HDDs | 2.5GbE | 8–16 GB | Low |
| Media server | HDD pool + NVMe application storage | 2.5GbE | 16–32 GB | Medium |
| TrueNAS/ZFS | HDD or SSD pool | 2.5/10GbE | 16–32+ GB | Reserve HBA/NIC expansion headroom |
| Proxmox + NAS | NVMe + SATA | 2.5/10GbE | 32 GB+ | PCIe and IOMMU flexibility |
| All-flash NAS | NVMe/SSD | 10GbE | 32 GB+ | Reasonable PCIe topology |
| Local AI data/RAG | NVMe + high-capacity storage tier | Prefer 10GbE when compute is separate | 32–64 GB+ if services run locally | Balance compute, NIC, and storage |
The purpose of this table is not to make you buy the motherboard with the “largest” configuration, but to help you determine which bottleneck your actual workload is most likely to encounter first.
Practical Buying Checklist
Before purchasing a NAS motherboard, confirm the following:
- The motherboard has enough SATA/M.2/U.2 interfaces to meet the requirements of the current storage pool and future expansion.
- The PCIe topology is documented clearly enough to determine which lanes are shared.
- The network interface can match the actual throughput capability of the storage pool.
- The maximum supported memory is sufficient for the operating system, application services, and future expansion.
- At least one expansion path remains available for an HBA, NIC, or other expansion card.
- The chassis can accommodate and effectively cool all drives.
- The power supply has enough connectors and can meet the power requirements of all drives during startup.
- The planned NAS operating system supports the relevant storage and network controllers.
CWWK provides product technical documentation through its Technical Documentation Center. When PCIe lane sharing, BIOS settings, or controller compatibility are important, refer to the specific technical documentation for the corresponding motherboard.
FAQ
Is 2.5GbE Enough for a DIY NAS?
For many HDD-based home and small-office NAS systems, it is sufficient. 2.5GbE gradually becomes a limiting factor when the storage pool can continuously deliver more than approximately 300 MB/s to a single client, especially when using SSDs, NVMe, or multiple concurrent users.
Does a Home NAS Need ECC Memory?
Not necessarily. ECC can provide an additional layer of protection against memory errors, but it requires support from the entire platform. ECC can be considered for important data or systems that operate unattended for long periods; for a general home NAS, non-ECC systems are also widely used.
Should I Choose More SATA Ports or a PCIe HBA?
For small systems, onboard SATA is simpler. For systems with more drives, an HBA can provide cleaner expansion and cabling, but it consumes PCIe lanes and adds another storage controller that must be supported by the operating system.
Does 10GbE Make Sense With Hard Drives?
Possibly. A single HDD cannot saturate 10GbE, but an array made up of multiple drives or multiple clients accessing the system simultaneously may achieve aggregate throughput above 2.5GbE. Whether 10GbE is needed should be determined by the total throughput capability of the storage pool.
External References
- TrueNAS Hardware Guide — current official guidance on memory, storage, networking, and hardware planning.
