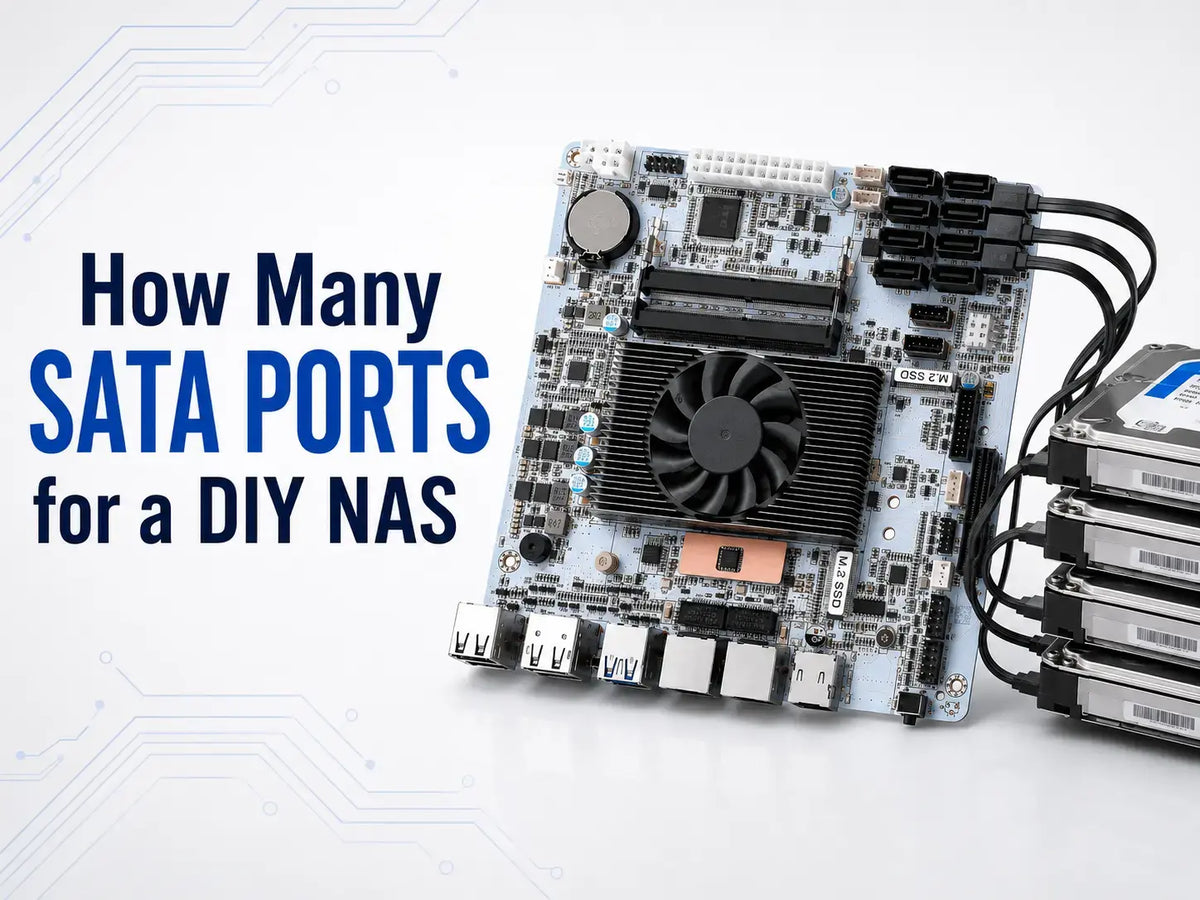

How Many SATA Ports Do You Need for a DIY NAS?

Quick Answer

Choose a NAS motherboard with enough SATA ports for the data drives you plan to install, plus realistic expansion. Four ports are enough for a compact backup NAS, six ports fit many mainstream DIY builds, eight ports provide better growth and 12+ ports make sense for high-capacity systems. Count boot and cache devices separately if they use M.2 or another interface.

Do not choose port count without considering redundancy, usable capacity, PCIe expansion, case drive bays and power connectors.

Key Takeaways

· 4 SATA ports: compact 2–4 drive NAS.

· 6 SATA ports: common sweet spot for home storage.

· 8 SATA ports: more flexible RAIDZ/parity layouts and growth.

· 12+ SATA ports: larger storage servers where SFF/HBA cabling becomes useful.

· Extra ports are valuable only if the chassis, PSU and controller bandwidth support them.

Start With Usable Capacity, Not Drive Count

The number of drives you need is determined by the usable capacity target and the redundancy layout. If you want 30 TB usable, the required drive count changes depending on whether the pool uses mirrors, single parity, dual parity or another layout.

Plan the data layout first, then choose the motherboard. Do not buy an eight-port board simply because eight is larger than six.

The CWWK DIY NAS guide explains the broader platform choice if you are still deciding between a mini PC, Pocket NAS and NAS motherboard.

4 SATA Ports: Small Backup and Media NAS

Four ports are enough when the NAS will stay compact. Typical uses include:

· two-drive mirror plus future expansion

· four-drive parity/mirror layouts

· family backup

· media storage

· secondary backup target

A four-port board is easier to cool and power, but it leaves less room for future growth. If the case has six or eight bays, buying only four onboard ports can force an HBA upgrade later.

6 SATA Ports: A Practical Home-NAS Sweet Spot

Six ports provide more layout flexibility without turning the system into a large server. You can build a four- or five-drive pool and still keep a spare connector for expansion, or use all six for a higher-capacity array.

This is a good range for:

· TrueNAS/Unraid home servers

· larger media libraries

· photo/video backup

· small-office storage

· mixed HDD + M.2 application storage

8 SATA Ports: Better Growth and More Layout Options

Eight ports make sense when you already know the NAS will grow. More disks provide additional choices for mirrors, RAIDZ/parity layouts and future capacity upgrades.

At this point, cooling, cabling and power become more important. Eight 3.5-inch drives need a case designed for storage, airflow across the bays and a power supply with enough connectors and startup current.

The CWWK NAS hardware collection includes multi-bay boards in this range, so the motherboard can be matched to a real chassis instead of treated as an isolated component.

12 or More Drives: Plan the Controller and Cabling

Large drive counts are where onboard individual SATA connectors become less convenient. SFF connectors or an HBA can simplify cabling and allow the board to scale beyond the chipset’s native SATA count.

A platform such as the CWWK M10 12-bay NAS board uses storage-oriented expansion rather than relying only on a row of individual SATA sockets.

For 12+ drives, verify:

· HBA/controller mode and OS support

· PCIe bandwidth to the controller

· case backplane compatibility

· power-supply capacity

· drive cooling

· hot-swap requirements

Do Not Count M.2 and SATA as Interchangeable

M.2 slots are useful for boot devices, application pools, VM storage and fast caches, but they do not replace SATA capacity drives in every design.

Also check lane sharing. Some boards disable a SATA port or reduce PCIe resources when a certain M.2 slot is populated. Read the board documentation before assuming all connectors work independently.

How Much Expansion Headroom Is Enough?

Buying one or two more drive ports than you need today is reasonable. Buying eight unused ports “just in case” may add cost and complexity without benefit.

A simple planning method is:

1. Define usable capacity now.

2. Choose a redundancy layout.

3. Count the drives required.

4. Add one growth step.

5. Verify the chassis has matching bays.

6. Confirm power, cooling and controller bandwidth.

Port Count by Use Case

FAQ

Is six SATA ports enough for TrueNAS?

Yes for many home systems. TrueNAS does not require a specific drive count; choose enough ports for your pool layout and growth.

Do I need one SATA port for the boot drive?

Not if the NAS boots from M.2 or another dedicated device. Keeping the boot device off the data-drive SATA ports can preserve capacity.

Can I add more SATA ports later?

Yes with a suitable HBA or storage controller, provided the motherboard has enough PCIe lanes and the OS supports the controller.

Should I keep a hot spare connected?

A hot spare can reduce recovery time in some designs, but it does not replace backups and it uses an extra port and drive bay. Decide based on availability requirements.
